Plan 62689DJ

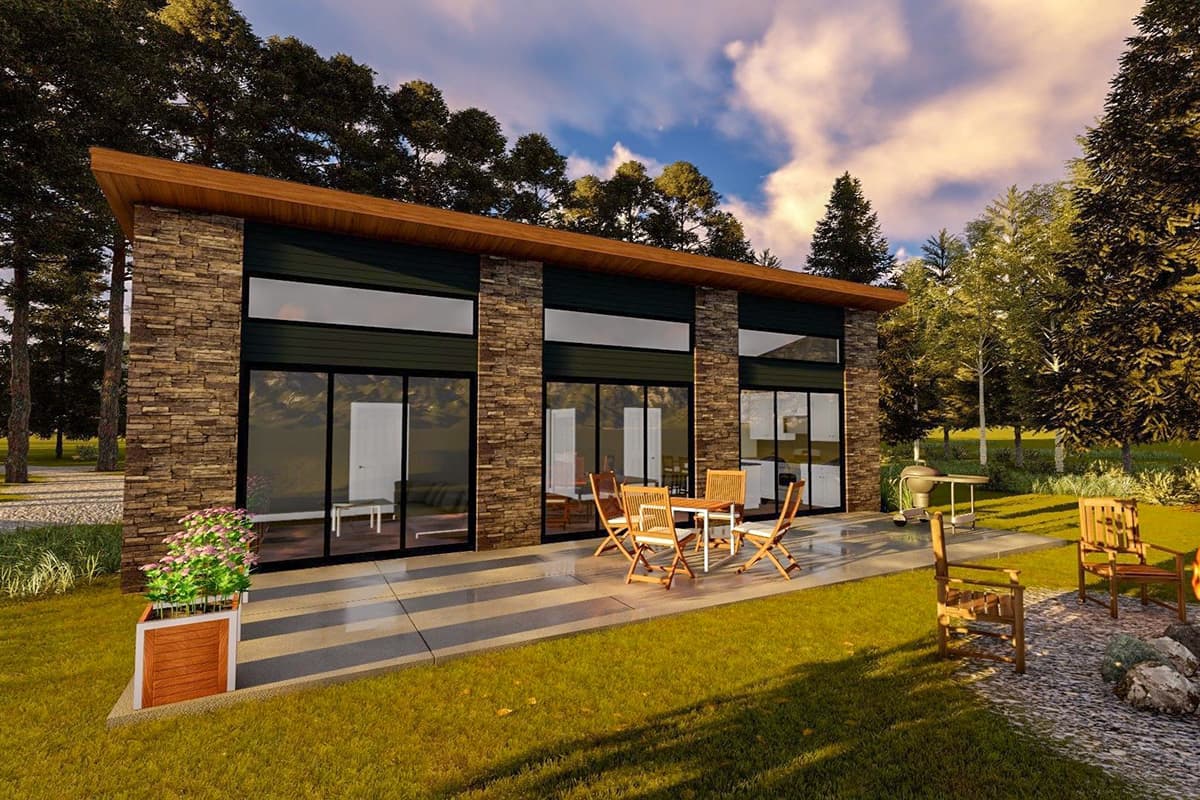

Contemporary Getaway House Plan
Heated S.F.
1,014
Beds
2
Baths
1
Stories
1
Floor Plan

Plan 62689DJ

Main Level
slide image 0

Plan 62689DJ

1-800-854-7852

1-262-521-4596

Main Level

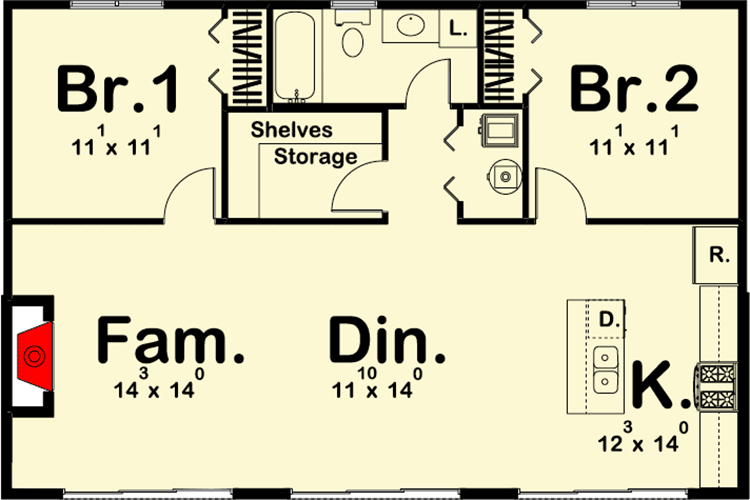

floor plan image Main Level
Plan Details

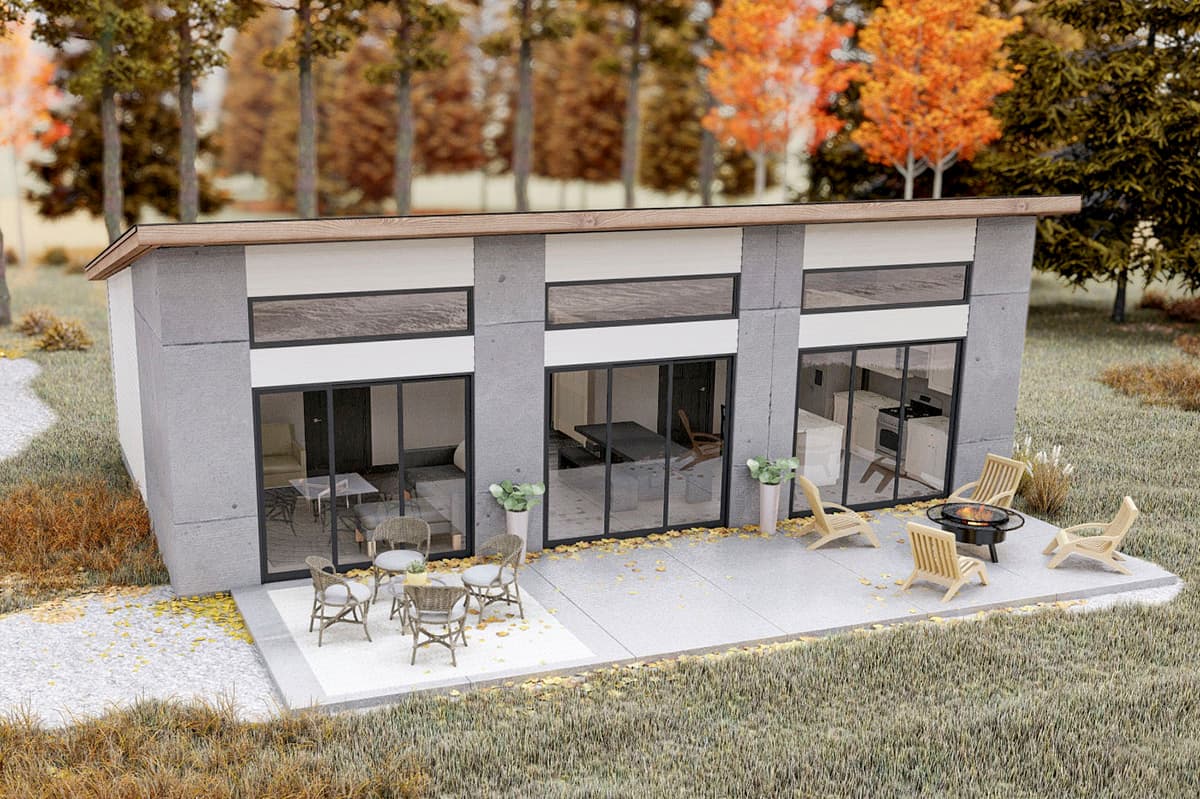

  • This Contemporary Vacation house plan offers two bedrooms with a nice modern exterior.
  • The entire home is bright and aisry from all the glass and transom windows.

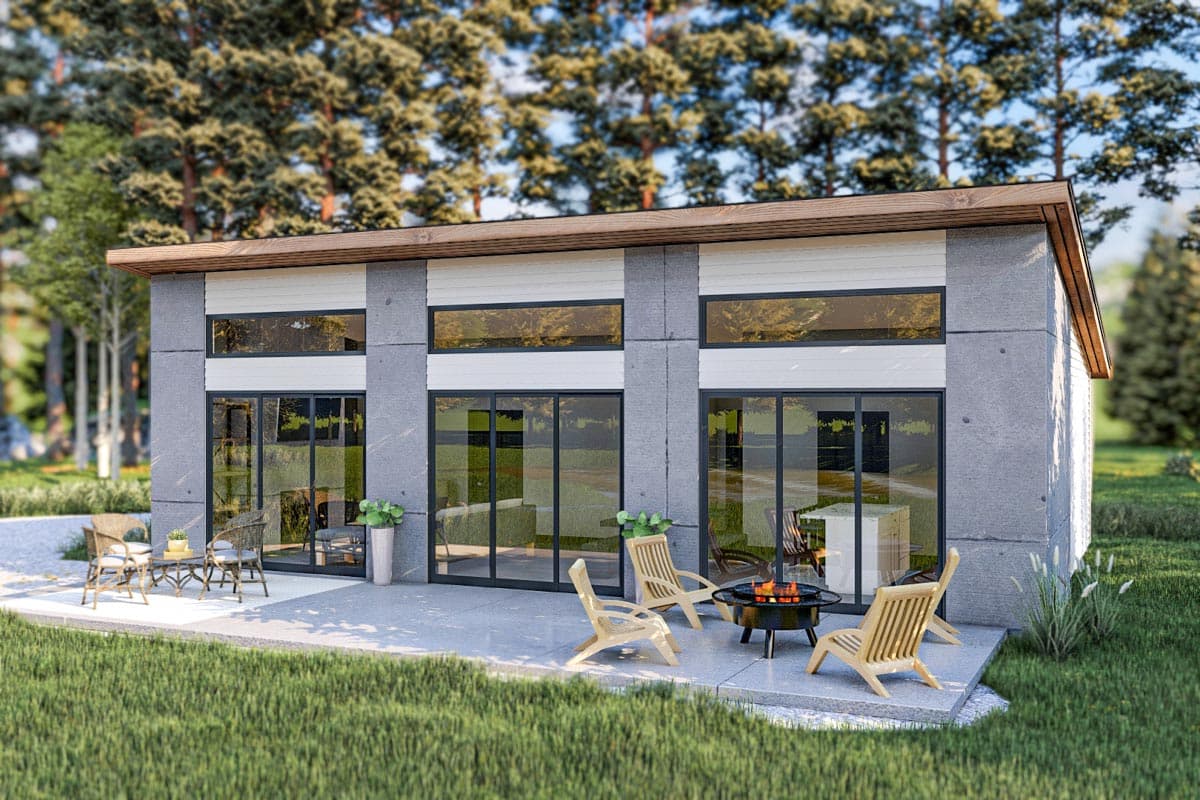

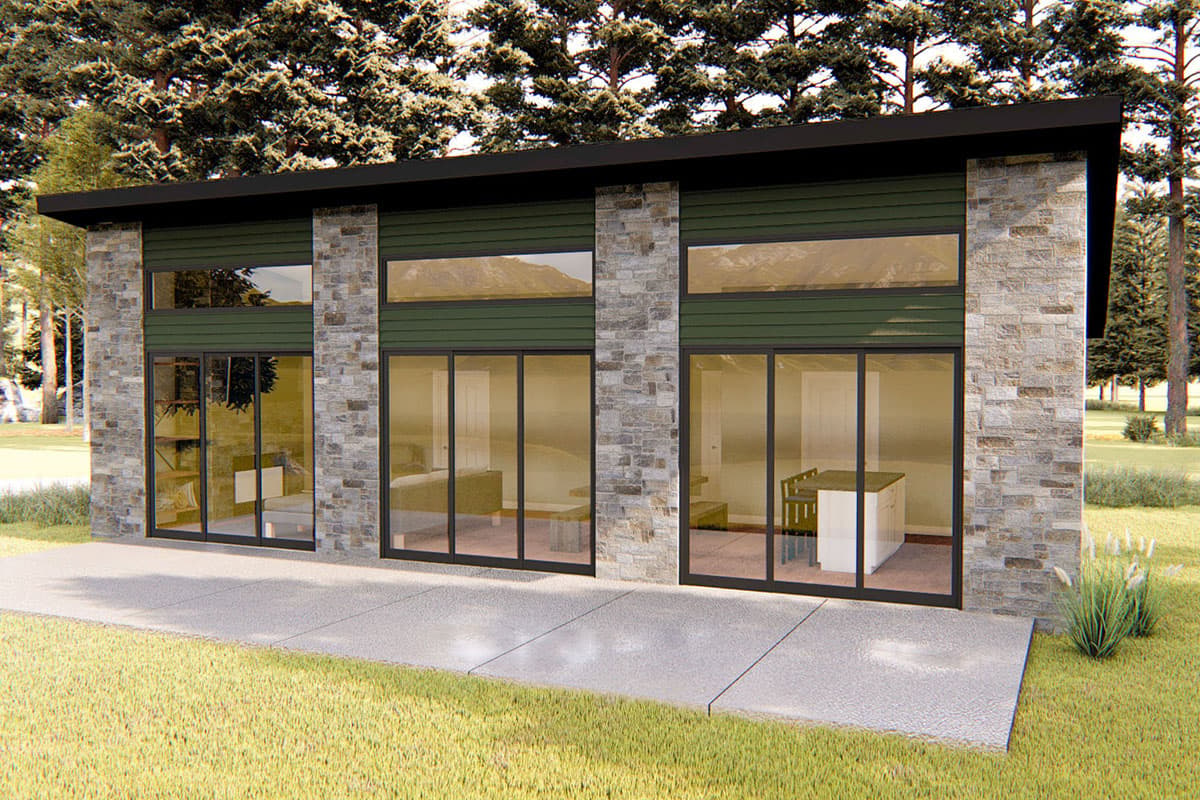

  • Three sliding glass doors open to the front of the home so you can easily get outside.
  • The storage closet is large with built-in shelving.
  • A linen cupboard in the full bathroom is a space-saving feature.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,014 sq. ft.

1st Floor

1,014 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 0"

Depth

26' 0"

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Family Room

Slope

0' 0''

Dining Room

Slope

0' 0''

Kitchen

Slope

0' 0''

Roof Details

Primary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Coastal

Contemporary

Modern

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,014 sq. ft.

1st Floor

1,014 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 0"

Depth

26' 0"

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Family Room

Slope

0' 0''

Dining Room

Slope

0' 0''

Kitchen

Slope

0' 0''

Roof Details

Primary Pitch

2 on 12

Framing Type

Stick

Architectural Style

Coastal

Contemporary

Modern

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor
