Plan 280213JWD

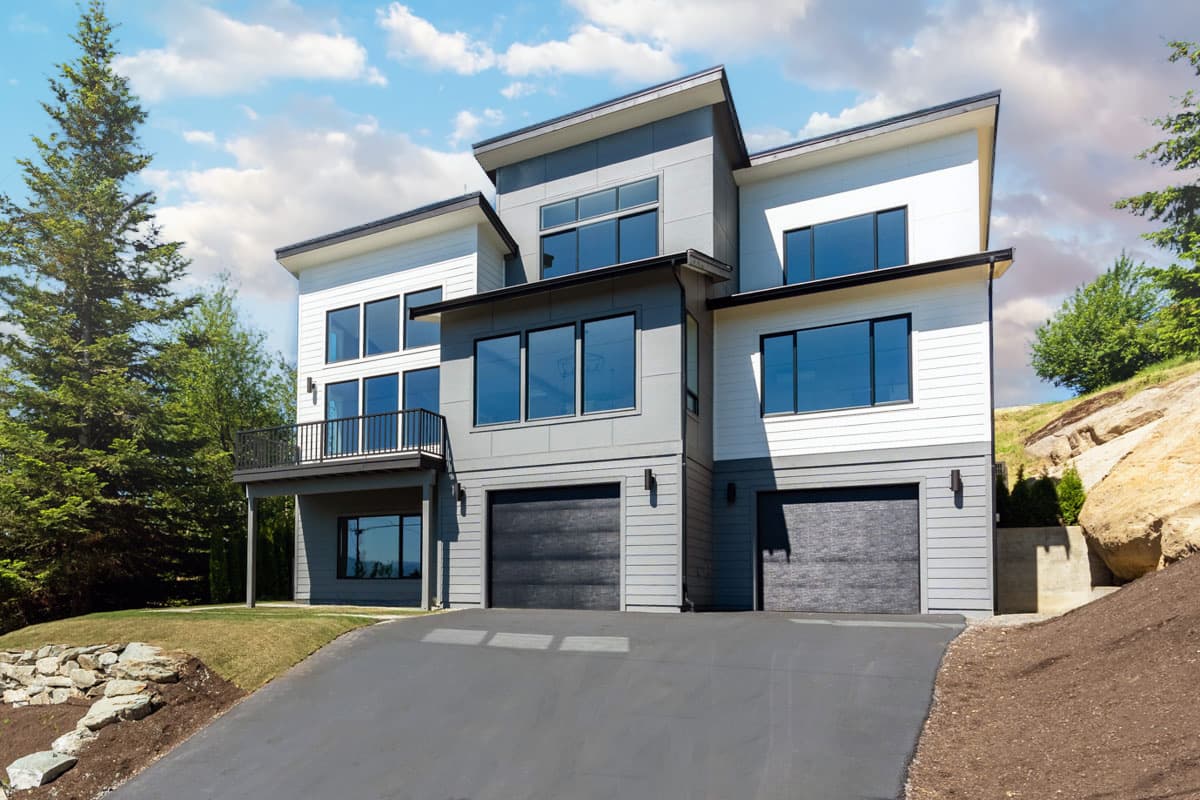

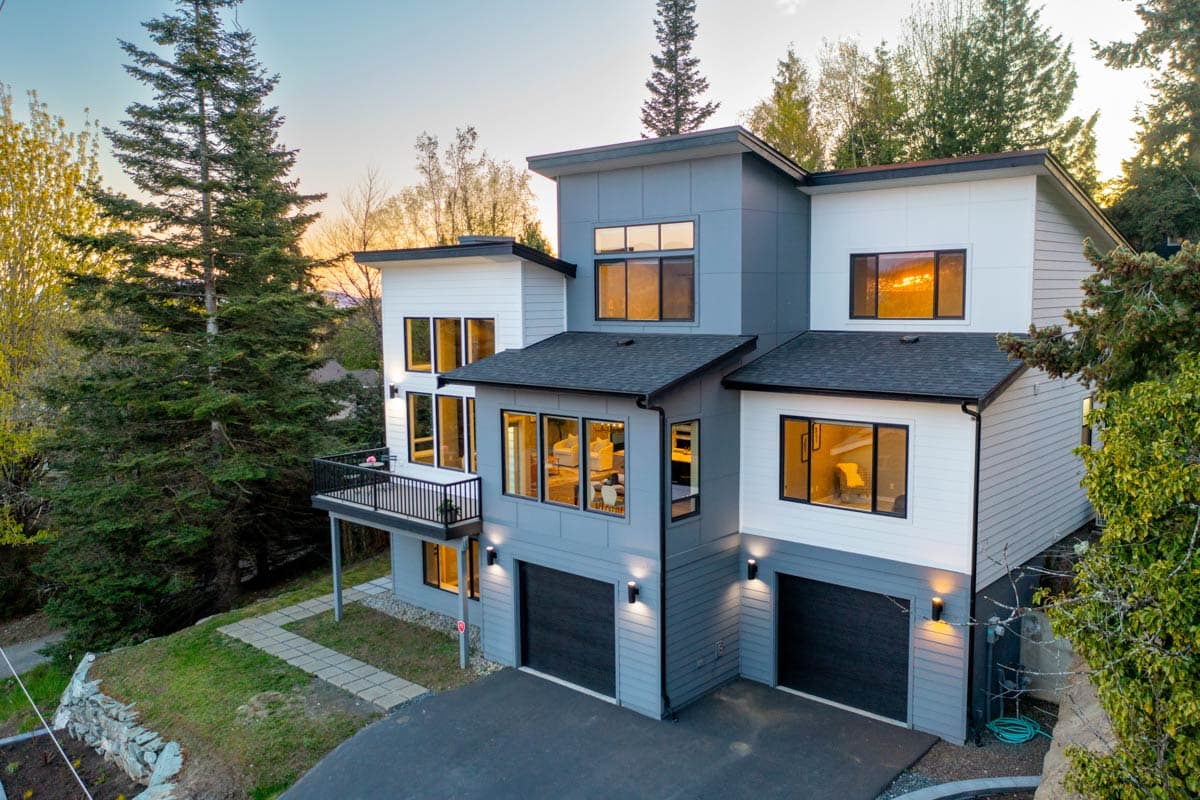

Contemporary Home Plan with Three Level Living - 2589 Sq Ft
Heated S.F.
2,589
Beds
2 - 3
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 280213JWD

Main Level
slide image 0
2nd Floor
slide image 1

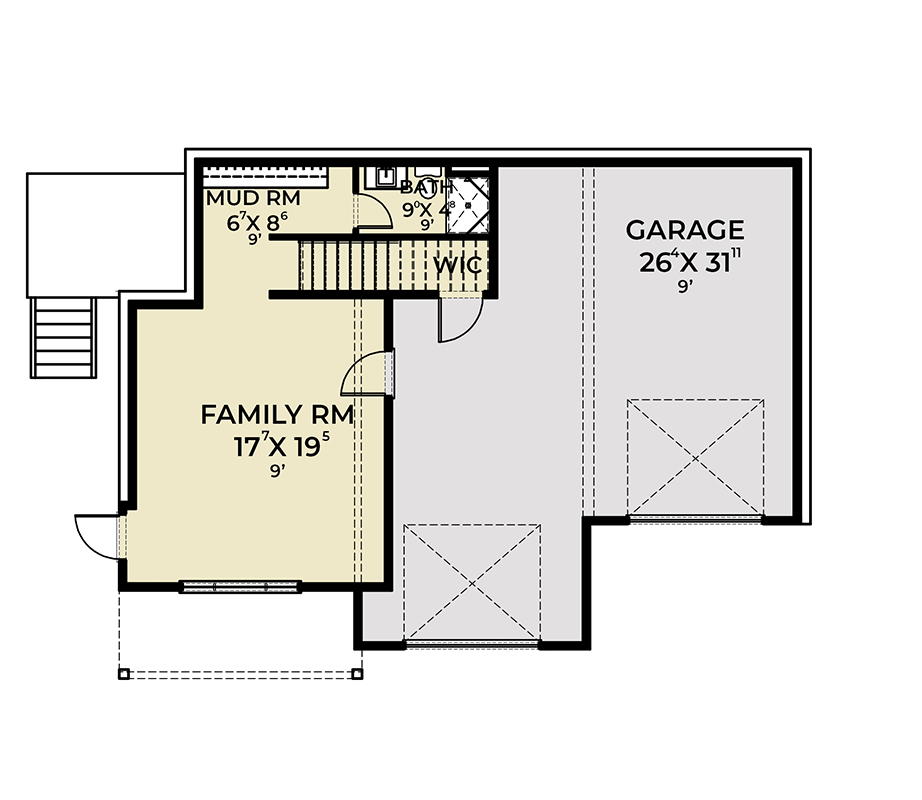

Lower Level
slide image 2

Plan 280213JWD

1-800-854-7852

1-262-521-4596

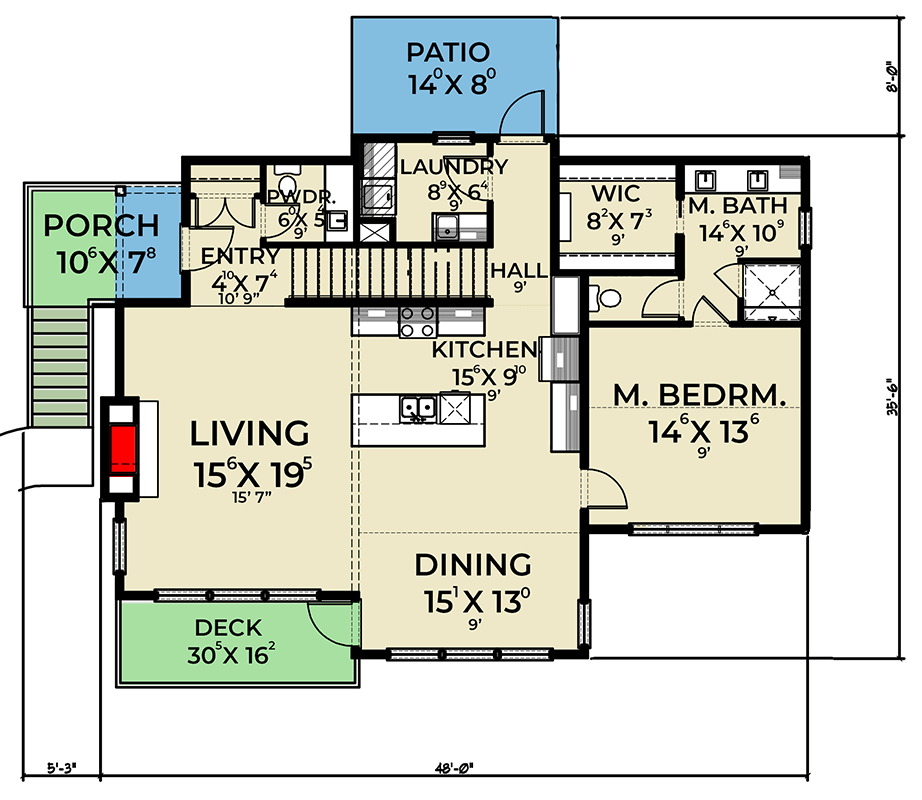

Main Level
floor plan image Main Level

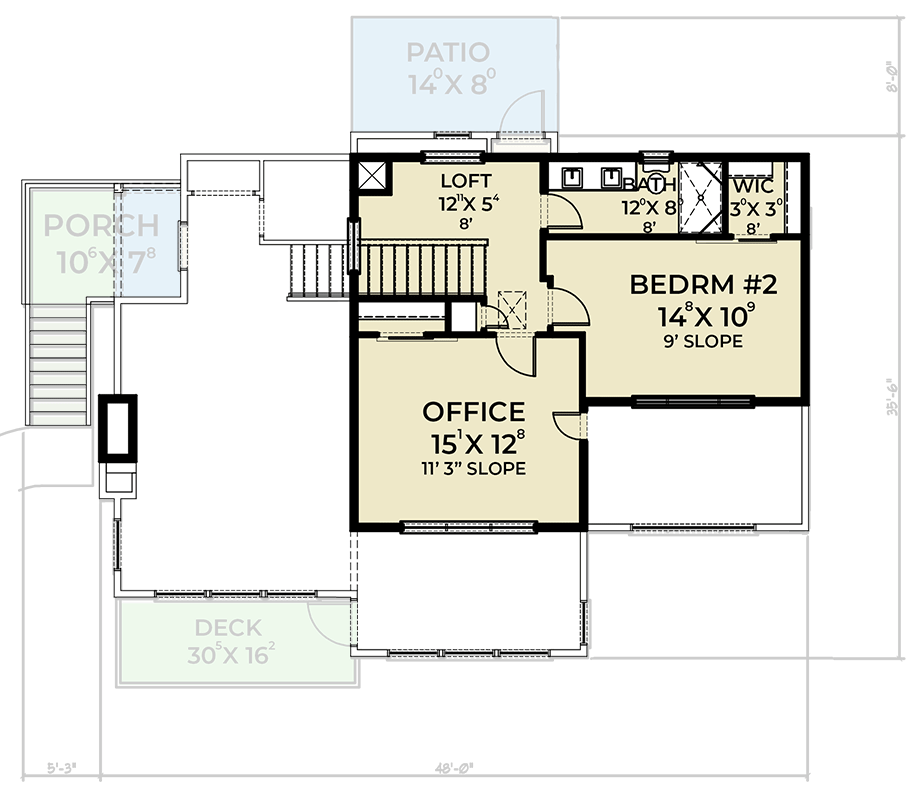

2nd Floor
floor plan image 2nd Floor
Lower Level
floor plan image Lower Level
Plan Details

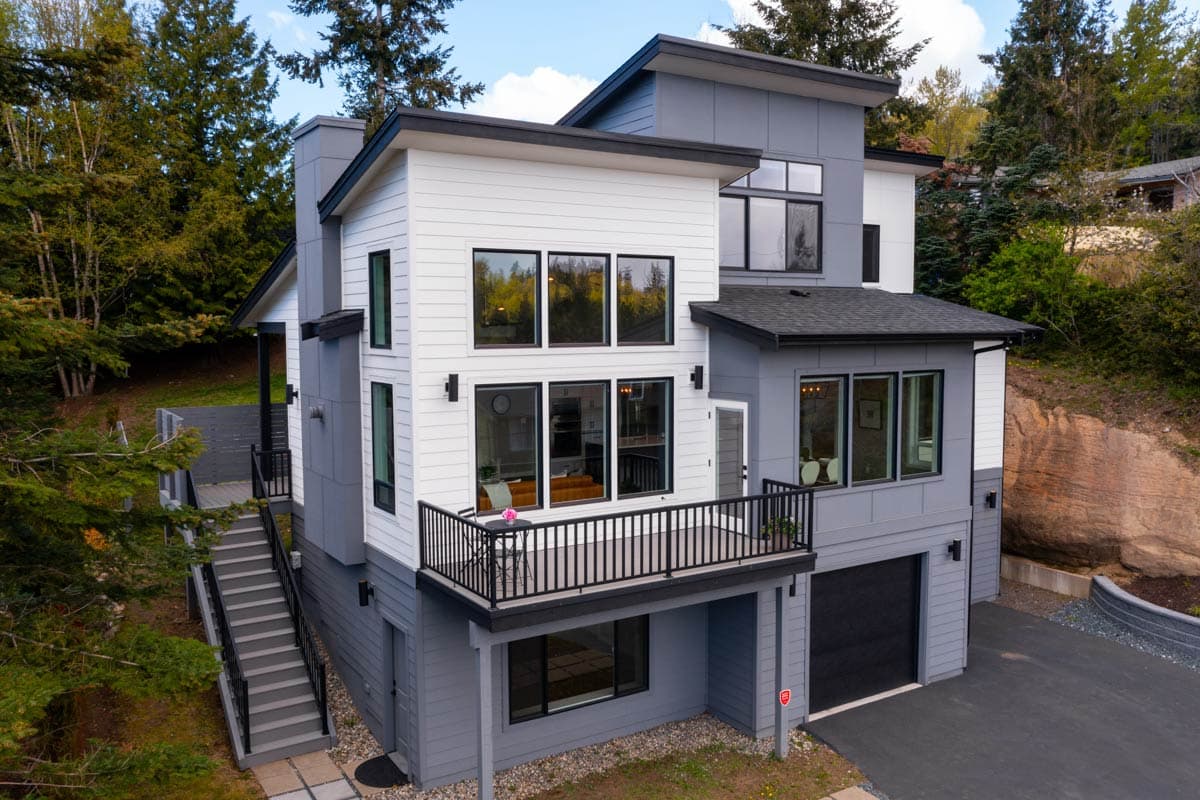

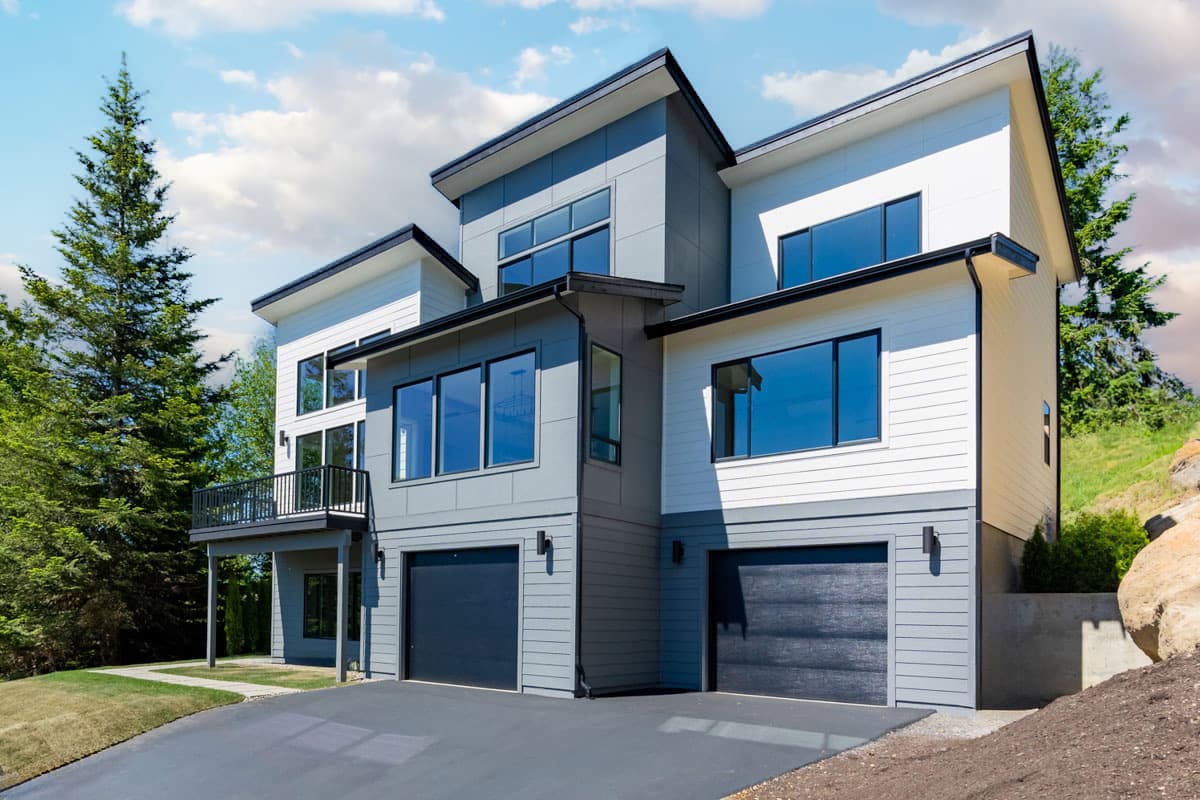

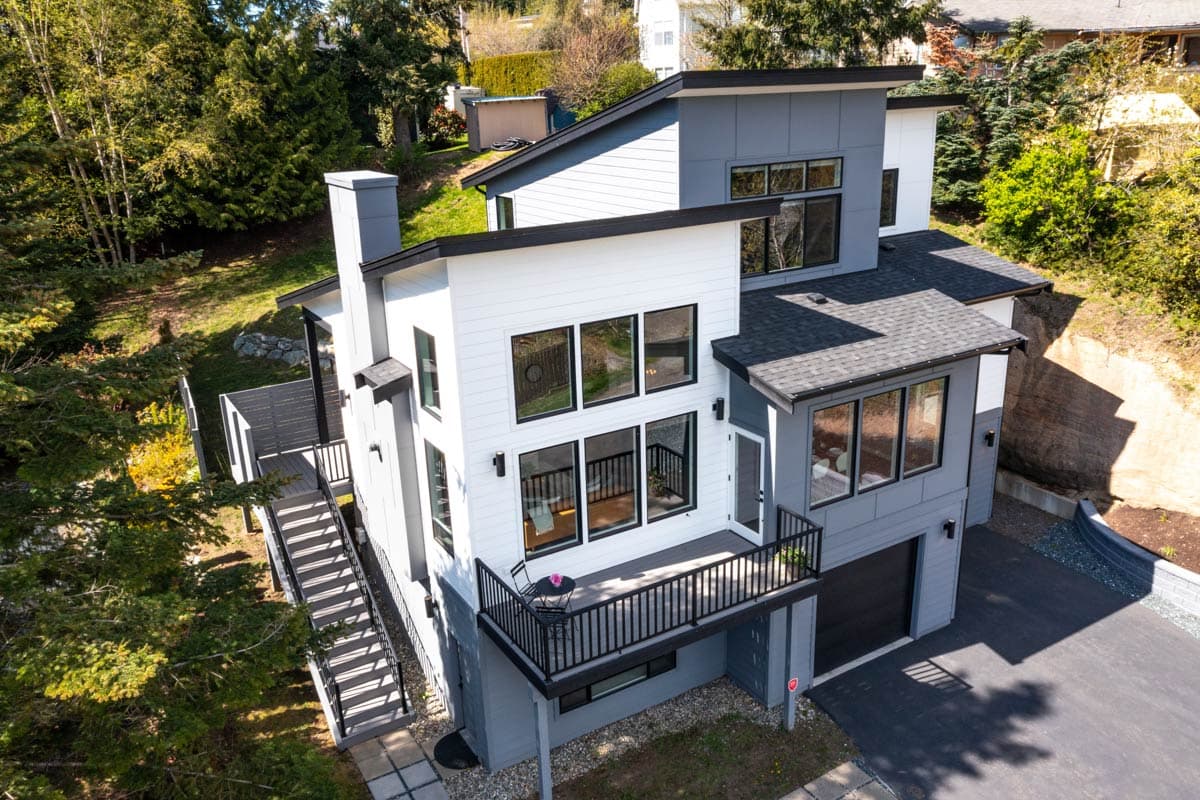

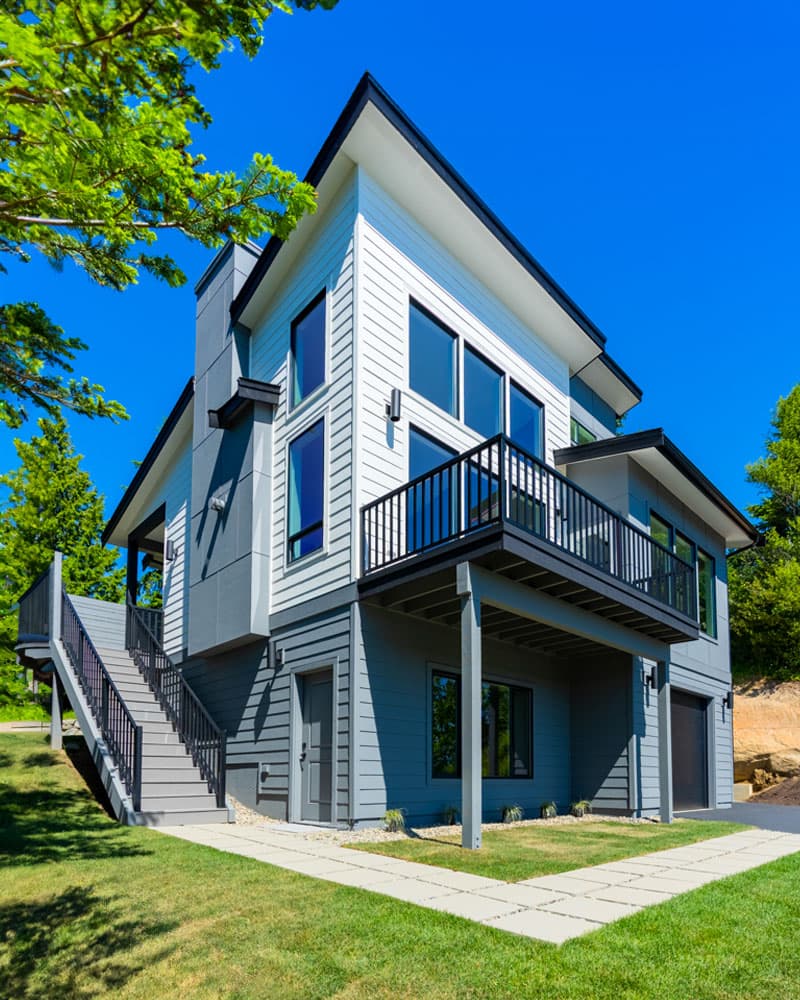

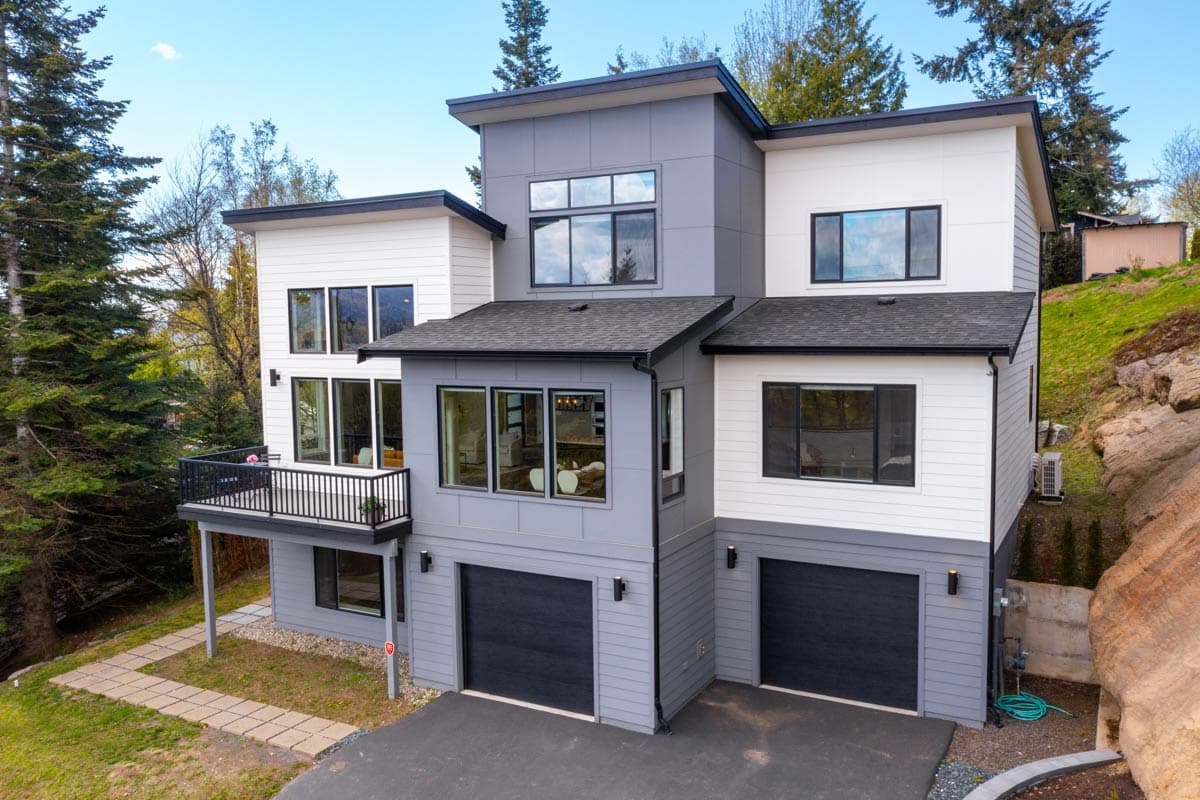

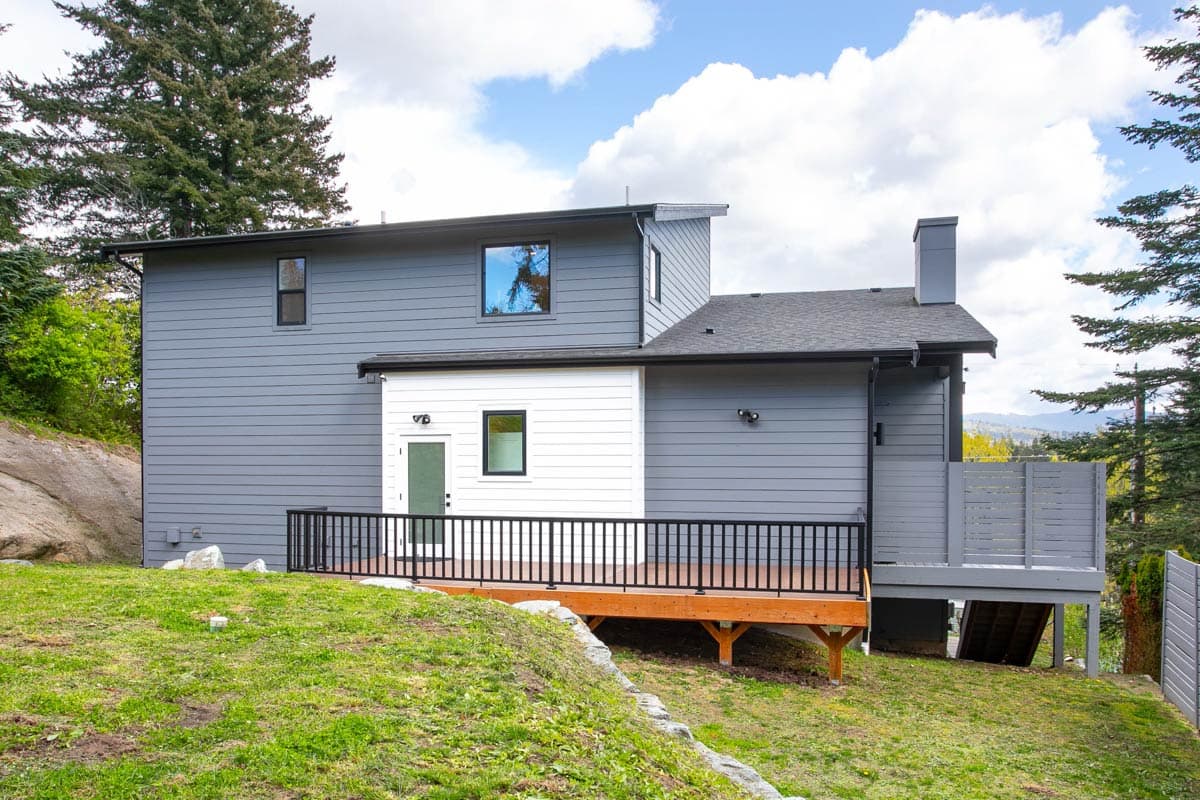

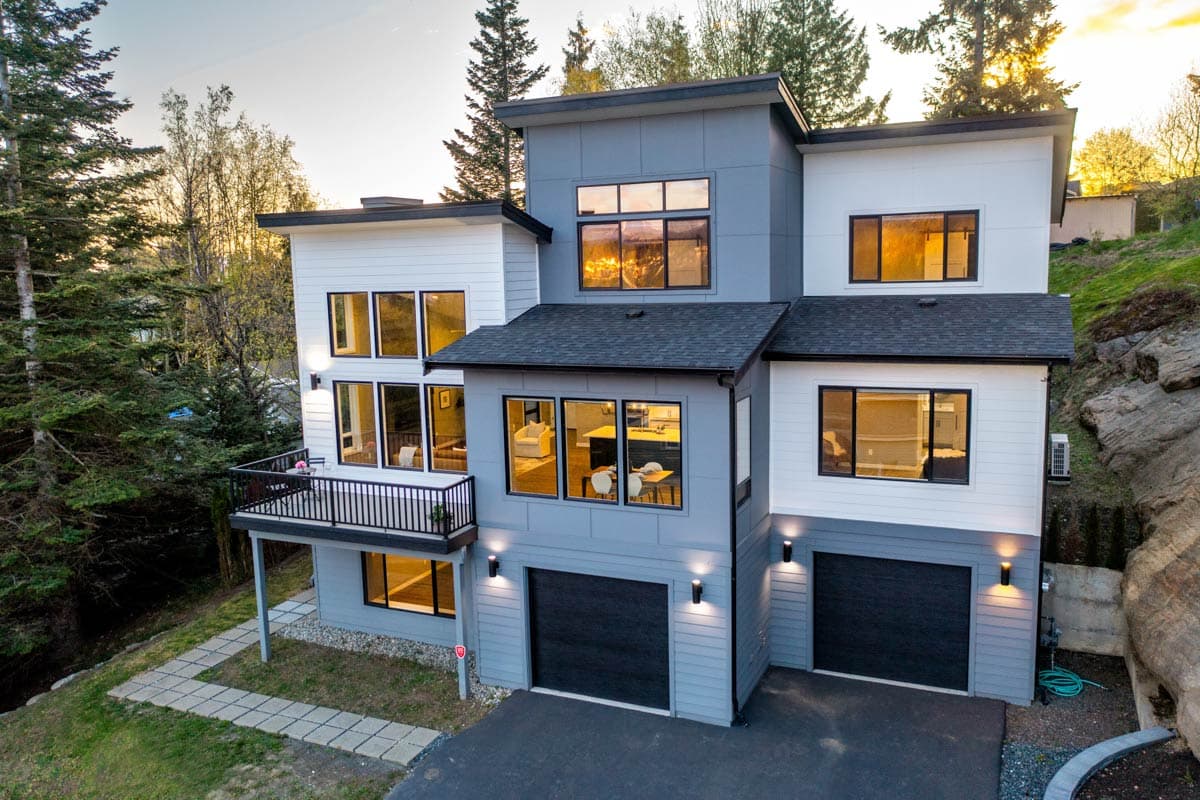

  • This contemporary house plan - designed for an up-sloping lot with a finished lower level with drive-under garage and family room - gives you 2 beds plus a possible third for guests, 3 baths and 2,589 square feet of heated living space.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,589 sq. ft.

Lower Level

617 sq. ft.

1st Floor

1,338 sq. ft.

2nd Floor

634 sq. ft.

Porch, Combined

83 sq. ft.

Deck

97 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

53' 0"

Depth

45' 6"

Max Ridge Height

35' 11"

Garage

Type

Attached, Drive Under

Area

737 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Special Features

Den

Flex Room

Formal Dining

Home Office

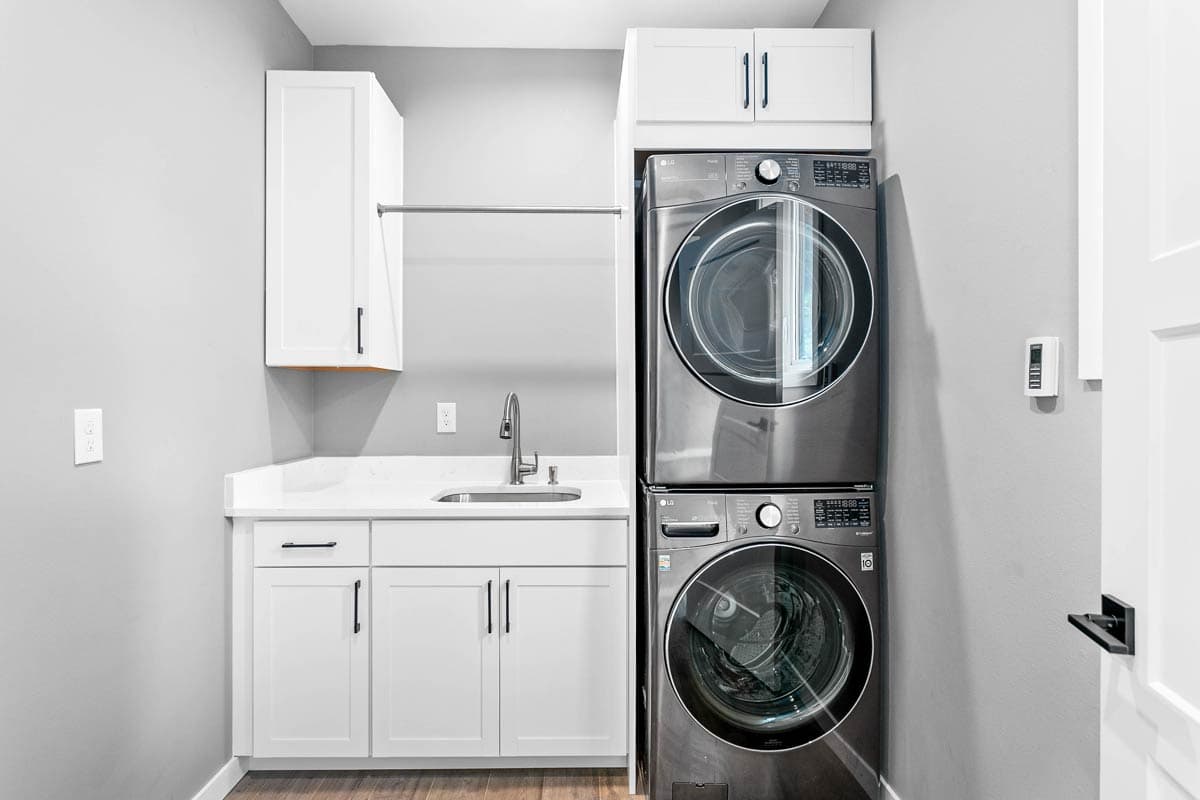

Laundry - Main Level

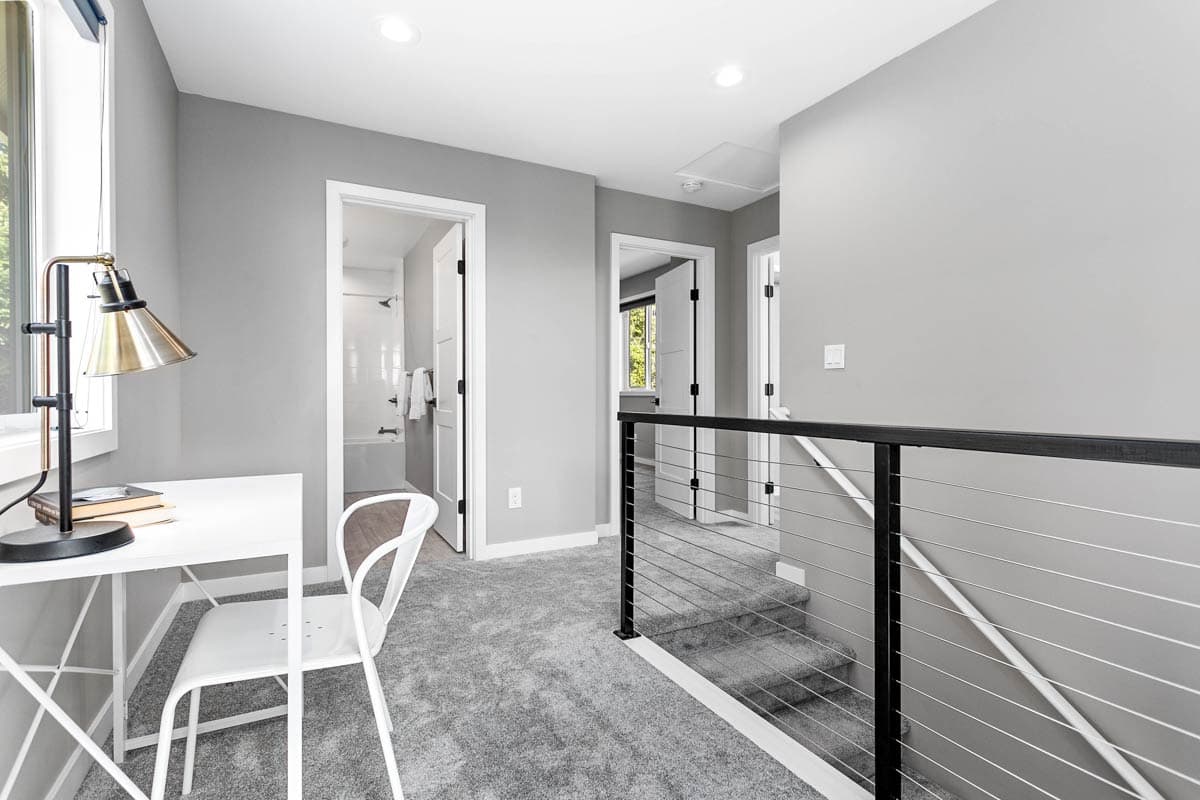

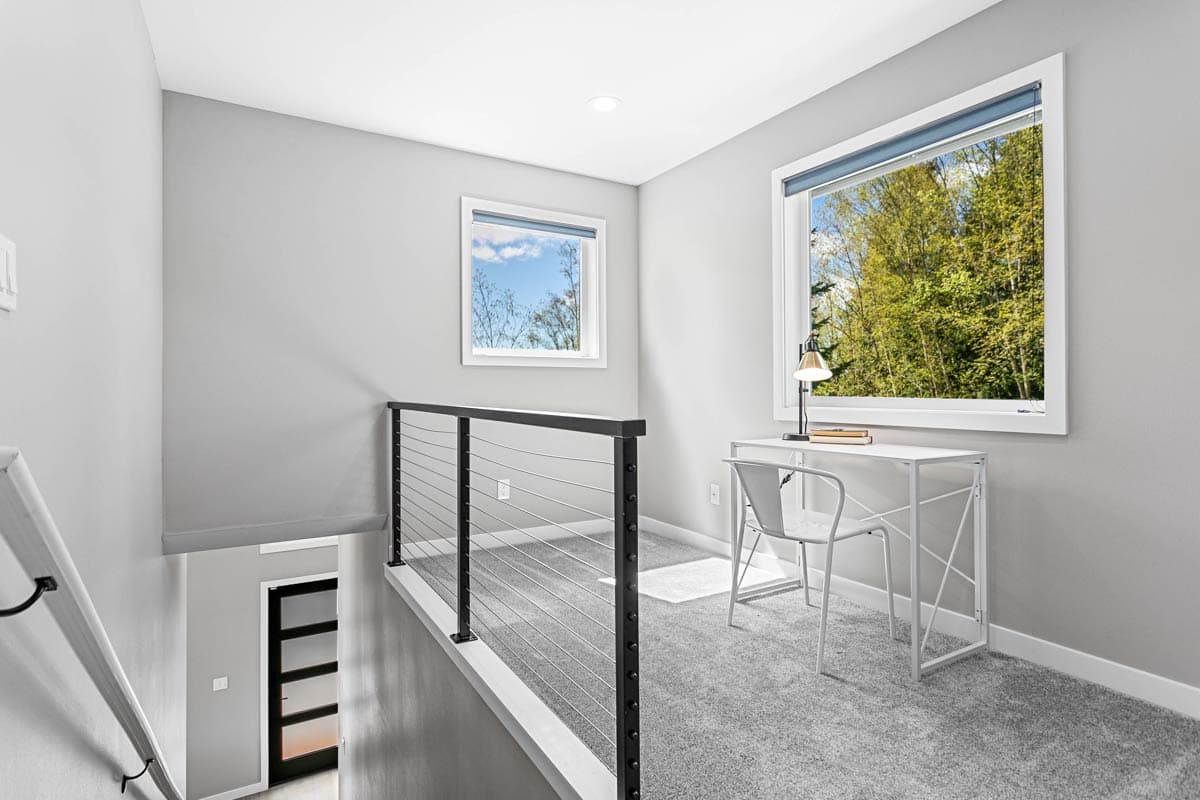

Loft

Master Suite - 1st Floor

Mudroom

Multiple Stairs

Plan Collections
