Plan 871014JEN
Contemporary Home with Angled 4-Car Garage and a Finished Walkout Basement
Heated S.F.
5,067
Beds
3
Baths
3.5+
Stories
1
Cars
4
Floor Plan

Plan 871014JEN

Main Level
slide image 0
Lower Level
slide image 1

Plan 871014JEN

1-800-854-7852

1-262-521-4596

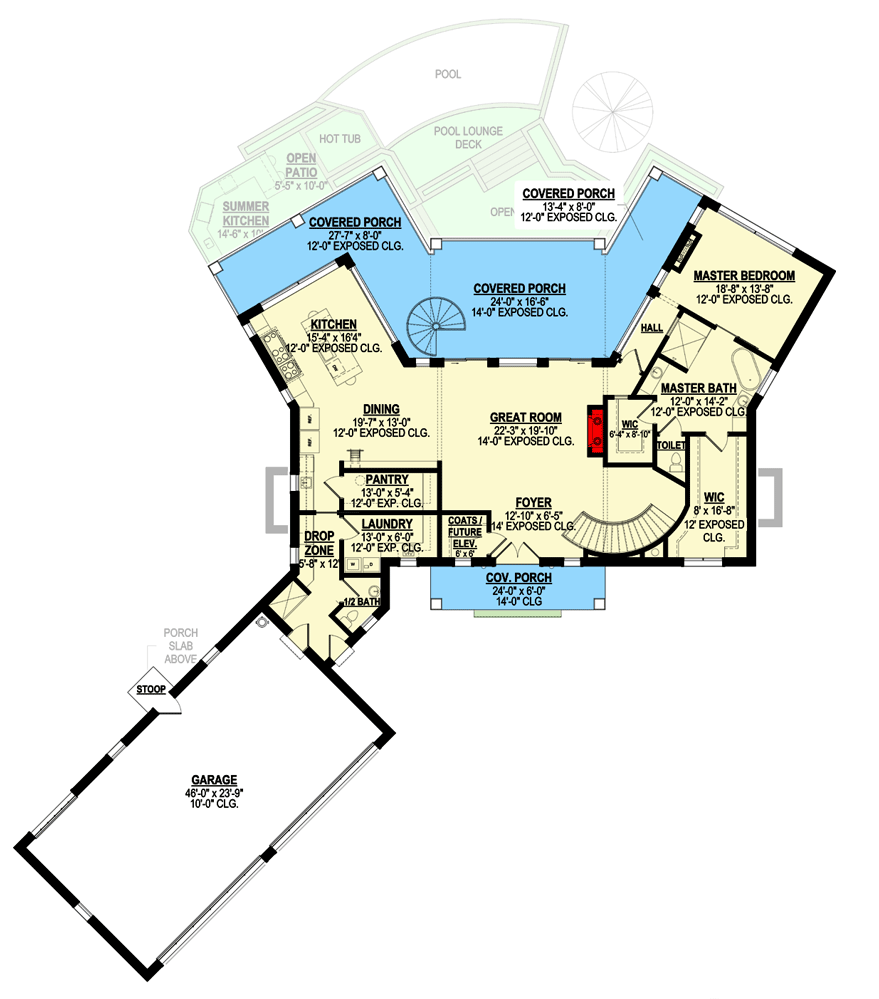

Main Level
floor plan image Main Level

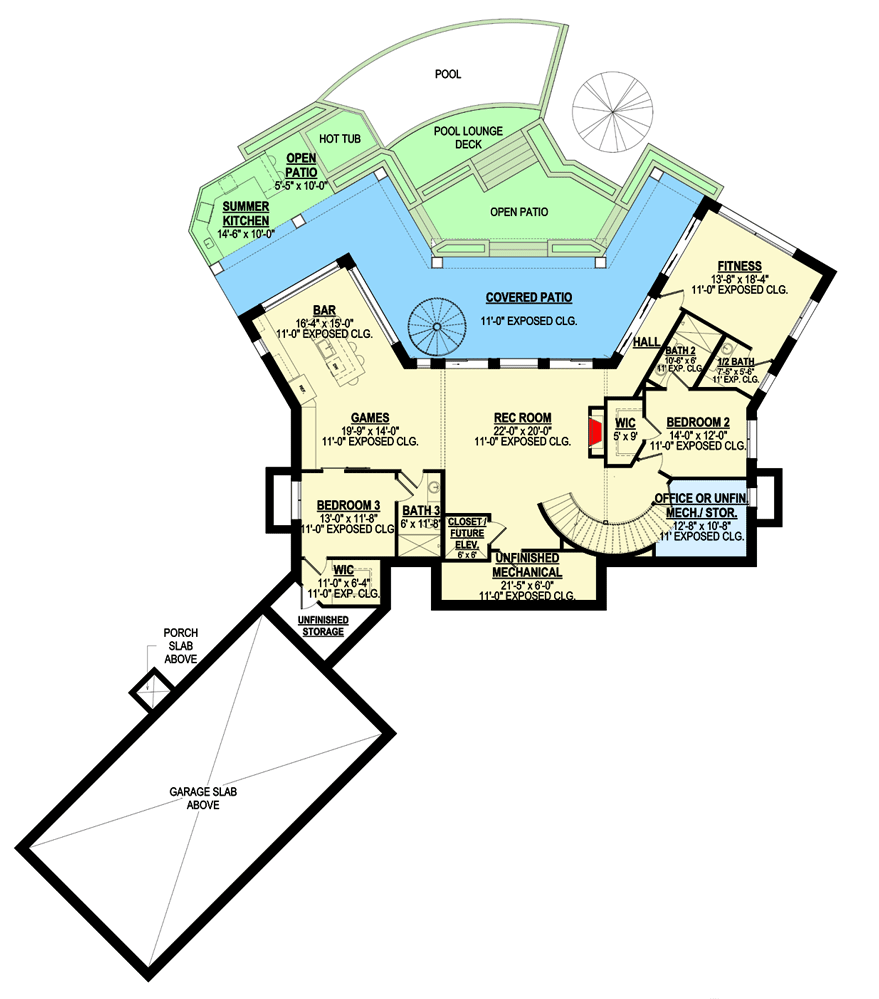

Lower Level
floor plan image Lower Level
Plan Details
  • A contemporary exterior with a hipped roof. covered entry and a 4-car garage set off at an angle from the main body of the home give this home great curb appeal.
  • French doors open to the foyer with a 14' ceiling and a curved stair to your right. To the left, a closet can be converted to an elevator.
  • The foyer flows seamlessly to the great room with two sets of sliding doors that take you to the covered porch in back. Both spaces have 14' ceilings..
  • On the left, the kitchen is set in an angled portion of the home with views - and outdoor access - in two directions. A large island has casual seating and deep walk-in pantry gives you great storage.
  • Across the home, the master suite is set in its own angled wing accessed by a private hall. A massive bathroom and two walk-in closets complete the suite.
  • The lower level is finished and has outdoor access from multiple locations: the rec room, the hall and the fitness room. Bedrooms are located to either side leaving the center portion dedicated to fun with the rec room open tot he game area and the bar.
  • BUILDING RESTRICTION: This plan may not be built on Lake Norman, NC; Lake Wylie, NC; Mecklenburg Co. NC; Gaston Co. NC; Iredell Co. NC; Catawba Co. NC; Lincoln Co.; York Co. SC; Lancaster Co. SC.
What's Included
  • Foundation plan
  • Detailed floor plans
  • Roof plan

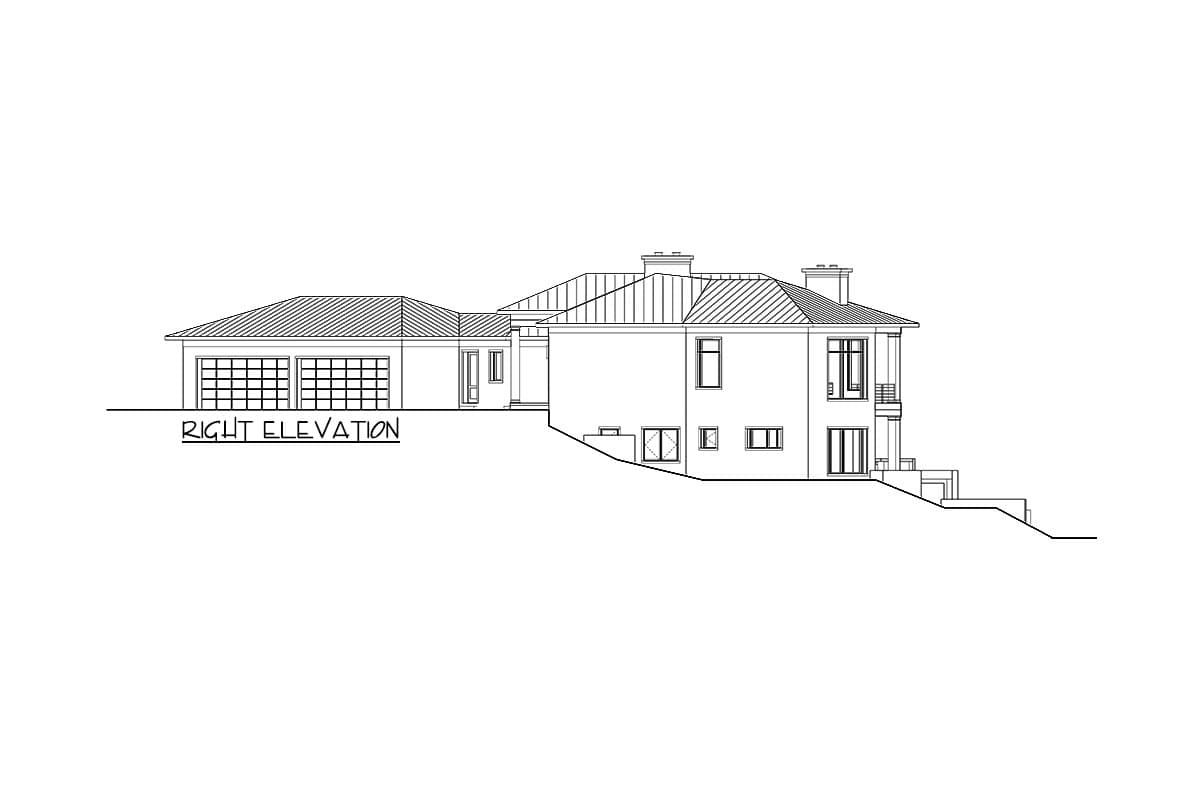

  • Elevations (all four sides)
  • Sections
  • 3D model views
  • Electrical plans
  • Framing details
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
