Plan 666251RAF

Contemporary House Plan with In-Law Apartment Above Garage - 5351 Sq Ft

Heated S.F.

5,351

Beds

6

Baths

4.5

Stories

1

Cars

3

Floor Plan

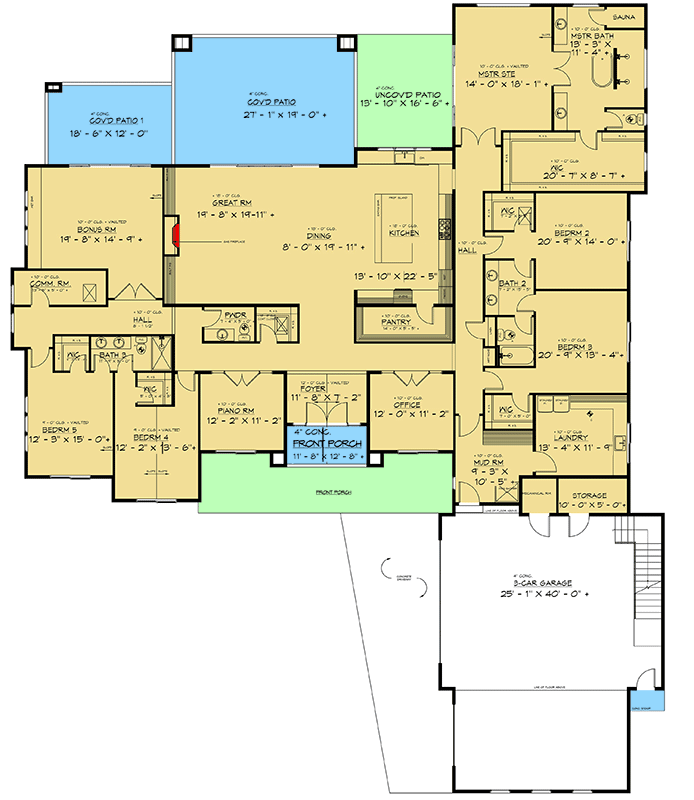

Main Level

floor plan image Main Level

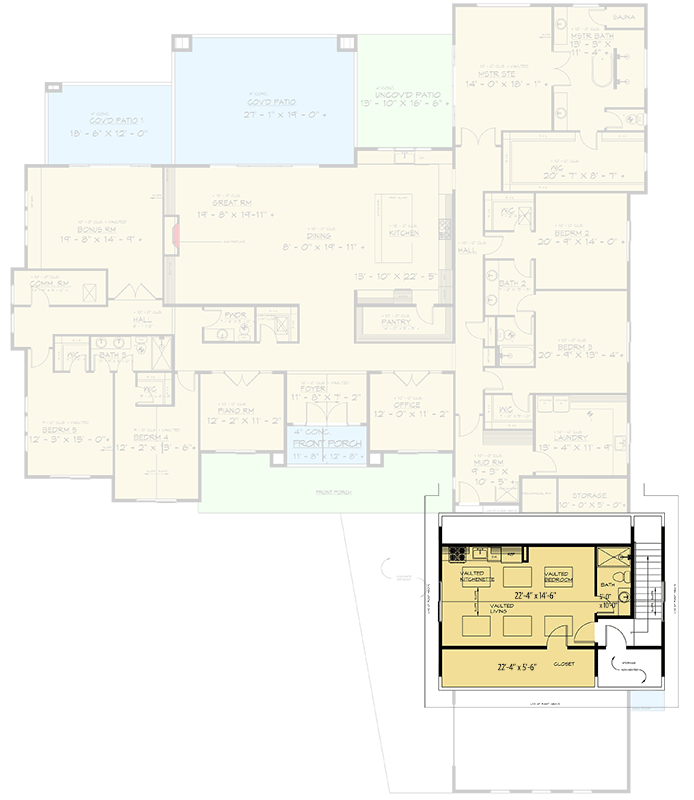

2nd Floor

floor plan image 2nd Floor

Plan Details

This contemporary house plan gives you 5 beds and 3.5 baths and 4796 square feet of single floor living plus a 1 bed, 1 bath in-law apartment above the 3-car (1305 square foot) garage - that gives you 555 square feet of living space.
A home office off the entry gallery gives you a great work-from-home space.
Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
We can modify any house plan you see on our site. Learn more about modifications.

What's Included

Cover Sheet with plan info
General Notes - Note: codes will not include local state adopted amendments
Fully dimensions and detailed floor plans
Elevations
Building Cross Section
Roof Plan
Details
Window Schedule
Original Structural plan FOR REFERENCE ONLY

What's Not Included

Architectural or Engineering Stamp - handled locally when required
Site plans - handled locally - handled locally when required
Mechanical Drawings - handled locally when required
Plumbing Drawings - handled locally when required
Electrical Drawings - handled locally when required
Energy Calculations - handled locally when required
Foundation and Framing plans - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

5,351 sq. ft.

1st Floor

4,796 sq. ft.

2nd Floor

555 sq. ft.

Porch, Front

191 sq. ft.

Covered Patio

965 sq. ft.

Storage

84 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

95' 6"

Depth

115' 5"

Max Ridge Height

26' 3"

Garage

Type

Attached

Area

1305 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Handicapped Accessible

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

5,351 sq. ft.

1st Floor

4,796 sq. ft.

2nd Floor

555 sq. ft.

Porch, Front

191 sq. ft.

Covered Patio

965 sq. ft.

Storage

84 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

95' 6"

Depth

115' 5"

Max Ridge Height

26' 3"

Garage

Type

Attached

Area

1305 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Handicapped Accessible

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor
