Plan 280058JWD
Contemporary House Plan with Loft and a Drive-Under Garage
Heated S.F.
2,586
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 280058JWD

Main Level
slide image 0
2nd Floor
slide image 1
Lower Level
slide image 2

Plan 280058JWD

1-800-854-7852

1-262-521-4596

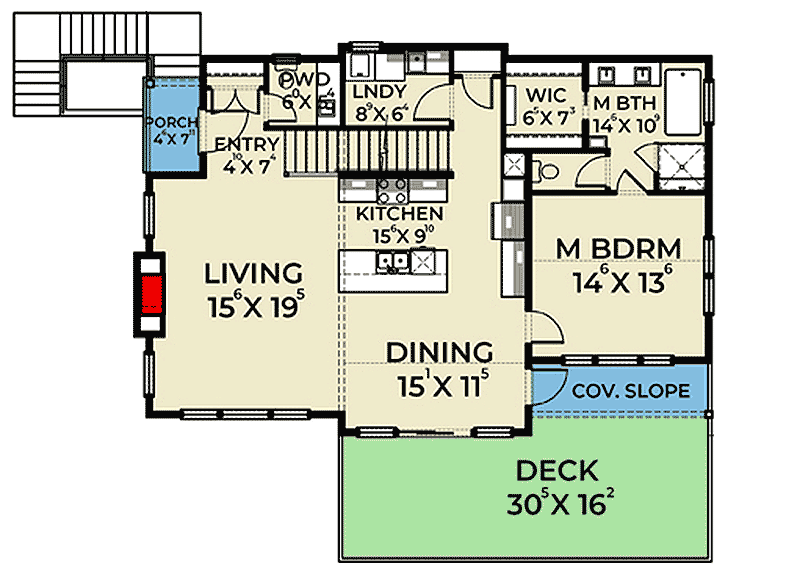

Main Level
floor plan image Main Level

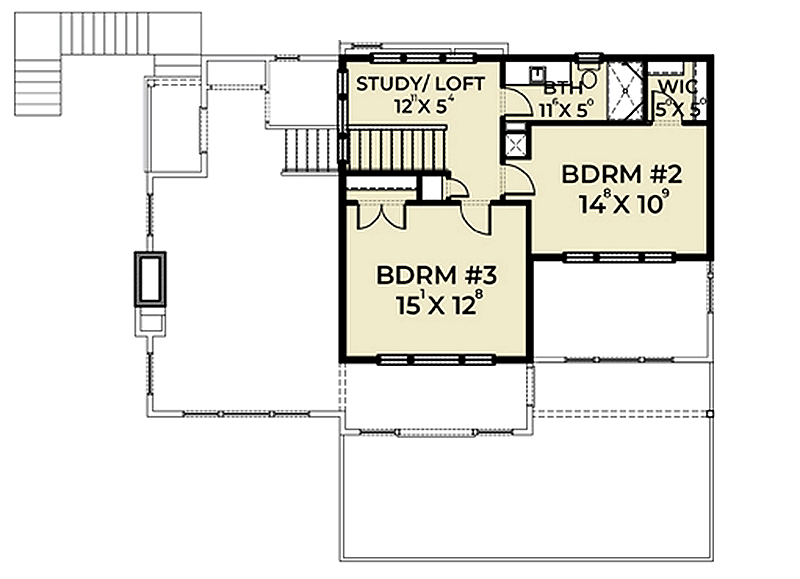

2nd Floor
floor plan image 2nd Floor

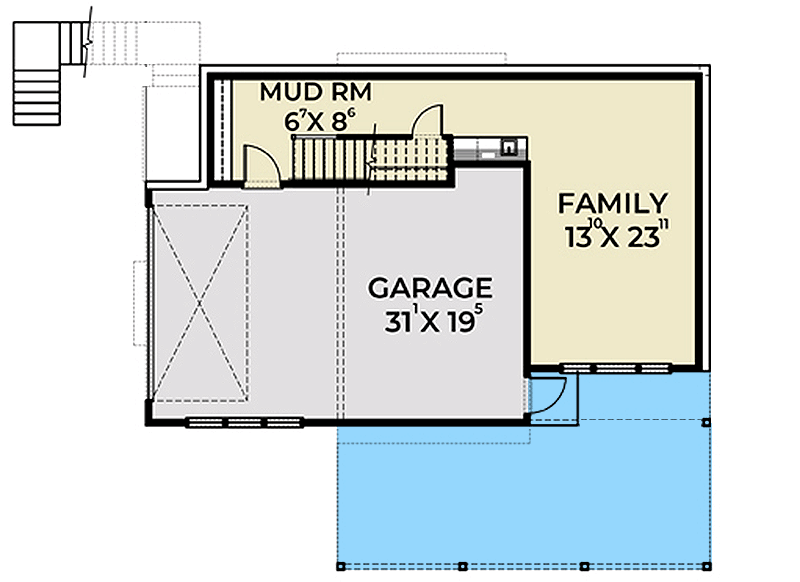

Lower Level
floor plan image Lower Level
Plan Details
  • Oversized windows on this contemporary, Northwest house plan allow you to enjoy the sweeping views, and a large deck extends from the main level for grilling and outdoor dining.
  • Open-concept living combines the shared living spaces, and creates an ideal space for family and friends to gather. A fireplace offers warmth and the kitchen island anchors the living space.
  • Retreat to the master bedroom on the main level for peace and quiet, and enjoy the comfortable en suite with dual sinks and a walk-in closet.
  • A loft at the top of the stairs could serve as a study, and provides access to bedrooms 2 and 3, which share a full bath.
  • The double garage is located on the lower level, as well as a family room with a bar sink and a mudroom.
What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,586 sq. ft.

Lower Level

658 sq. ft.

1st Floor

1,296 sq. ft.

2nd Floor

632 sq. ft.

Covered Patio

102 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

43' 0"

Max Ridge Height

35' 6"

Garage

Type

Attached, Drive Under

Area

641 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Mudroom

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

2,586 sq. ft.

Lower Level

658 sq. ft.

1st Floor

1,296 sq. ft.

2nd Floor

632 sq. ft.

Covered Patio

102 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

43' 0"

Max Ridge Height

35' 6"

Garage

Type

Attached, Drive Under

Area

641 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Mudroom

Plan Collections

Sloping Lot
