Plan 81763AB

Contemporary House Plan with Rooftop Patio and Lower-Level Garage - 8540 Sq Ft

Heated S.F.

8,540

Beds

3 - 7

Baths

4.5+ - 5.5+

Stories

2

Cars

2

Floor Plan

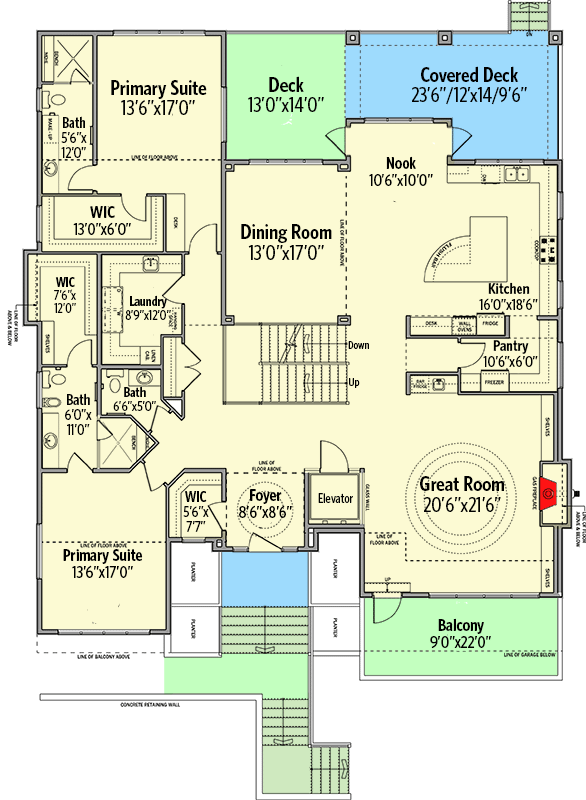

Main Level

floor plan image Main Level

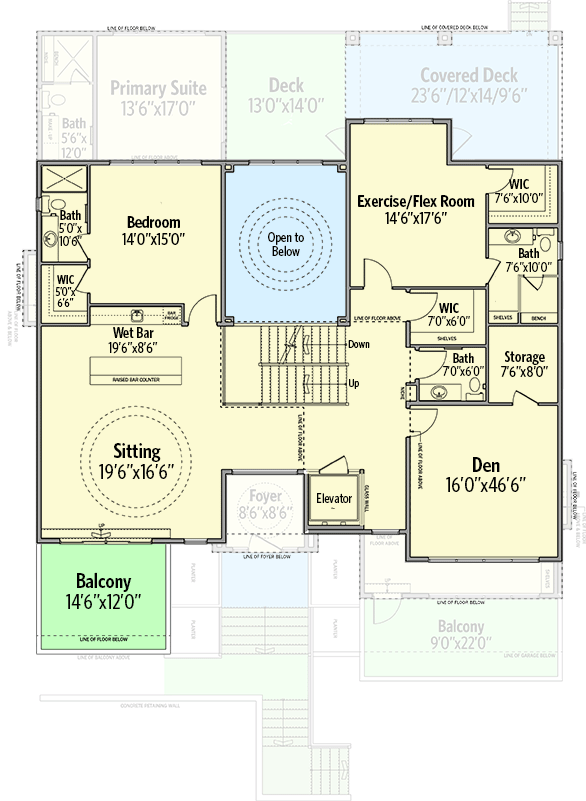

2nd Floor

floor plan image 2nd Floor

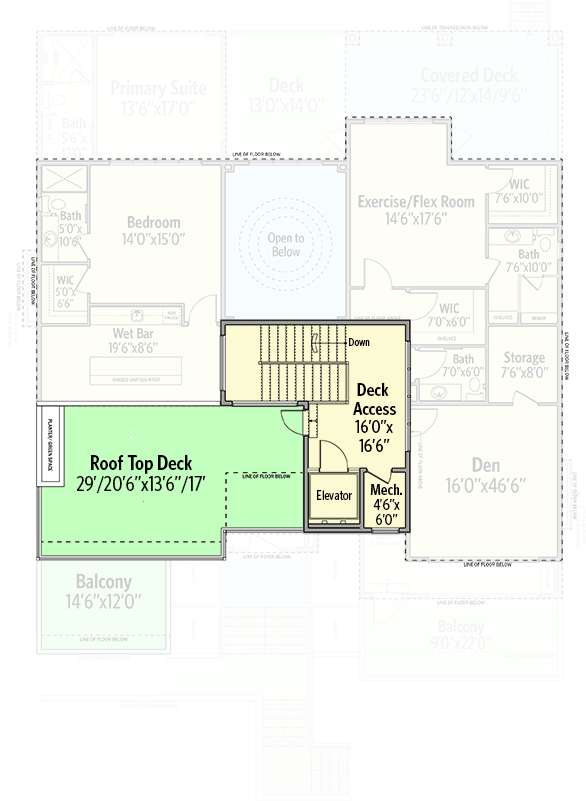

3rd Floor

floor plan image 3rd Floor

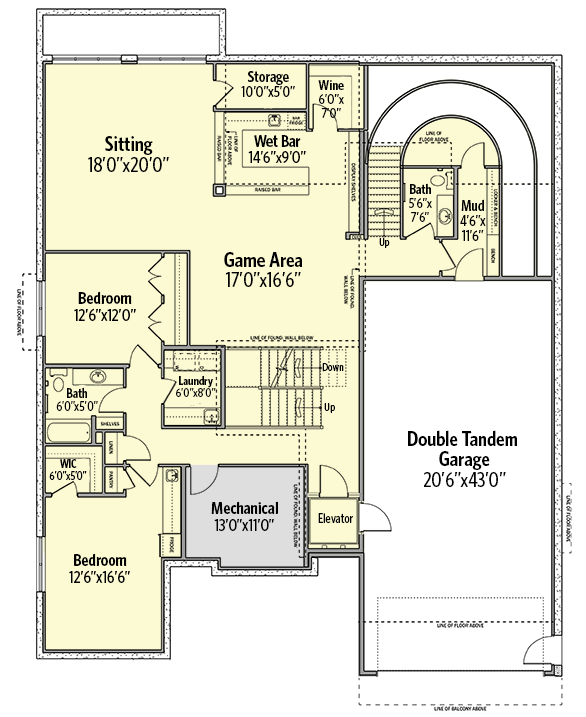

Lower Level

floor plan image Lower Level

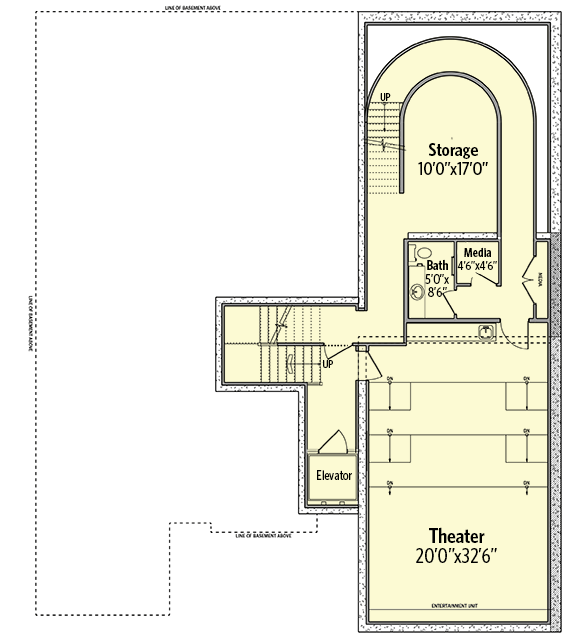

Theater - Sub-Basement

floor plan image Theater - Sub-Basement

Plan Details

Thoughtful touches throughout this Contemporary house plan include two master bedrooms on the main level, an elevator, space to entertain on each level, and a third-floor loft with access to a rooftop patio.
The heart of the home features a uniquely-shaped island with an eating bar, along with a walk-thru pantry and access to the covered porch.
Tall windows line the great room that provides frontal views, enjoyed from inside or the balcony.
Upstairs, a quiet den provides the perfect media room, and a sitting area includes a wet bar and balcony. A bedroom suite and exercise (flex) space round out the second level.
The fun continue downstairs where you'll find the double, tandem garage and adjacent mudroom. A game room with a wet bar and wine room neighbor two bedrooms and a laundry room.

What's Included

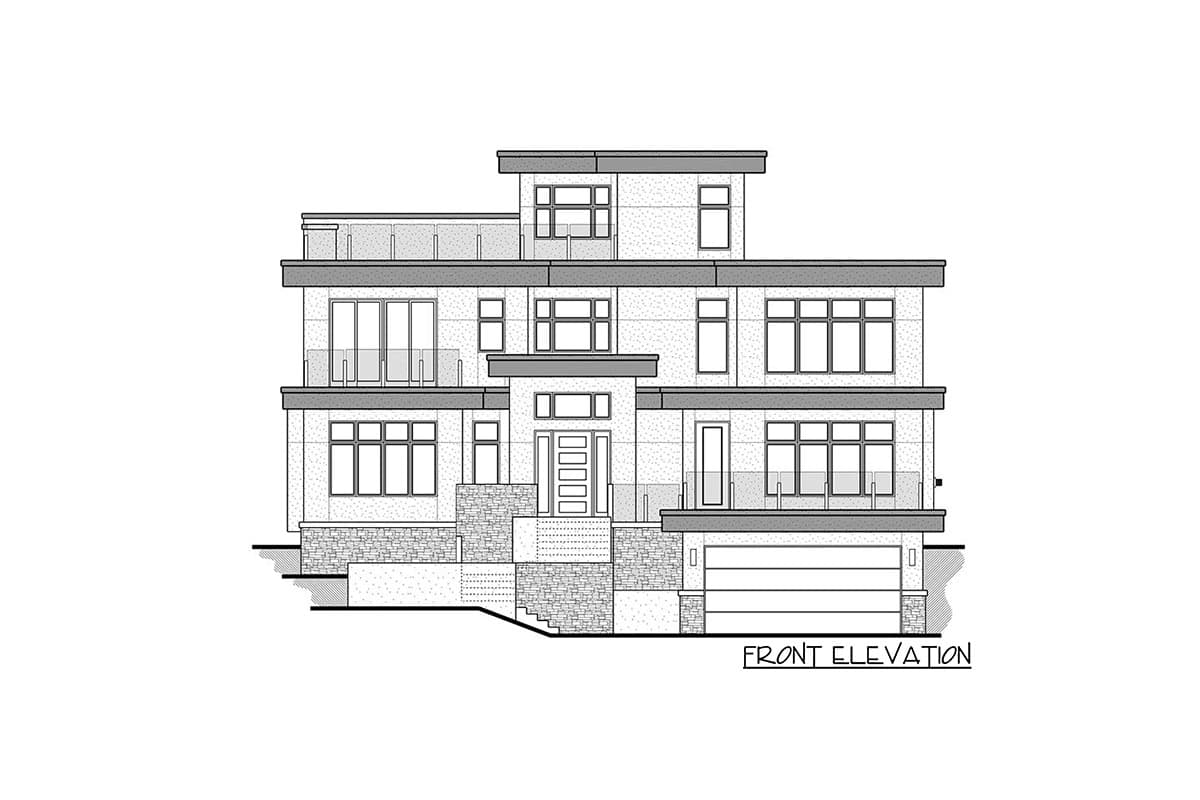

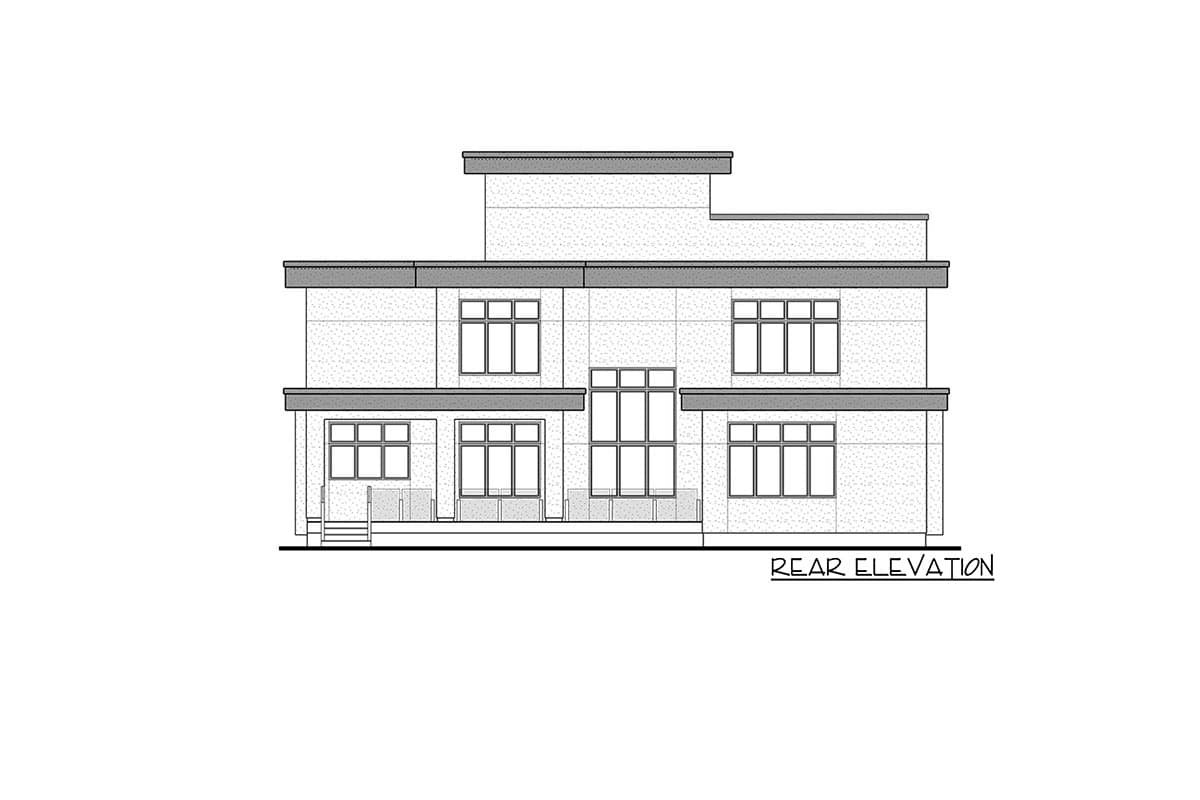

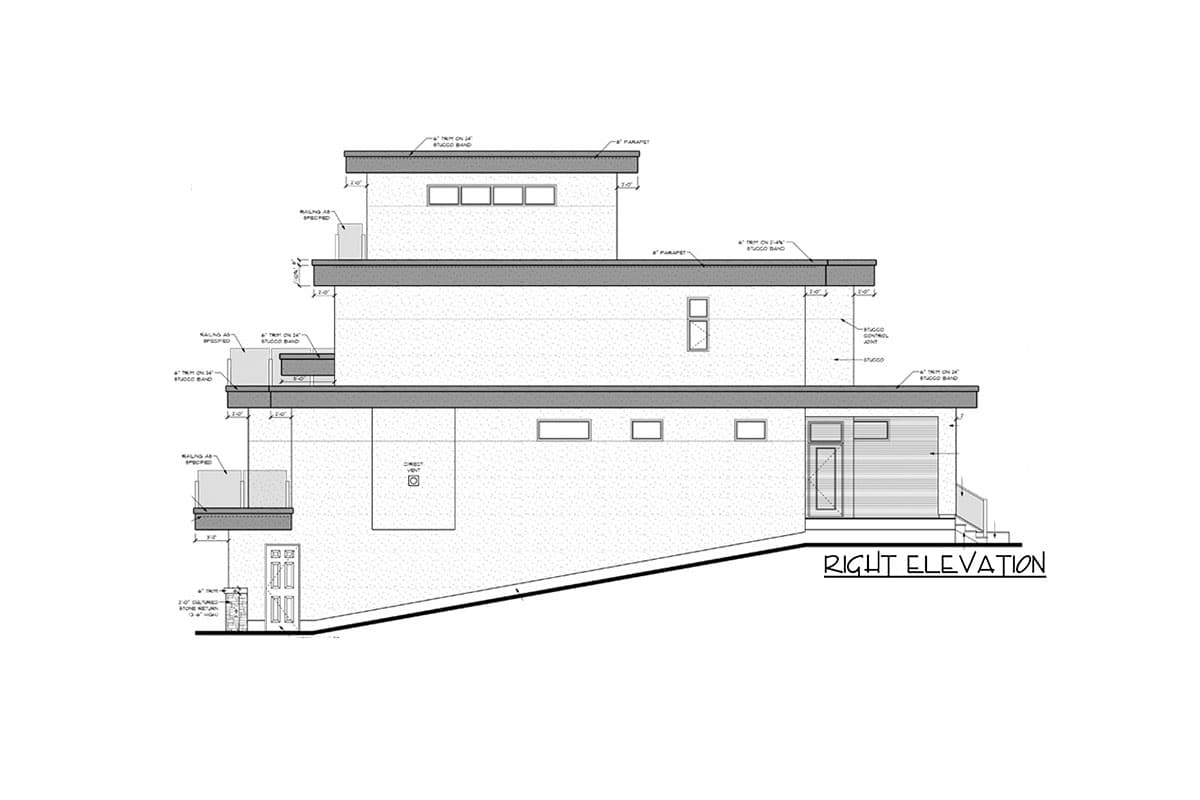

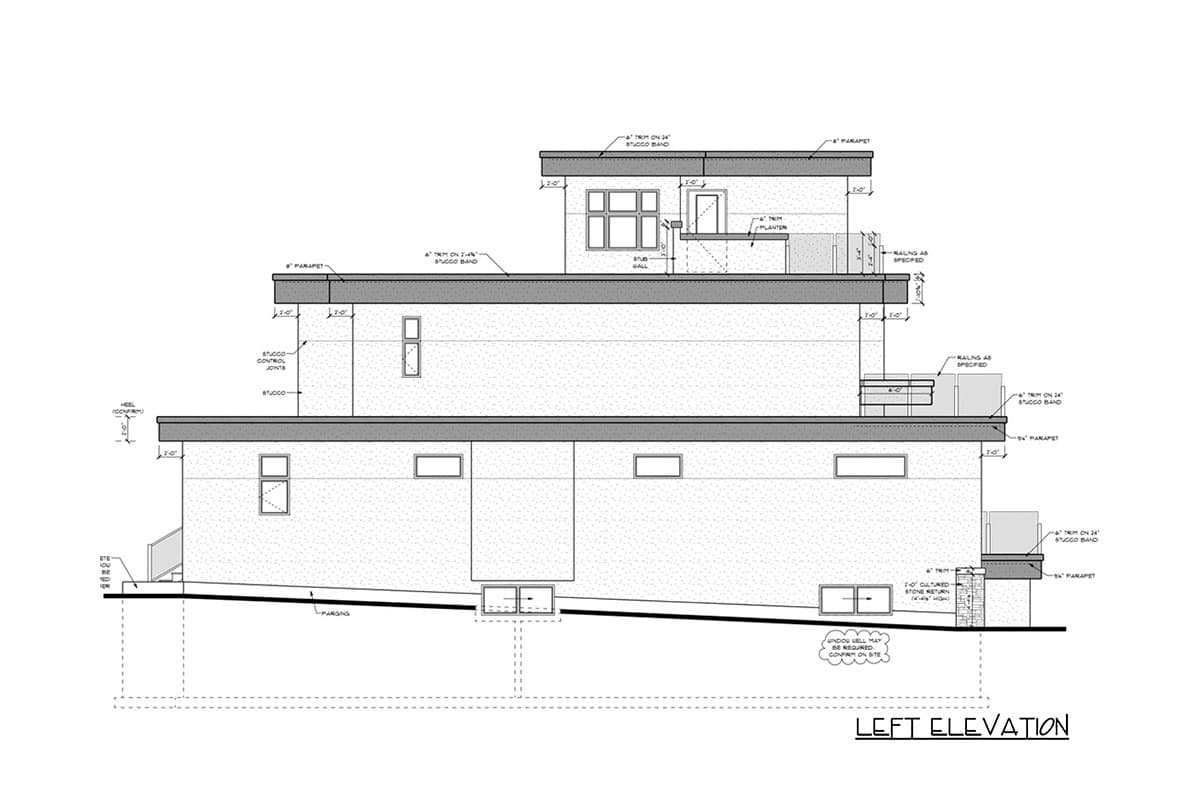

Elevations (Front, Rear, Left and Right)
Floor plans
Foundation plan
Cross section
Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan

What's Not Included

Electrical plan
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

8,540 sq. ft.

Lower Level

3,430 sq. ft.

1st Floor

2,956 sq. ft.

2nd Floor

2,154 sq. ft.

3rd Floor

350 sq. ft.

Beds/Baths

Bedrooms

3, 4, 5, 6, or 7

Full bathrooms

4 or 5

Half bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

57' 0"

Depth

66' 0"

Garage

Type

Attached, Drive Under

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 9"

First Floor

10' 1"

Second Floor

10' 1"

Theatre

9' 0''

Roof patio Loft

8' 1''

Roof Details

Primary Pitch

o on 12

Framing Type

Truss

Architectural Style

Mid Century Modern

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Two Master Suites

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

8,540 sq. ft.

Lower Level

3,430 sq. ft.

1st Floor

2,956 sq. ft.

2nd Floor

2,154 sq. ft.

3rd Floor

350 sq. ft.

Beds/Baths

Bedrooms

3, 4, 5, 6, or 7

Full bathrooms

4 or 5

Half bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

57' 0"

Depth

66' 0"

Garage

Type

Attached, Drive Under

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 9"

First Floor

10' 1"

Second Floor

10' 1"

Theatre

9' 0''

Roof patio Loft

8' 1''

Roof Details

Primary Pitch

o on 12

Framing Type

Truss

Architectural Style

Mid Century Modern

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Two Master Suites

Plan Collections

Canadian House Plans
