Plan 680197VR
Contemporary Lake House Plan with Lower Level Workshop - 1000 Sq Ft
Heated S.F.
1,000
Beds
3
Baths
3
Stories
2
Cars
2
Floor Plan

Plan 680197VR

Main Level
slide image 0
Garage Level
slide image 1

Plan 680197VR

1-800-854-7852

1-262-521-4596

Main Level

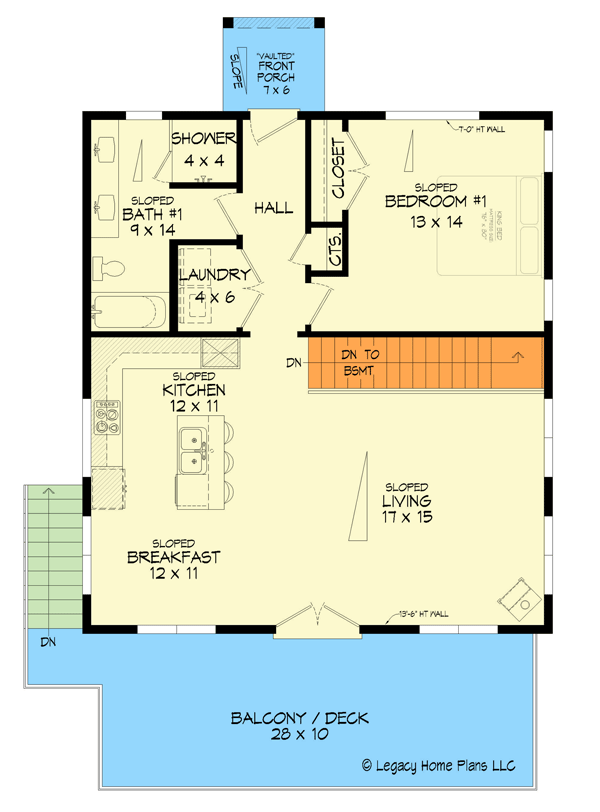

floor plan image Main Level
Garage Level

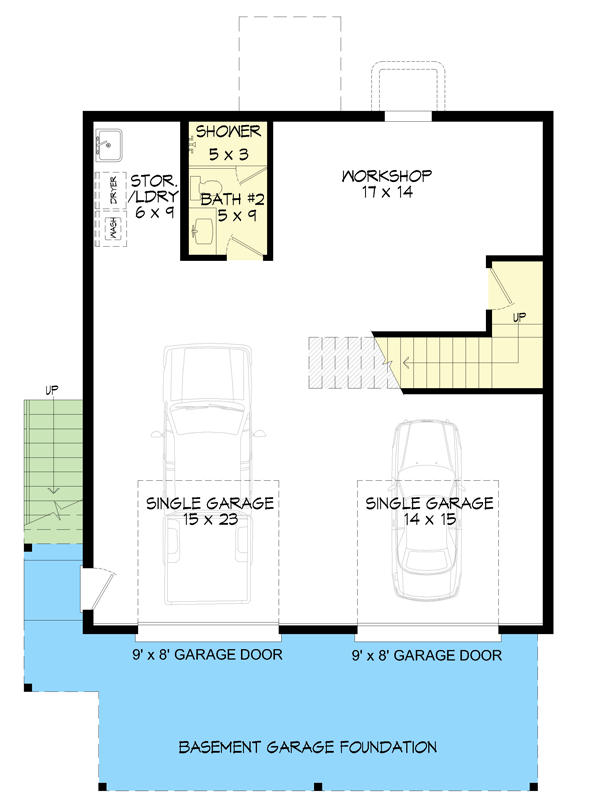

floor plan image Garage Level
Plan Details
  • This contemporary 1-bed house plan gives you 1,000 square feet of heated living space set above a 2-car garage with workshop and a full bath.
  • On the main living level, the ceilings slop down from 13'6" in back to 7' in front.
  • Two 9' by 8' garage doors give your vehicles access on the lower level.
  • Oversized windows surround the main floor, providing a light and airy vaulted interior.
  • The kitchen and living room are open to one another, and extend outdoors onto a spacious balcony.
  • Related Plan: Get less of an overhang and remove a window on the side with house plan 680071VR. Get a larger version with house plan 680437VR (1,778 sq. ft.)
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

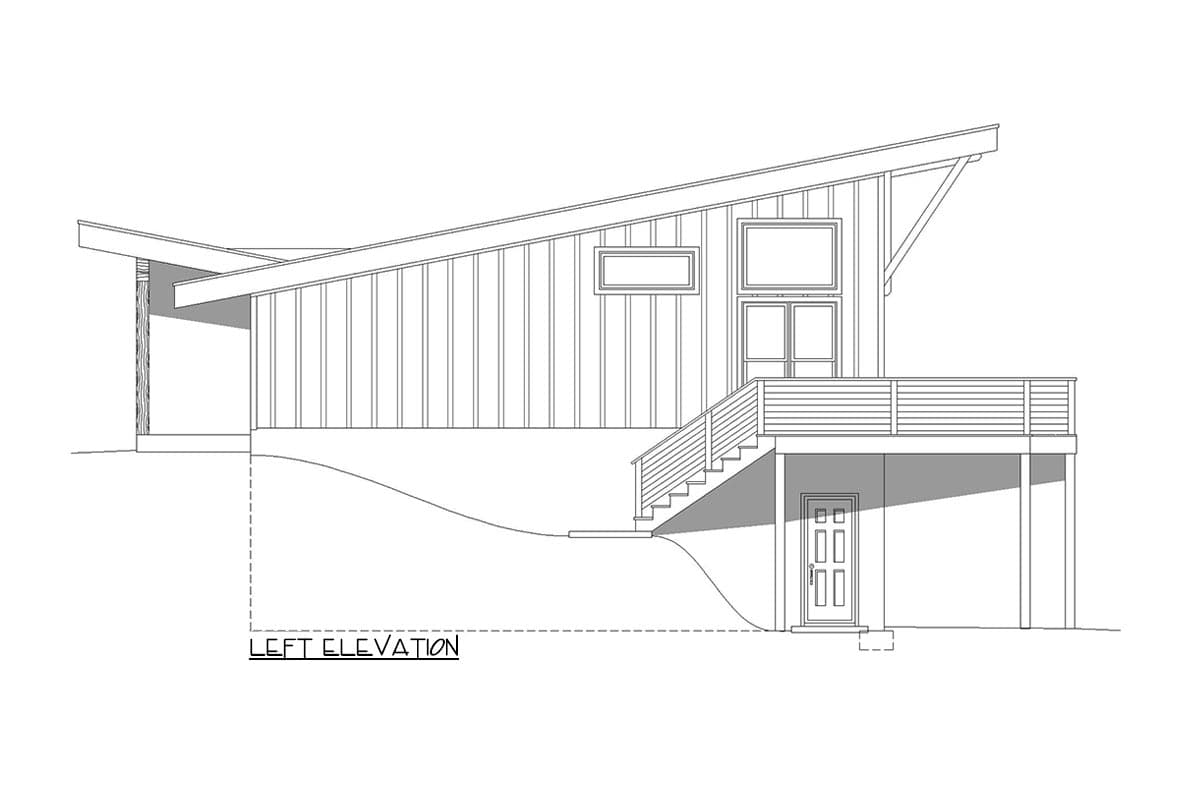

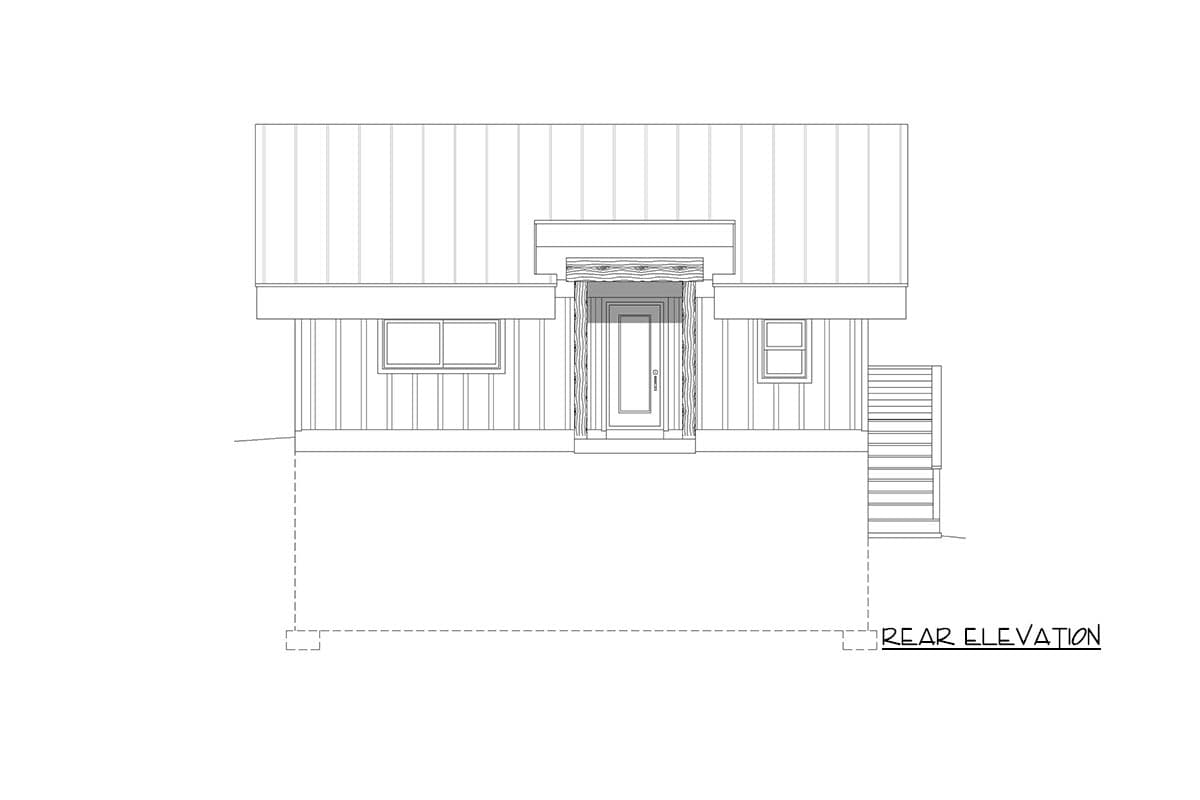

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,000 sq. ft.

1st Floor

1,000 sq. ft.

Porch, Front

39 sq. ft.

Balcony / Veranda

332 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 6"

Depth

45' 0"

Max Ridge Height

31' 6"

Garage

Type

Drive Under, Attached

Area

1000 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

10'

Roof Details

Primary Pitch

2.5 on 12

Framing Type

Stick

Architectural Style

Contemporary

Lake House

Mid Century Modern

Mountain

Northwest

Special Features

Flex Room

Home Office

Laundry - Upstairs

Loft

Master Suite - 2nd Floor

Two Story Great Room

Wrap Around Porch

Plan Collections

Home Office

Lake House Plans

Square Footage Breakdown

Total Heated Area

1,000 sq. ft.

1st Floor

1,000 sq. ft.

Porch, Front

39 sq. ft.

Balcony / Veranda

332 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 6"

Depth

45' 0"

Max Ridge Height

31' 6"

Garage

Type

Drive Under, Attached

Area

1000 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

10'

Roof Details

Primary Pitch

2.5 on 12

Framing Type

Stick

Architectural Style

Contemporary

Lake House

Mid Century Modern

Mountain

Northwest

Special Features

Flex Room

Home Office

Laundry - Upstairs

Loft

Master Suite - 2nd Floor

Two Story Great Room

Wrap Around Porch

Plan Collections

Home Office

Lake House Plans
