Contemporary Modern Prairie-Inspired House Plan
Heated S.F.
3,250
Beds
4 - 5
Baths
3
Stories
2
Cars
2
Floor Plan

Plan 23671JD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 23671JD

1-800-854-7852

1-262-521-4596

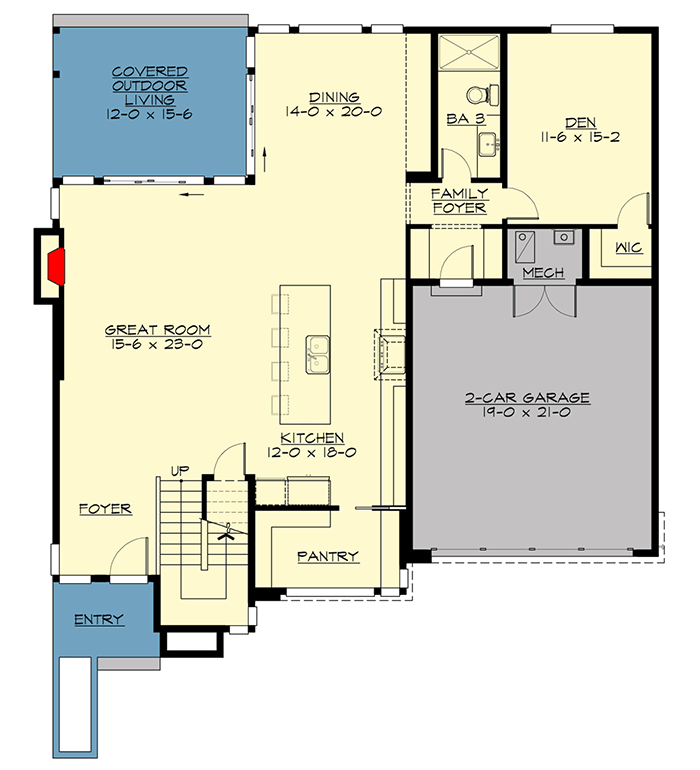

Main Level
floor plan image Main Level

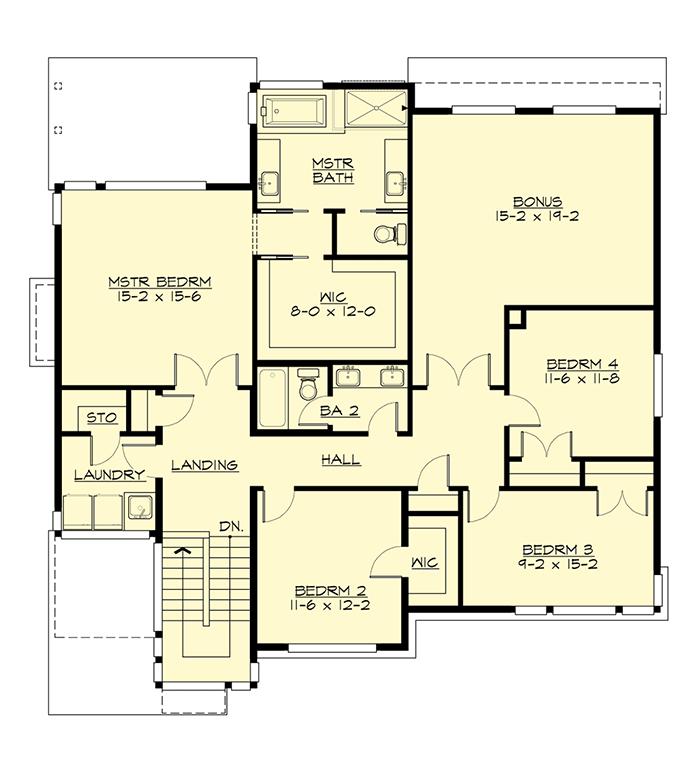

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This Northwest house plan has Contemporary and Prairie influences that give it a special appeal.
  • The big, open layout is a real pleasure to live in, with wonderful views from room to room.

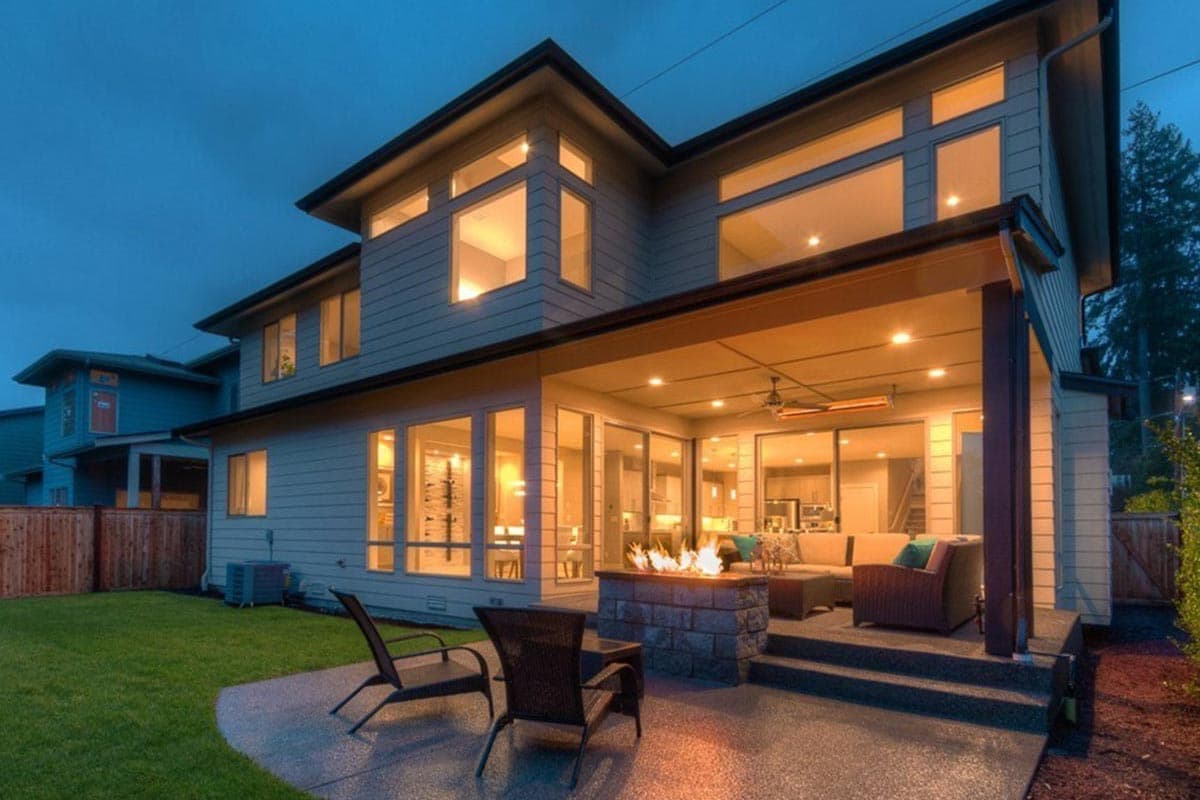

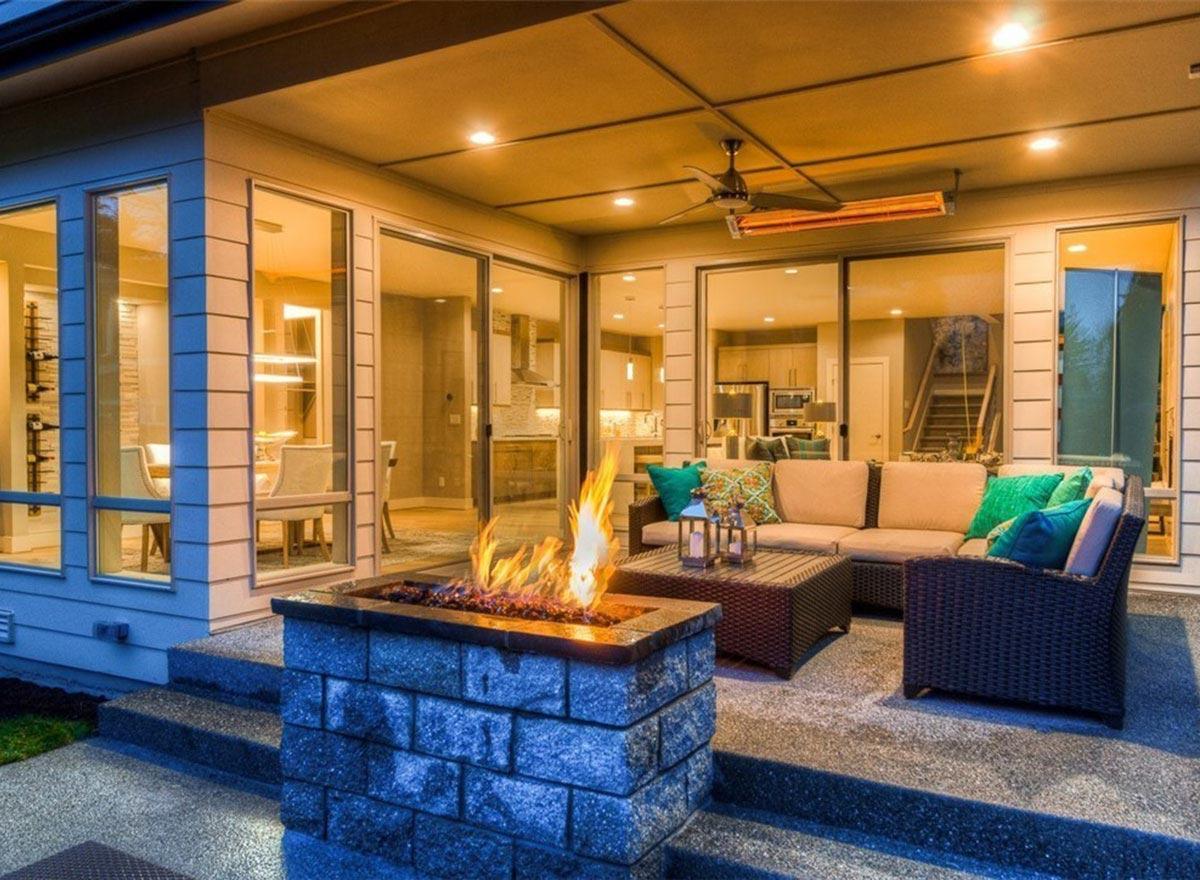

  • Two sets of sliding glass doors take you out to the rear covered patio.
  • Pocket doors in the kitchen open up to reveal a huge walk-in pantry that even has windows.
  • The den at the back of the house could be used as an extra bedroom since it has a walk-in closet and nearby bathroom.
  • Upstairs, four big bedrooms are just steps away from the huge bonus room that is included in the square footage of the house.
  • Notice the second floor laundry room that has a wonderful walk-in closet and a utility sink for hand-washing.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

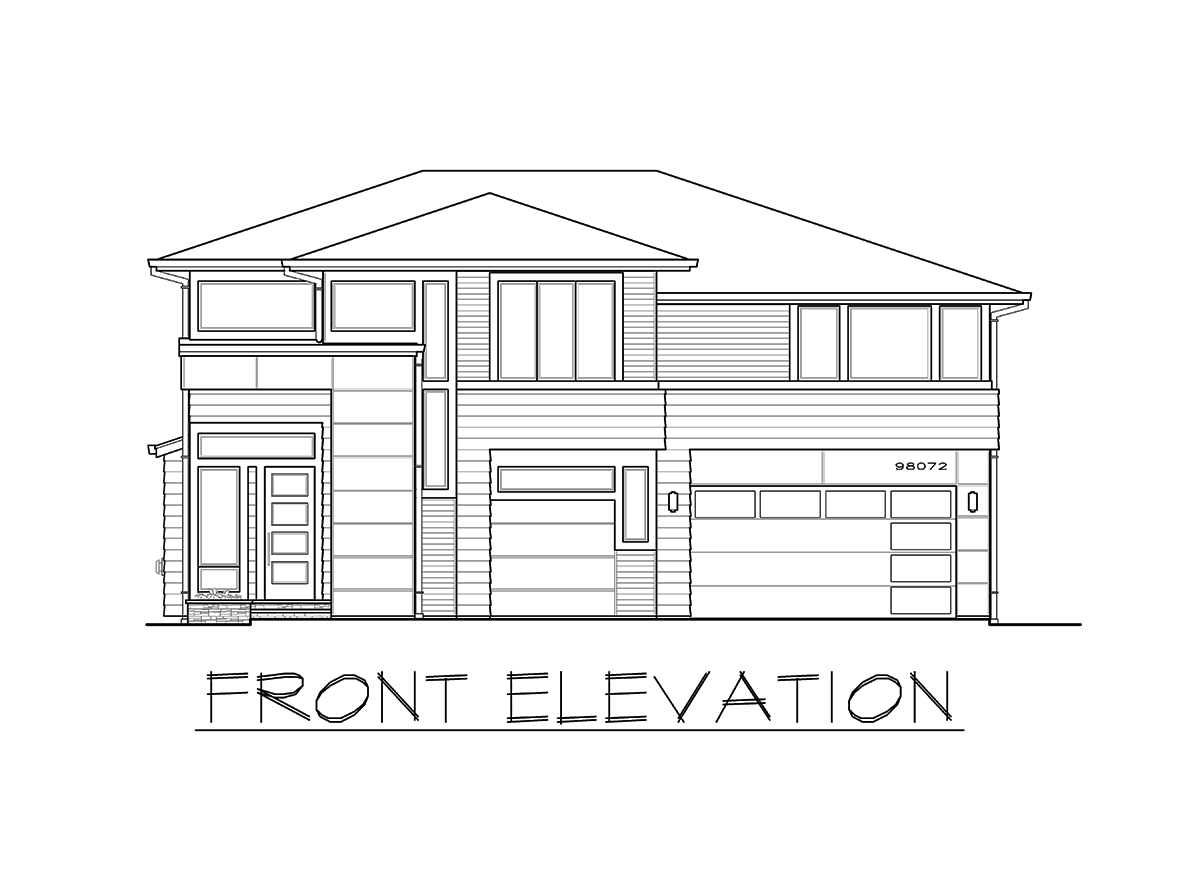

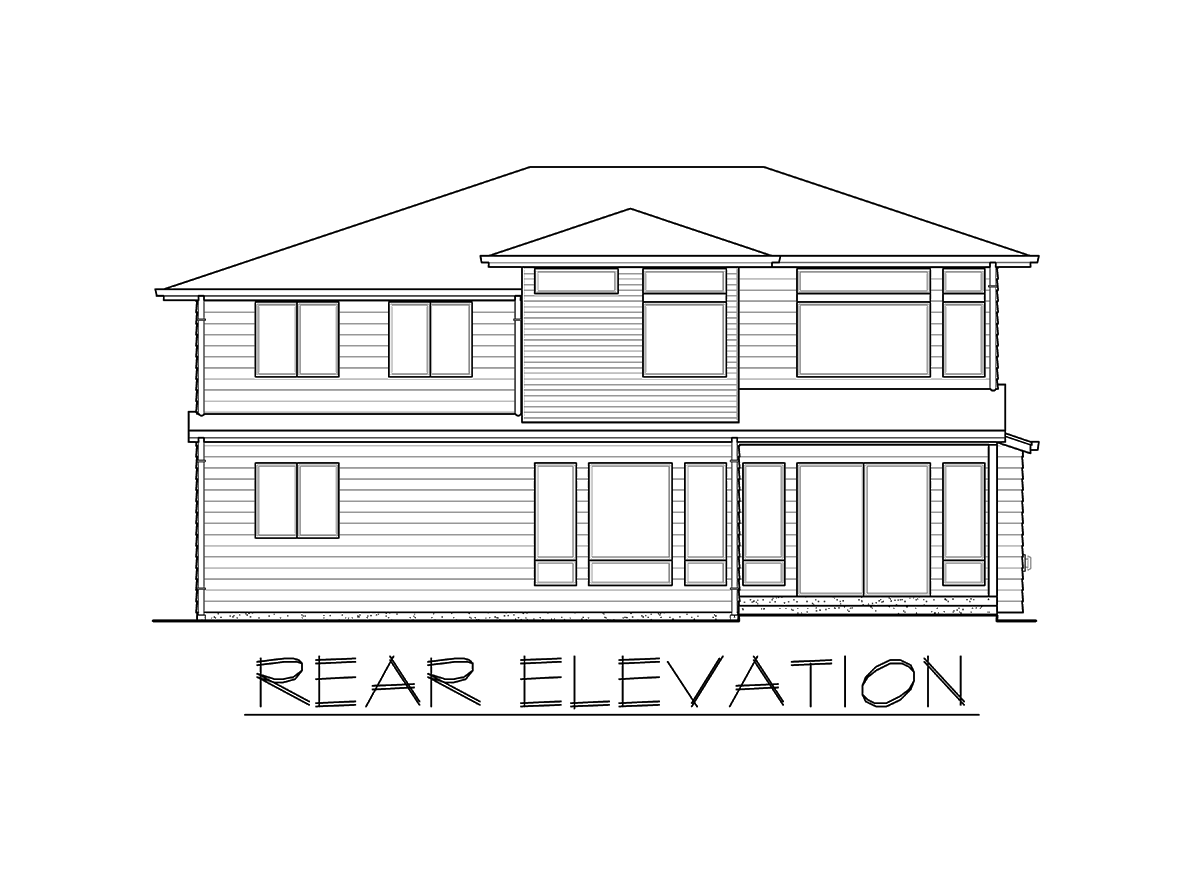

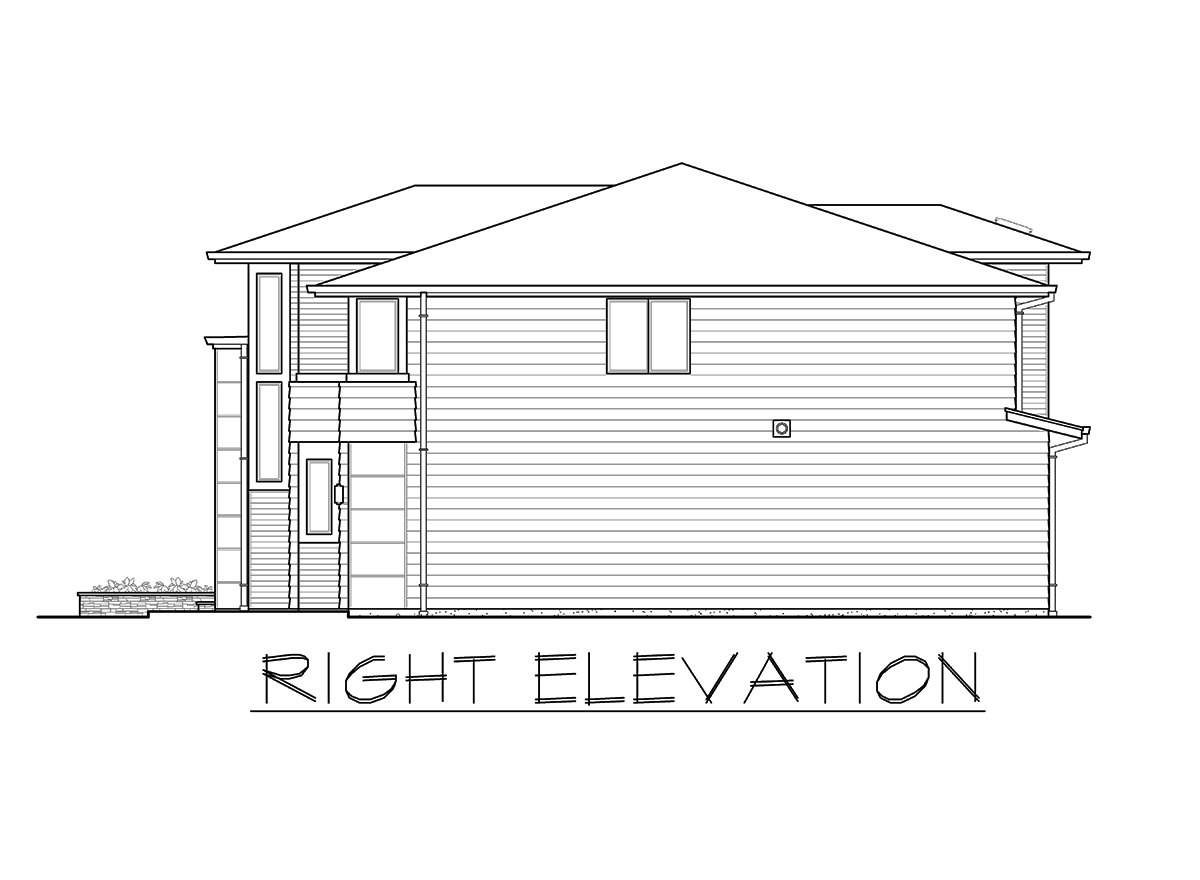

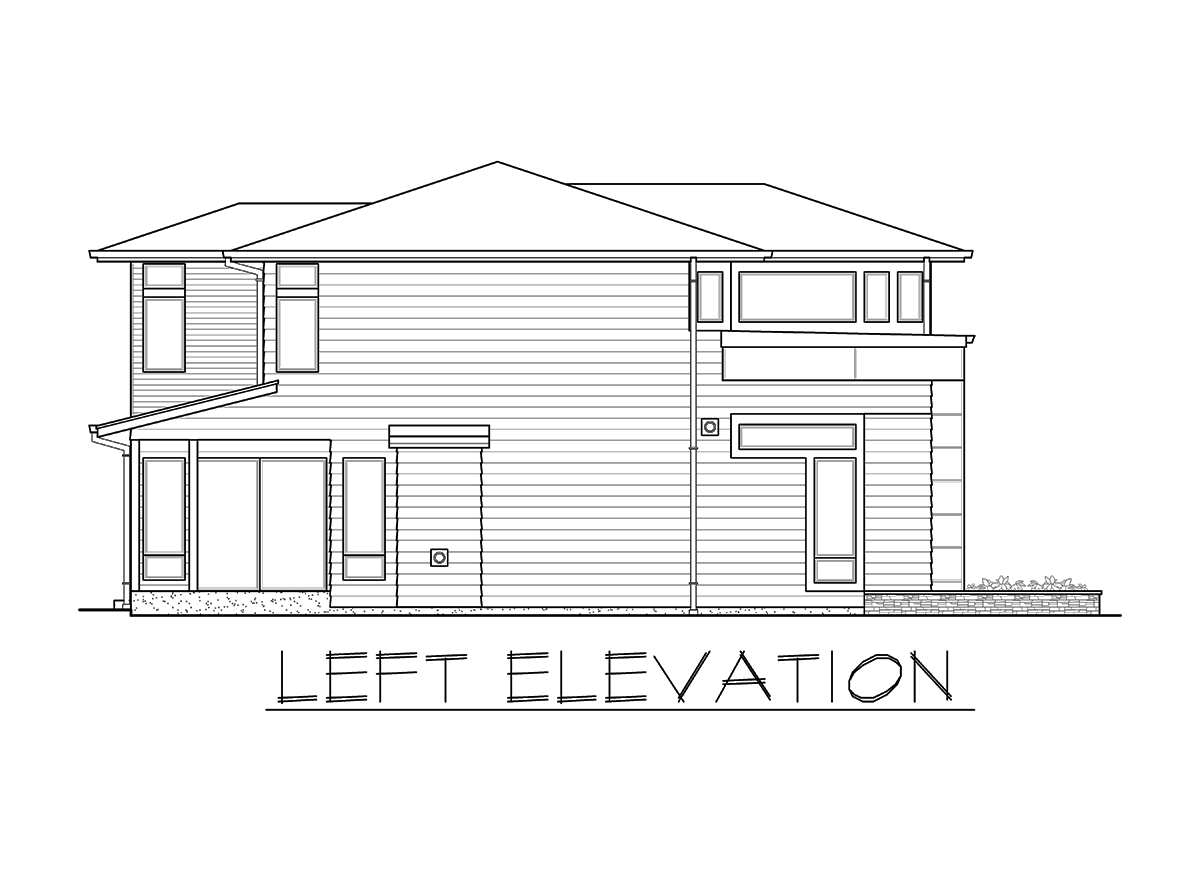

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,250 sq. ft.

1st Floor

1,465 sq. ft.

2nd Floor

1,785 sq. ft.

Porch, Rear

186 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

50' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

455 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

10'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Prairie

Special Features

Bonus Room

Butler Walk-in Pantry

Den

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Luxury

Photo Gallery

Premium Collection

Square Footage Breakdown

Total Heated Area

3,250 sq. ft.

1st Floor

1,465 sq. ft.

2nd Floor

1,785 sq. ft.

Porch, Rear

186 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

50' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

455 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

10'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Prairie

Special Features

Bonus Room

Butler Walk-in Pantry

Den

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Luxury

Photo Gallery

Premium Collection
