Plan 420098WNT

Exclusive

Contemporary Northwest Home Plan with Open Concept Layout
Heated S.F.
1,073
Beds
1
Baths
1.5
Stories
1
Cars
2
Floor Plan

Plan 420098WNT

Main Level
slide image 0

Plan 420098WNT

1-800-854-7852

1-262-521-4596

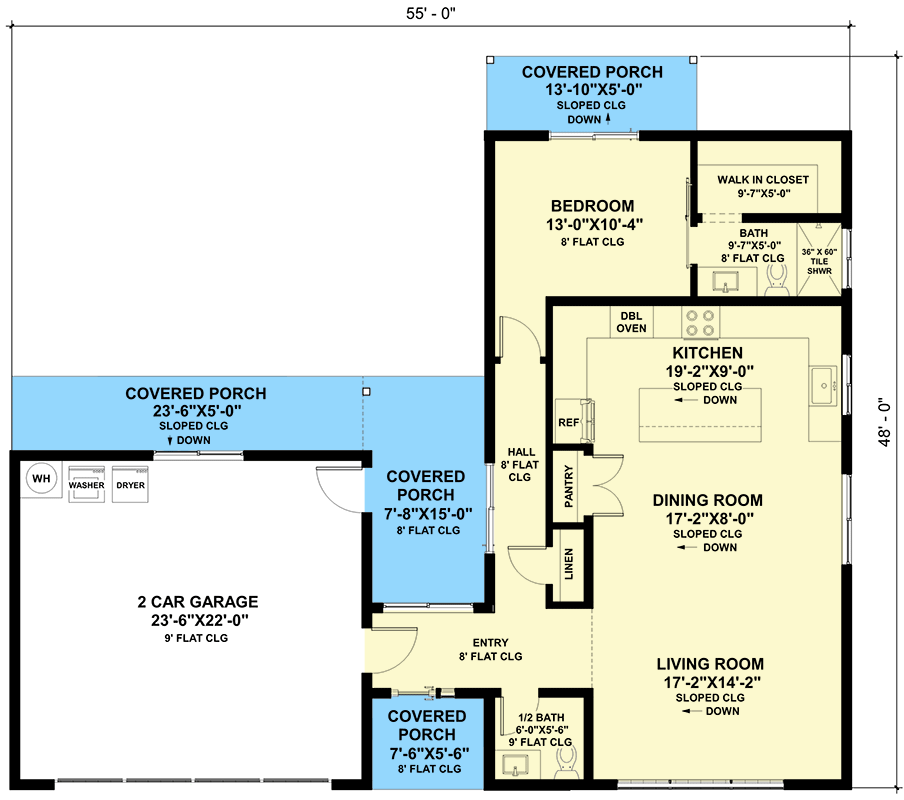

Main Level
floor plan image Main Level
Plan Details
  • This 1,073 sqaure foot house plan gives you 1 beds, 1.5 and a 2-car front garage (522 sqaure feet) and has a contemporary northwest exterior.
  • Upon entry, the open-concept living room, dining area, and kitchen greet you on the right, accompanied by a convenient half bath.
  • In the back of the home is the primary bedroom with a full bath and closet with its own personal covered outdoor space.
  • NOTE: Please allow 3 to 5 business days for delivery.

What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.
  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Cross Section - View that depicts a vertical slice through the building.
  • Details and notes - Dissected drawings of foundation/footings, typical wall section, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,073 sq. ft.

1st Floor

1,073 sq. ft.

Porch, Front

44 sq. ft.

Porch, Rear

294 sq. ft.

Porch, Combined

338 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

55' 0"

Depth

48' 0"

Max Ridge Height

13' 8"

Garage

Type

Attached

Area

522 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Living Room

Slope

9' 0''

Kitchen

Slope

9' 0''

Dining Room

Slope

9' 0''

Entry

Flat

8' 0''

Roof Details

Primary Pitch

2 on 12

Secondary Pitch

0.5 on 12

Framing Type

Stick And Truss

Architectural Style

Contemporary

Modern

Northwest

Ranch

Special Features

Master Suite - 1st Floor

Plan Collections

Exclusive

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,073 sq. ft.

1st Floor

1,073 sq. ft.

Porch, Front

44 sq. ft.
