Plan 80983PM: Contemporary Northwest House Plan with 12'-Deep Back Porch

Plan 80983PM

Contemporary Northwest House Plan with 12'-Deep Back Porch

Heated S.F.

936

Beds

Baths

Stories

Floor Plan

Main Level

Plan Details

At just under 1,000 square feet, this Contemporary Northwest house plan delivers a 12'-deep back porch, as well as an abundance of windows on the front and rear elevations.
Inside, the eat-in kitchen is open to the living room, which is consumed with natural light to create a light and airy living space.
The left wall is lined with upper and lower cabinets to form the kitchen. The central island includes a double-bowl sink, along with an attached dining table.
Two bedrooms, a full bath, and a laundry closet complete this timeless design.

What's Included

Please note this plan is designed to the National Building Code of Canada.

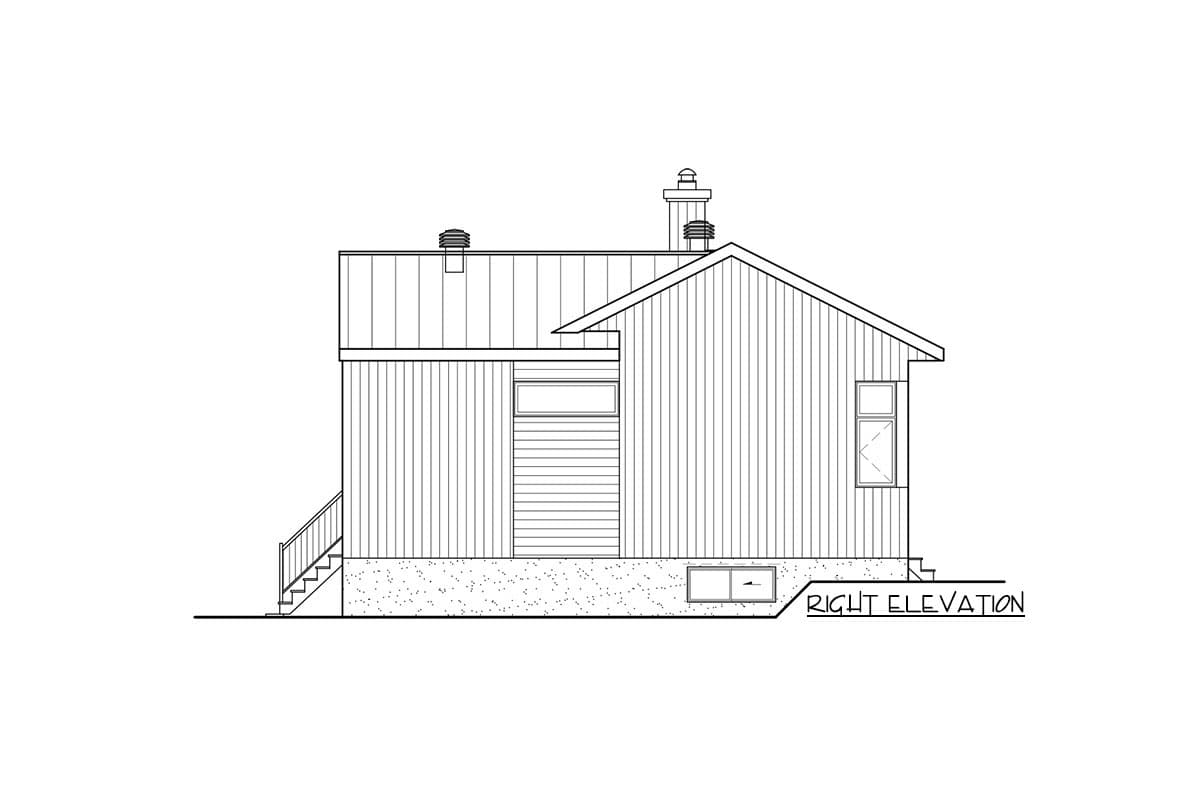

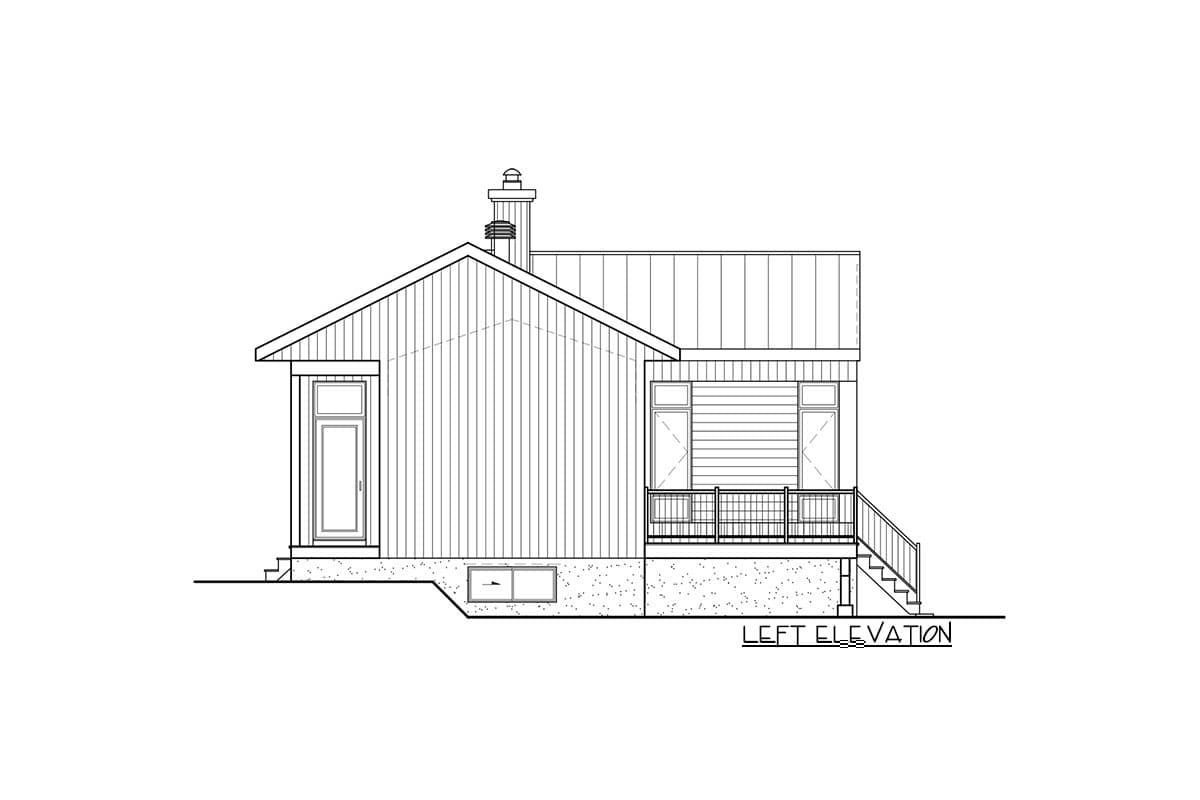

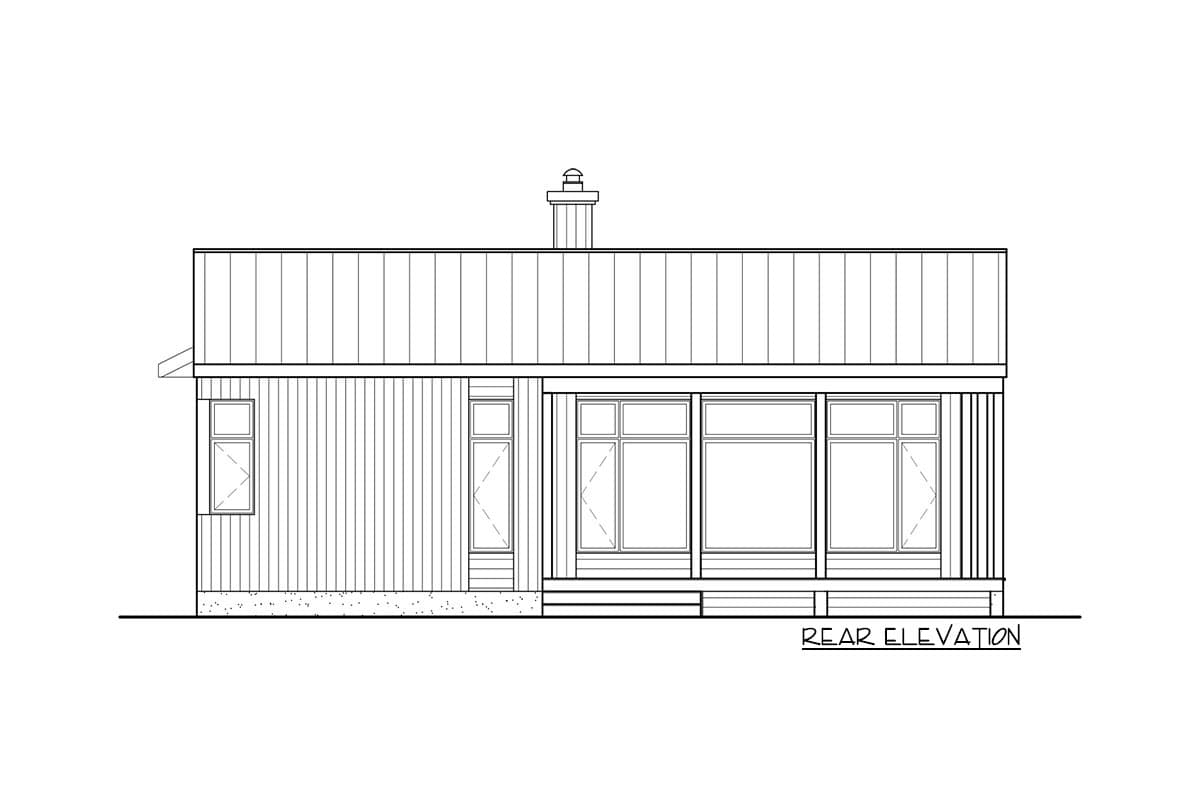

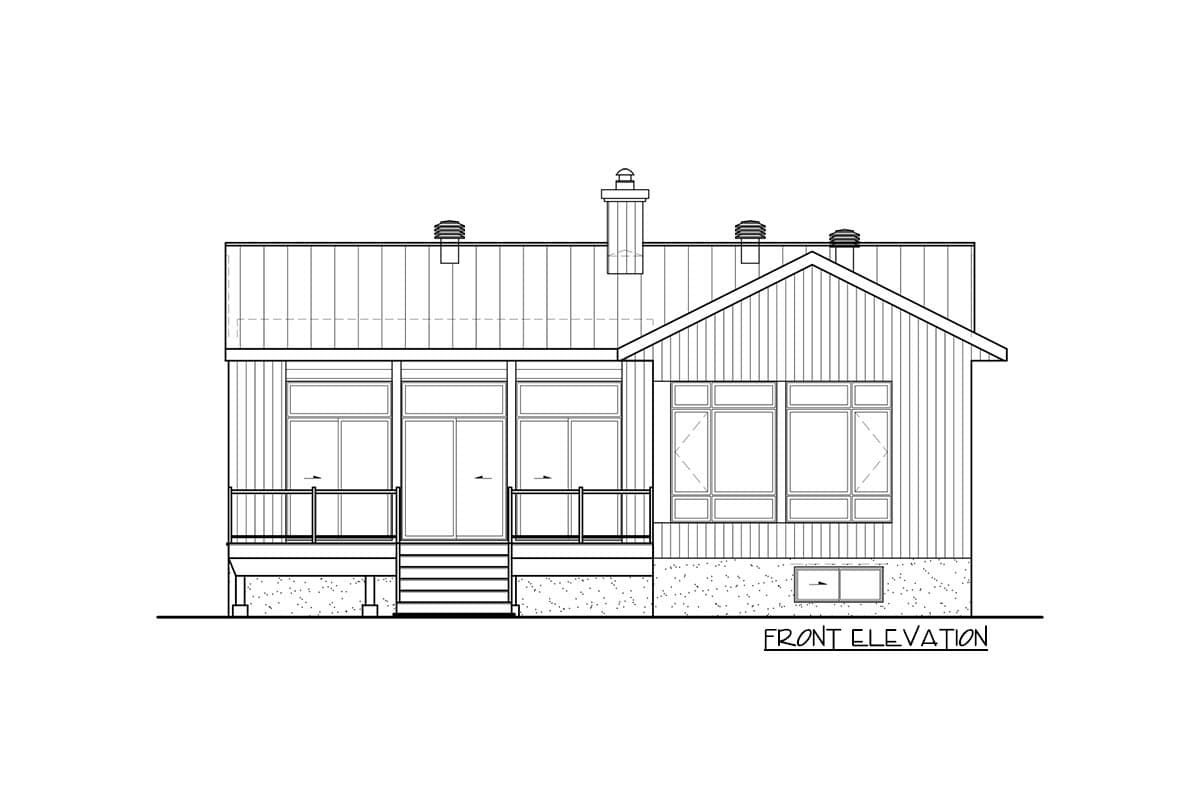

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.

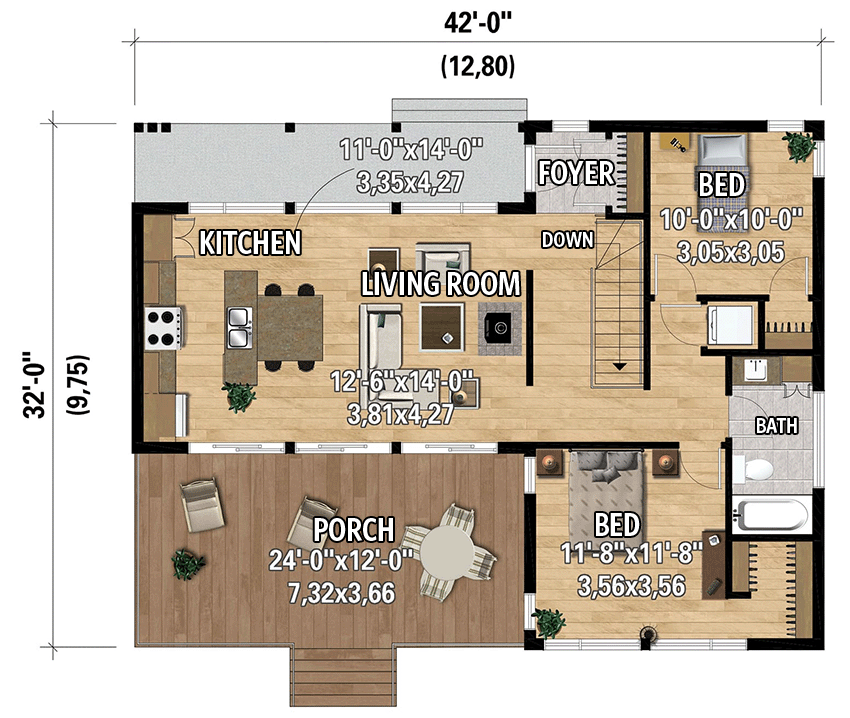

Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
