Plan 80981PM
Contemporary Northwest House Plan with 3 Bedrooms and a Loft
Heated S.F.
2,261
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 80981PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 80981PM

1-800-854-7852

1-262-521-4596

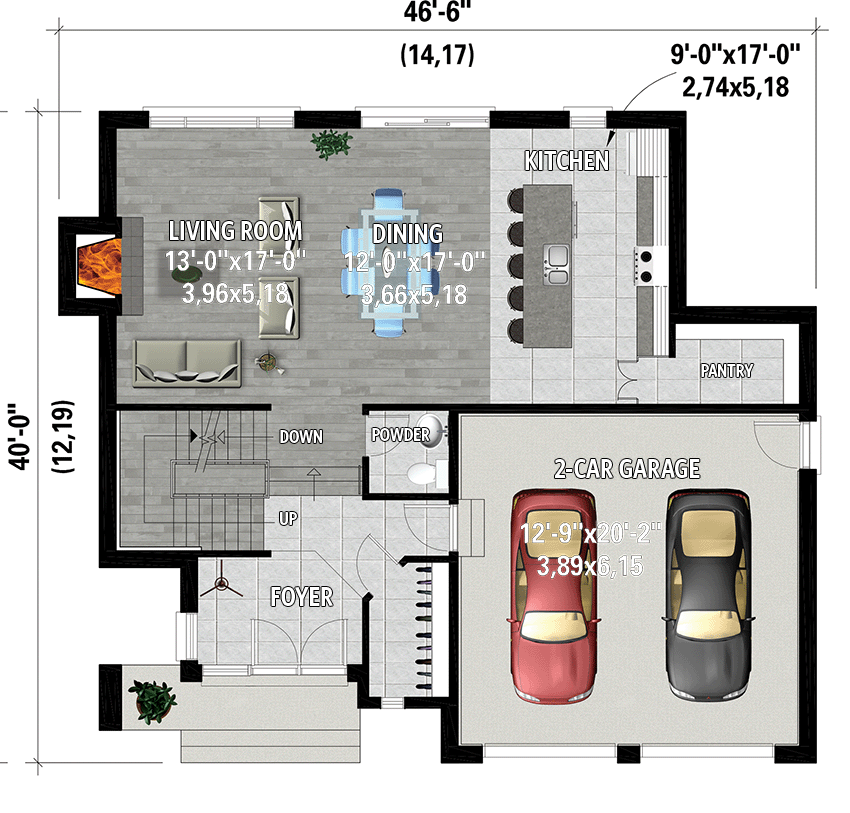

Main Level
floor plan image Main Level

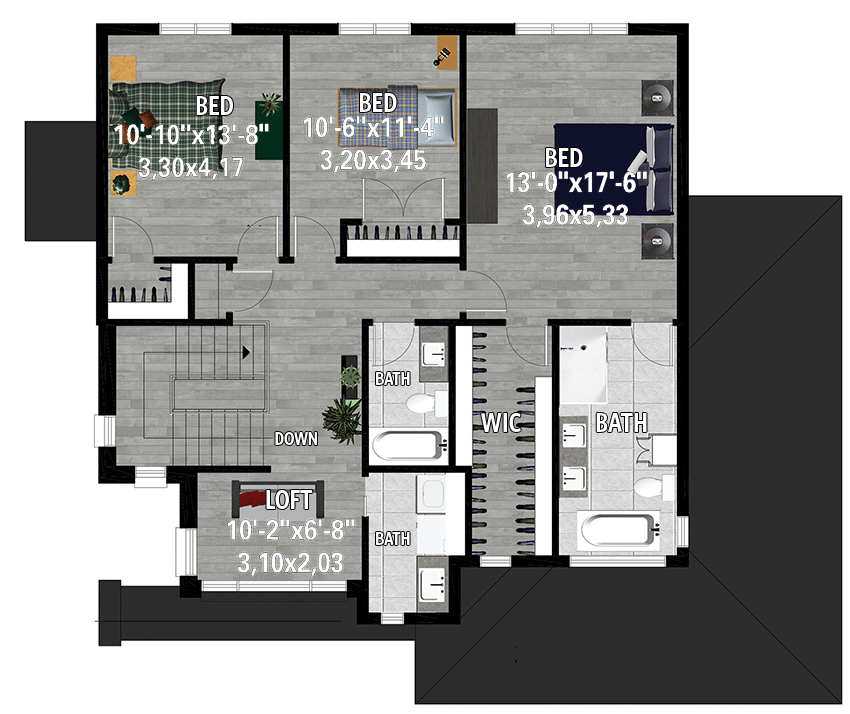

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This contemporary Northwest house plan features stone and wood elements to blend in with surrounding rural landscapes.
  • Inside, the front door and garage entry merge in the foyer in order to share the large coat closet.
  • The main level consists of the shared living spaces towards the rear with a fireplace anchoring the left wall. Unobstructed views into the adjoining dining room and kitchen create the open floor plan many desire.
  • Enjoy time spent in this spacious kitchen that hosts a lengthy island with an eating bar and oversized walk-in pantry.
  • Three bedrooms can be found on the second level, along with a loft that can be used as a reading nook or playroom.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,261 sq. ft.

1st Floor

1,055 sq. ft.

2nd Floor

1,206 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 6"

Depth

40' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

477 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

4 on 12

Architectural Style

Contemporary

Modern

Northwest

Special Features

Breakfast Nook

Butler Walk-in Pantry

Laundry - Upstairs

Loft

Master Suite - 2nd Floor

Playroom
