Contemporary Ranch House Plan with Open Concept Living Space - 2382 Sq Ft
Heated S.F.
2,382
Beds
3
Baths
3
Stories
1
Cars
2
Floor Plan

Plan 833020WAT

Main Level
slide image 0

Plan 833020WAT

1-800-854-7852

1-262-521-4596

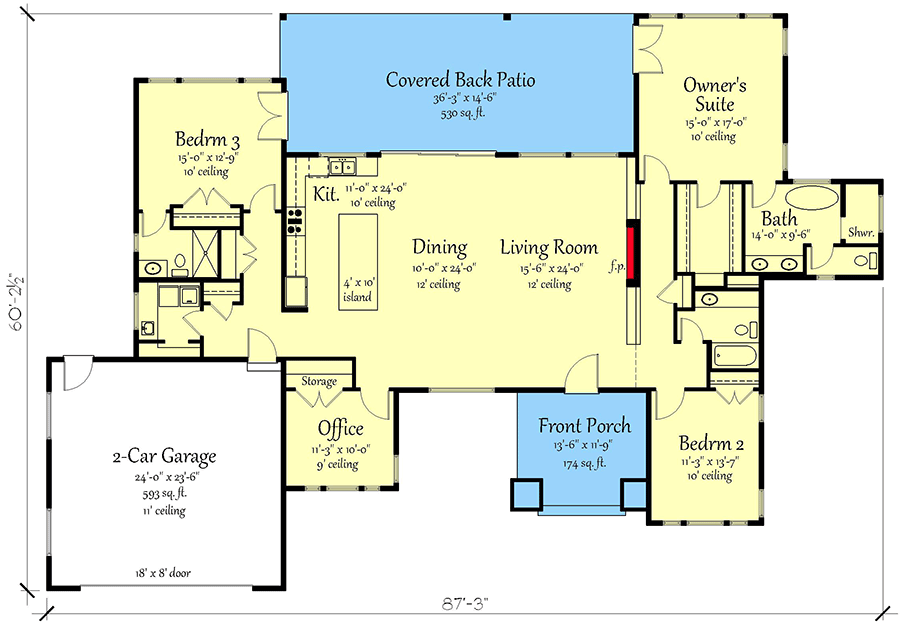

Main Level
floor plan image Main Level
Plan Details

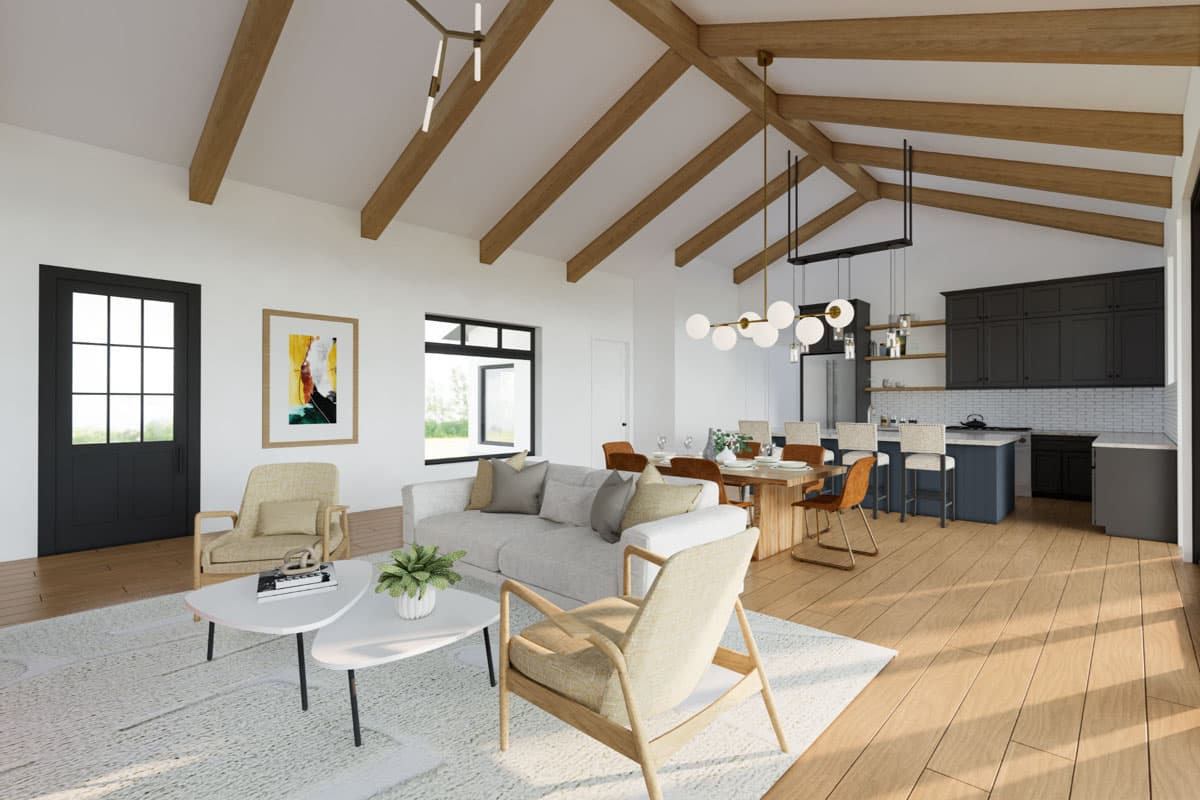

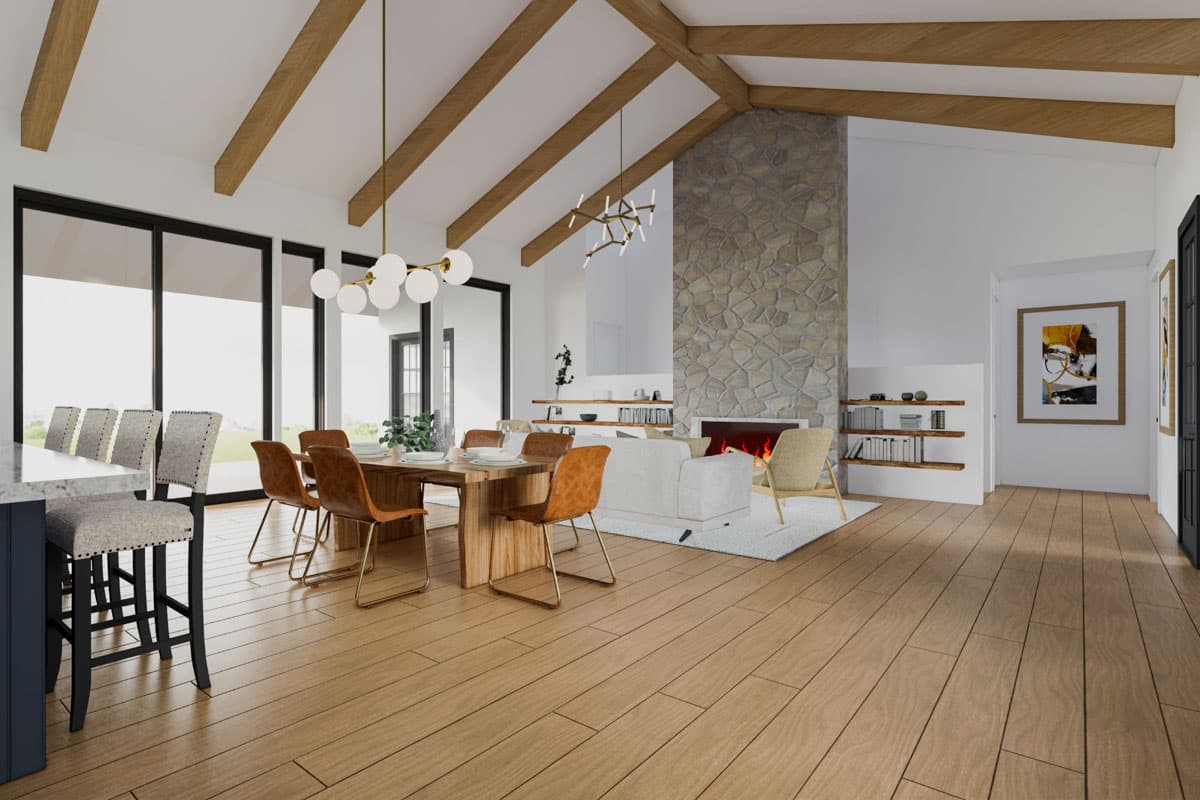

  • This inviting home combines style, functionality, and comfort, making it ideal for family living. The open floor plan features large picture windows that fill the space with natural light. The chef-inspired kitchen, with ample counter space and a central island, connects seamlessly to the dining and living areas, creating a bright, welcoming space for gatherings.

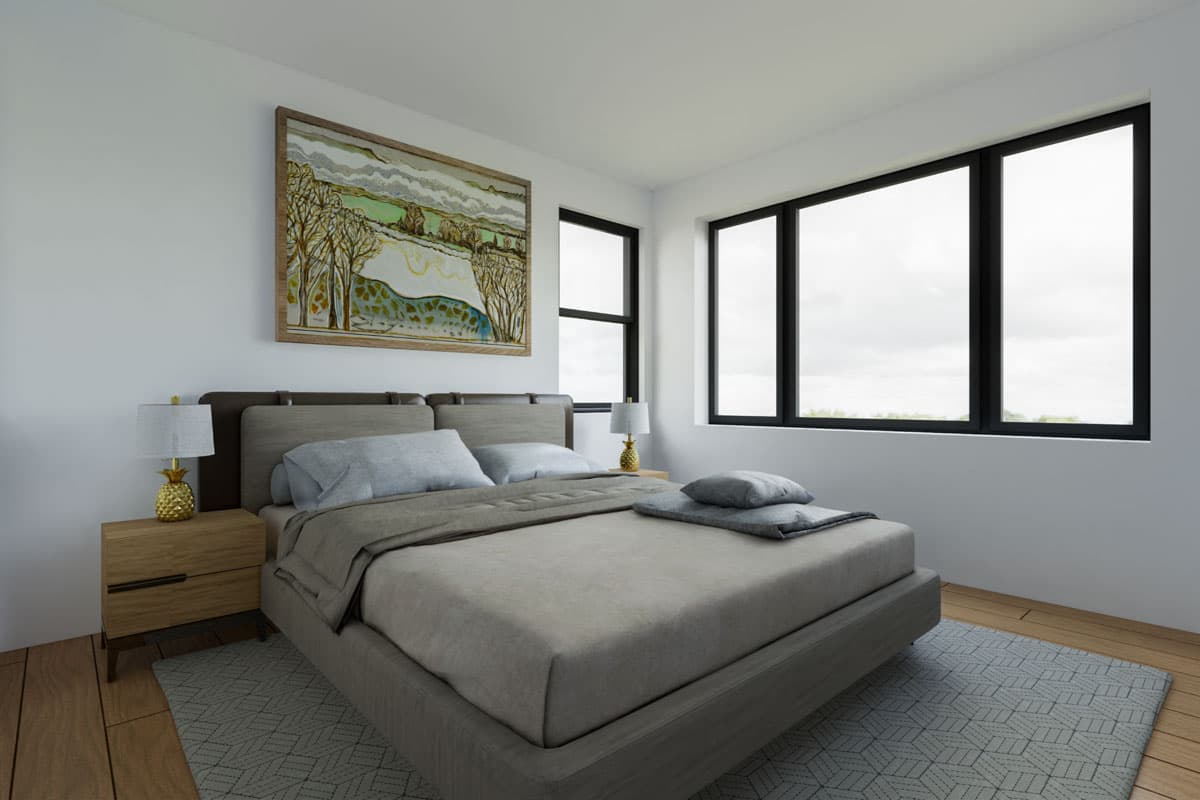

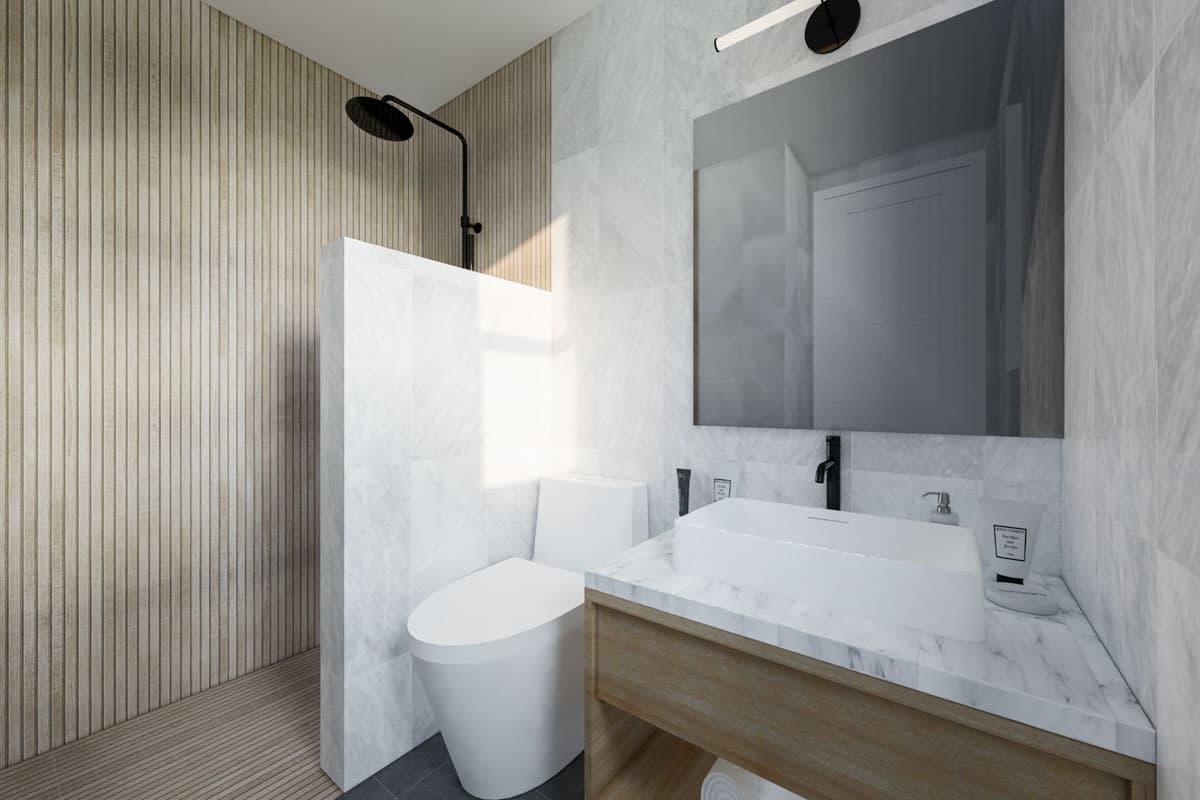

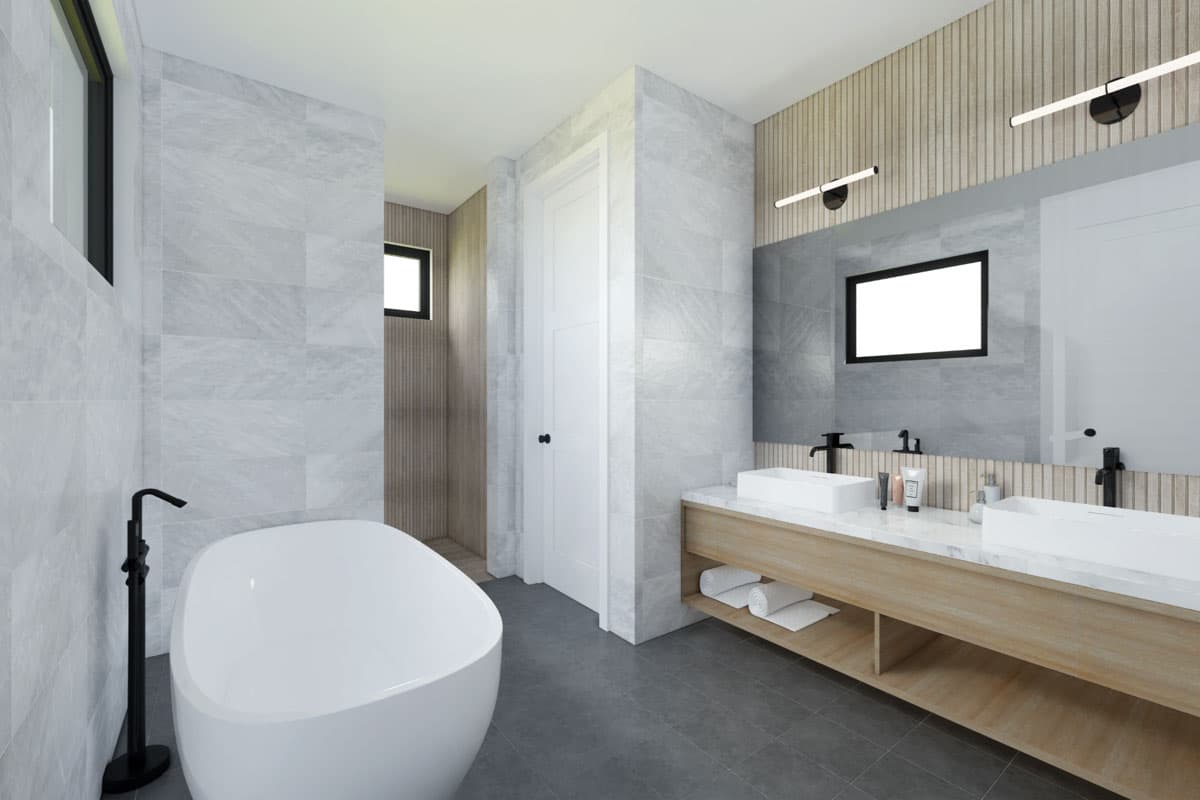

  • The dining room opens to a covered patio with a 12-foot sliding door, extending your entertaining options outdoors. Both the master bedroom and guest suite include private bathrooms, walk-in closets, and French doors leading to the patio, blending indoor and outdoor living. Bedrooms are thoughtfully placed for privacy.

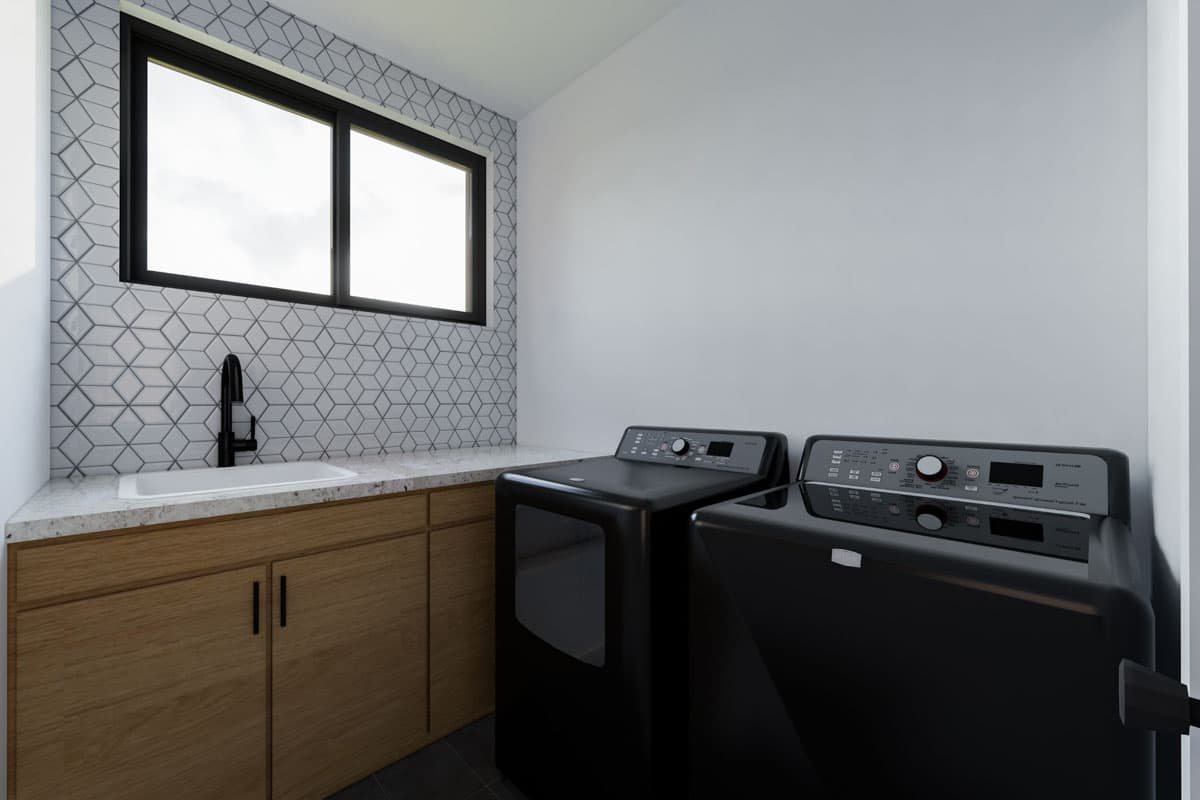

  • An office near the sunlit kitchen ensures convenience for work or projects, while the oversized laundry room and ample storage throughout keep clutter at bay. The spacious garage accommodates vehicles and hobbies with ease.

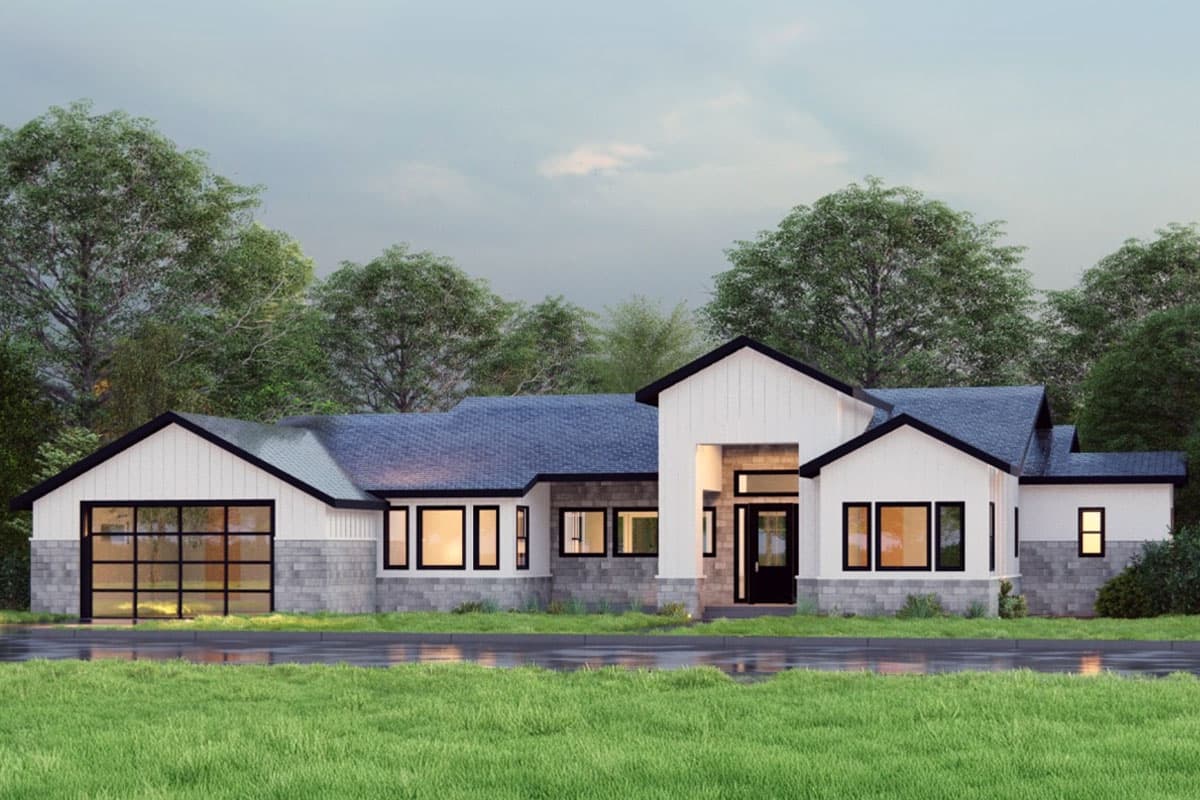

  • With a covered front porch for relaxation and curb appeal, this home balances luxury with affordability.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet
  • Floor Plan
  • Elevations
  • Roof Plan
  • Thermal Envelope Plan (General Prescriptive Energy Compliance)
  • Detail Sheet
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,382 sq. ft.

1st Floor

2,382 sq. ft.

Porch, Front

174 sq. ft.

Porch, Rear

530 sq. ft.

Porch, Combined

704 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

87' 3"

Depth

60' 3"

Max Ridge Height

22' 4"

Garage

Type

Attached

Area

593 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Great Room

12' 0''

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

4 on 12

Framing Type

Stick Or Truss
