Plan 82261KA
Contemporary Ranch with Split Bedroom Layout
Heated S.F.
2,282
Beds
4
Baths
3
Stories
1
Cars
2
Floor Plan

Plan 82261KA

Main Level
slide image 0

Plan 82261KA

1-800-854-7852

1-262-521-4596

Main Level

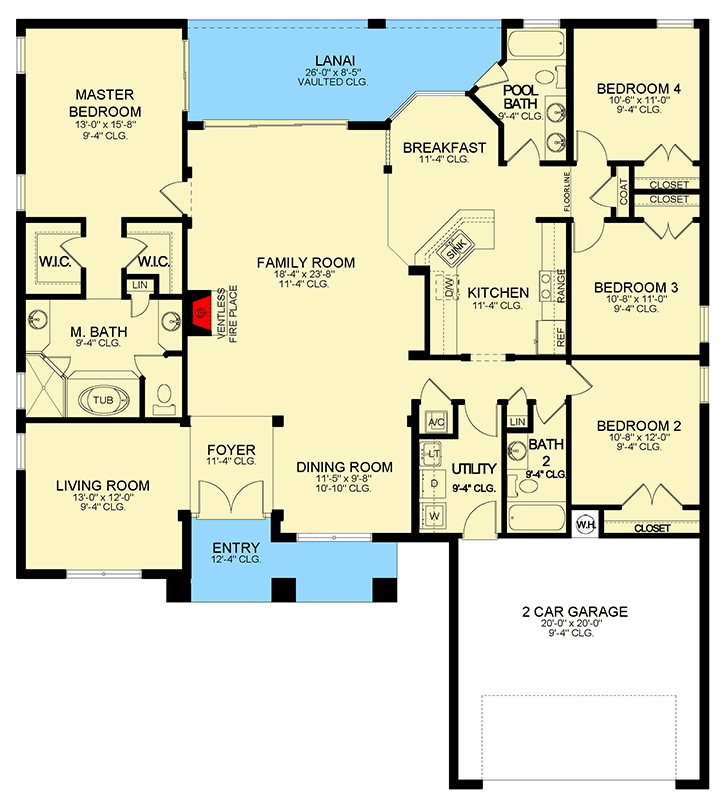

floor plan image Main Level
Plan Details
  • A bold covered entry with three sturdy supports graces the front of this one-story house plan with split bedroom layout.
  • French doors open to the family room and gives you views straight through to the sliding glass wall that opens to the lanai in back.
  • The master suite is located on its own on the left and has outdoor access. Three more beds line the other side of the home.
  • A living room is on one side of the foyer and an open dining room on the right.
  • Related Plan: Get an alternate exterior with house plan 82260KA and 82262KA,
What's Included
  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,282 sq. ft.

1st Floor

2,282 sq. ft.

Porch, Front

102 sq. ft.

Porch, Rear

196 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

57' 0"

Depth

63' 4"

Max Ridge Height

21' 3"

Garage

Type

Attached

Area

448 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,282 sq. ft.

1st Floor

2,282 sq. ft.

Porch, Front

102 sq. ft.

Porch, Rear

196 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

57' 0"

Depth

63' 4"

Max Ridge Height

21' 3"

Garage

Type

Attached

Area

448 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
