Plan 801112PM
Contemporary Scandinavian-Inspired House Plan Under 1900 Square Feet
Heated S.F.
1,886
Beds
3
Baths
1.5
Stories
2
Cars
1
Floor Plan

Plan 801112PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 801112PM

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level

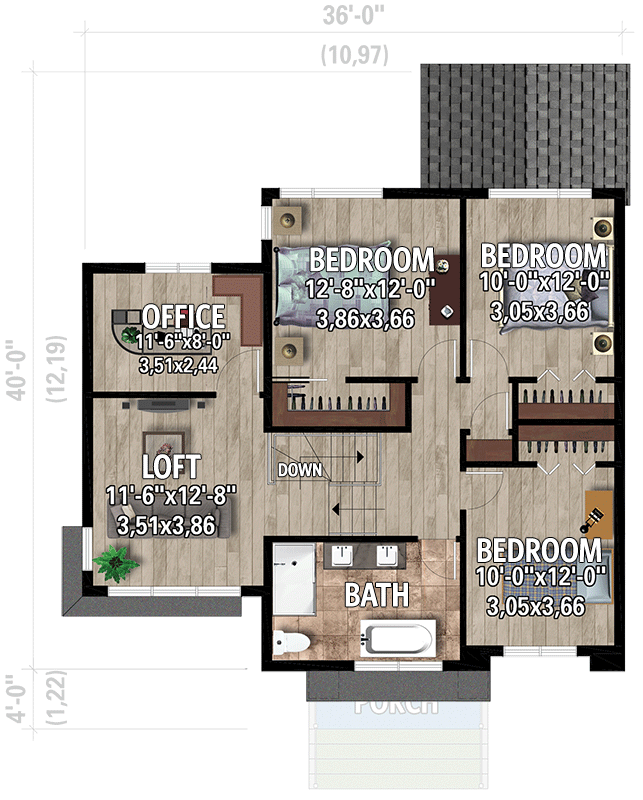

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 2-story house plan gives you 1,886 square feet of heated living space with 3 bedrooms - all upstairs - and a contemporary Scandinavian-inspired exterior.
  • A large entry with a coatroom grants you access to the open-concept living room, dining room and kitchen with walk-in pantry and an island.
  • Laundry is located on the main floor in a private location.
  • Upstairs, a home office and loft are on the left and three bedrooms and a bath with two vanities completes the floor.
  • NOTE: Please allow up to 15 business days for delivery.
What's Included
Please note this plan is designed to the National Building Code of Canada.

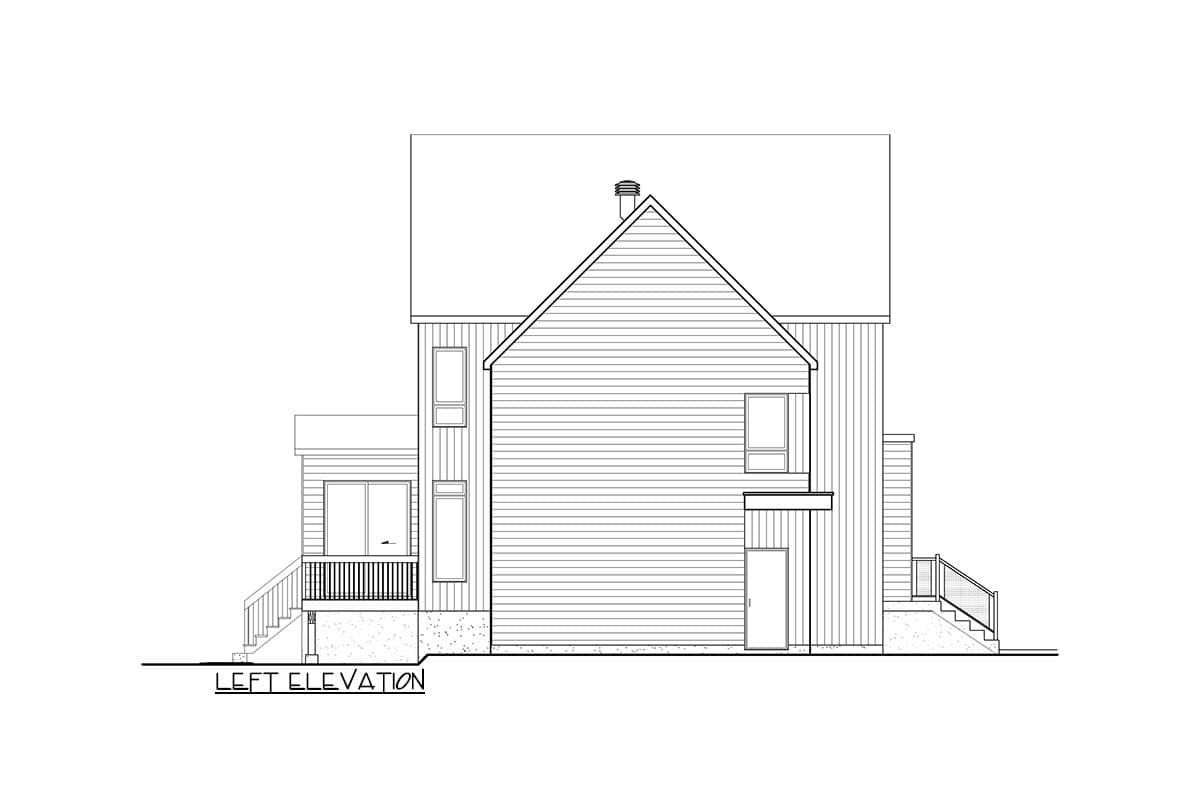

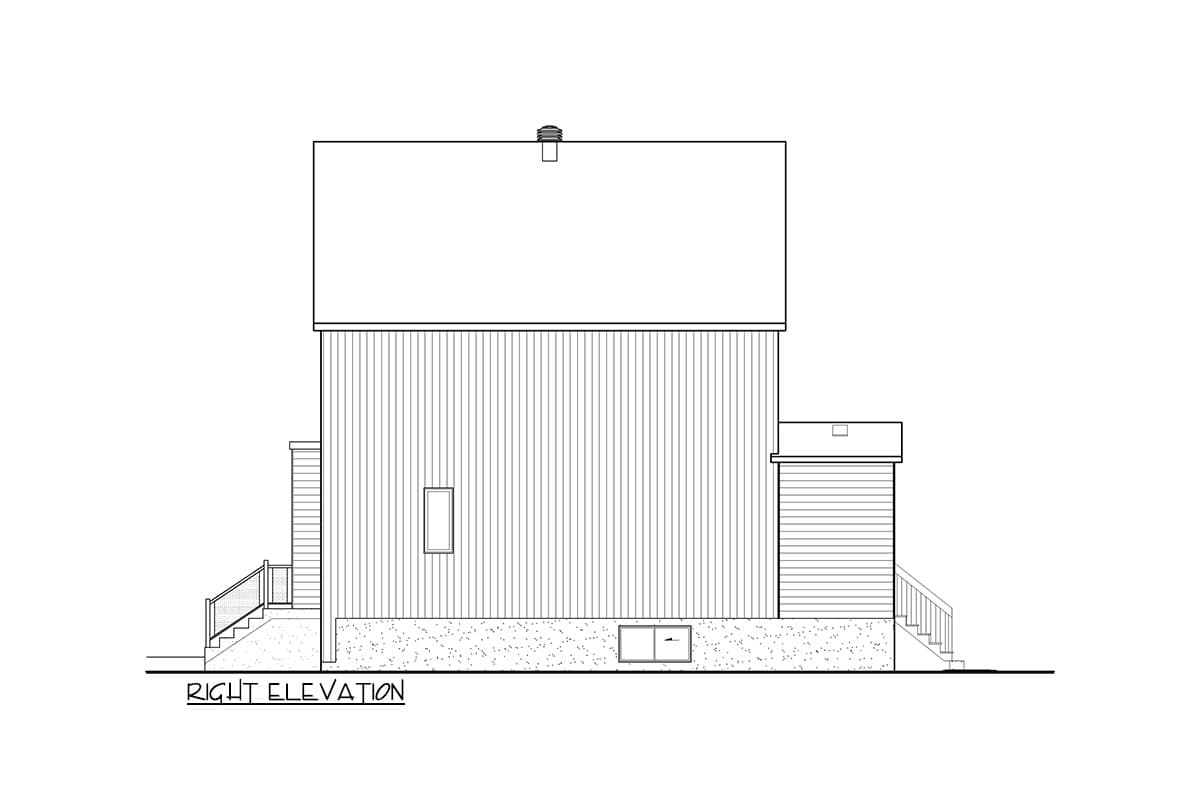

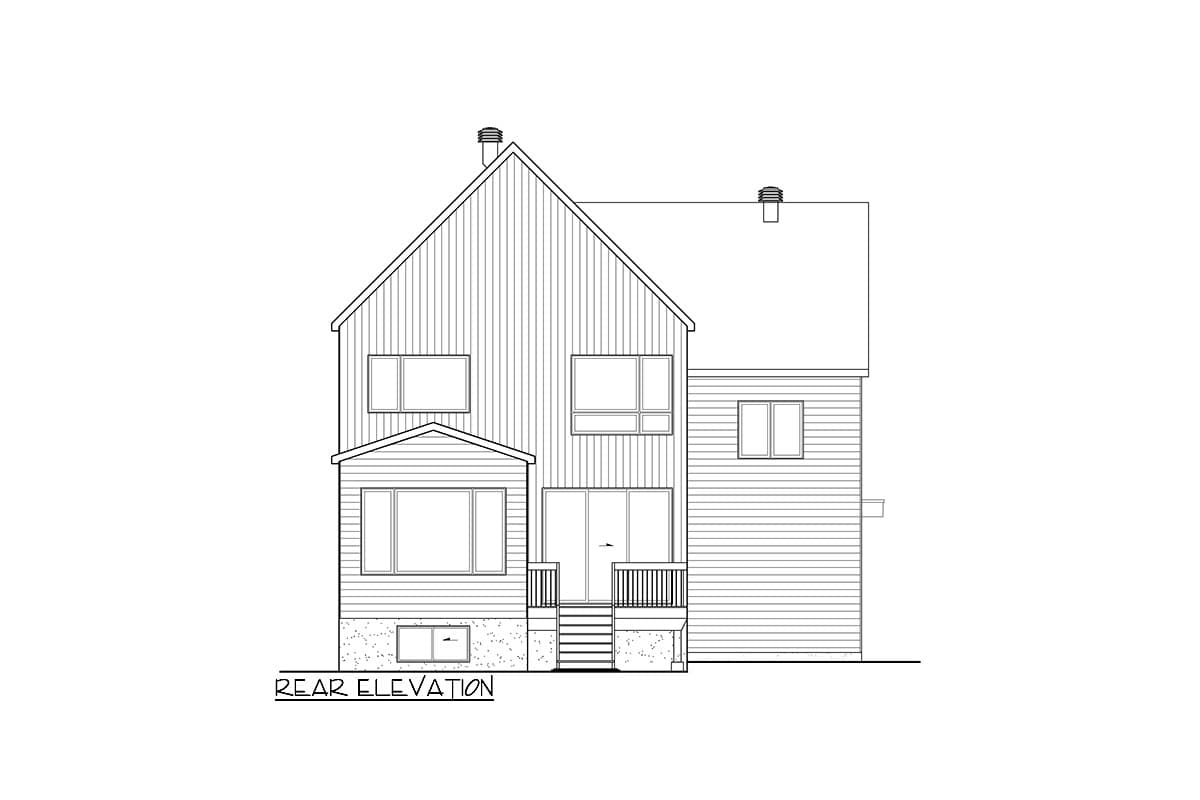

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,886 sq. ft.

1st Floor

863 sq. ft.

2nd Floor

1,023 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

40' 0"

Max Ridge Height

36' 6"

Garage

Type

Attached

Area

264 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Architectural Style

Contemporary

European

Scandinavian

Special Features

Home Office

Loft

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Home Office

Square Footage Breakdown

Total Heated Area

1,886 sq. ft.

1st Floor

863 sq. ft.

2nd Floor

1,023 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

40' 0"

Max Ridge Height

36' 6"

Garage

Type

Attached

Area

264 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Architectural Style

Contemporary

European

Scandinavian

Special Features

Home Office

Loft

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Home Office
