Plan 54219HU
Contemporary Split-Bed House Plan with Expansive Views From Rear Windows
Heated S.F.
3,264
Beds
3
Baths
3.5
Stories
1
Cars
3
Photos

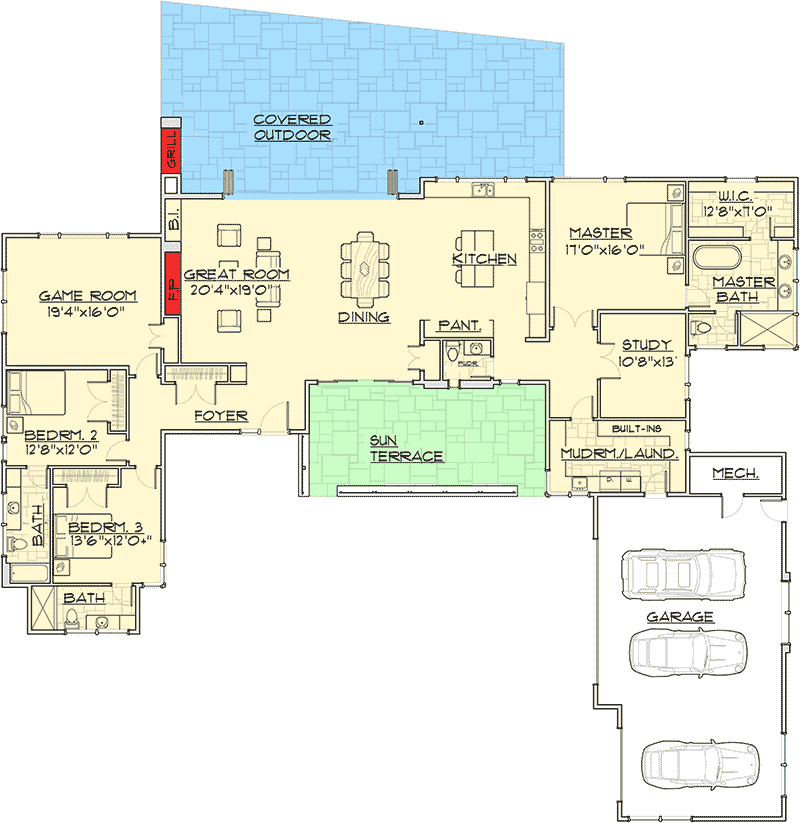

Floor Plan

Plan 54219HU

Main Level
slide image 0

Plan 54219HU

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

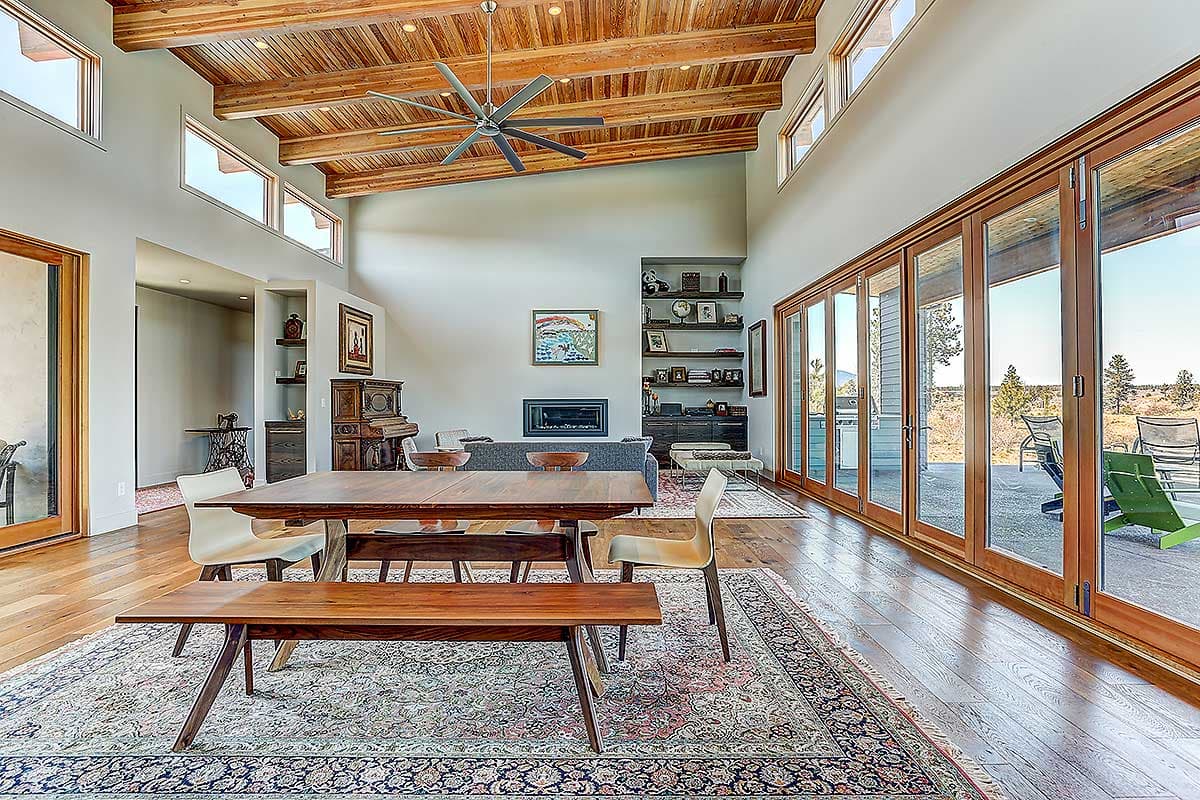

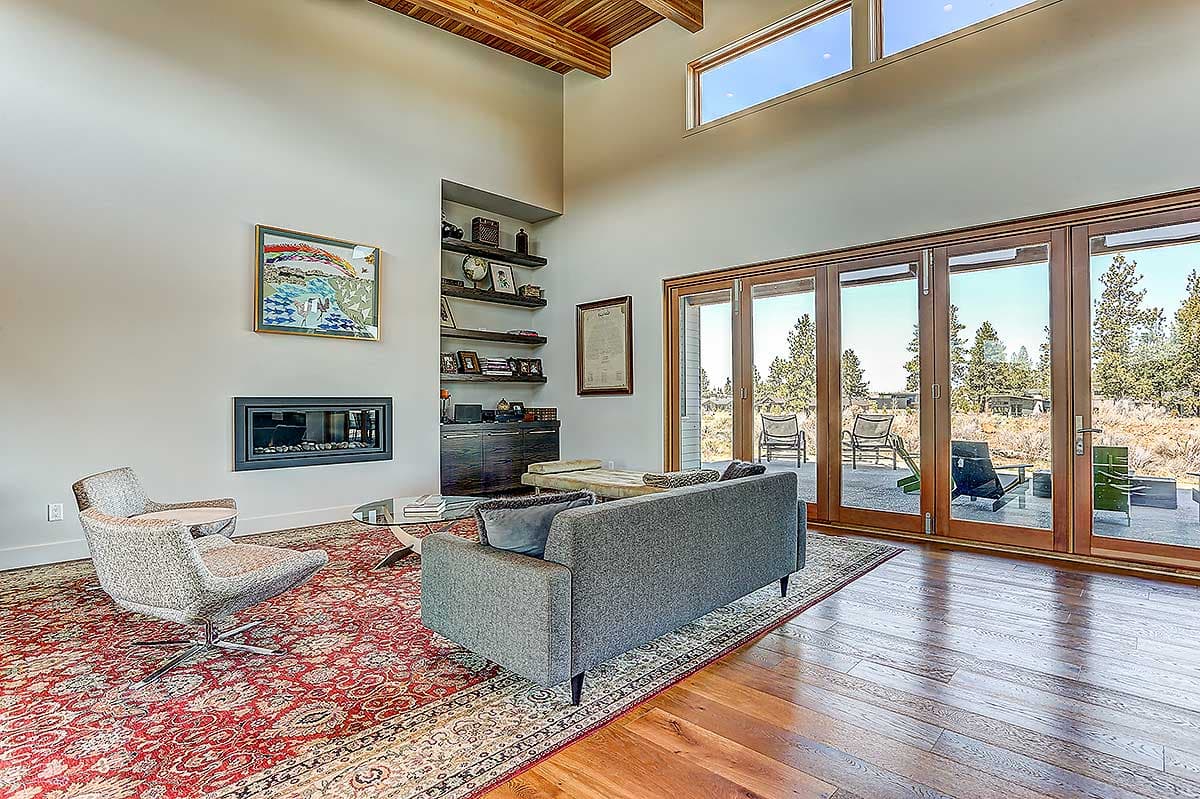

  • This plan was designed with maximizing the views of your special lot in mind. Clerestory windows in the back create a virtual viewing wall along the back of the open living area.

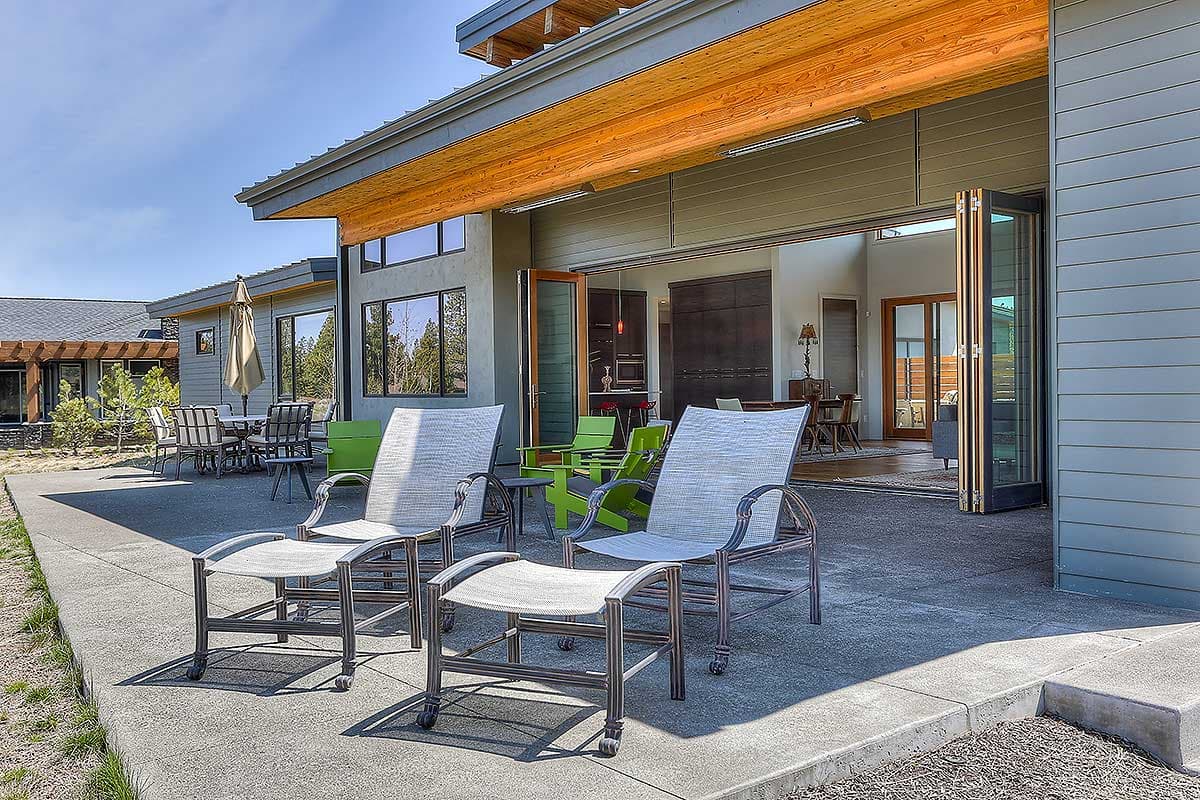

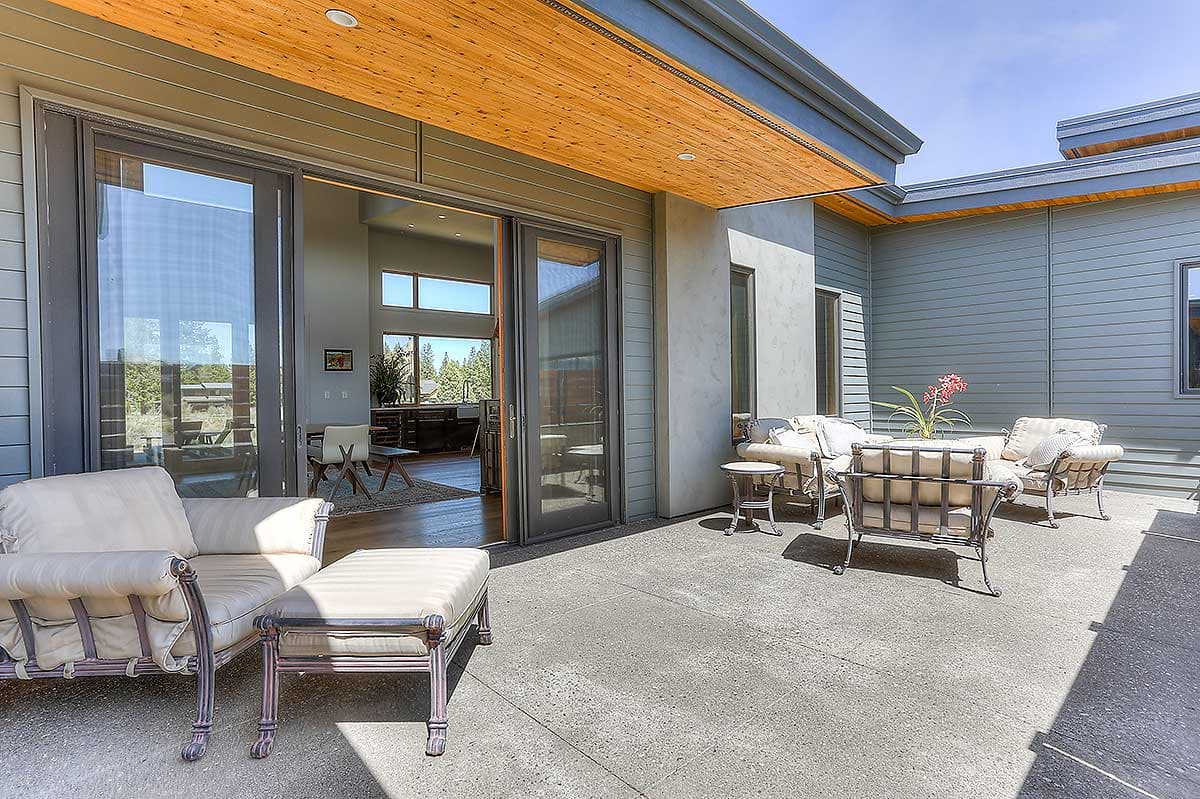

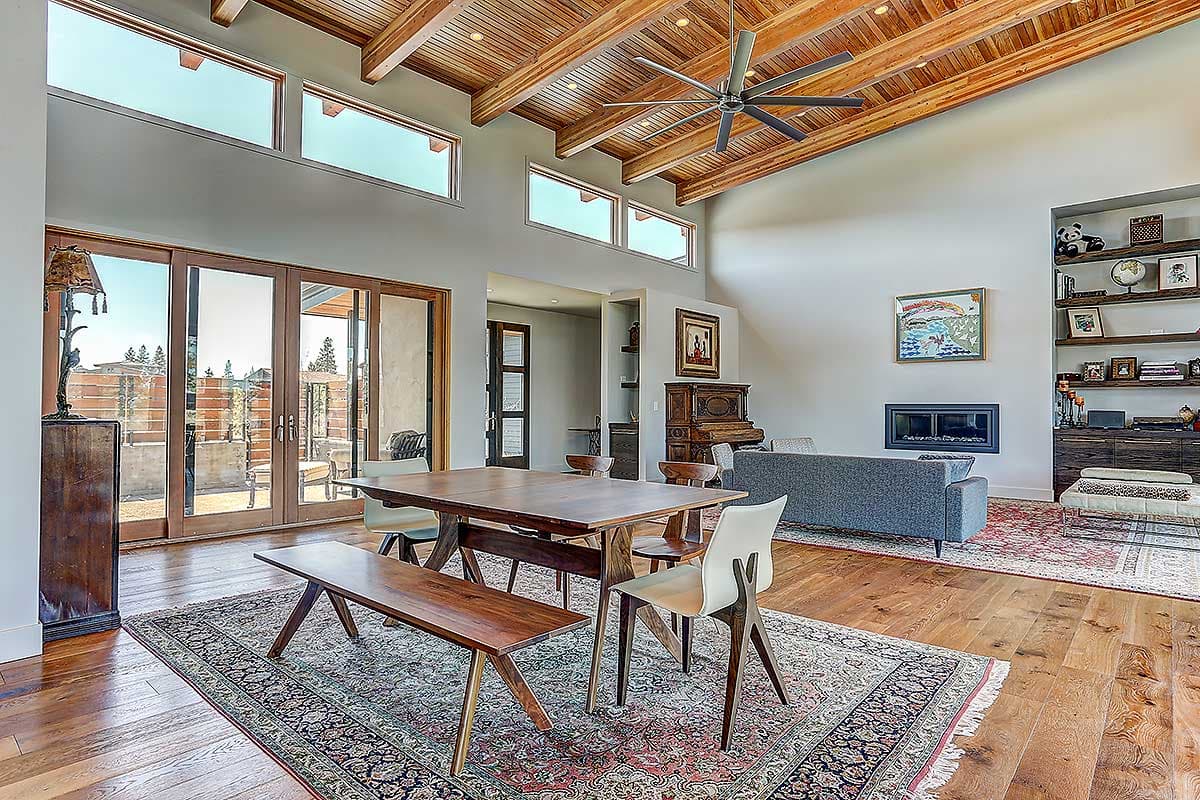

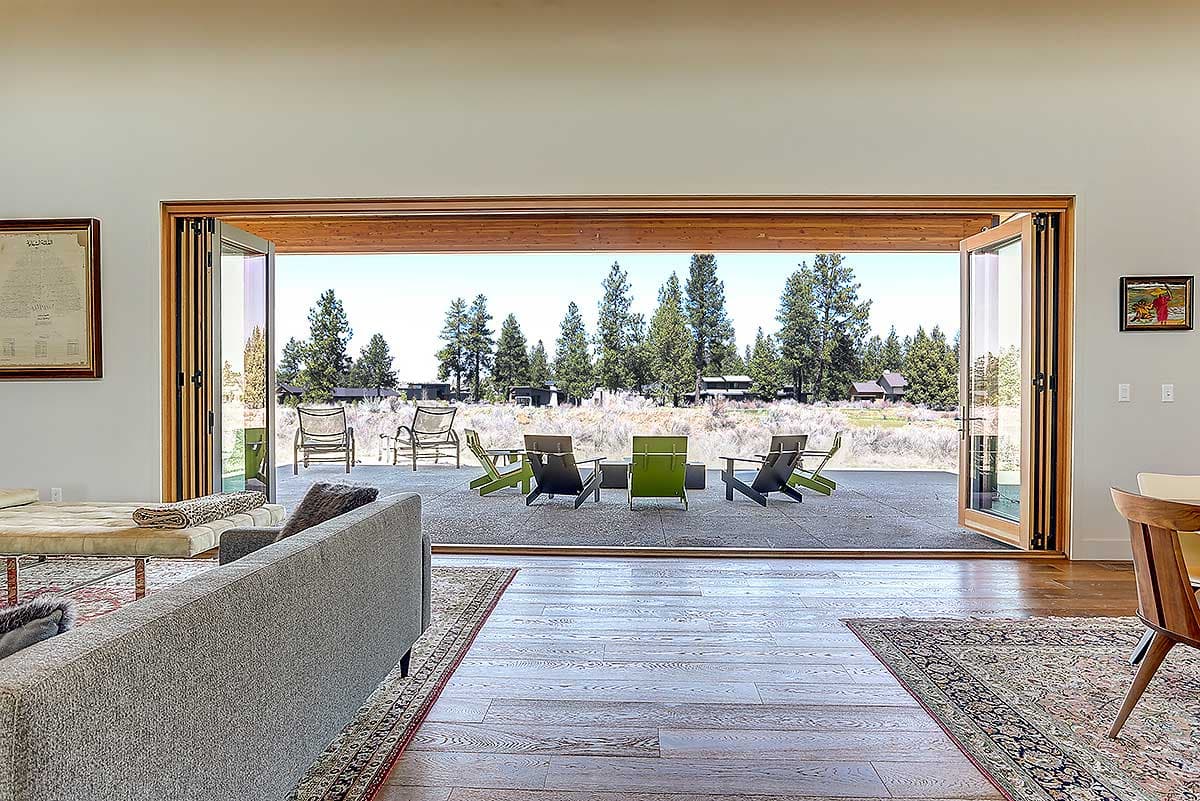

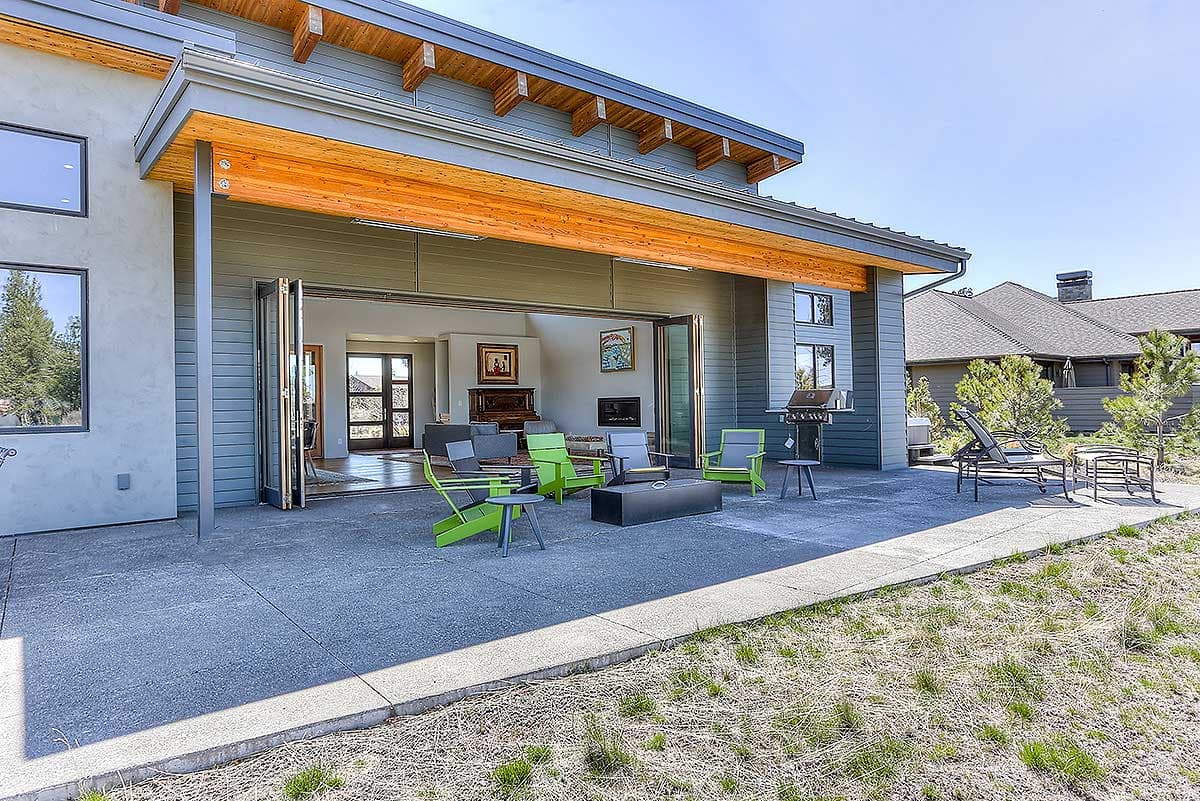

  • The ceilings rise from 9' to 18' in the great room. The back wall collapses giving you an incredible indoor/outdoor space when combined with the outdoor covered area. A grill there is a nice plus, as is the fireplace on the far wall.

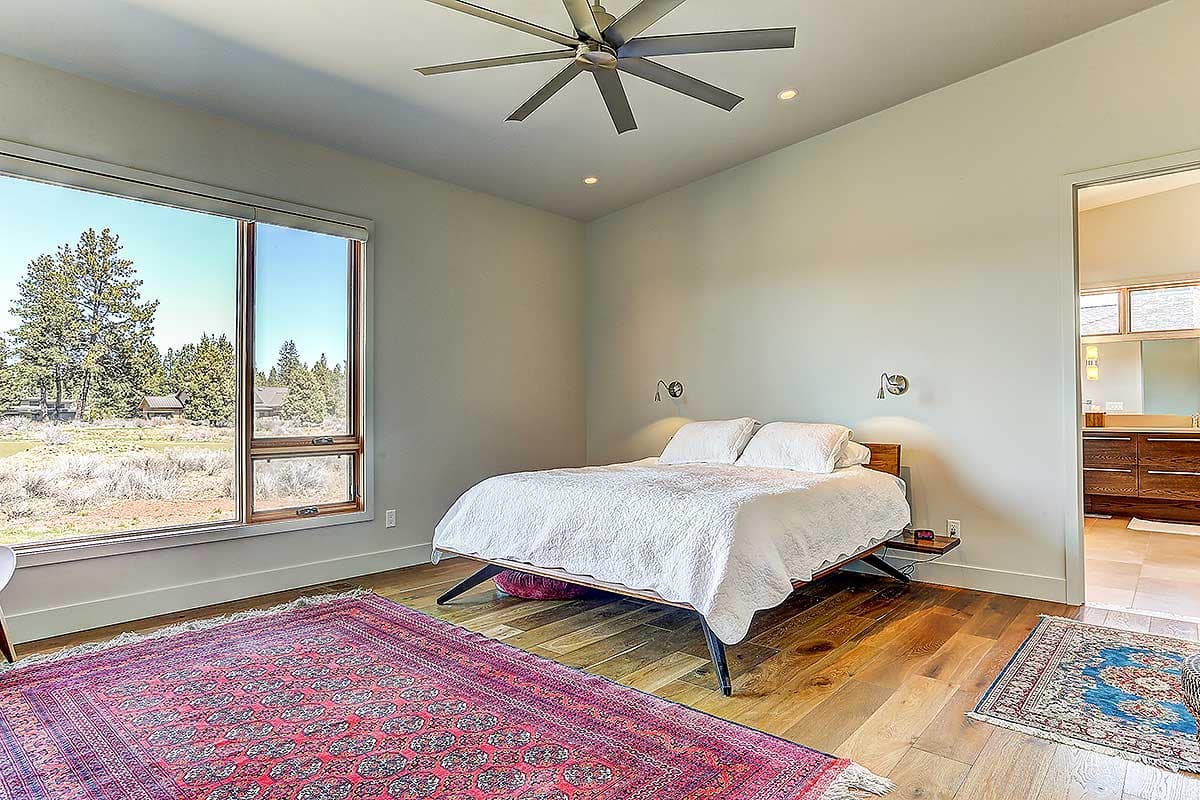

  • The master enjoys great privacy and views to the back with two more bedrooms located across the home, each with their own bath.

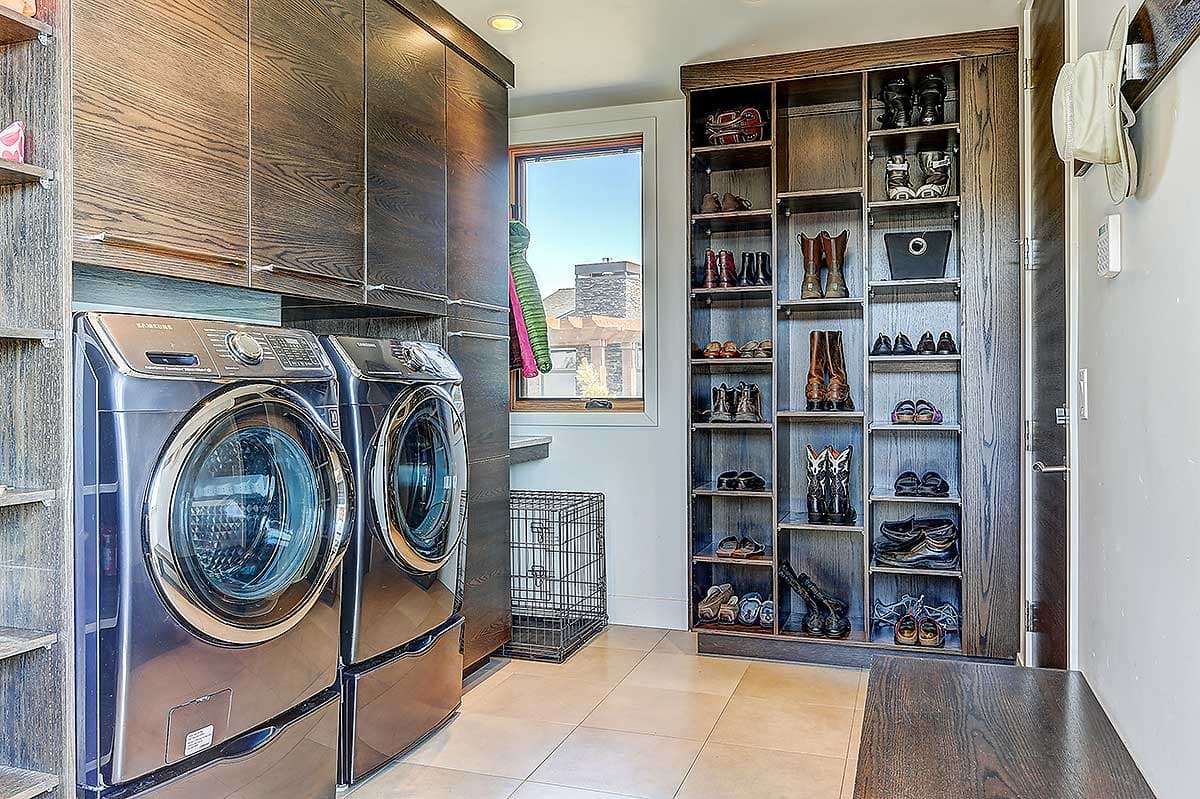

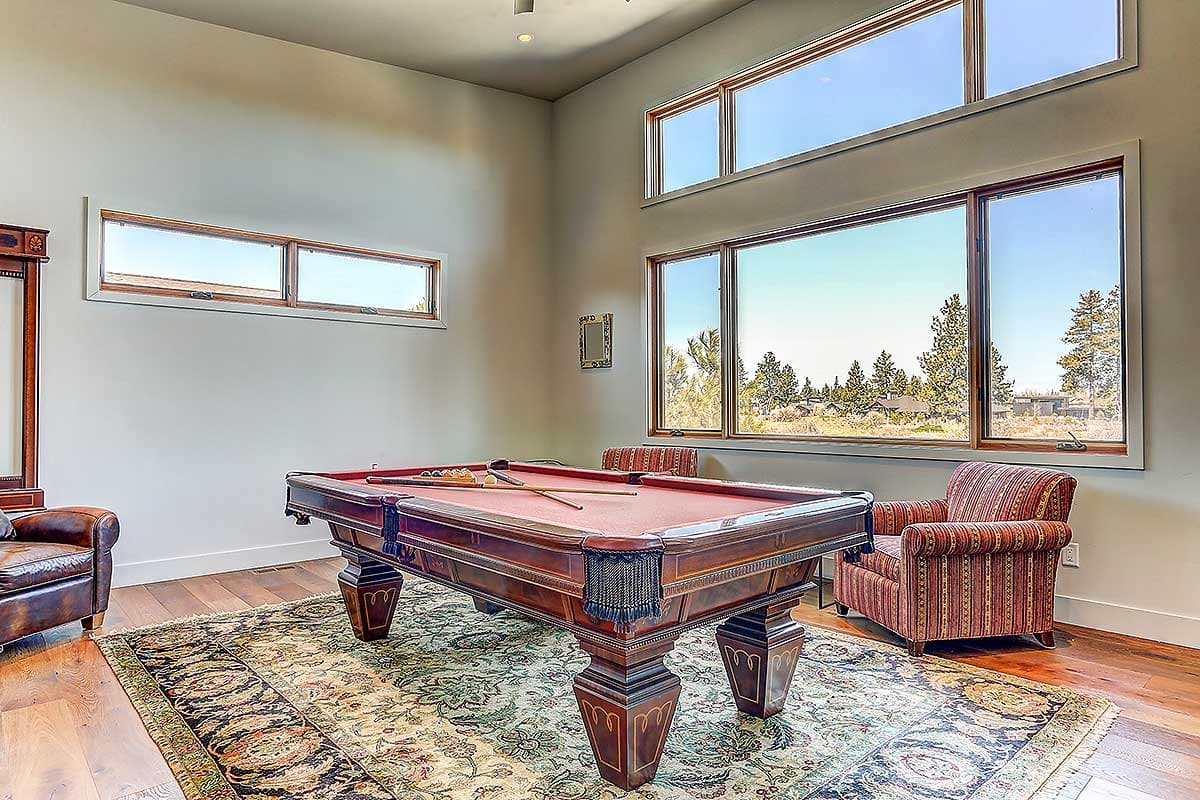

  • A game room has sloping ceilings that rise to almost 14' and has views to the back and side. A study and mud room round out your inside spaces.

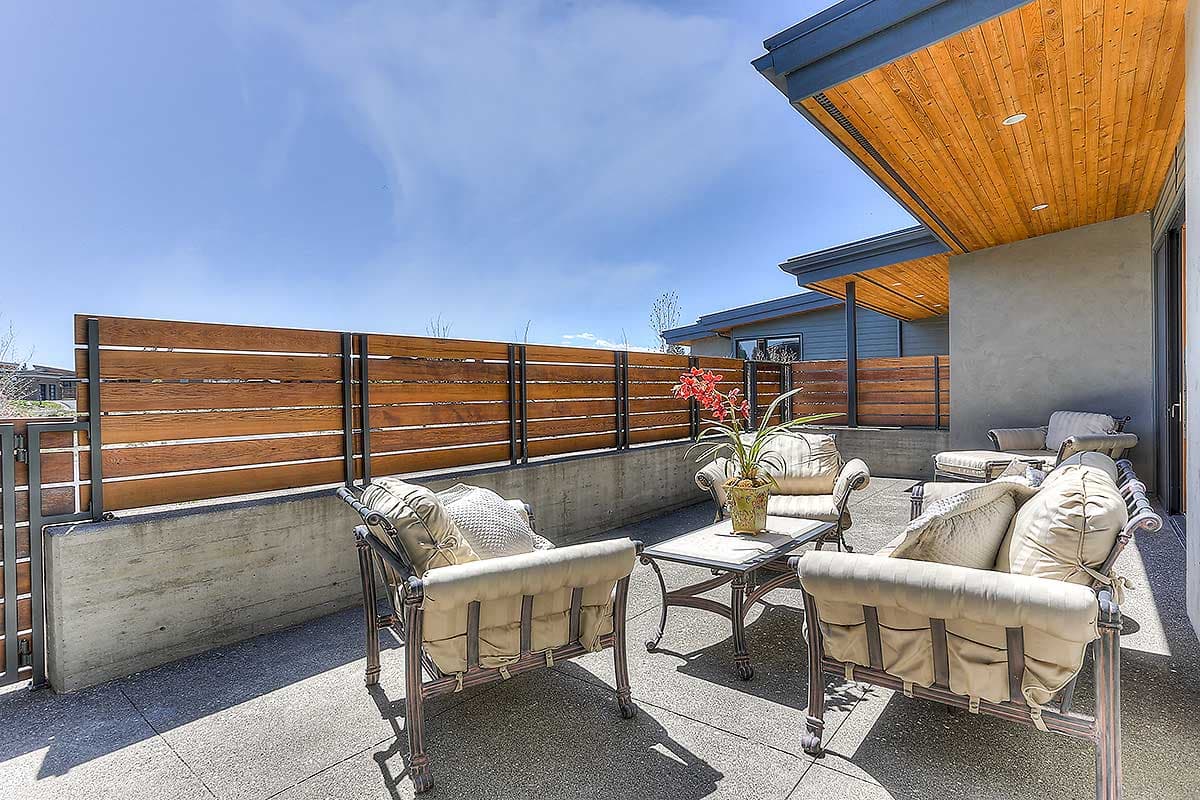

  • A privacy wall helps let's you enjoy fresh air on your sun terrace in private.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 54219HU comes to life in Nevada

House Plan 54219HU comes to life in Nevada

4

Photos

What's Included
Each plan set includes the following:
  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan

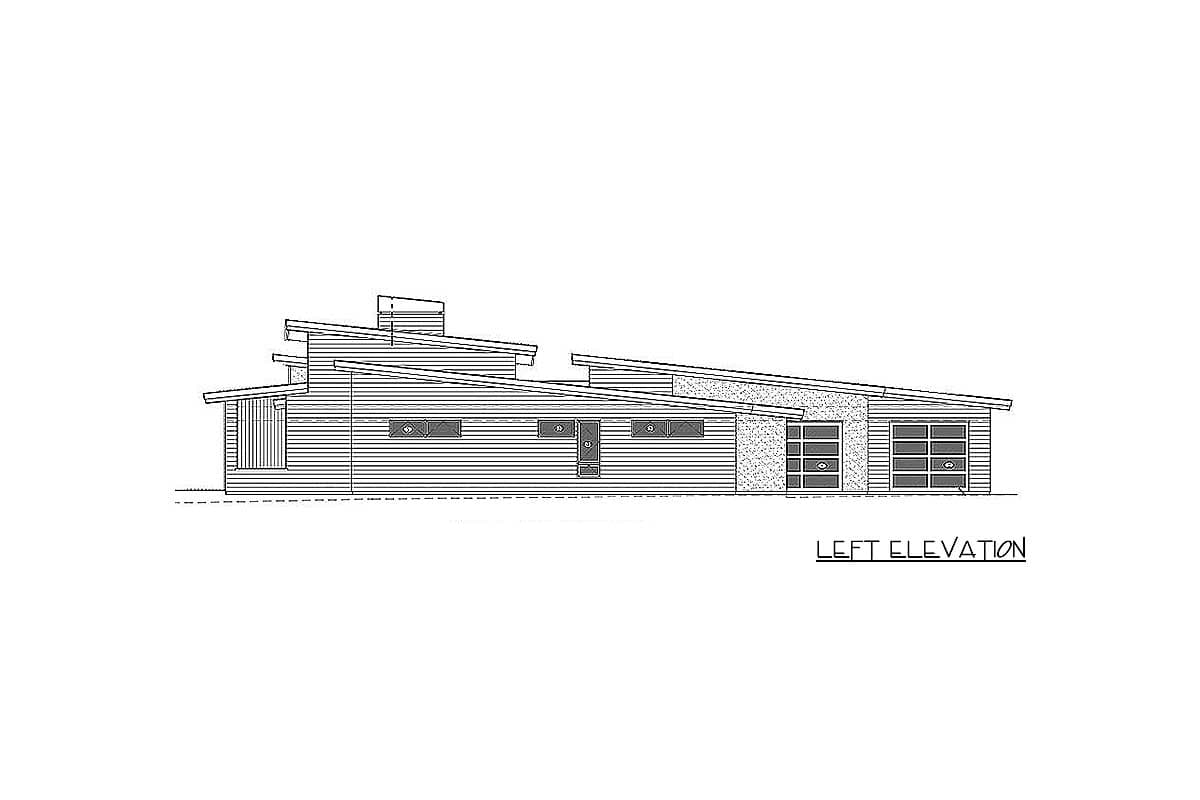

  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plan is NOT included in this plan set.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,264 sq. ft.

1st Floor

3,264 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

98' 8"

Depth

87' 10"

Garage

Type

Attached

Area

996 sq. ft.

Count

3 Cars

Entry Location

Side, Front, Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Northwest

Special Features

Bedrooms - Split

Den

Game/Rec Room

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Plan Collections

Luxury

Photo Gallery

Premium Collection

Square Footage Breakdown

Total Heated Area

3,264 sq. ft.

1st Floor

3,264 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

98' 8"

Depth

87' 10"

Garage

Type

Attached

Area

996 sq. ft.

Count

3 Cars

Entry Location

Side, Front, Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Northwest

Special Features

Bedrooms - Split

Den

Game/Rec Room

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Plan Collections

Luxury

Photo Gallery

Premium Collection
