Plan 680497VR
Contemporary Triplex House Plan with Matching 3-Bed Units - 2133 Sq Ft
Heated S.F.
6,399
Units
3
Width
Depth
Floor Plan

Plan 680497VR

Main Level
slide image 0
2nd Floor
slide image 1
3rd Floor
slide image 2
Lower Level
slide image 3

Plan 680497VR

1-800-854-7852

1-262-521-4596

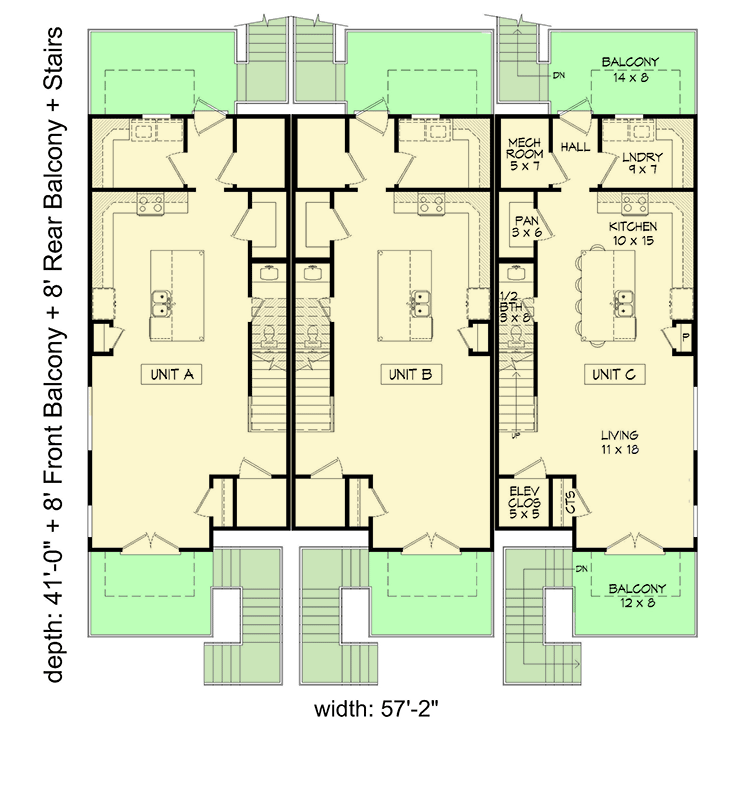

Main Level
floor plan image Main Level

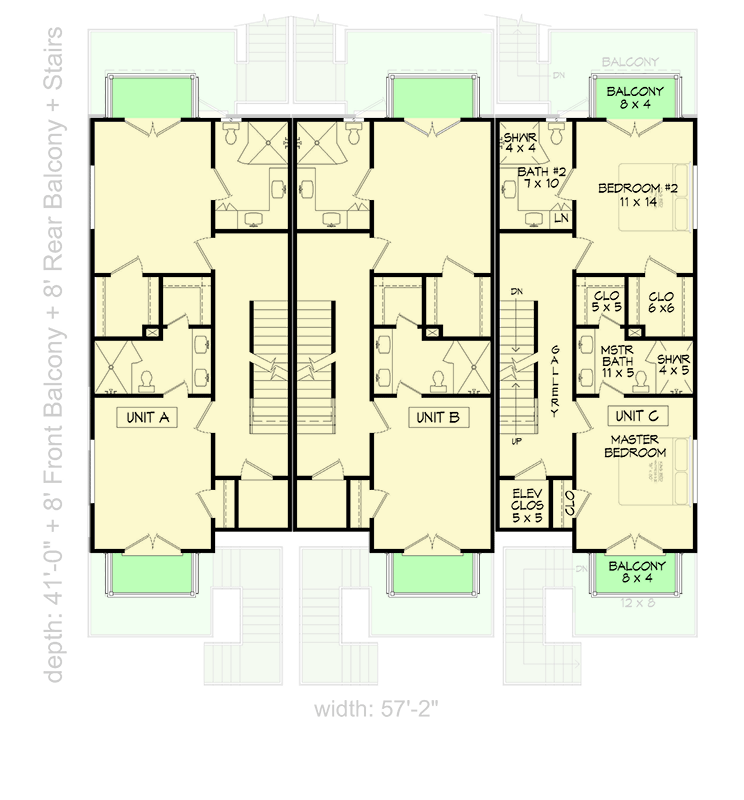

2nd Floor
floor plan image 2nd Floor

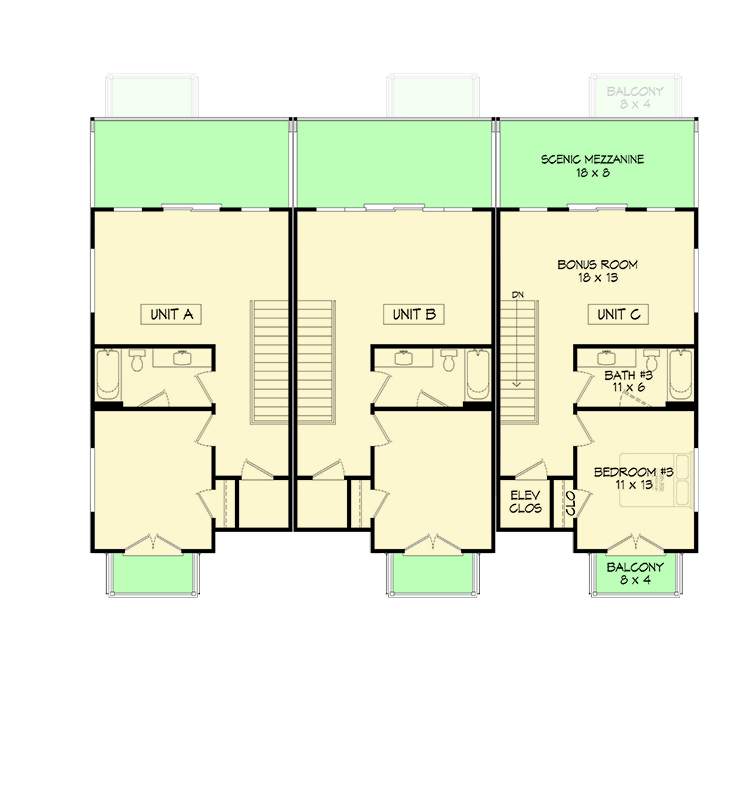

3rd Floor
floor plan image 3rd Floor

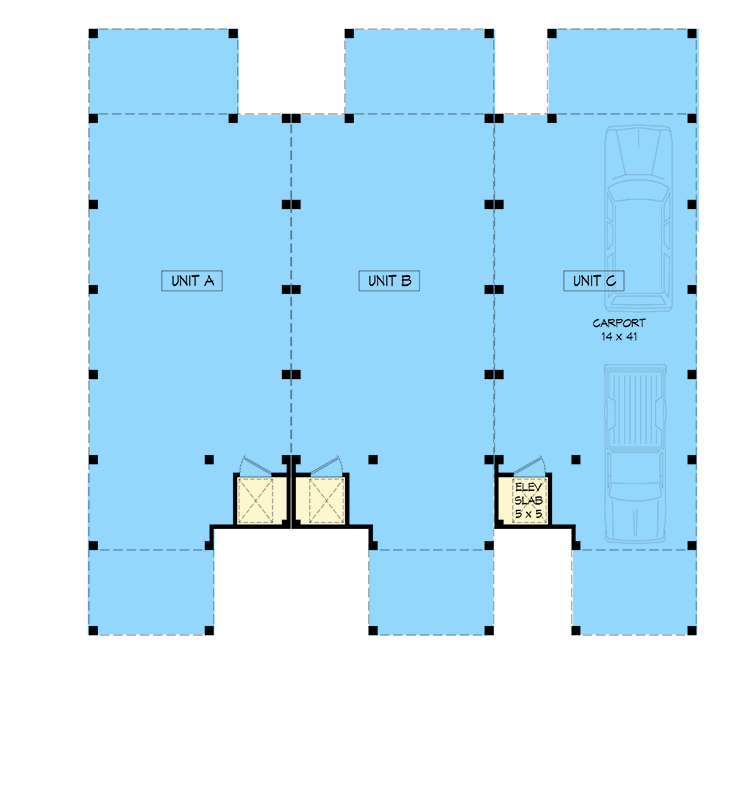

Lower Level
floor plan image Lower Level
Plan Details
  • This contemporary triplex house plan gives you 3 units each with 2,133 square feet of heated living space (765 sq. ft. on the first floor, 765 sq. ft. on the second floor and 603 sq. ft. on the third floor), 3 beds, 3.5 baths and a 2-car drive-under carport.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
2,133Sq. Ft.
765 Sq. Ft.
1st Floor
765 Sq. Ft.
2nd Floor
603 Sq. Ft.
3rd Floor
3Beds
3Full Baths
1Half Bath
2Vehicle
Carport
19'width
57'depth
Unit B
2,133Sq. Ft.
765 Sq. Ft.
1st Floor
765 Sq. Ft.
2nd Floor
603 Sq. Ft.
3rd Floor
3Beds
3Full Baths
1Half Bath
2Vehicle
Carport
19'width
57'depth
Unit C
2,133Sq. Ft.
765 Sq. Ft.
1st Floor
765 Sq. Ft.
2nd Floor
603 Sq. Ft.
3rd Floor
3Beds
3Full Baths
1Half Bath
2Vehicle
Carport
19'width
57'depth
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

6,399 sq. ft.

1st Floor

2,295 sq. ft.

2nd Floor

2,295 sq. ft.

3rd Floor

1,809 sq. ft.

Deck

486 sq. ft.

Balcony / Veranda

933 sq. ft.

Beds/Baths

Bedrooms

9

Full bathrooms

8

Half bathrooms

3

Foundation Type

Standard Foundations

Pier

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

57' 2"

Depth

57' 0"

Max Ridge Height

47' 6"

Garage

Type

Attached, Carport, Drive Under

Count

6 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Third Floor

9' 0''

Roof Details

Framing Type

Stick

Architectural Style

Coastal Contemporary

Contemporary

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Elevator

Flex Room

Laundry - Main Level

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

6,399 sq. ft.

1st Floor

2,295 sq. ft.

2nd Floor

2,295 sq. ft.

3rd Floor

1,809 sq. ft.

Deck

486 sq. ft.

Balcony / Veranda

933 sq. ft.

Beds/Baths

Bedrooms

9

Full bathrooms

8

Half bathrooms

3

Foundation Type

Standard Foundations

Pier

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

57' 2"

Depth

57' 0"

Max Ridge Height

47' 6"

Garage

Type

Attached, Carport, Drive Under

Count

6 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Third Floor

9' 0''

Roof Details

Framing Type

Stick

Architectural Style

Coastal Contemporary

Contemporary

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Elevator

Flex Room

Laundry - Main Level

Master Suite - 2nd Floor
