Plan 36692TX

Contemporary Tuscan Inspired House Plan - 3975 Sq Ft

Heated S.F.

3,975

Beds

Baths

4.5

Stories

Cars

Floor Plan

Main Level

Plan Details

This 4-bed contemporary Tuscan-inspired house plan gives you 3,975 square feet of single-level living and a large 3-car (784 square foot) garage.
Step through circular covered entry (14' ceiling) and a pair of French doors and you'll see a pair of French doors to your left that open to the study, a dining room to your right with a tray ceiling and the great room ahead with 14' ceiling and a fireplace. French doors opposite the front door take you to the vaulted outdoor lounge in back with a fireplace on one end and a grilling area on the other.
The owner's suite occupies the entire left side of the home and has a private patio, two vanities in the barrel-vaulted bathroom and a large walk-in closet. Across the home, two beds in back each have access to their own bathrooms while a game room and guest bedroom are located to the front.
A large laundry room is just inside the garage entry and has a pocket door.

What's Included

Cover sheet
Foundation Plan - schematic only

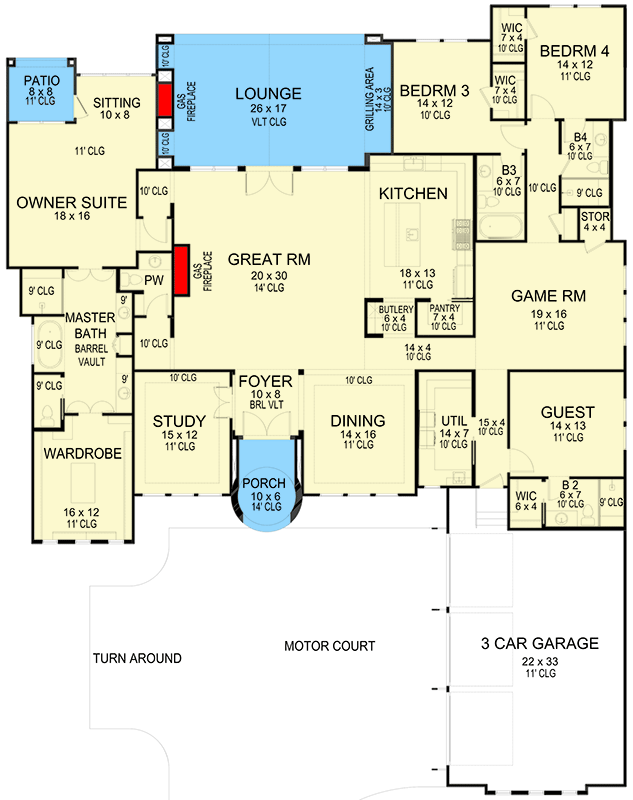

First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

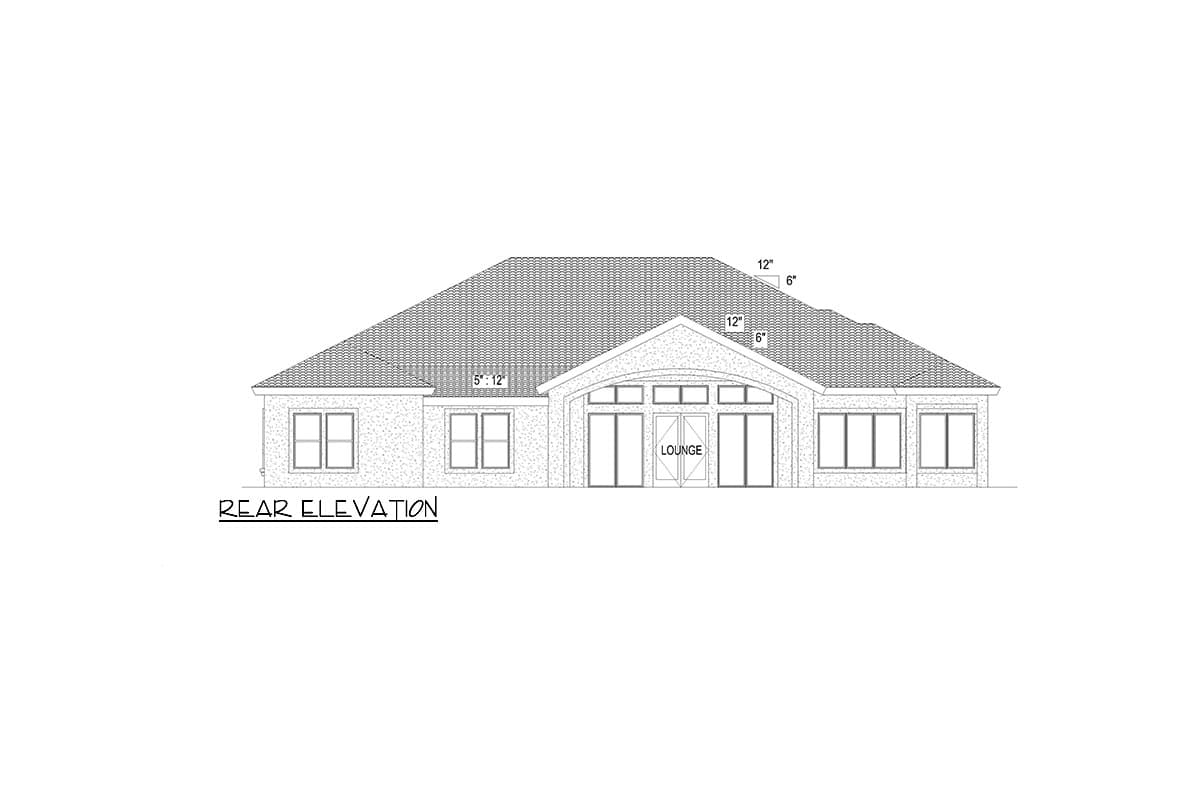

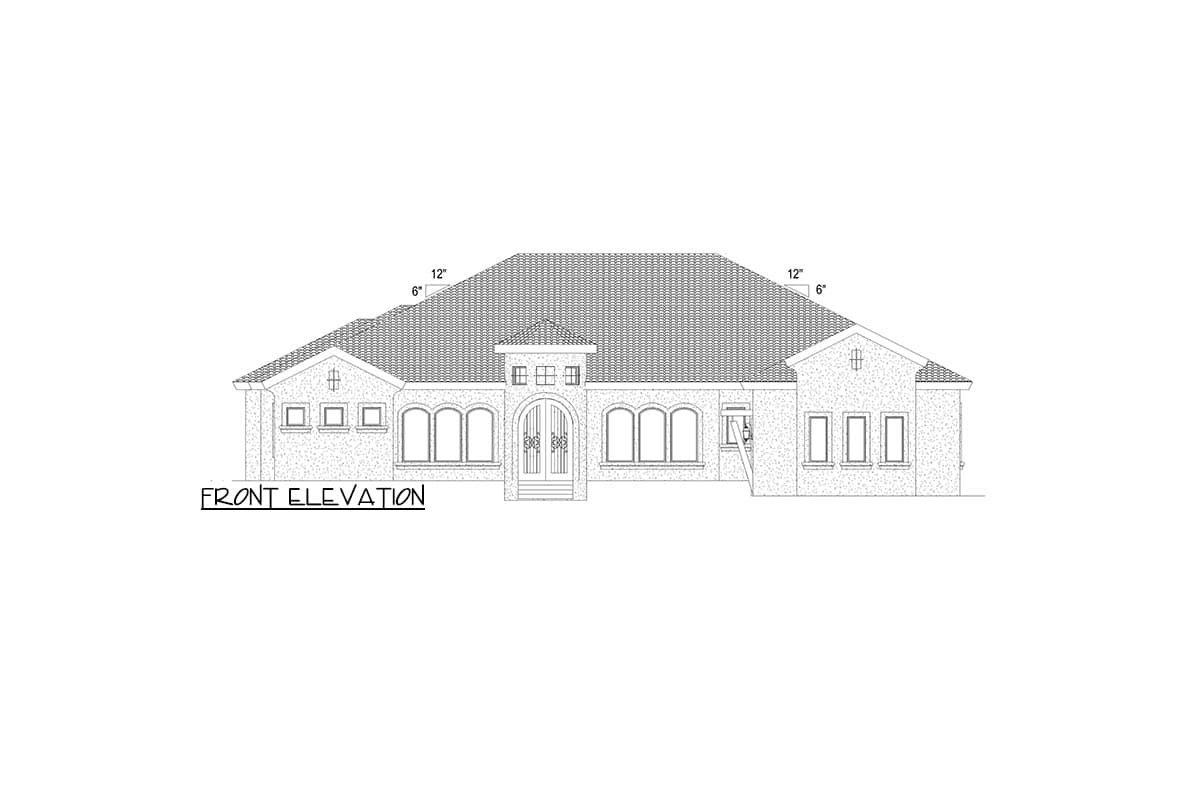

Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

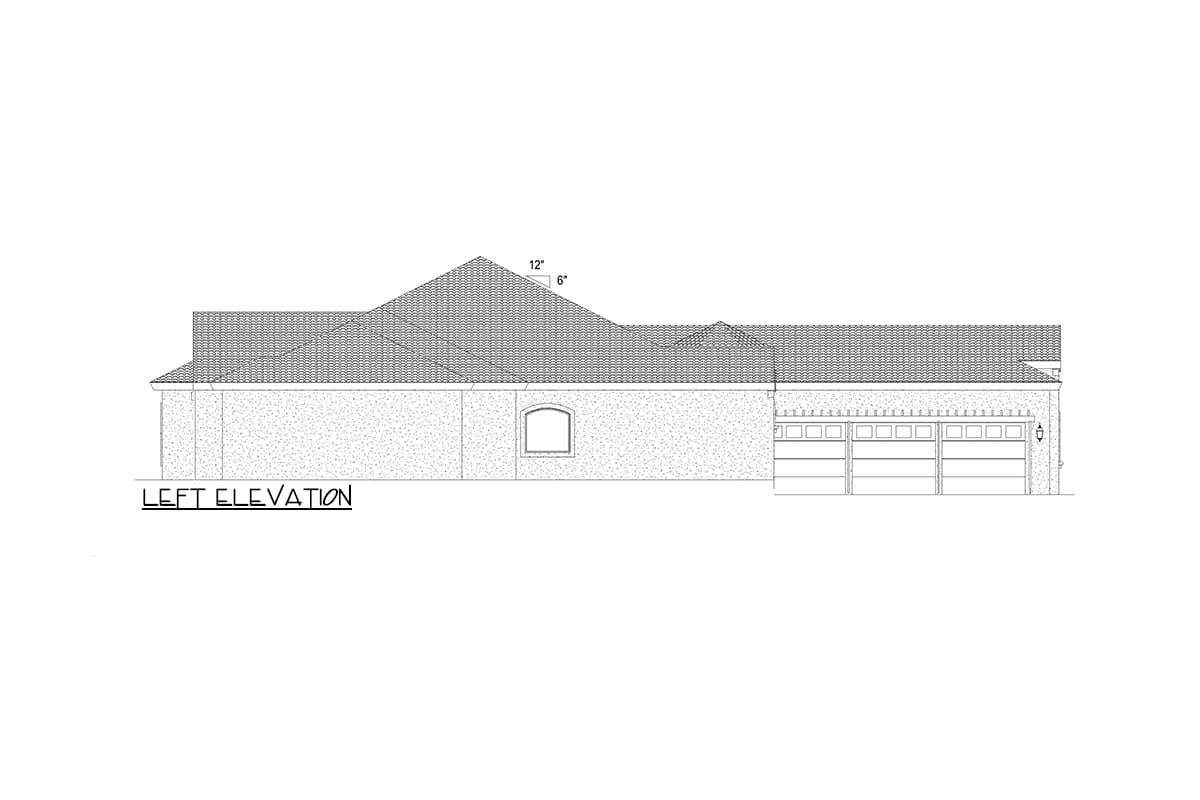

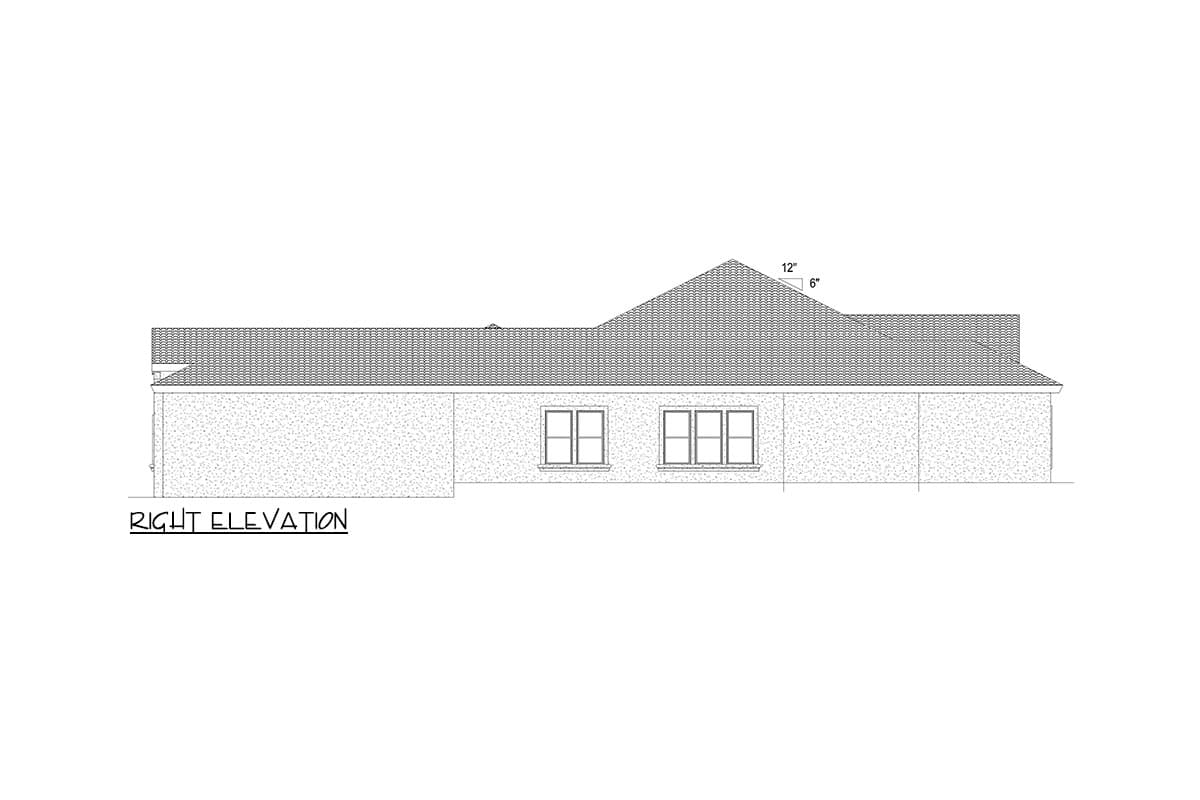

Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
