Plan 24121BG

Exclusive

Contemporary Vacation Home Plan with Ample Outdoor Living Space
Heated S.F.
3,933
Beds
4
Baths
4.5+
Stories
2
Cars
3
Floor Plan

Plan 24121BG

Main Level
slide image 0
2nd Floor
slide image 1

Plan 24121BG

1-800-854-7852

1-262-521-4596

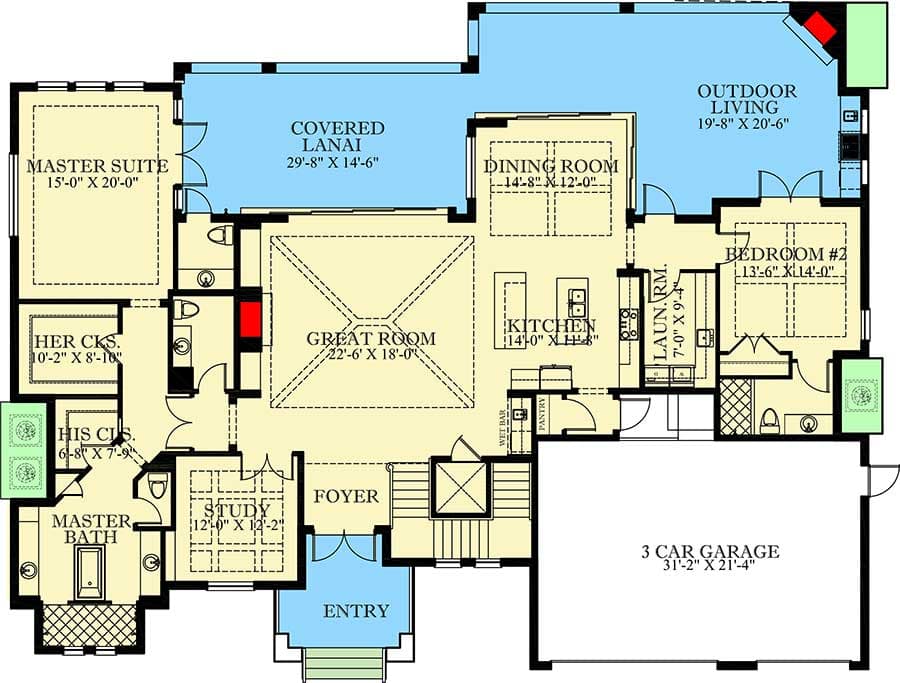

Main Level
floor plan image Main Level

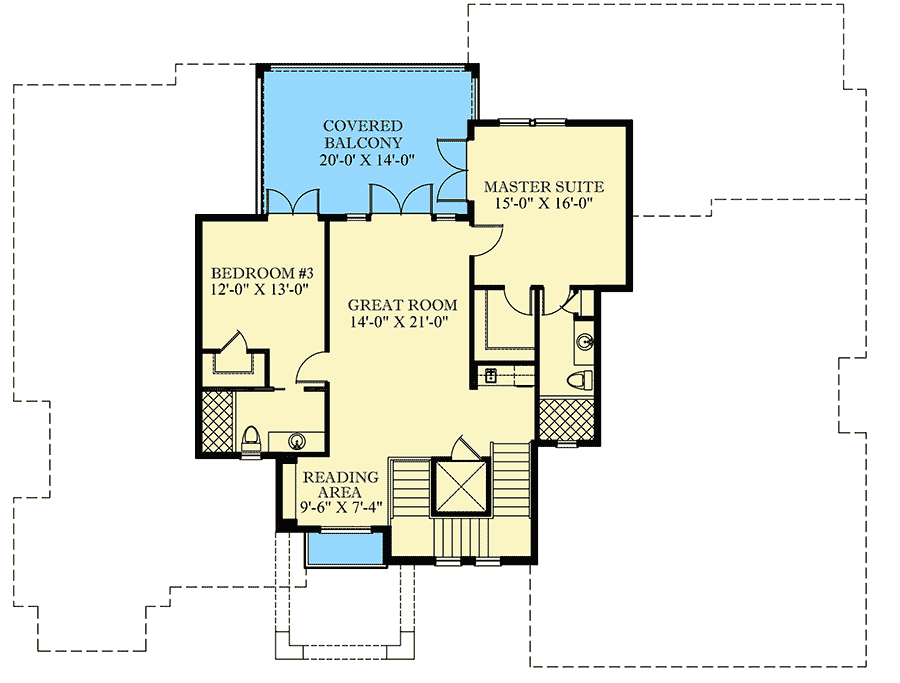

2nd Floor
floor plan image 2nd Floor
Plan Details

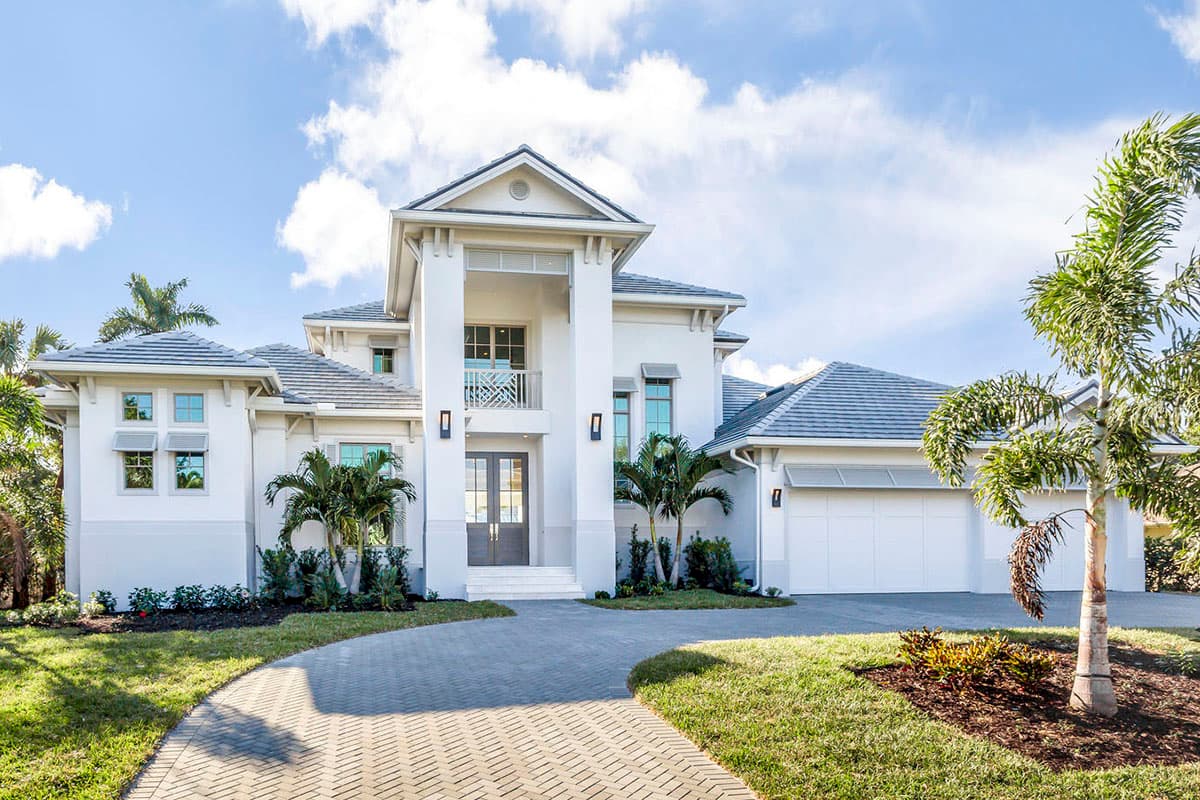

  • The two-story, front porch provides a grand first impression when viewing this contemporary vacation home plan, complete with a light and airy interior for an indoor / outdoor lifestyle.

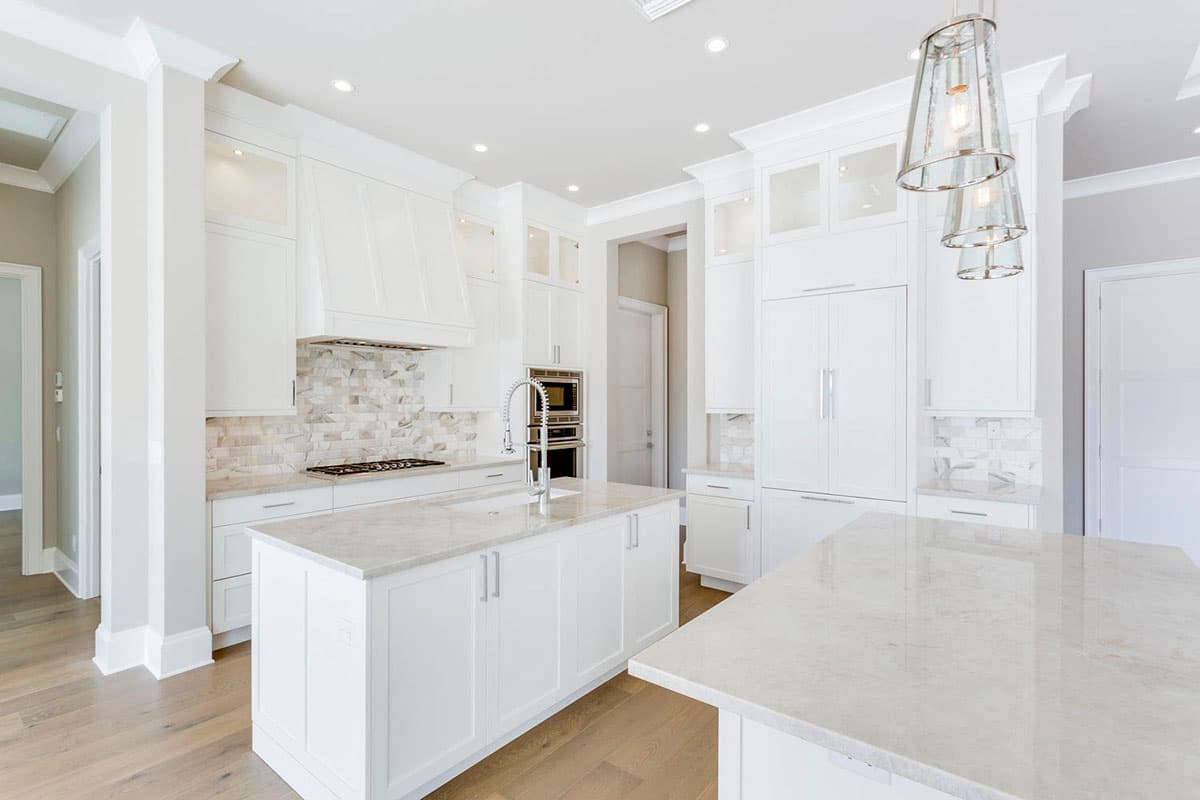

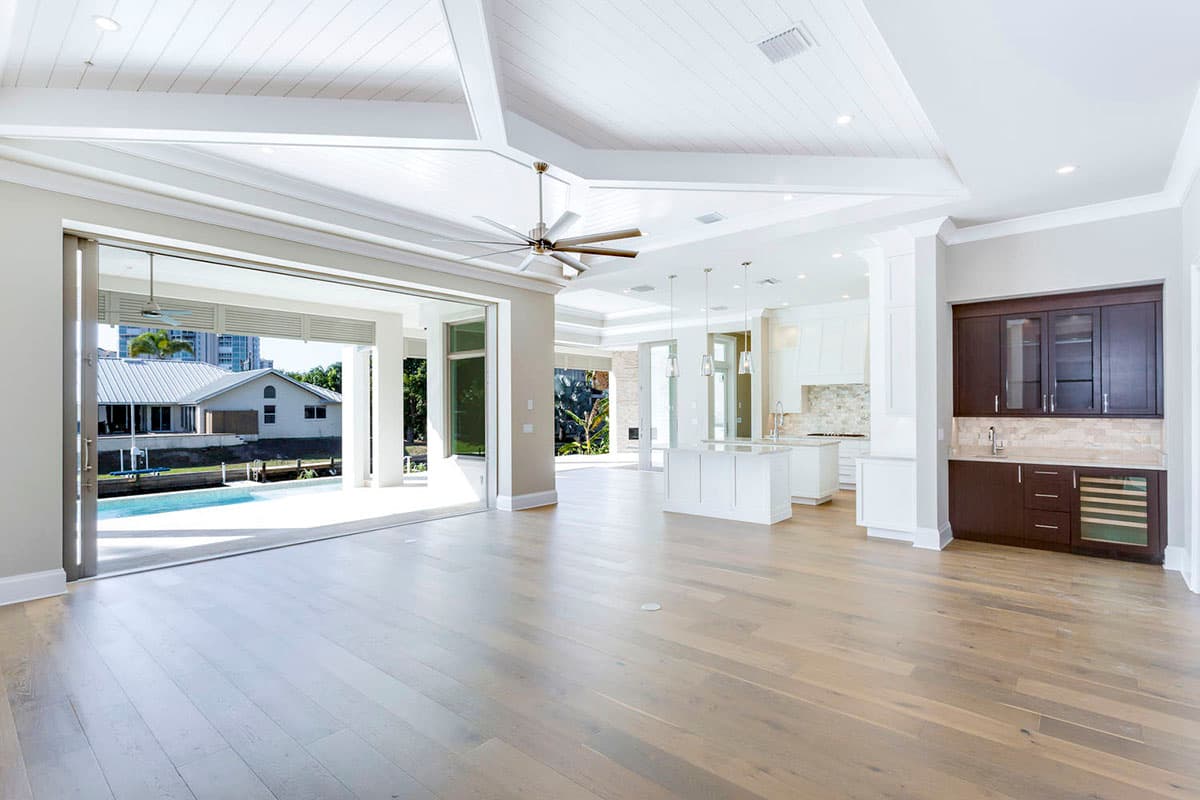

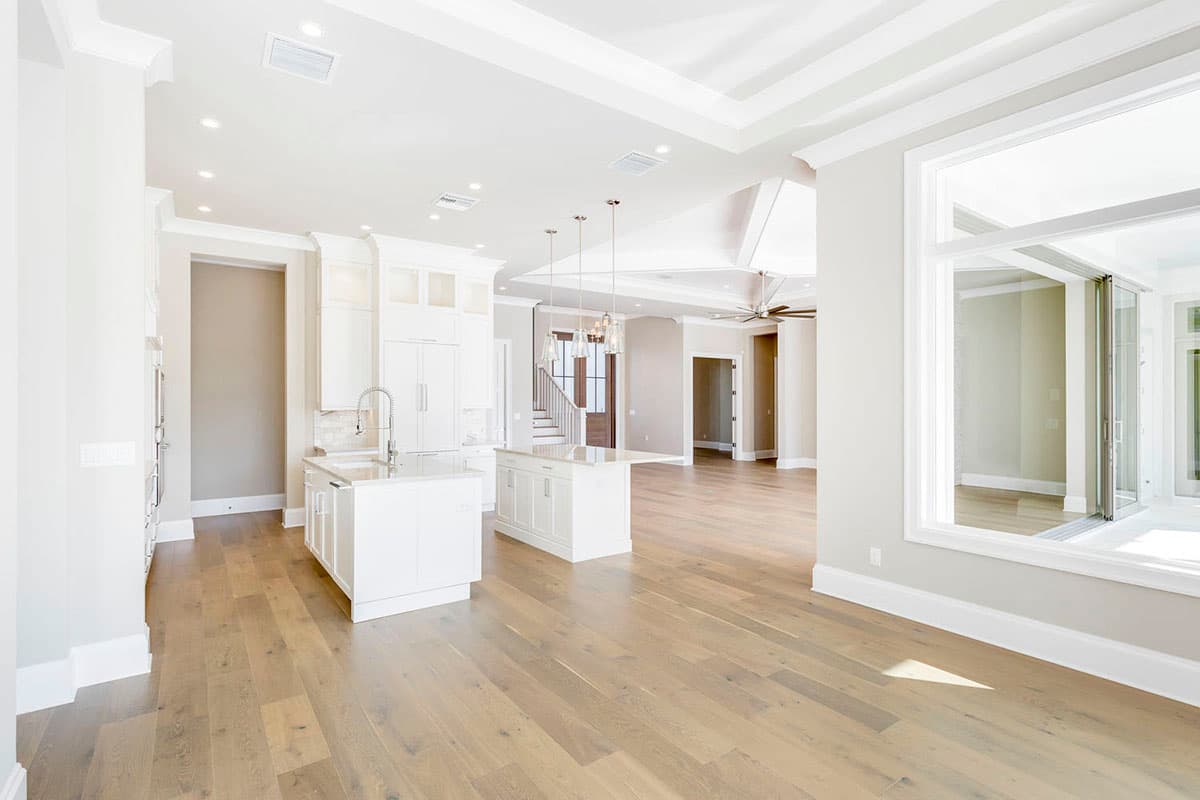

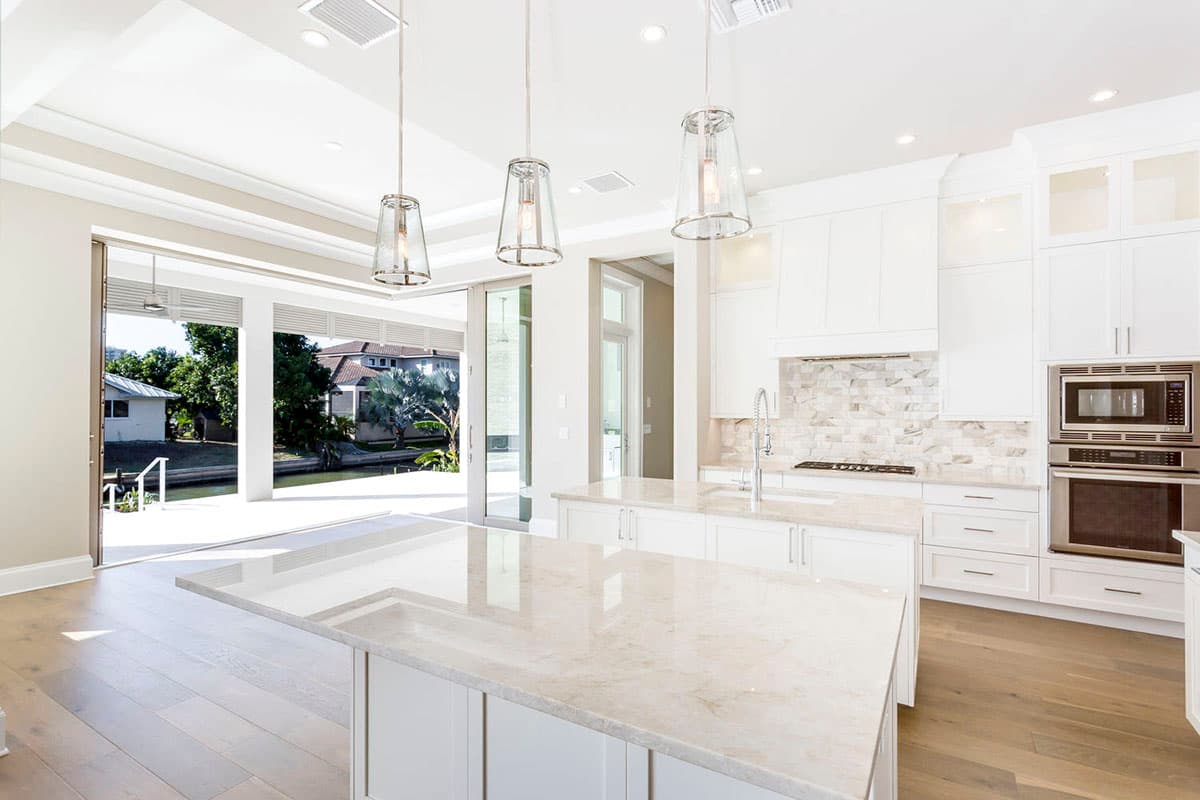

  • A vaulted ceiling in the great room lends a feeling of grandeur, while a fireplace and surrounding built-ins offer warmth to the open floor plan. The kitchen boasts two islands for the utmost workspace when entertaining.

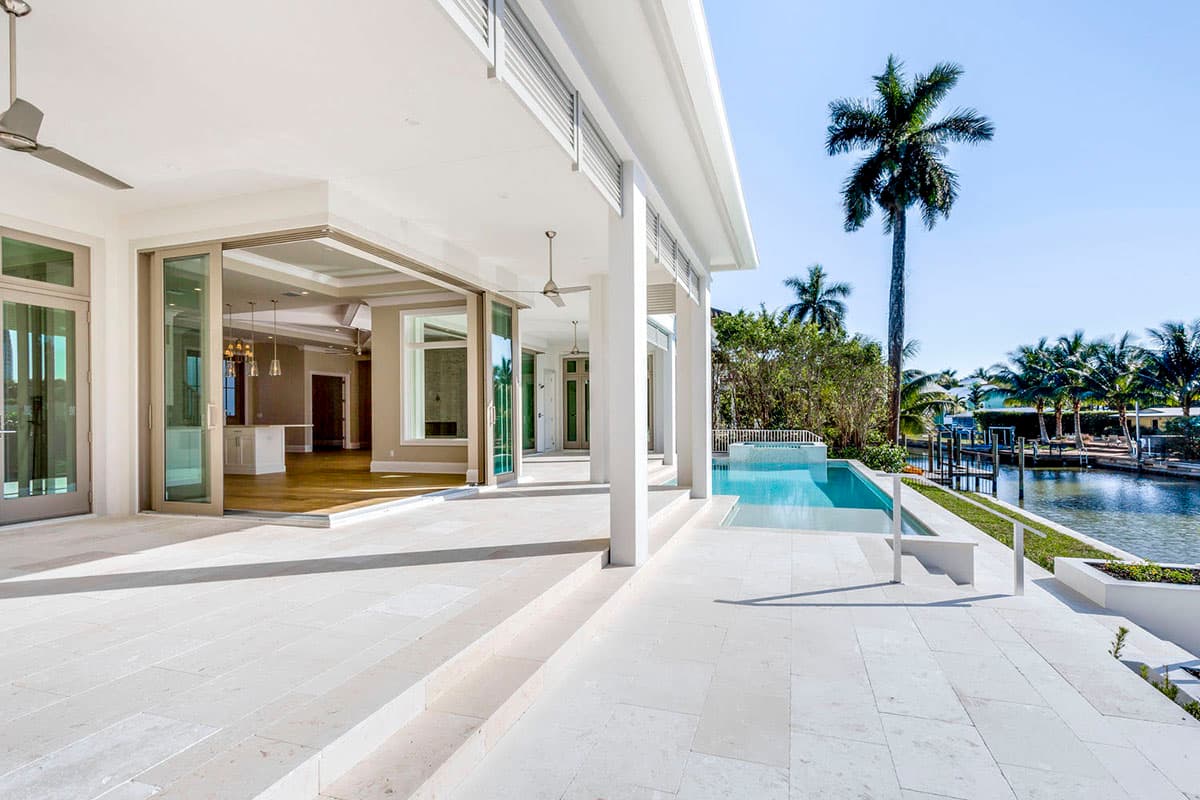

  • Retire to the covered lanai, which includes a fireplace and grilling station, for maximum relaxation.
  • The main-level, master suite features dual closets and a luxurious bathroom, with a standalone tub guarding an oversized shower with two shower heads. A second bedroom on this level includes a full bath, creating a great space for guests.
  • Upstairs, each room leads to a rear-facing, covered balcony for outdoor enjoyment. Both bedrooms include a full bath and walk-in closet, and the central great room includes a wet bar for added convenience.
  • NOTE: This plan is not available for purchase in Collier Country, Florida
What's Included
  • Cover page showing front elevation, contents and notes
  • Fully dimensioned floor plans including ceiling heights
  • Roof plan
  • All four exterior elevations
  • Typical cross section
  • Suggested electrical schematic
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
  • Roof truss design - to be created by the truss manufacturer in accordance with local code requirements
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,933 sq. ft.

1st Floor

2,794 sq. ft.

2nd Floor

1,139 sq. ft.

Porch, Combined

143 sq. ft.

Deck

1,005 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

82' 6"

Depth

64' 2"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

748 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

11'

Second Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Coastal

Contemporary

Florida

Southern

Vacation

Special Features

Bedrooms - Split

Elevator

Laundry - Main Level

Loft

Master Suite - 1st Floor

Master Suite - 2nd Floor

Two Kitchen Islands

Wet Bar
