Plan 65610BS
Cool Breeze Cottage
Heated S.F.
1,491
Beds
2 - 3
Baths
2
Stories
1
Cars
2

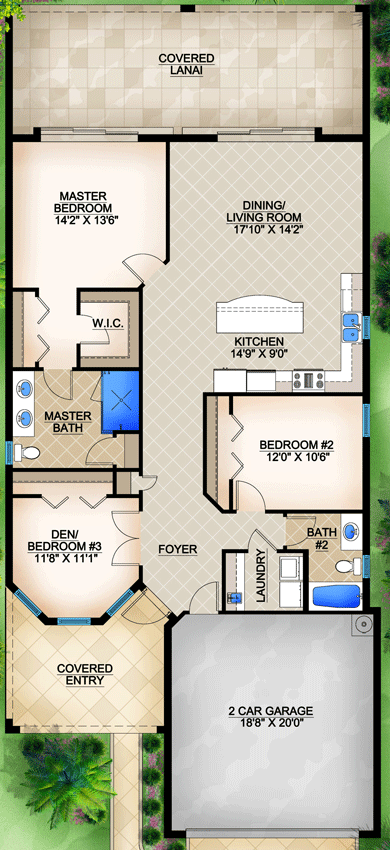

Floor Plan

Plan 65610BS

Main Level
slide image 0

Plan 65610BS

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This narrow lot house plan delivers 2 or 3 bedrooms depending on how you use the front room. The bay window makes it a great place for a den and with a bath across the way a nice place for a guest bed.
  • The center of the home creates great traffic flow and divides the bedrooms from the kitchen and living area.
  • The back rooms have sliding glass doors taking you out to your very own covered lanai.
  • BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.
What's Included
Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:
  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Floor and Deck Joist Sizes, Spacing and Direction
  • Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:
  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:
  • Miscellaneous General Notes
  • Stairway Details (if applicable)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,491 sq. ft.

1st Floor

1,491 sq. ft.

Entry

164 sq. ft.

Lanai

404 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

34' 8"

Depth

77' 0"

Max Ridge Height

18' 4"

Garage

Type

Attached

Area

413 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cottage

Florida

Mediterranean

Special Features

Bedrooms - Clustered

Den

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor
