Plan 36054DK
Corner Lot Craftsman House Plan
Heated S.F.
2,435
Beds
3 - 5
Baths
2.5 - 3.5
Stories
1
Cars
2
Floor Plan

Plan 36054DK

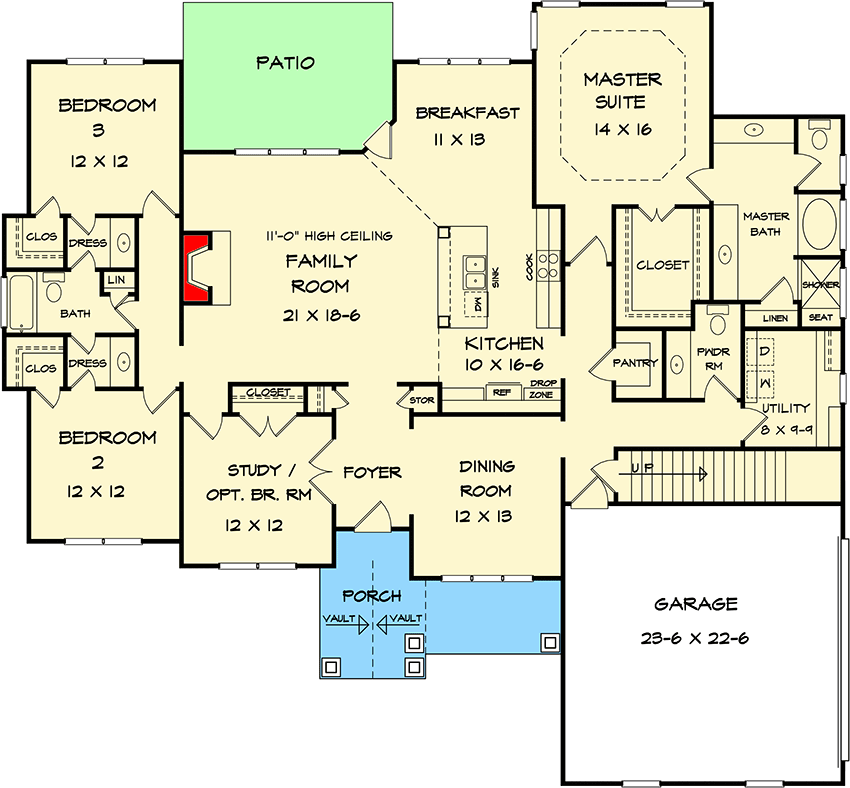

Main Level
slide image 0

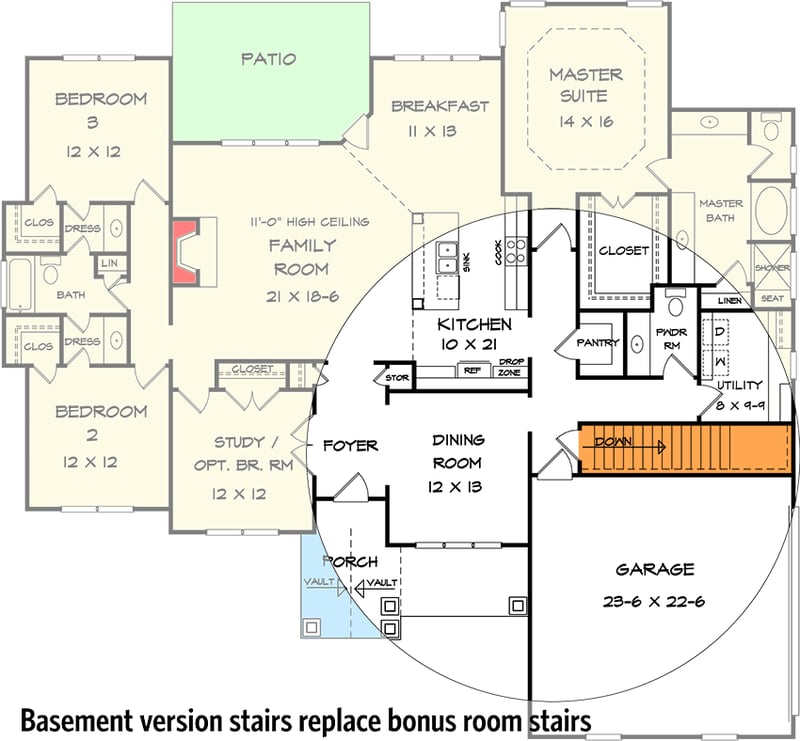

Basement Stairs Location
slide image 1

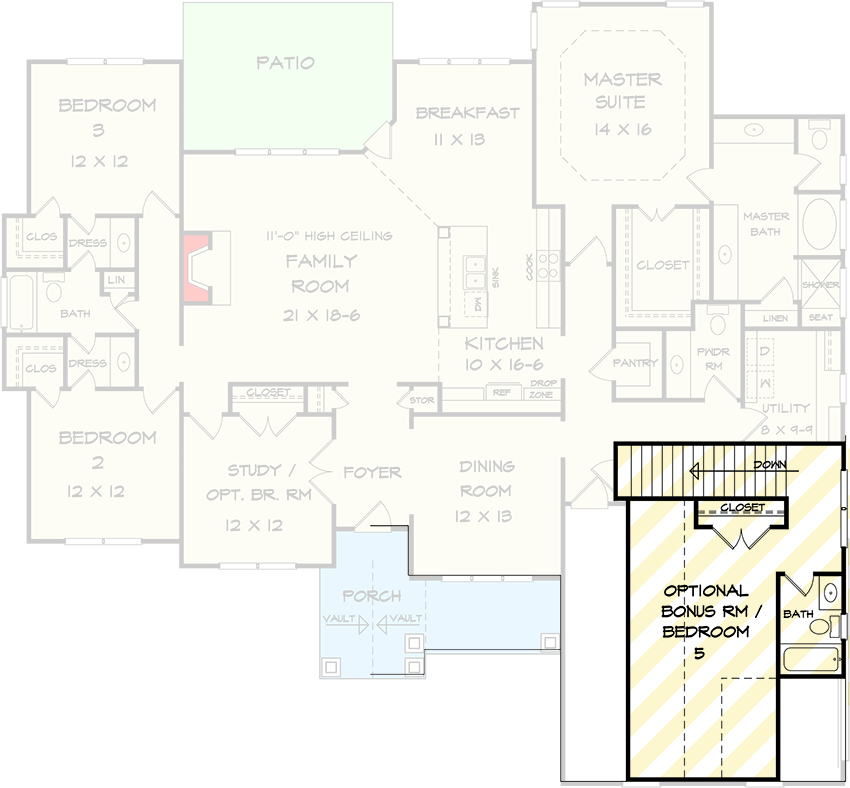

Bonus Level
slide image 2

Plan 36054DK

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level

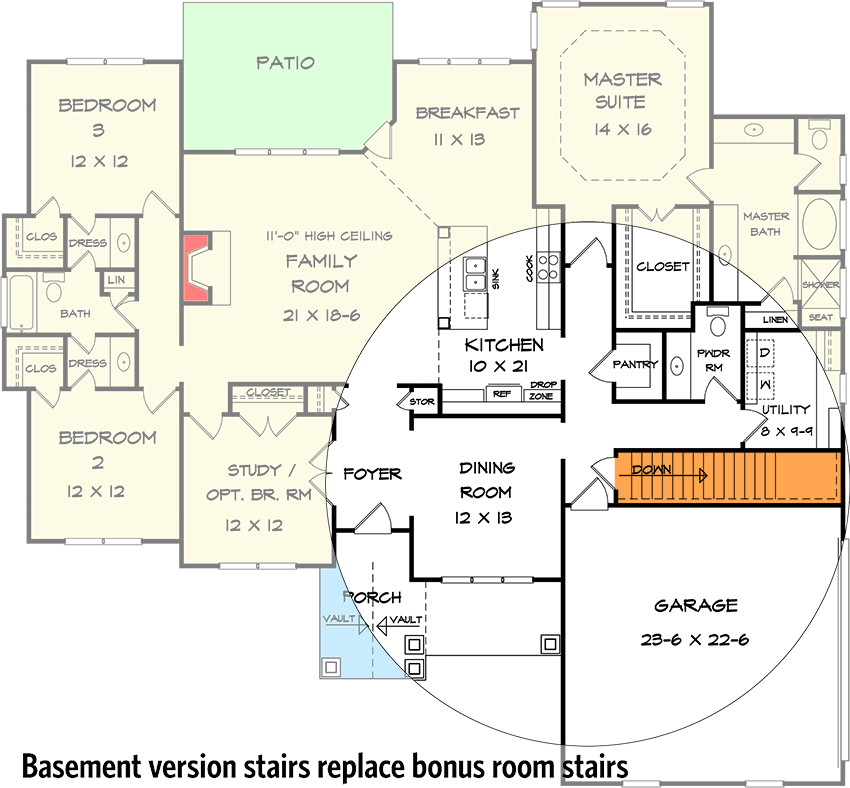

Basement Stairs Location
floor plan image Basement Stairs Location
Bonus Level
floor plan image Bonus Level
Plan Details
  • Live all on one floor with this stylish Craftsman house plan that has a side load garage ideal for a corner lot.
  • The spacious interior offers three bedrooms plus a study that can be used as a fourth bedroom if desired.
  • 11' high ceilings top the huge family room that is open to both the kitchen and the breakfast nook.
  • The kitchen island sink is positioned to enjoy views of the fireplace and the rear patio.
  • Set off by itself, the master suite gets a lovely tray ceiling, a large walk-in closet and deluxe master bathroom with two sinks.
  • The other two family bedrooms are on the opposite side of the home.
  • An optional bonus room or fifth bedroom lies on the second floor above the garage, adding an extra 477 square feet.
  • Only PDF/CAD orders to Canada.
What's Included

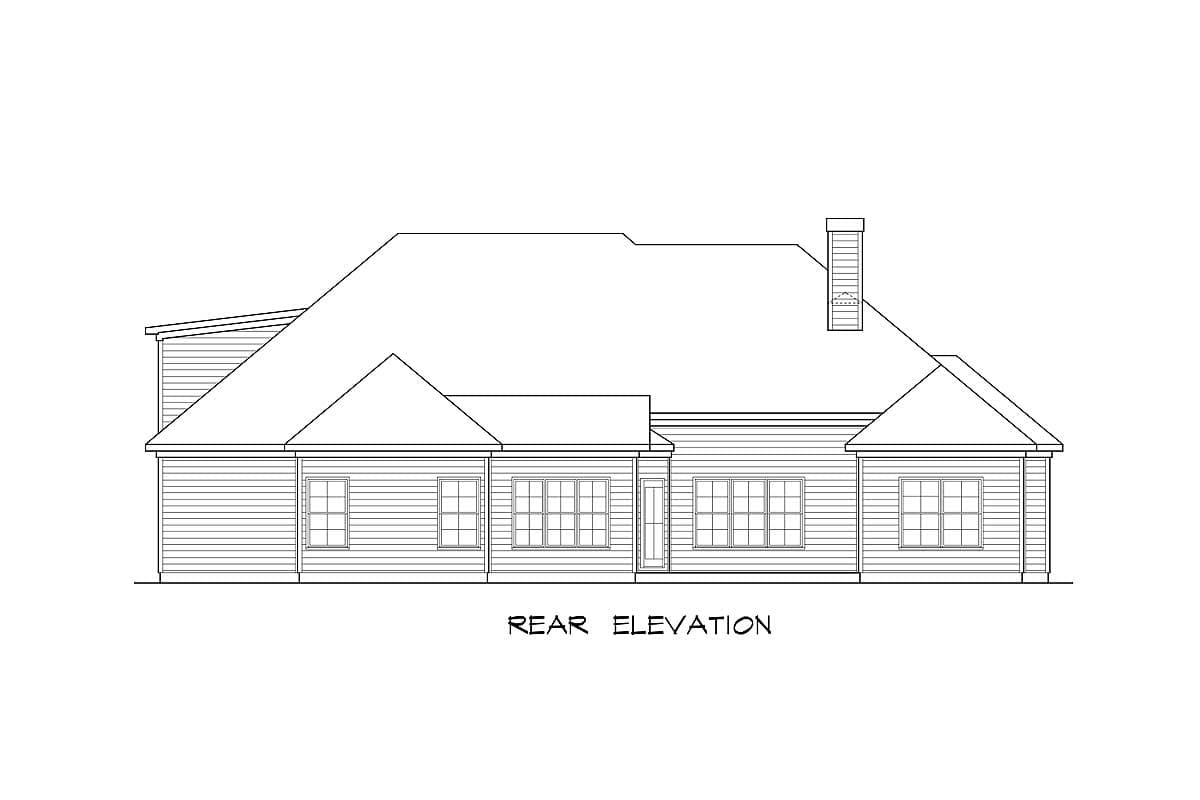

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,435 sq. ft.

1st Floor

2,435 sq. ft.

Bonus

477 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

68' 4"

Depth

63' 7"

Max Ridge Height

25' 7"

Garage

Type

Attached

Area

529 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Flex Room

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom
