Plan 80736PM

Cottage for Narrow Lot

Heated S.F.

660

Beds

Baths

Stories

Floor Plan

Main Level

Plan Details

Designed for a narrow lot, this Cottage home plan nevertheless manages to fit in three bedrooms.
The lovely front porch wraps around the side of the home.
Enter into the main living area where you can all enjoy the warmth of a wood stove.
A good-size bathroom serves all three bedrooms.
This home makes a great getaway retreat in a manageable size.

What's Included

Please note this plan is designed to the National Building Code of Canada.

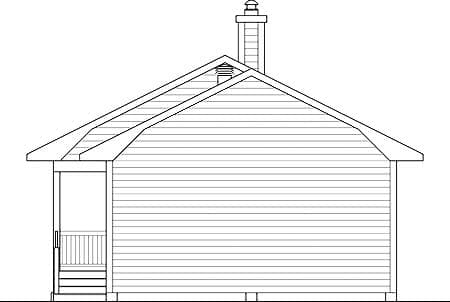

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.

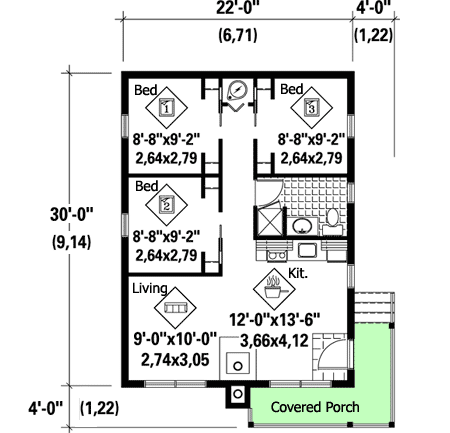

Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
