Plan 80734PM
Cottage Getaway
Heated S.F.
576
Beds
1
Baths
1
Stories
1
Floor Plan

Plan 80734PM

Main Level
slide image 0

Plan 80734PM

1-800-854-7852

1-262-521-4596

Main Level

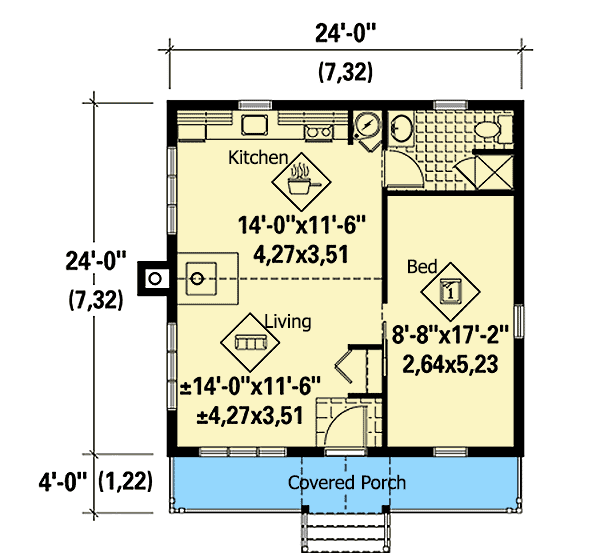

floor plan image Main Level
Plan Details
  • A covered front porch shelters the entrance to this Cottage home plan that is perfect as a weekend retreat.
  • Tall windows on each side of the fireplace flood the vaulted main living area with light.
  • A wood stove warms the whole area.
  • The master bedroom is quite large with windows overlooking the front and side of your lot.
What's Included
Please note this plan is designed to the National Building Code of Canada.

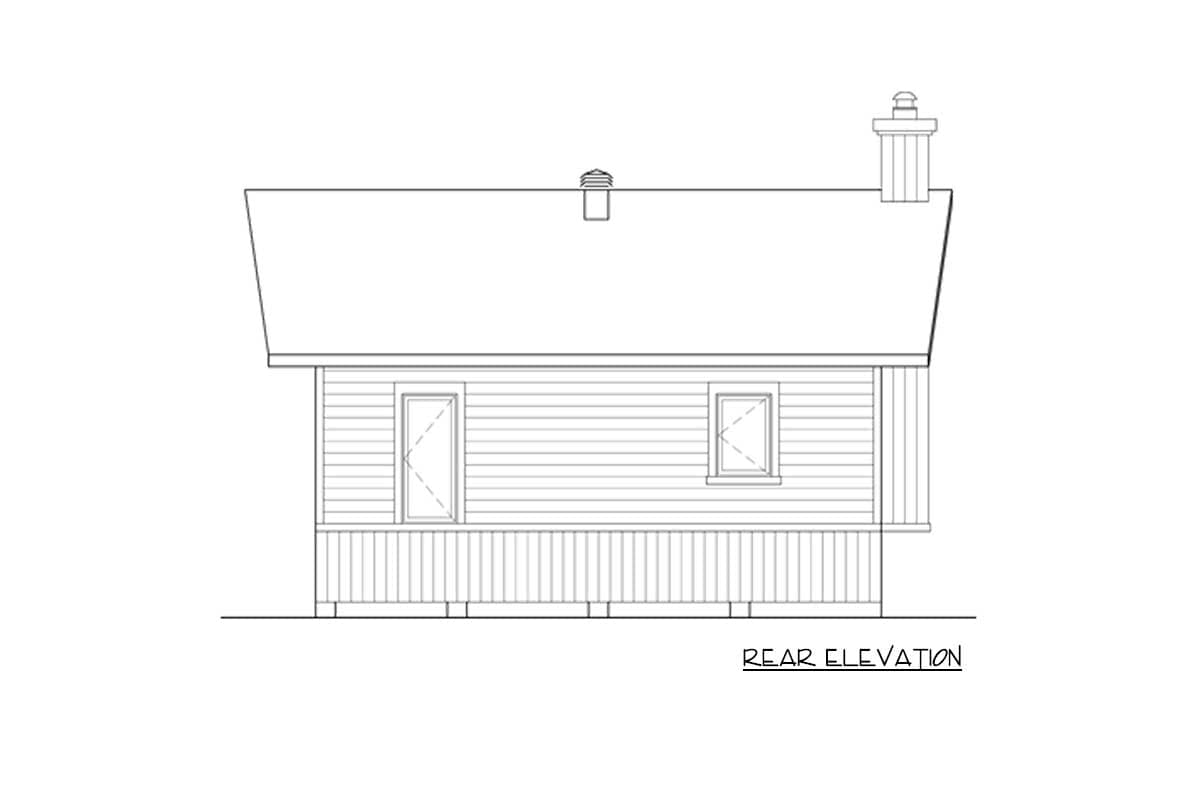

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

576 sq. ft.

1st Floor

576 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Pier

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

24' 0"

Depth

24' 0"

Max Ridge Height

22' 4"

Ceiling Heights

Lower Level

8'

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cottage

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Tiny Home House Plans

Square Footage Breakdown

Total Heated Area

576 sq. ft.

1st Floor

576 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Pier

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

24' 0"

Depth

24' 0"

Max Ridge Height

22' 4"

Ceiling Heights

Lower Level

8'

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cottage

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Metric

Tiny Home House Plans
