Plan 5793HA
Cottage Living
Heated S.F.
1,452
Beds
4
Baths
2
Stories
1
Floor Plan

Plan 5793HA

Main Level
slide image 0

Plan 5793HA

1-800-854-7852

1-262-521-4596

Main Level

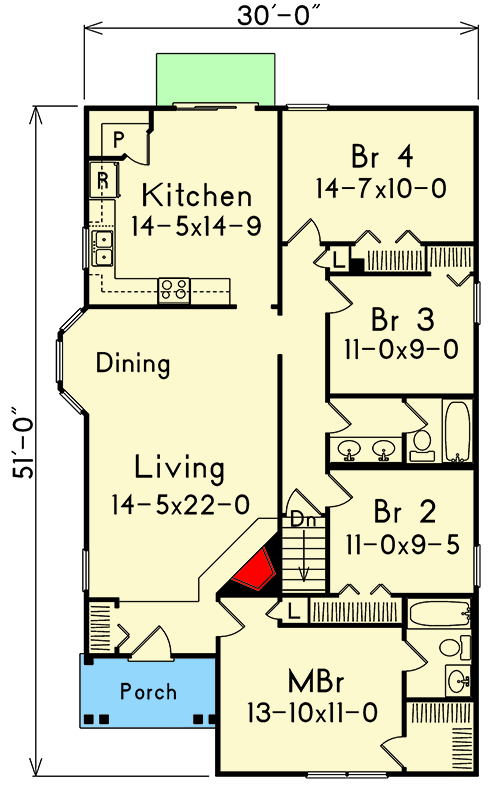

floor plan image Main Level
Plan Details
  • Large living room features cozy corner fireplace, bayed dining area and access from entry with guest closet.
  • Forward master bedroom suite enjoys having its own bath and linen closet.
  • Three additional bedrooms share a bath with double-bowl vanity.
What's Included
  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

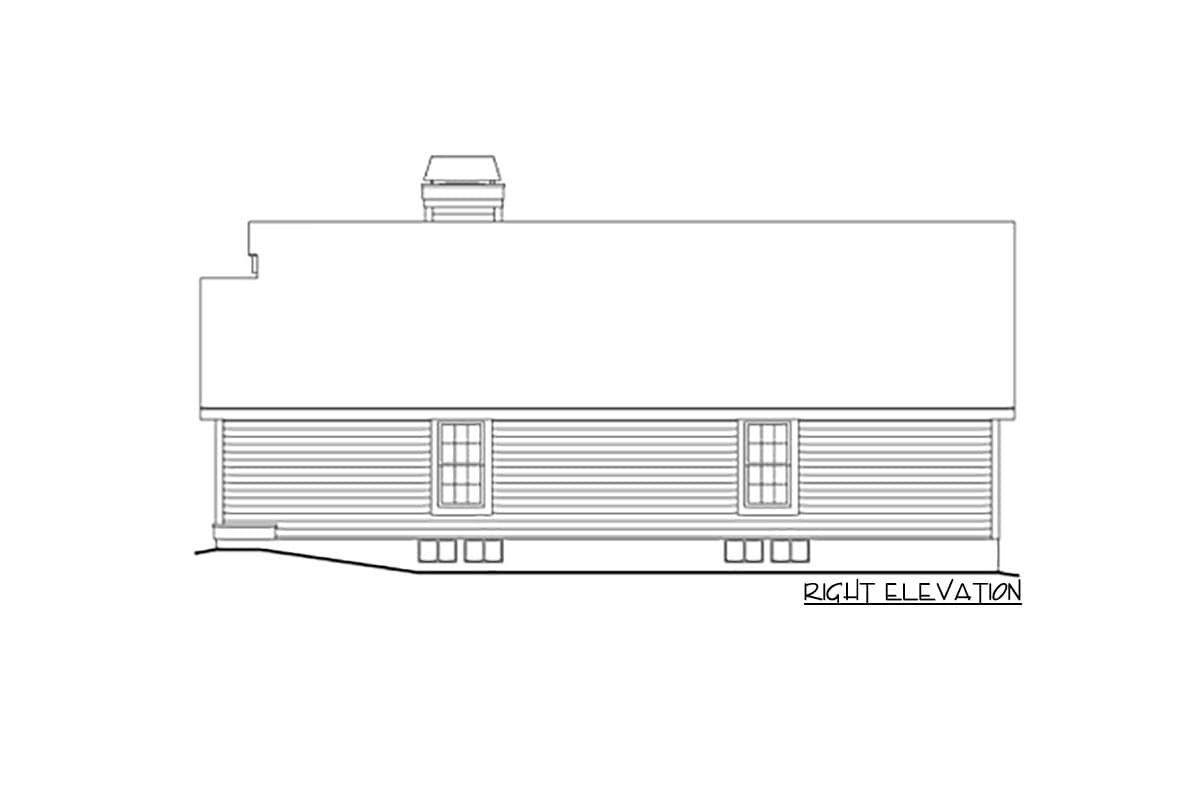

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,452 sq. ft.

1st Floor

1,452 sq. ft.

Basement Unfinished

1,440 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

32' 0"

Depth

51' 0"

Max Ridge Height

20' 8"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Cottage

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,452 sq. ft.

1st Floor

1,452 sq. ft.

Basement Unfinished

1,440 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

32' 0"

Depth

51' 0"

Max Ridge Height

20' 8"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Cottage

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor
