Plan 86232HH
Cottage with 4 Beds and Exterior Options
Heated S.F.
2,713
Beds
4
Baths
3.5
Stories
2
Floor Plan

Plan 86232HH

Main Level
slide image 0
2nd Floor
slide image 1

Plan 86232HH

1-800-854-7852

1-262-521-4596

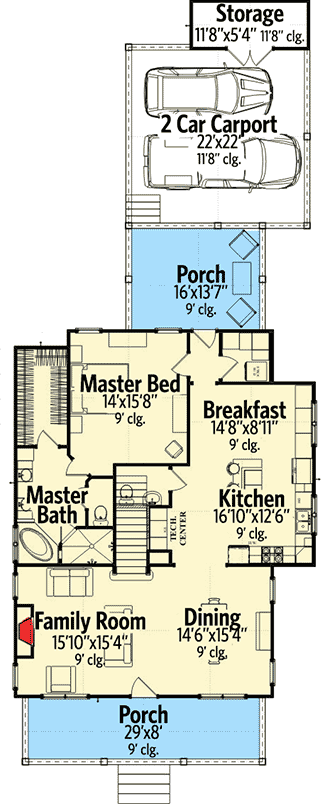

Main Level
floor plan image Main Level

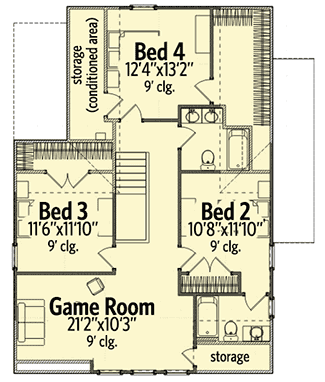

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This charming 4 bed cottage house plan comes in multiple versions giving you options.
  • The big front porch shelters you from the elements and provides shade on a hot day.
  • Once inside you are treated to a combined dining room/family room with easy access to the kitchen.
  • There's an office alcove on the other side of the kitchen and a big porch out back that can be screened in.
  • The master suite is on this level with the remaining bedrooms up on the second floor.
  • The home was designed with lots of storage space and a fabulous game room almost 21' wide.
  • Even the carport in back has a big storage room that can be closed off and locked.
  • The stick framed roof has an 8:12 pitch.
  • Related Plans: Get a sun deck off the game room with house plan 86235HH. And get an alternate exterior with house plan 86231HH.
What's Included
  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,713 sq. ft.

1st Floor

1,462 sq. ft.

2nd Floor

1,251 sq. ft.

Porch, Front

232 sq. ft.

Porch, Rear

211 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

36' 0"

Depth

91' 5"

Max Ridge Height

24' 9"

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Coastal

Cottage

Country

Vacation

Special Features

Game/Rec Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

2,713 sq. ft.

1st Floor

1,462 sq. ft.

2nd Floor

1,251 sq. ft.

Porch, Front

232 sq. ft.

Porch, Rear

211 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

36' 0"

Depth

91' 5"

Max Ridge Height

24' 9"

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Coastal

Cottage

Country

Vacation

Special Features

Game/Rec Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Home Office
