Plan 3093D
Cottage With Covered Porches
Heated S.F.
1,370
Beds
3
Baths
2.5
Stories
2
Floor Plan

Plan 3093D

Main Level
slide image 0
2nd Floor
slide image 1

Plan 3093D

1-800-854-7852

1-262-521-4596

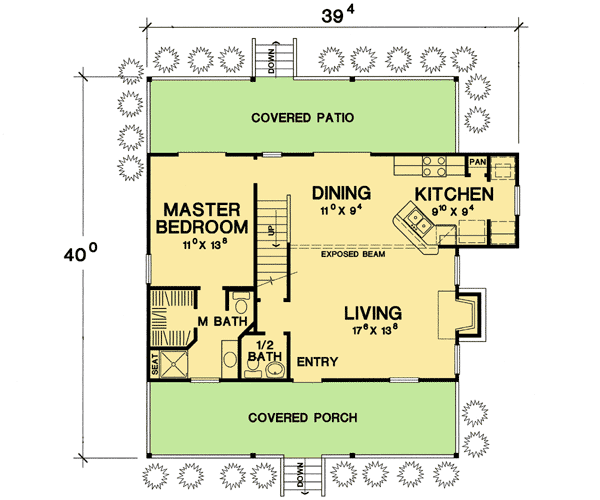

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • With a covered porch in front and a covered patio in back (both 8' deep), you enter directly into the open living area of this country cottage.
  • A fireplace offers warmth in the living room and an angled eating counter with double sinks separates the kitchen from the rest of the space. A 6'4'x10' bump-out helps with your storage needs.
  • In the first-floor master suite, the bedroom opens to the patio. A walk-in closet and a shower with a convenient seat are found in the master bath.
  • Upstairs, a play space lies at the top of the stairs. Two bedrooms, each with a dormer, share a hall bath.
  • Related Plan: For a smaller version, see house plan 3004D.
