Plan 22694DR
Cottage with Stone Accented Covered Entry and Finished Lower Level with Laundry Chute - 2930 Sq Ft
Heated S.F.
2,930
Beds
4
Baths
2.5
Stories
1
Floor Plan

Plan 22694DR

Main Level
slide image 0
Lower Level
slide image 1

Plan 22694DR

1-800-854-7852

1-262-521-4596

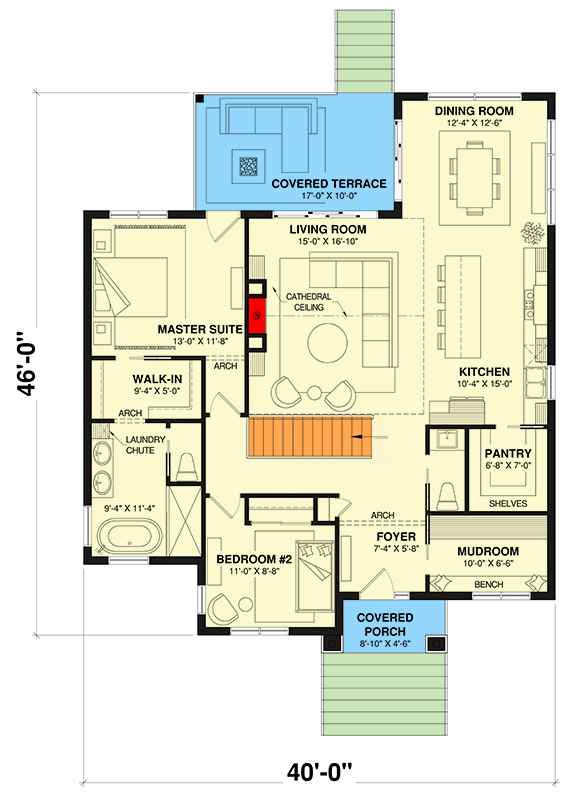

Main Level
floor plan image Main Level

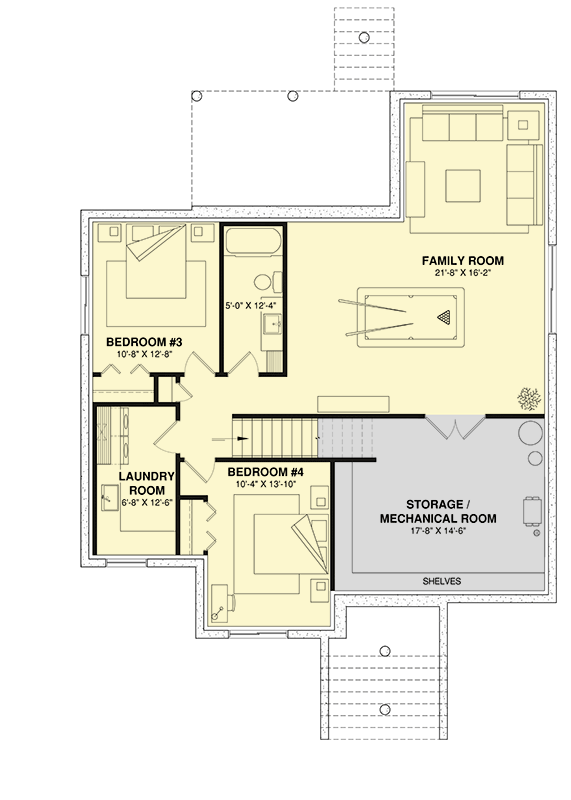

Lower Level
floor plan image Lower Level
Plan Details

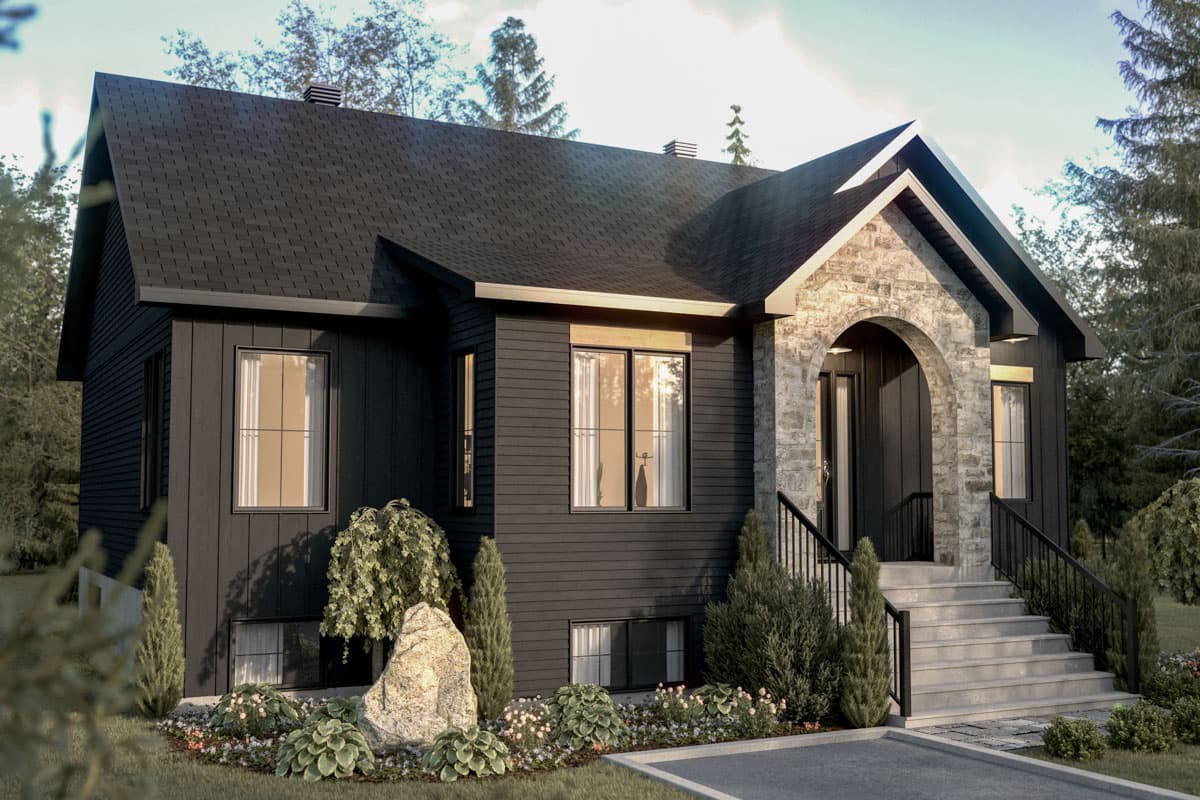

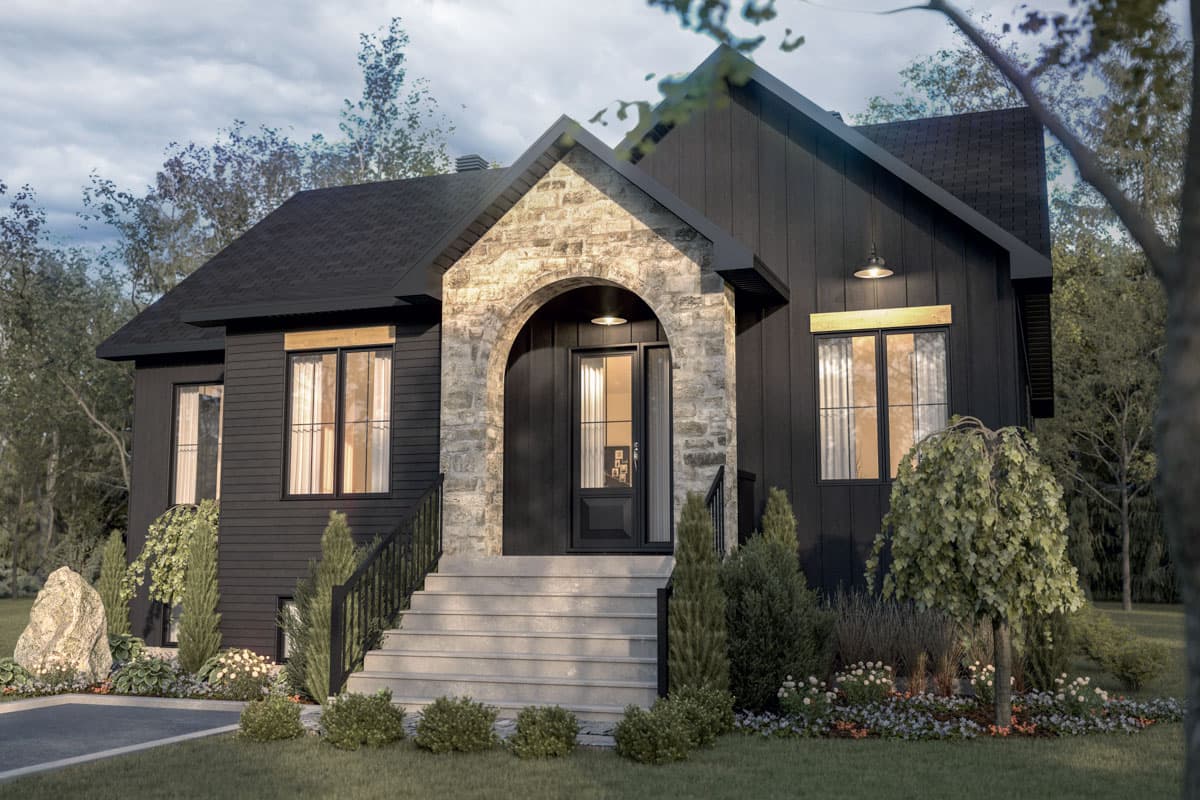

  • This 4 bedroom, 2.5 bathroom house plan is a charming design with a modern feel and arched stone covered entry.

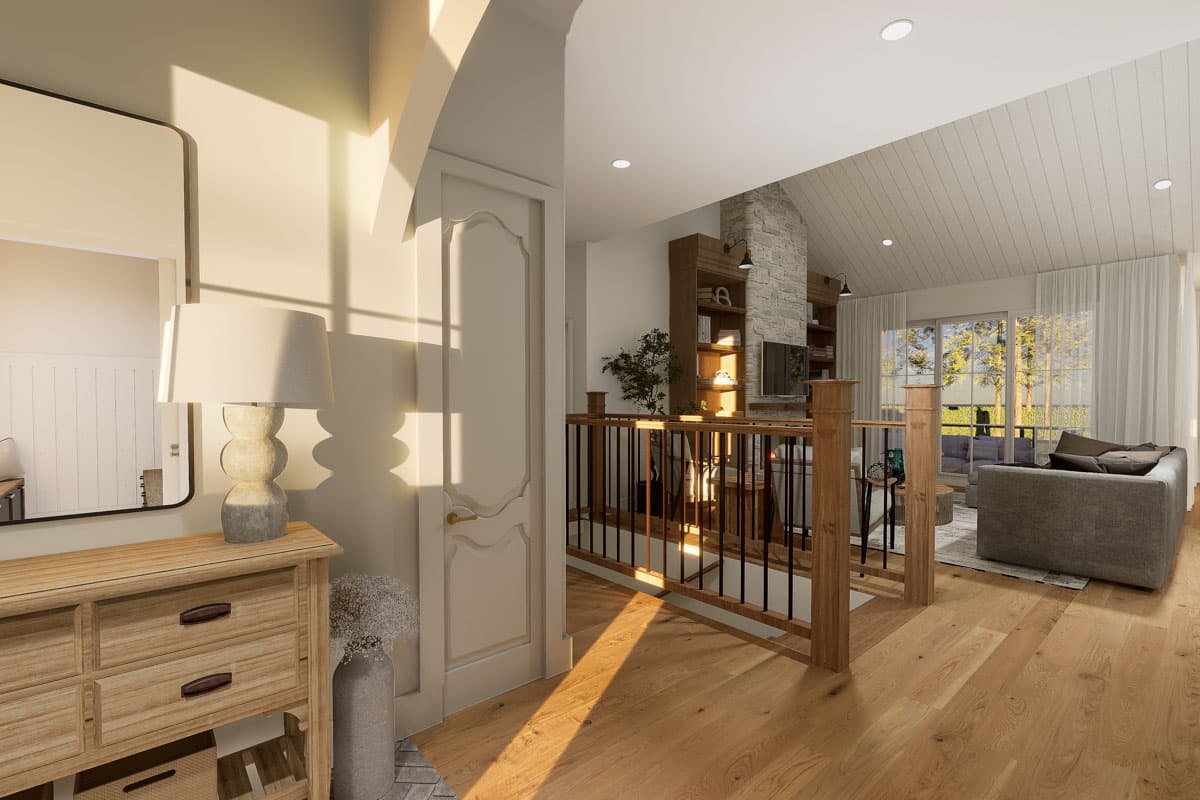

  • Inside, the spacious main entry has a mudroom and coat closet. The home has 9' ceilings throughout with the exception being the 13'4" cathedral roof in the family room that gets great natural light in back.

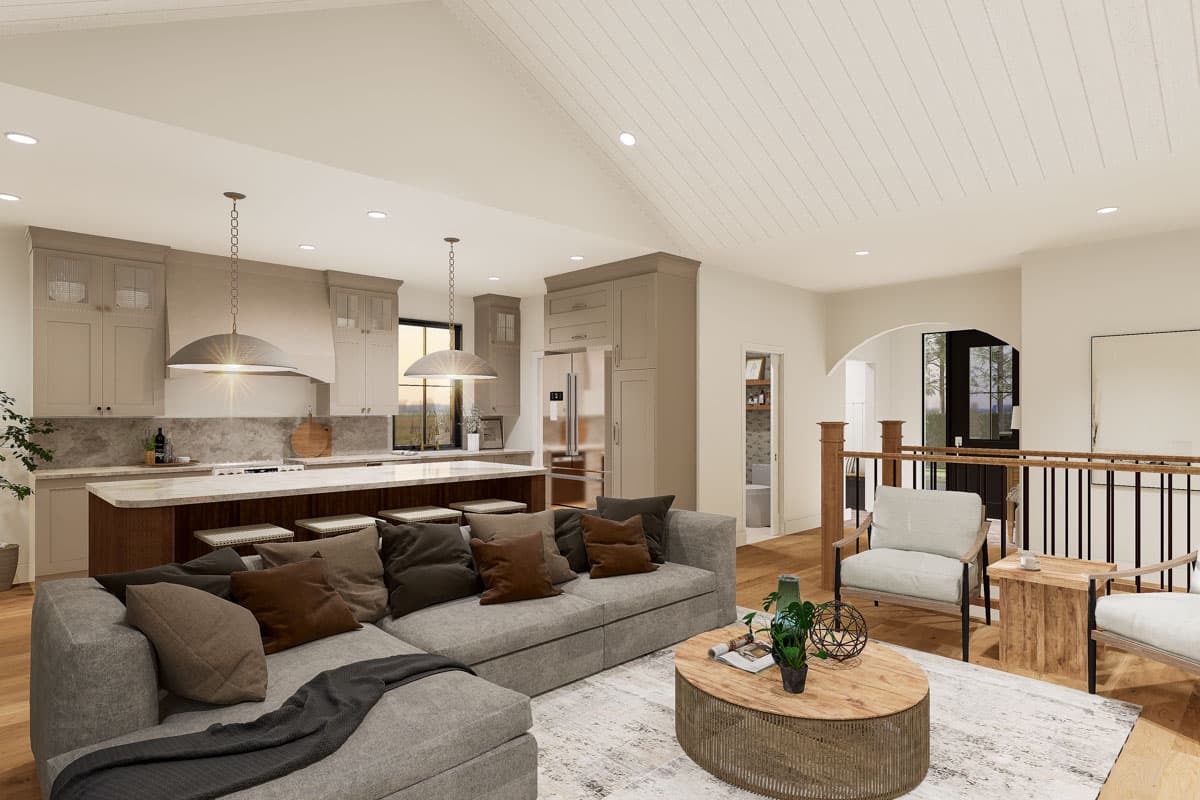

  • The island kitchen is equipped with a pantry and opens onto both the dining room and the living room with fireplace flanked by built-ins.
  • The master suite has a walk-in closet and a private bathroom including a separate toilet, two sinks, and a separate bathtub and shower.
  • Go downstairs and find two secondary bedrooms, a bathroom, a large family room, a laundry room with a laundry chute as well as a large storage space.
  • Related Plan: Get a smaller version and finish the lower level later with house plan 22691DR (1,167 square foot first floor).
What's Included
  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,930 sq. ft.

Lower Level

1,465 sq. ft.

1st Floor

1,465 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

46' 0"

Max Ridge Height

23' 1"

Garage

Type

Attached

Ceiling Heights

Lower Level

8'

First Floor

9'

Room

Ceiling Type

Height

Living Room

Cathedral

13' 4''

Roof Details

Primary Pitch

9 on 12

Architectural Style

Cottage

New American

Special Features

Butler Walk-in Pantry

Game/Rec Room

Laundry Chute

Laundry - Lower Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Canadian House Plans
