Plan 16815WG
Cottage with Stone and Shakes
Heated S.F.
2,143
Beds
3
Baths
2.5
Stories
2
Cars
2
Photos
Floor Plan

Plan 16815WG

Main Level
slide image 0
2nd Floor
slide image 1
Lower Level
slide image 2

Plan 16815WG

1-800-854-7852

1-262-521-4596

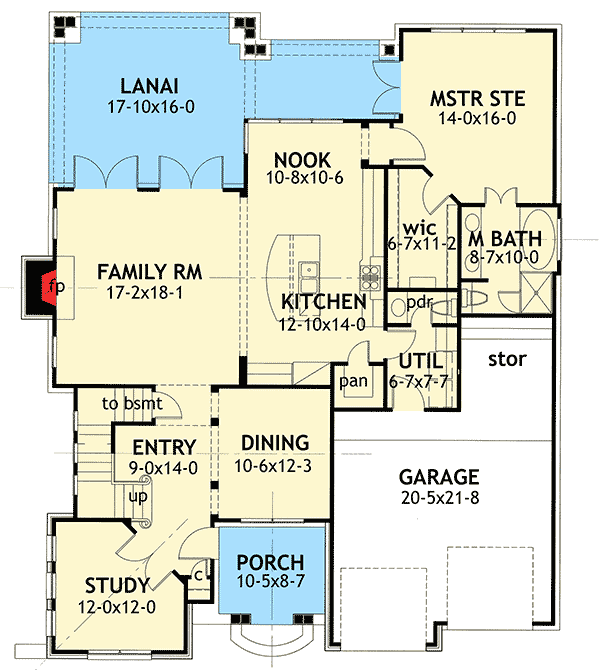

Main Level
floor plan image Main Level

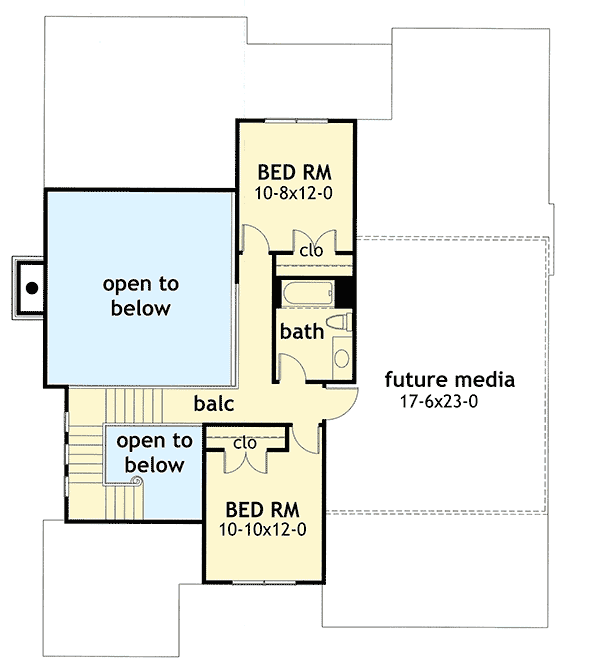

2nd Floor
floor plan image 2nd Floor

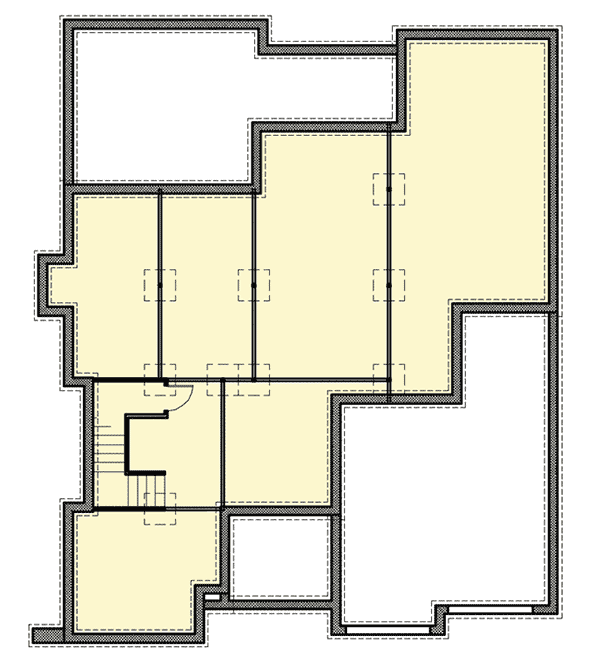

Lower Level
floor plan image Lower Level
Plan Details
  • Stone and shakes on the exterior of this charming cottage add a European touch.
  • Two sets of double doors in the spacious great room lead to a covered rear lanai with plenty of room for table and chairs.
  • The master suite also has a set of double doors that open to the lanai.
  • Windows on two sides of the study brighten the room.
  • An open rail on the second floor allows views of the family room and foyer below.
  • Unfinished space on this floor can be developed to suit your needs.
  • The 2-car garage has slightly offset doors both of which are 8' wide.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

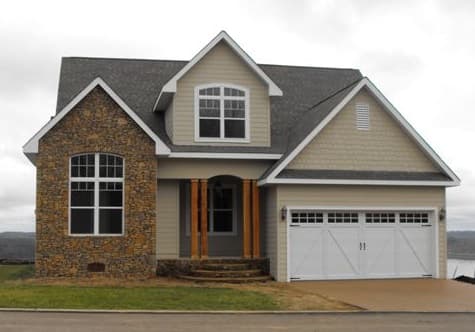

build gallery item - House Plan 16815WG comes to life in Tennessee with an expanded garage

House Plan 16815WG comes to life in Tennessee with an expanded garage

5

Photos

What's Included
  • Floor Plans – ¼”=1’-0” scale floor plan indicating location of frame and masonry walls, support members, doors, windows, plumbing fixtures, cabinets, shelving, ceiling conditions and notes deemed relevant to this plan.
  • Exterior Elevations – All elevations at ¼” = 1’-0” scale in most cases.  Some older designs may contain 1/8” scale side and rear elevations. Drawing will indicate overall configuration of home at each side view and make note of plate heights, roof overhangs, window header heights, roof pitches, materials used and extent to which they are used and enlargement of any details we feel necessary to explain the construction.
  • Building Sections – ¼” = 1’-0” building sections are included when there is no other reasonable way to indicate the volumetric/height conditions in the home.  Most of this information can usually be determined from the exterior elevations.
  • Cabinet Elevations – 3/8” = 1’-0” scale elevations indicating configuration of cabinets, heights, widths, type of components used, cabinet material and finish, counter surfaces, appliances,
  • Framing Plans – ¼” – 1’-0” scale framing plans indicating size and spacing of members as well as bracing and blocking required for structural purposes. Local codes will most likely need to be consulted.
  • Foundation Plans – ¼” = 1’-0” scale foundation plans indicating location of structural walls, grade beams, reinforcing steel and structural columns.  Consulting a local engineer is advisable as well as is analysis of soil conditions on site.
  • Electrical Plans – ¼” = 1’-0” scale schematic plans indicating location and types of electrical fixtures, switches, outlets, and how they are to be switched.  Plans do not include circuiting or wire sizing.  Plans will also include specialty items such as hose bibs, gas connections, location of a/c equipment, return air vents or other mechanical/electrical/plumbing items which need to be located.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,143 sq. ft.

1st Floor

1,638 sq. ft.

2nd Floor

505 sq. ft.

Basement Unfinished

1,638 sq. ft.

Bonus

497 sq. ft.

Lanai

496 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

47' 11"

Depth

60' 6"

Max Ridge Height

29' 6"

Garage

Type

Attached

Area

515 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Study

Flat

12' 0''

Bedroom 2

Vaulted

9' 0''

Bedroom 3

Vaulted

9' 0''

Family Room

Vaulted

0' 0''

Master Bedroom

Vaulted

0' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Cottage

European

Traditional

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,143 sq. ft.

1st Floor

1,638 sq. ft.

2nd Floor

505 sq. ft.

Basement Unfinished

1,638 sq. ft.

Bonus

497 sq. ft.

Lanai

496 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

47' 11"

Depth

60' 6"

Max Ridge Height

29' 6"

Garage

Type

Attached

Area

515 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Study

Flat

12' 0''

Bedroom 2

Vaulted

9' 0''

Bedroom 3

Vaulted

9' 0''

Family Room

Vaulted

0' 0''

Master Bedroom

Vaulted

0' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Cottage

European

Traditional

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Photo Gallery
