Plan 3190D
Country Appeal
Heated S.F.
2,298
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 3190D

Main Level
slide image 0
2nd Floor
slide image 1

Plan 3190D

1-800-854-7852

1-262-521-4596

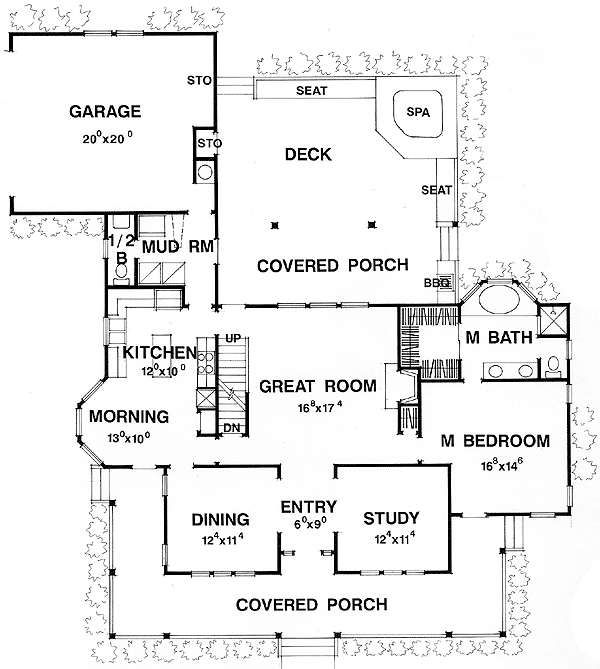

Main Level
floor plan image Main Level

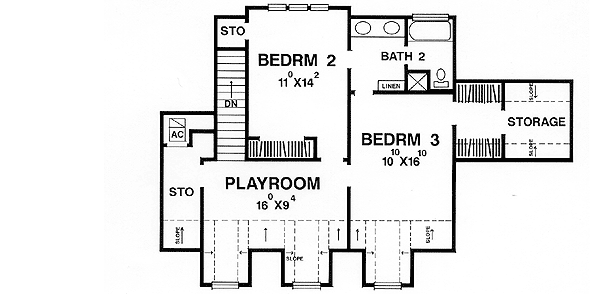

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A covered wrap-around porch in front, plus a partially covered porch-deck combination in back with a spa tub, built-in seating and a barbecue, offer multiple possibilities for outdoor living at this country-style abode.
  • A study and a dining room, identically sized, flank the entry foyer. The kitchen and morning room are placed to one side of the central great room with fireplace. An island provides additional counter space in the kitchen.
  • On the other side of the great room, the master suite includes a master bath garden room with a walk-in closet, two vanities, walk-in shower and garden tub.
  • Upstairs, the bathroom can be accessed from either bedroom. A playroom and two storage areas complete this appealing home.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.
What's Included

  • Foundation plan
  • Fully dimensioned floor plan
  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,298 sq. ft.

1st Floor

1,517 sq. ft.

2nd Floor

781 sq. ft.

Basement Unfinished

1,517 sq. ft.

Bonus

136 sq. ft.

Porch, Combined

657 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

62' 2"

Depth

66' 8"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

456 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Farmhouse

Hill Country

Special Features

Jack & Jill Bath

Library/Study

Master Suite - 1st Floor

Playroom

Wrap Around Porch
