Plan 280202JWD
Country Cottage House Plan with 3 Bedrooms and Bonus Expansion - 1923 Sq Ft
Heated S.F.
2,378
Beds
3
Baths
2
Stories
1
Cars
3
Floor Plan

Plan 280202JWD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 280202JWD

1-800-854-7852

1-262-521-4596

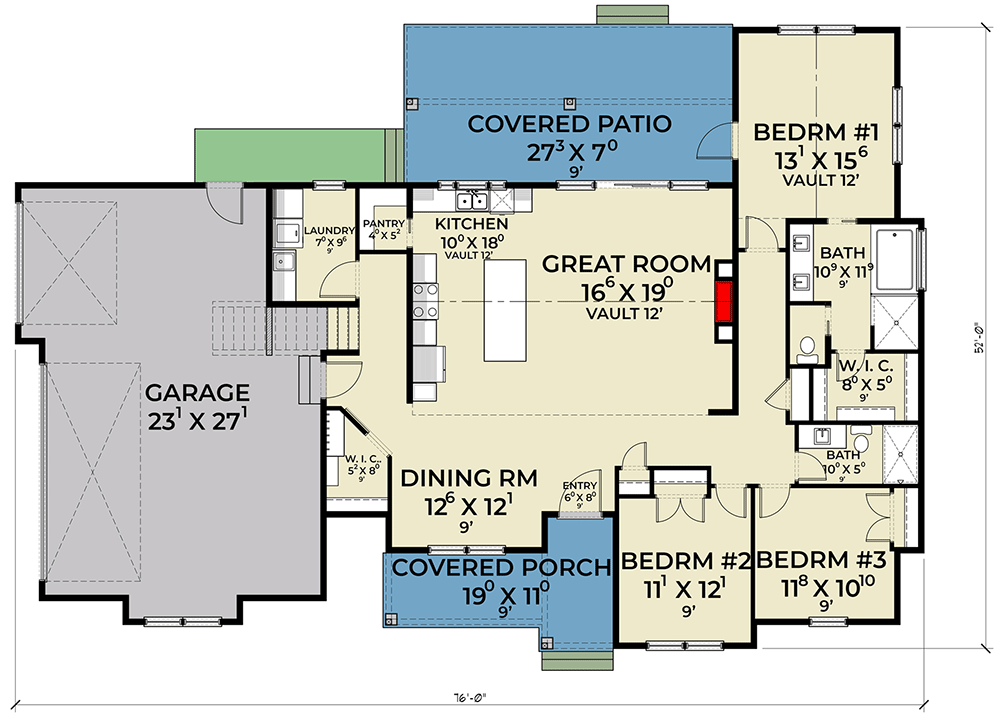

Main Level
floor plan image Main Level

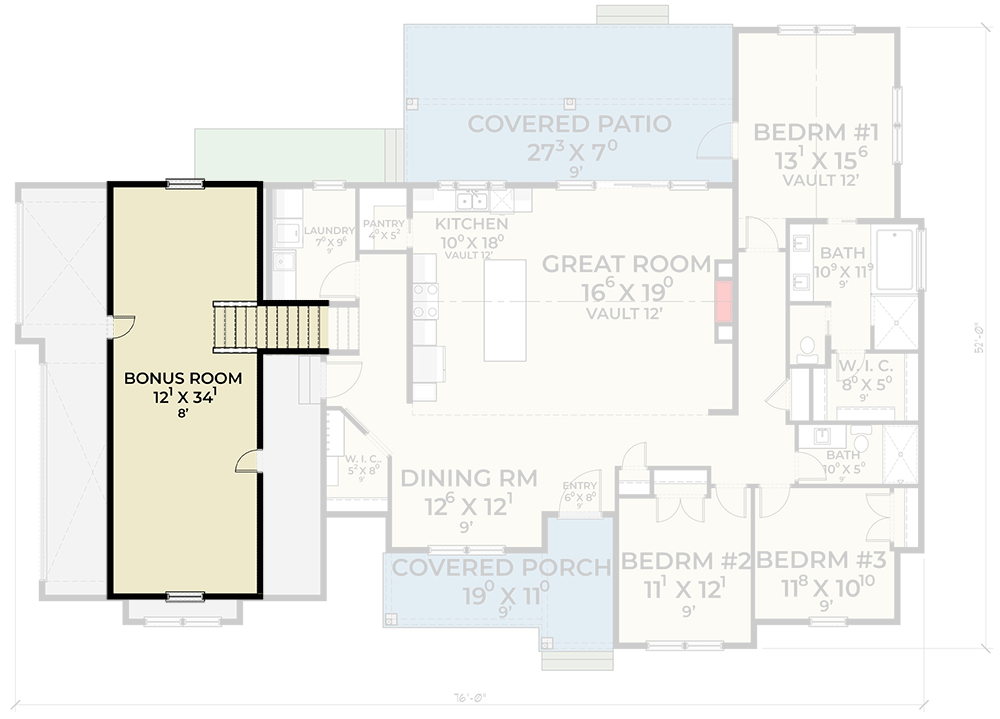

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This Country Cottage house plan gives you 3 beds, 2 baths and 1,923 square feet of heated living and an additional 455 square feet of expansion above the side-load 827 square foot 3-car garage.
  • The great room and kitchen sit under a 12' vaulted ceiling and are open to each other and the dining room. A double sink in the kitchen is set below a window looking out across the back porch.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,378 sq. ft.

1st Floor

1,923 sq. ft.

Bonus

455 sq. ft.

Covered Patio

354 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

76' 0"

Depth

52' 0"

Max Ridge Height

26' 11"

Garage

Type

Attached

Area

827 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Bonus Room

8' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Farmhouse

Modern Farmhouse

New American

Traditional

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Lower Level

Mudroom
