Plan 83630CRW
Country Cottage Plan with Main-Level Owner's Suite and Study - 3054 Sq Ft
Heated S.F.
3,054
Beds
5 - 6
Baths
3.5 - 4.5
Stories
2
Cars
2
Floor Plan

Plan 83630CRW

Main Level
slide image 0
2nd Floor
slide image 1

Plan 83630CRW

1-800-854-7852

1-262-521-4596

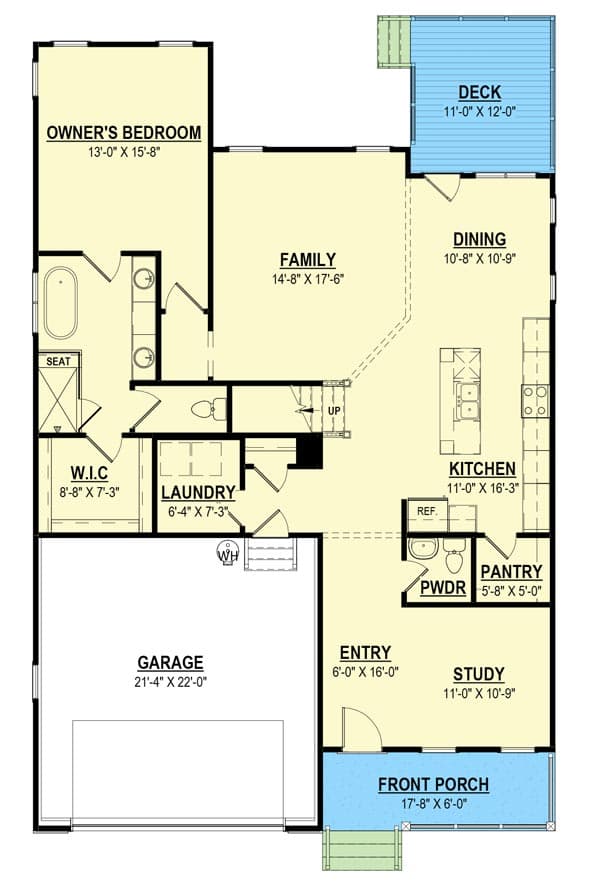

Main Level
floor plan image Main Level

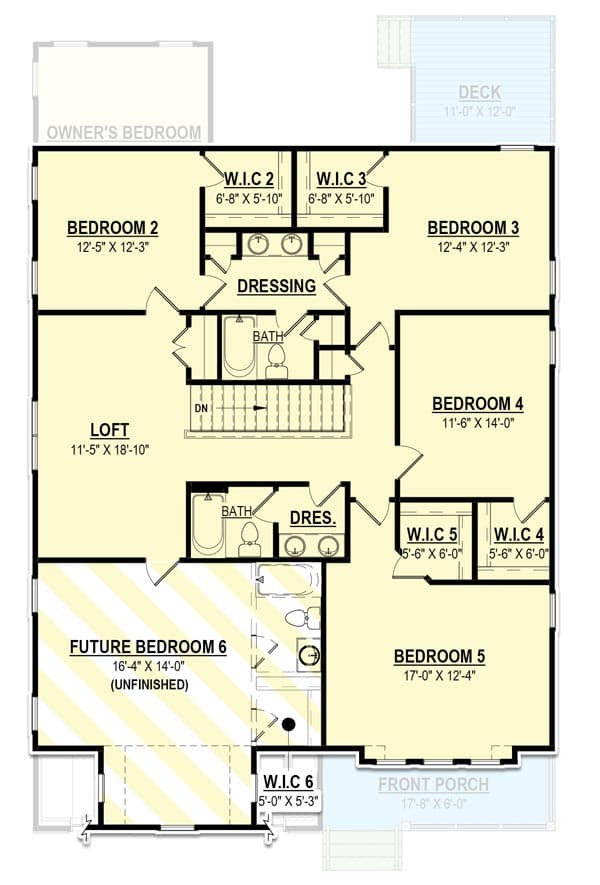

2nd Floor
floor plan image 2nd Floor
Plan Details

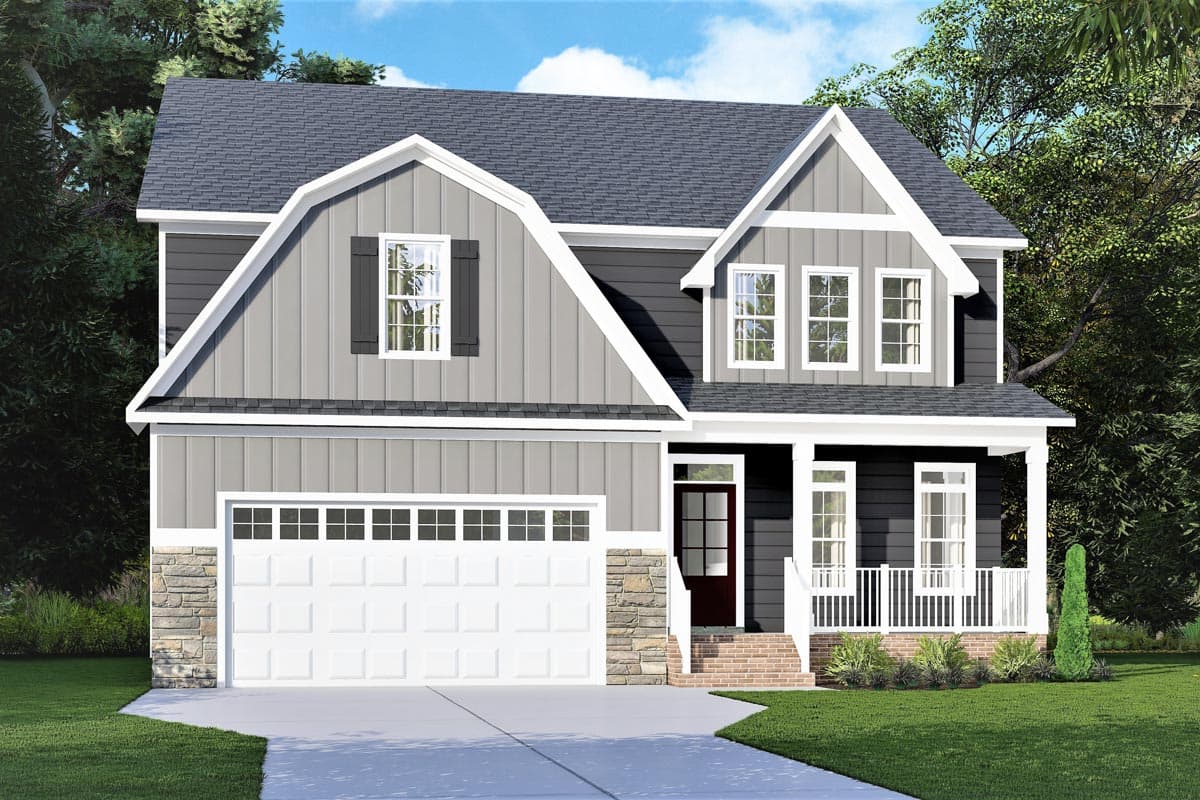

  • The gambrel roof above the double garage adds character to the front elevation of this Country Cottage.

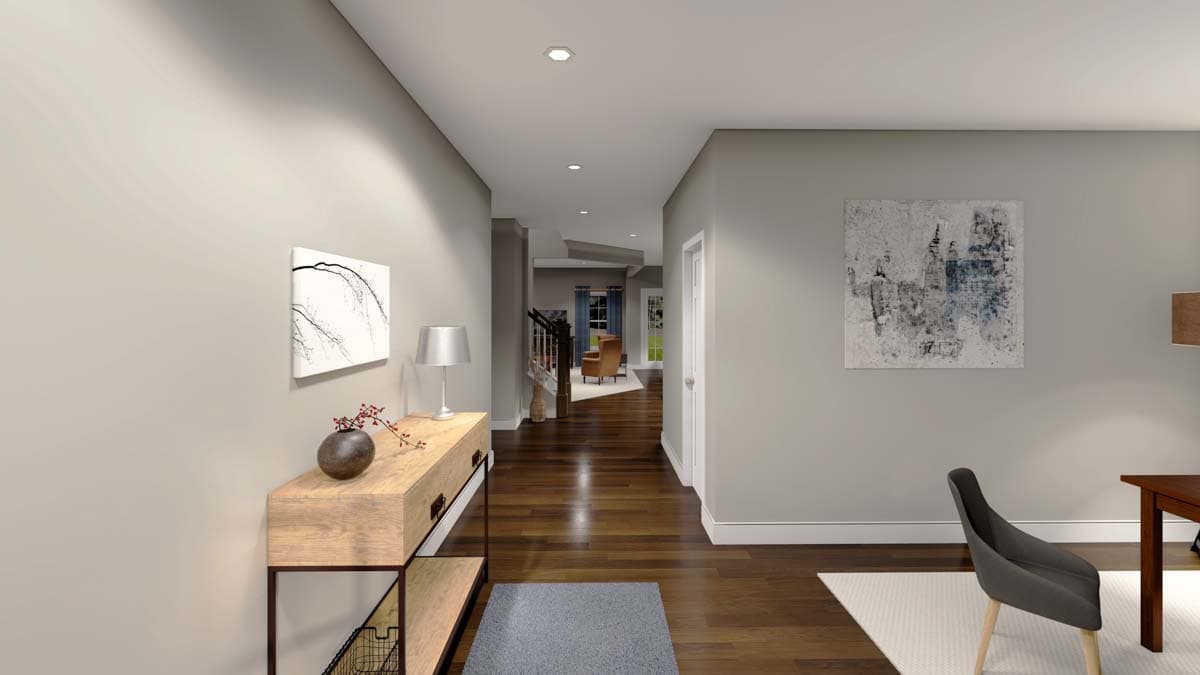

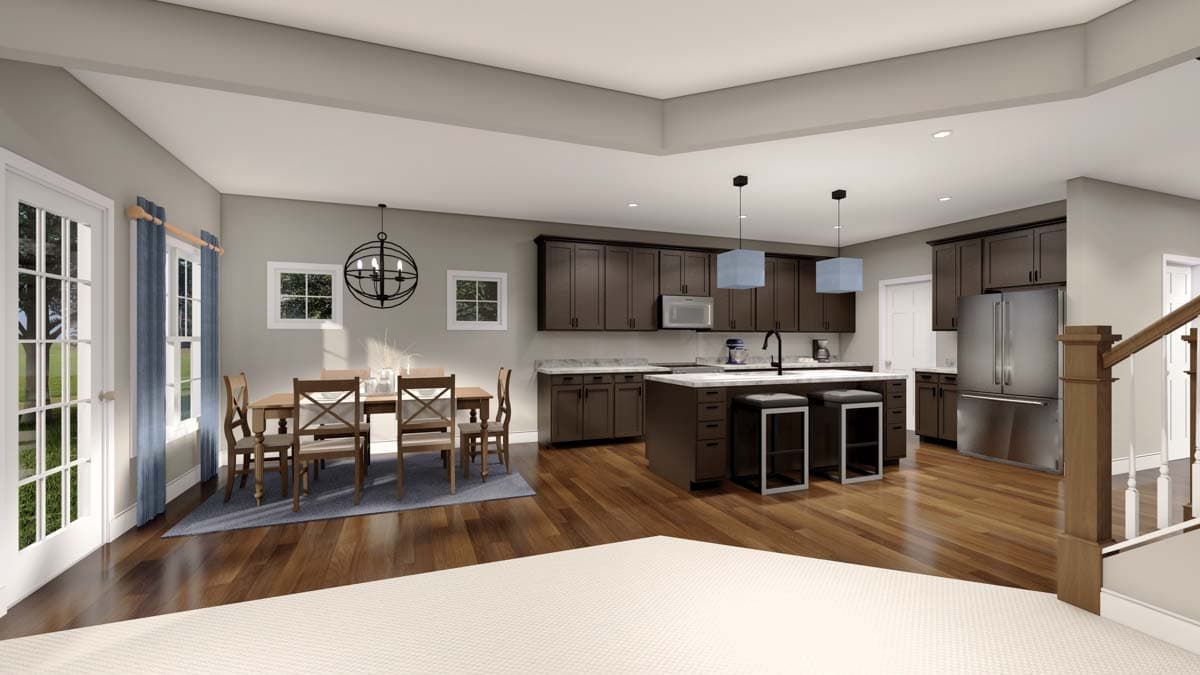

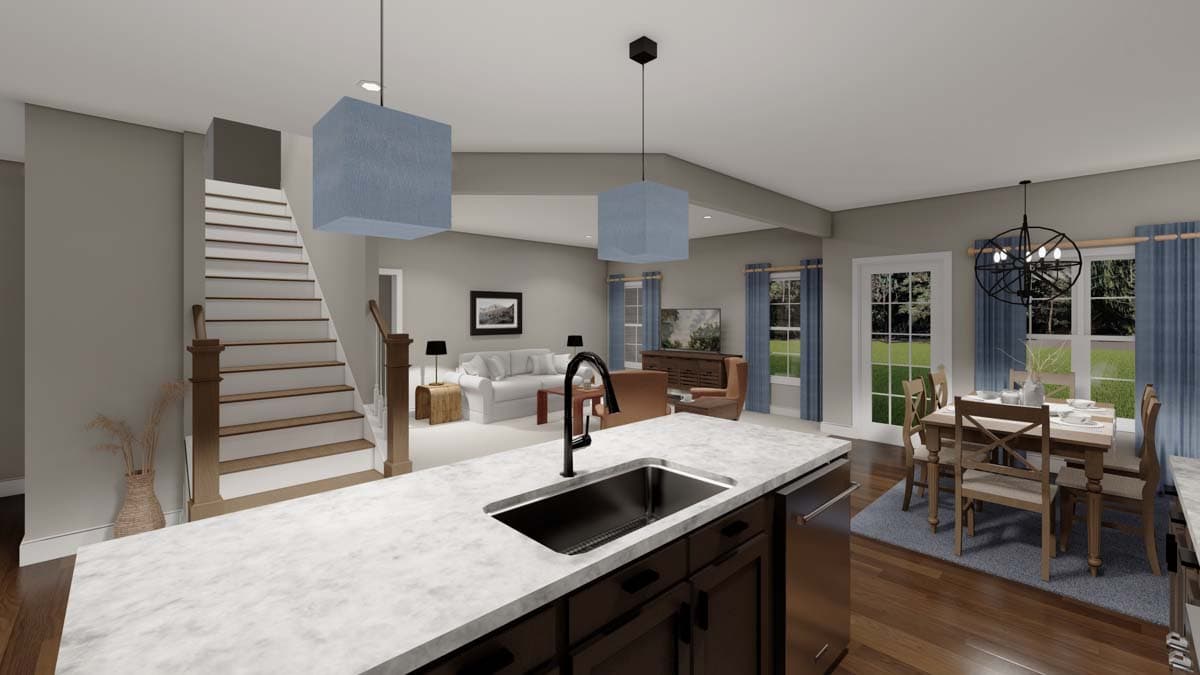

  • A 6'-deep front porch invites you inside to find a study to the right of the foyer. A few steps further and the heart of the home is revealed with a seamless transition into the dining area and family room.
  • Enjoy grilling or dining outdoors with the 11' by 12' deck just off the dining room.
  • Retreat to the owner's bedroom, located on the main level for easy access, and discover a 5-fixture bathroom and walk-in closet.
  • Upstairs, you will find four bedrooms and a loft with a Jack-and-Jill bath shared by two of the bedrooms. An optional sixth bedroom is available above the garage.
  • Related Plan: Get an alternate exterior with house plan 83635CRW.
What's Included
  • Cover sheet with rendering
  • Foundation plan with details
  • Detailed floor plan(s) (includes window & door sizes, plumbing fixture locations, detail notes, etc.)
  • Roof plan (birds eye view of roof with overhang/truss heel notes)

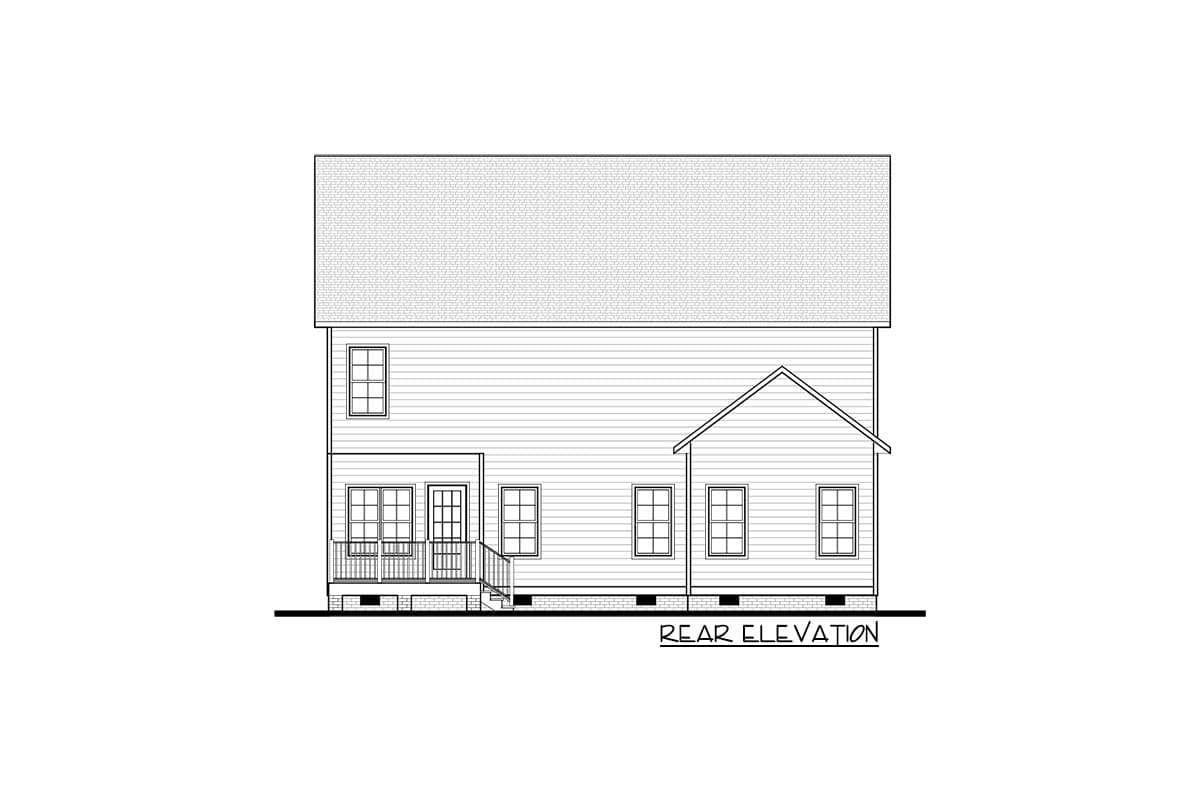

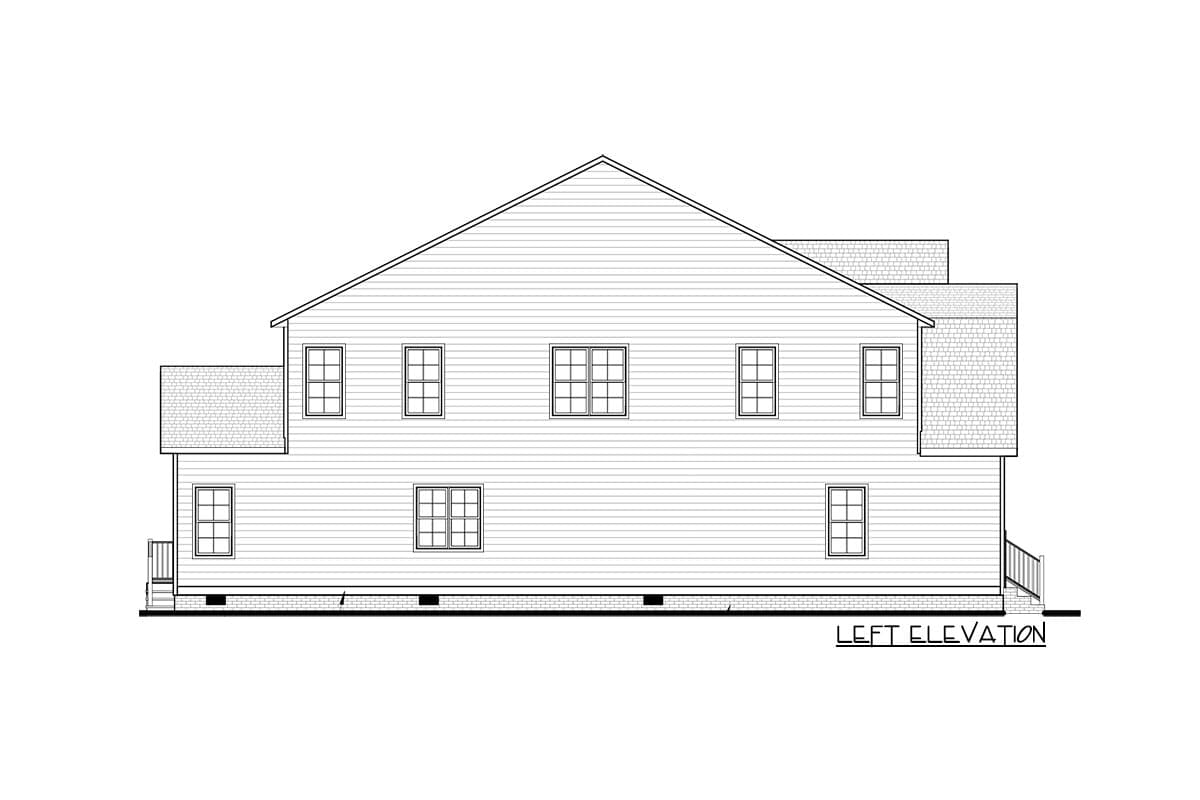

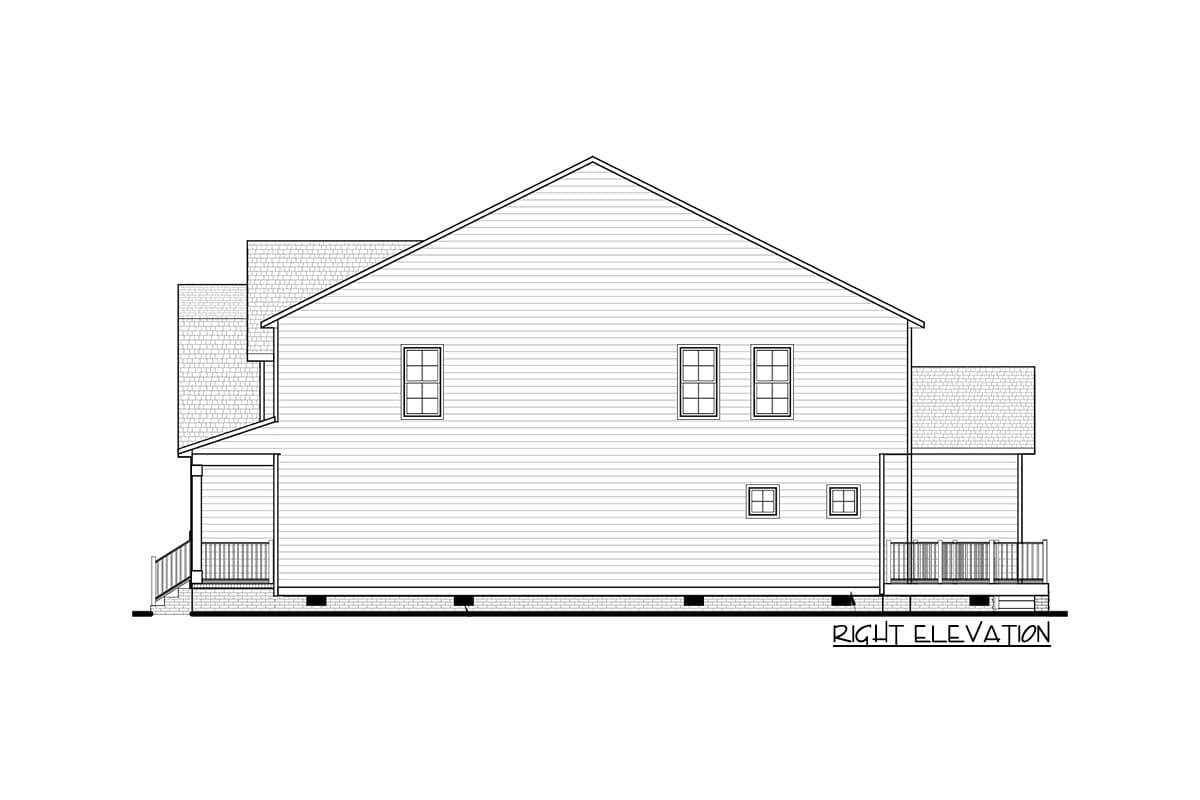

  • Four exterior views (front, rear, right, left)
  • Building section with Kitchen plan and misc. notes
  • Typical Wall Section
  • Some plans include a suggested electrical layout.
  • Please contact us for a specific plan's sheet index.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,054 sq. ft.

1st Floor

1,545 sq. ft.

2nd Floor

1,509 sq. ft.

Porch, Front

106 sq. ft.

Deck

132 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

39' 8"

Depth

60' 0"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

499 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

9 on 12

Framing Type

Truss

Architectural Style

Bungalow

Cottage

Country

Farmhouse

Special Features

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor
