Plan 940002JNK
Country Craftsman House Plan with Flex Room - 1537 Sq Ft
Heated S.F.
1,537
Beds
2 - 3
Baths
2
Stories
1
Cars
2

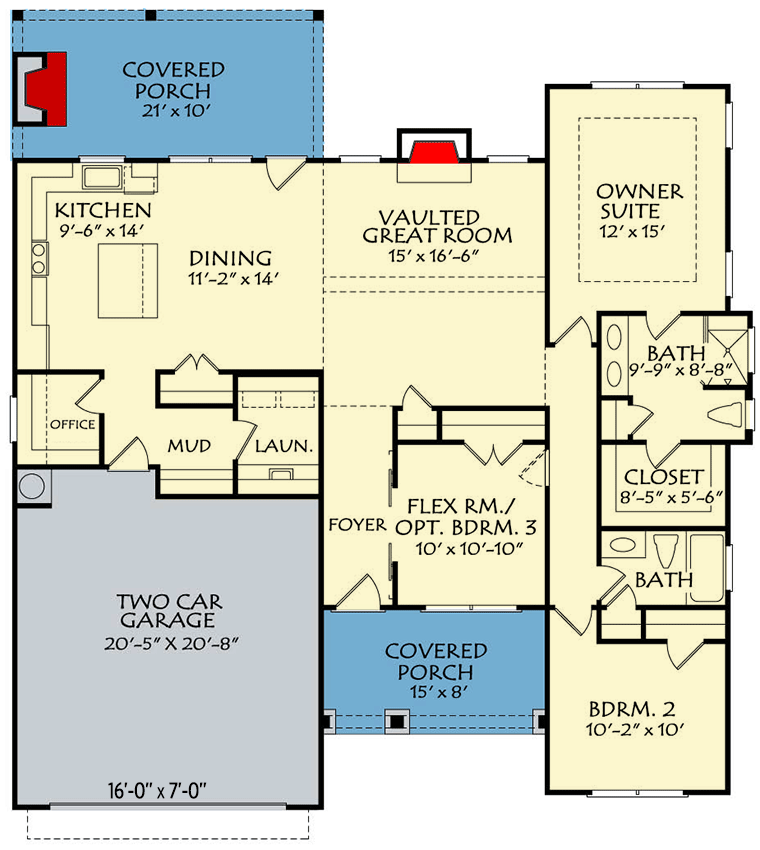

Floor Plan

Plan 940002JNK

Main Level
slide image 0

Plan 940002JNK

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This country home plan with a flex room gives you two or three bedrooms and gives you 1,537 square feet of heated living space. The exterior has an attractive craftsman aesthetic, with a mix of clapboard siding with shingle accents in the the two gable peaks and stone around the base of the home and on the timber supports on the front porch.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Covered Sheet

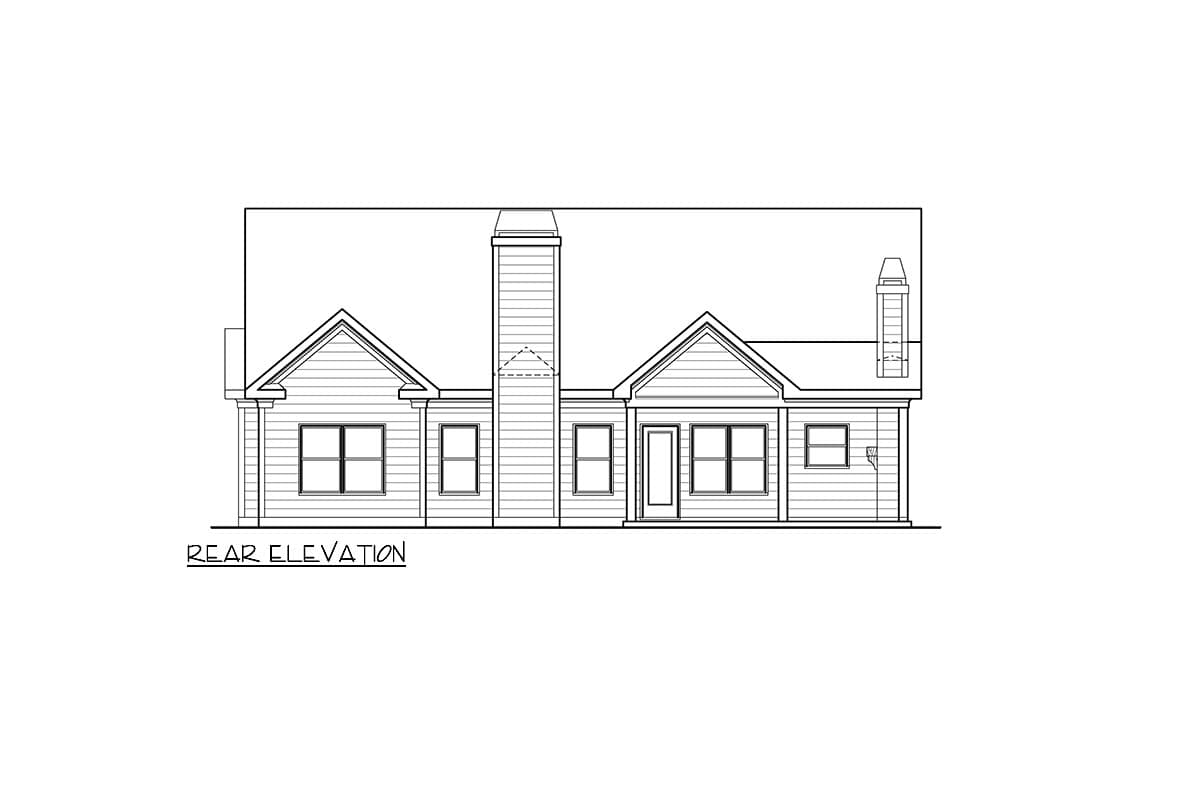

  • Front & Rear elevations - 1/4" scale - hatched w/ materials

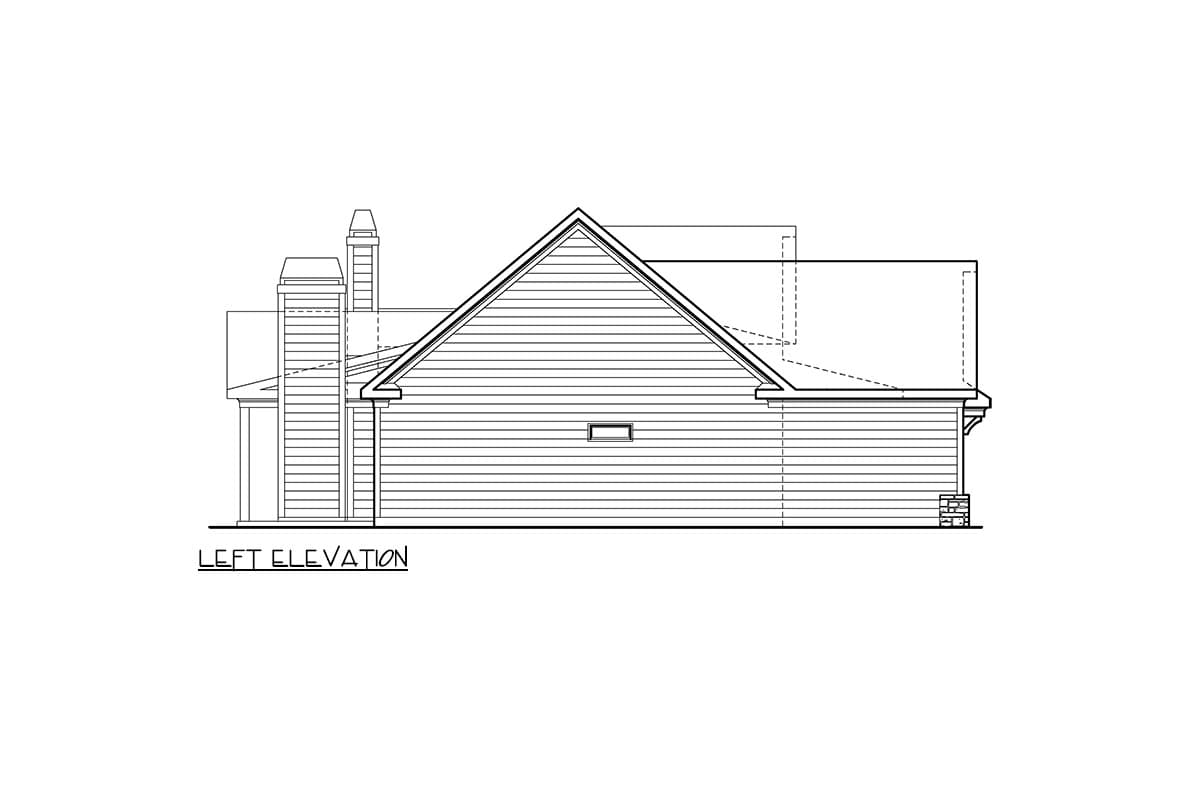

  • Right & Left elevations - 1/4" scale - hatched w/ materials
  • Roof Over view Plan Foundation Plan
  • Floor plans - w/ Kitchen & Bath elevations
  • Sections, stair sections, typical wall section details, and miscellaneous details
  • Separate electrical plans
  • Typical Detail sheet
What's Not Included

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,537 sq. ft.

1st Floor

1,537 sq. ft.

Porch, Front

126 sq. ft.

Porch, Rear

220 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

74' 0"

Max Ridge Height

23' 1"

Garage

Type

Attached

Area

438 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Modern Farmhouse

Special Features

Bedrooms - Clustered

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
