Plan 29891RL

Country Craftsman With Studio Apartment Above Angled Garage

Heated S.F.

2,339

Beds

2 - 5

Baths

2.5 - 4.5

Stories

1

Cars

3

Floor Plan

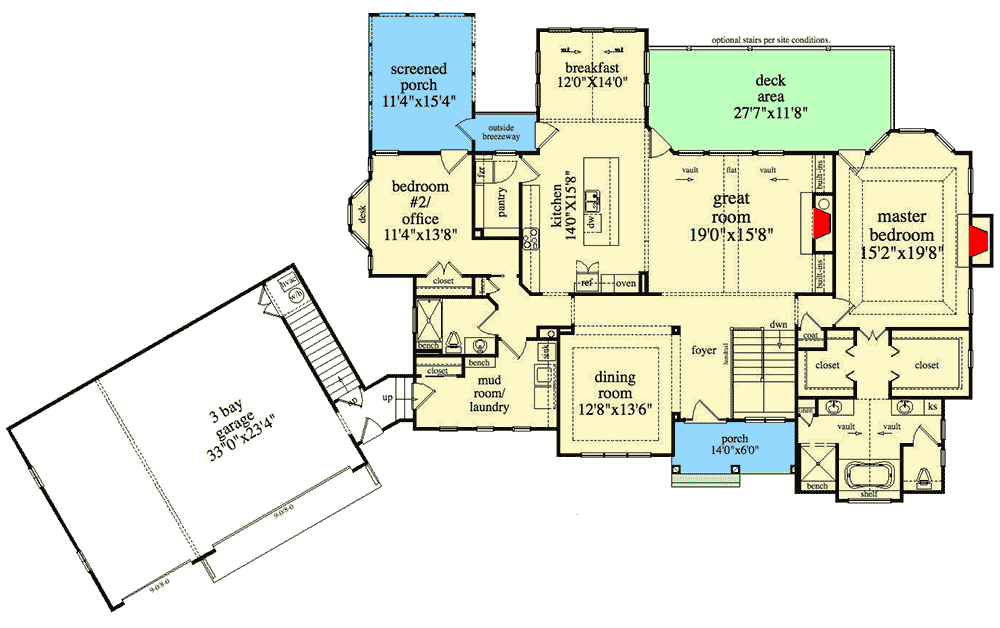

Main Level

floor plan image Main Level

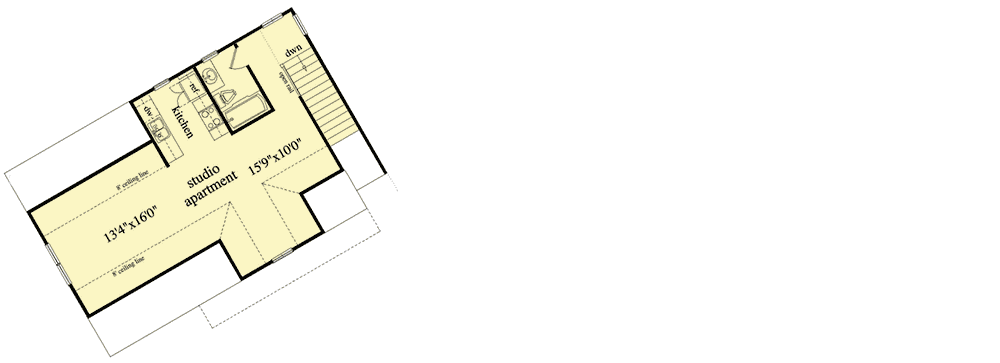

Bonus Level

floor plan image Bonus Level

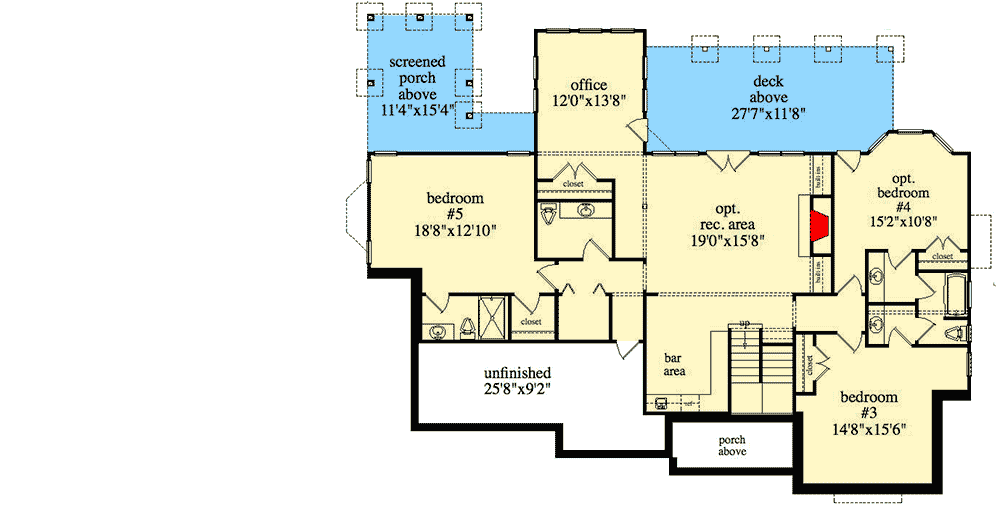

Lower Level

floor plan image Lower Level

Plan Details

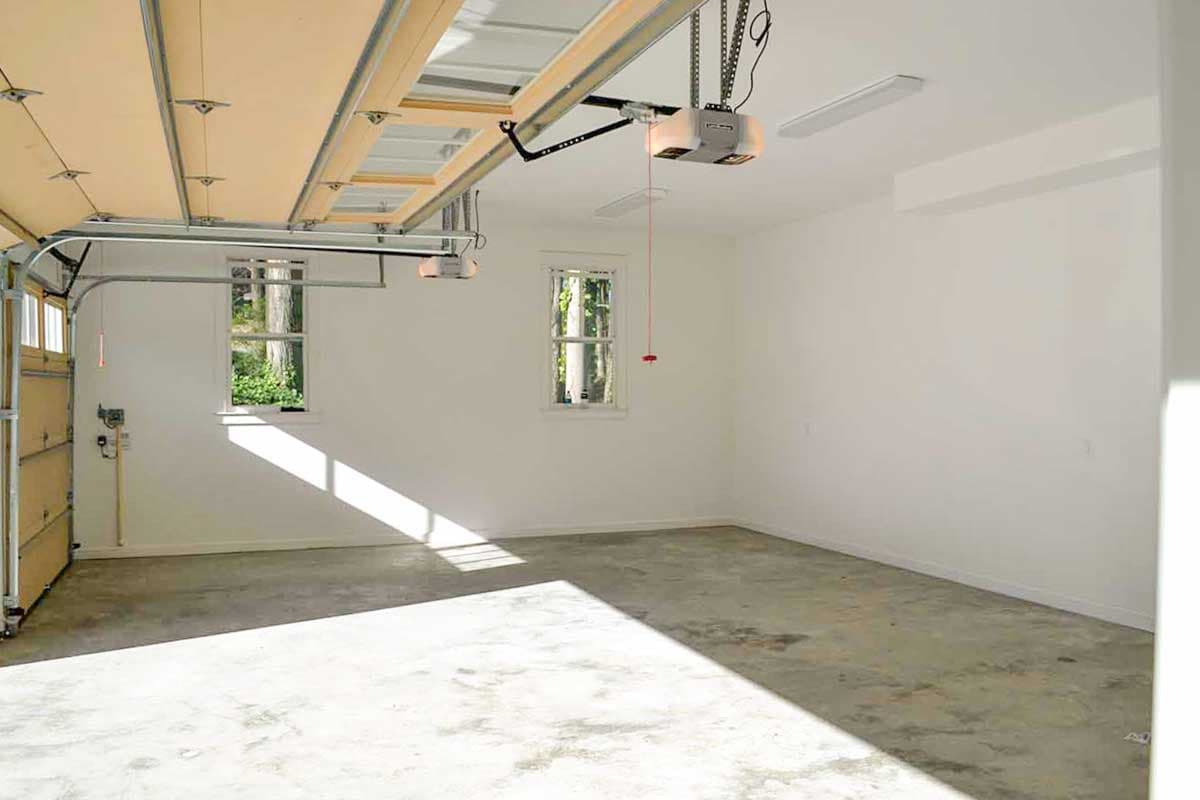

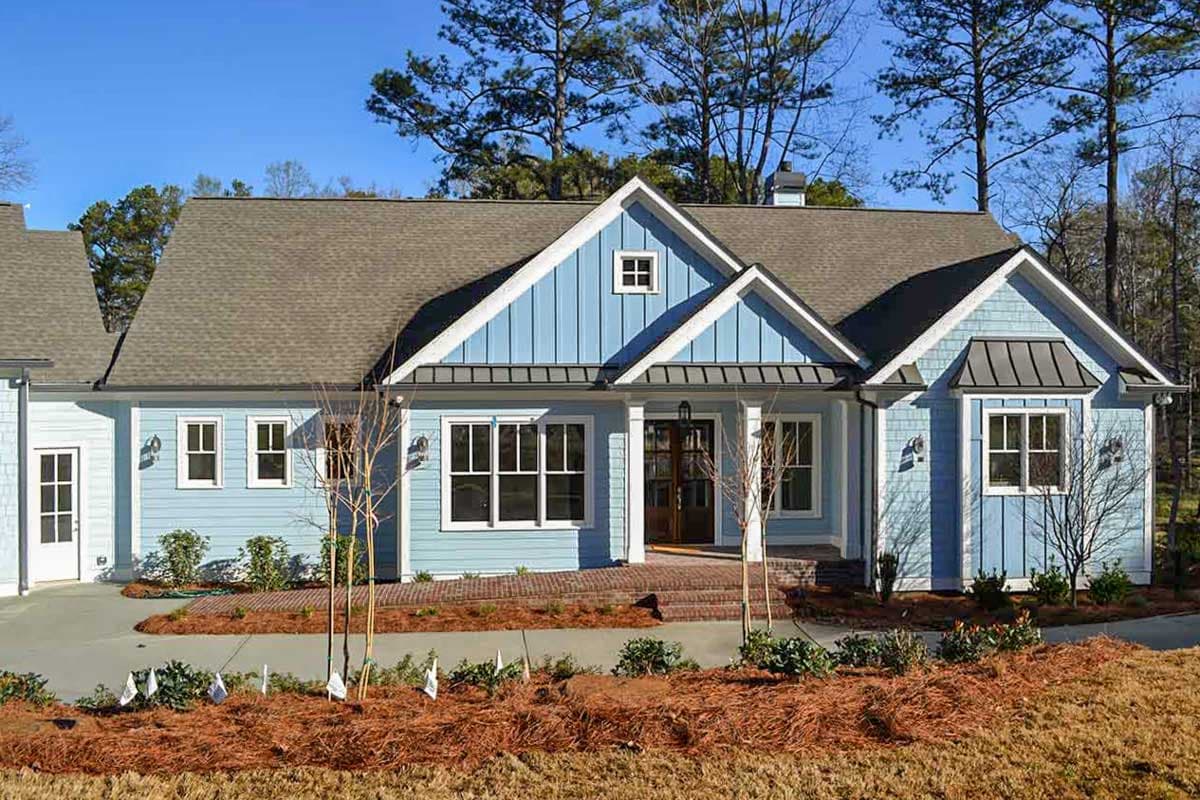

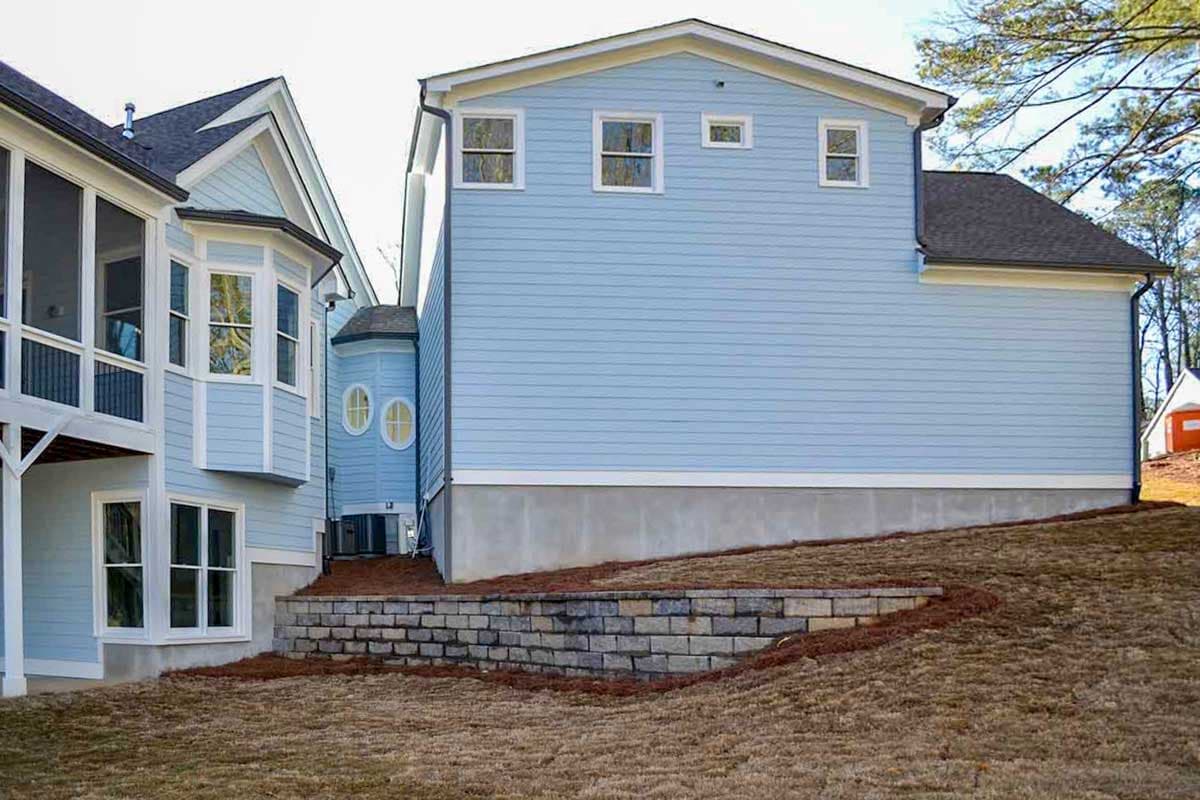

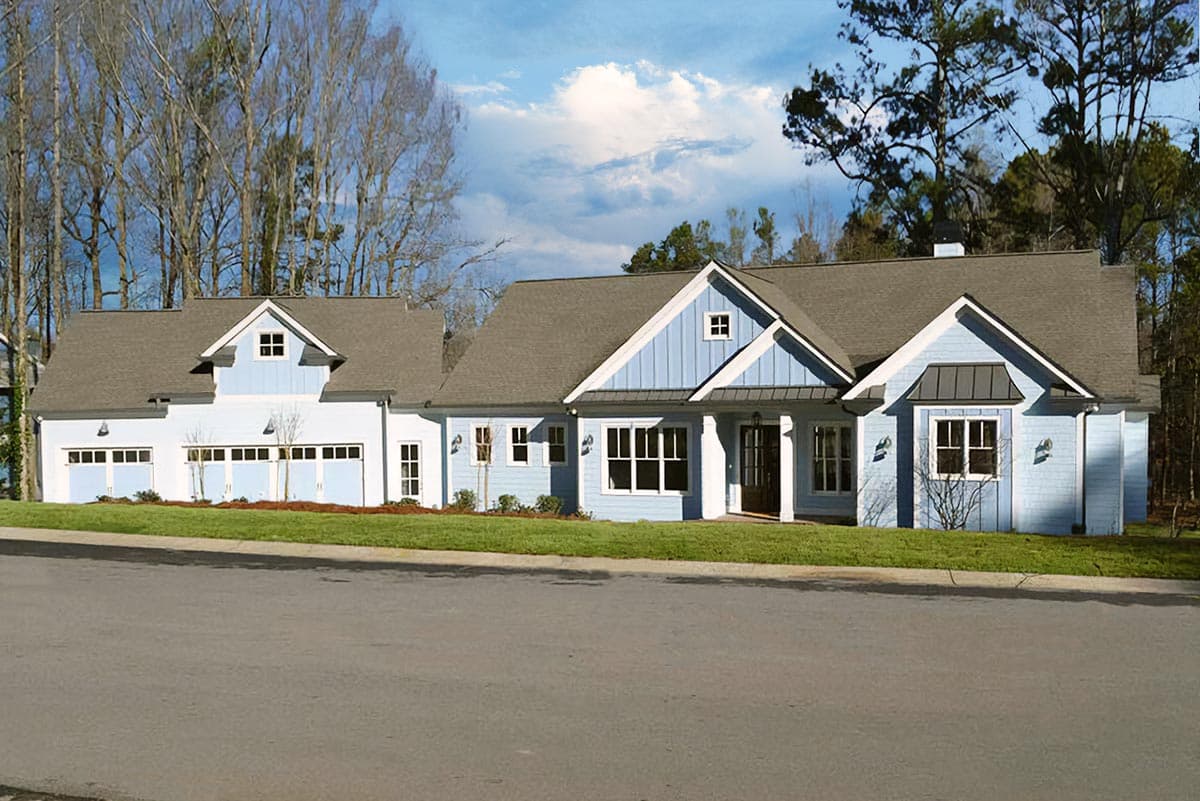

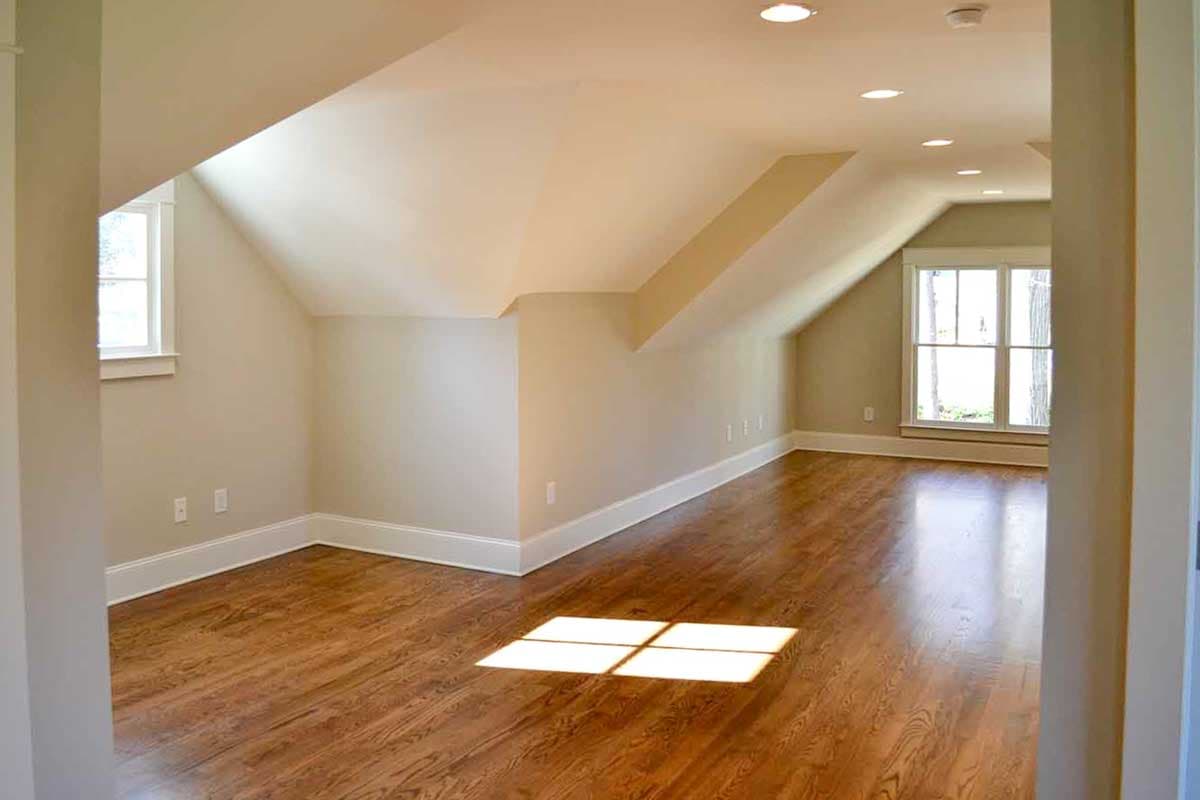

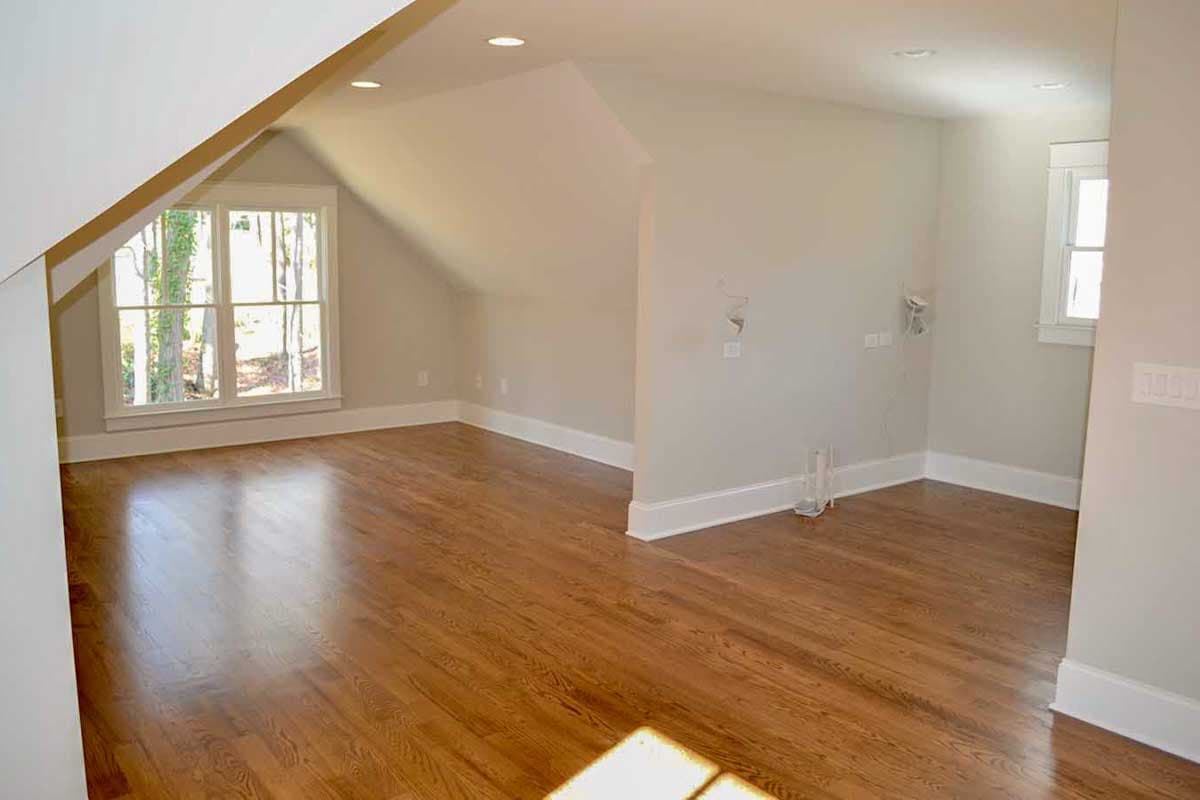

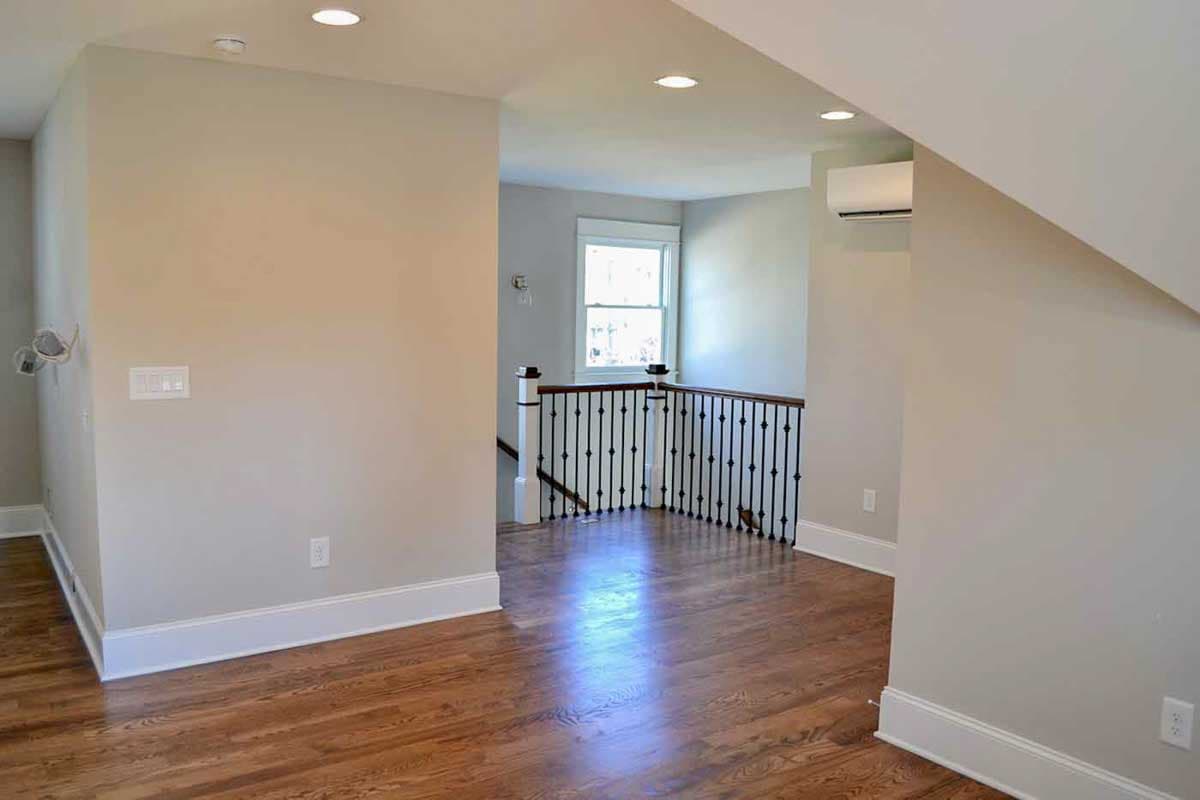

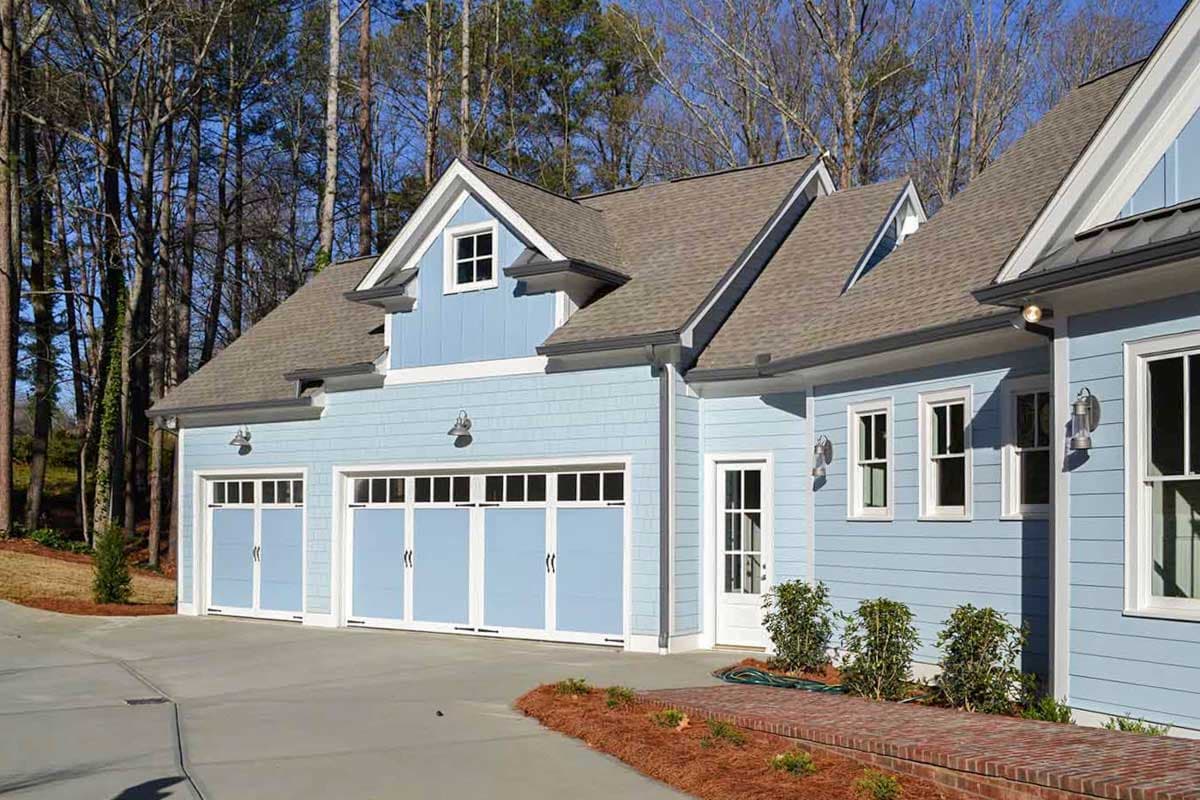

This country Craftsman house plan has a 3-car angled garage with a studio apartment above. Stairs to the apartment are covered and outside the main portion of the home giving it great privacy.

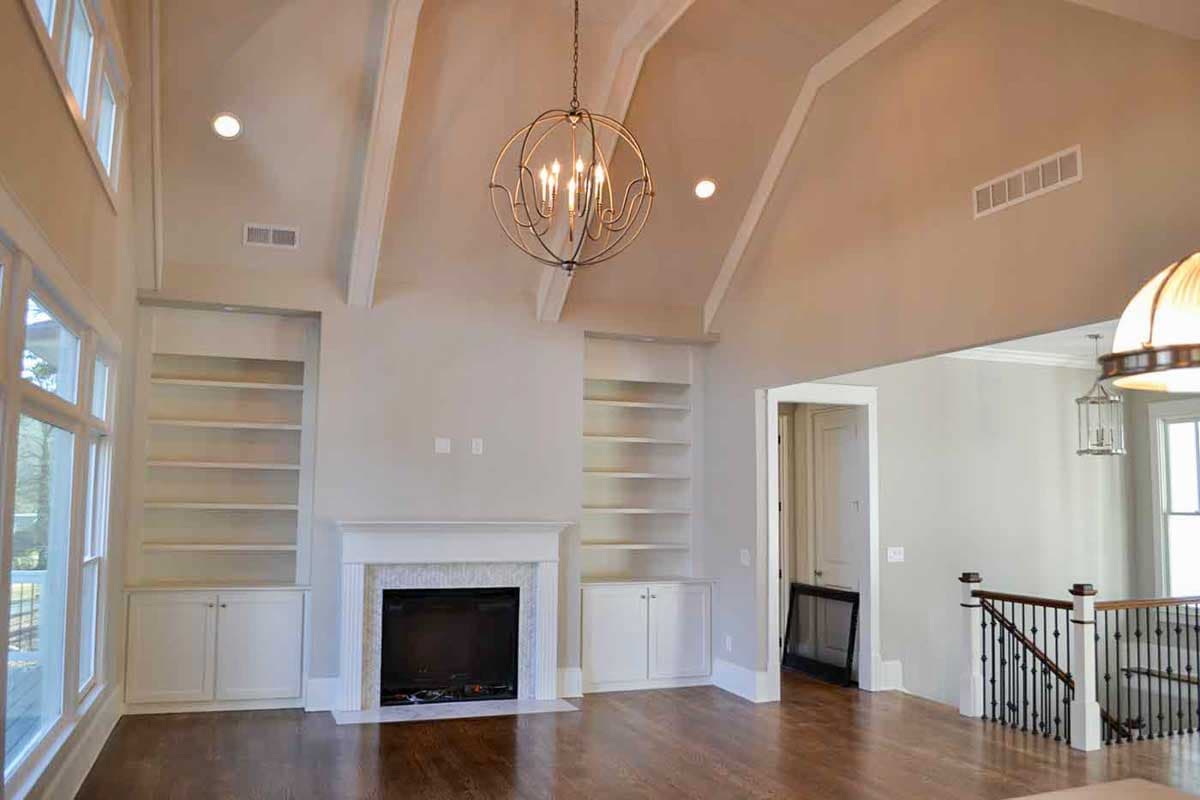

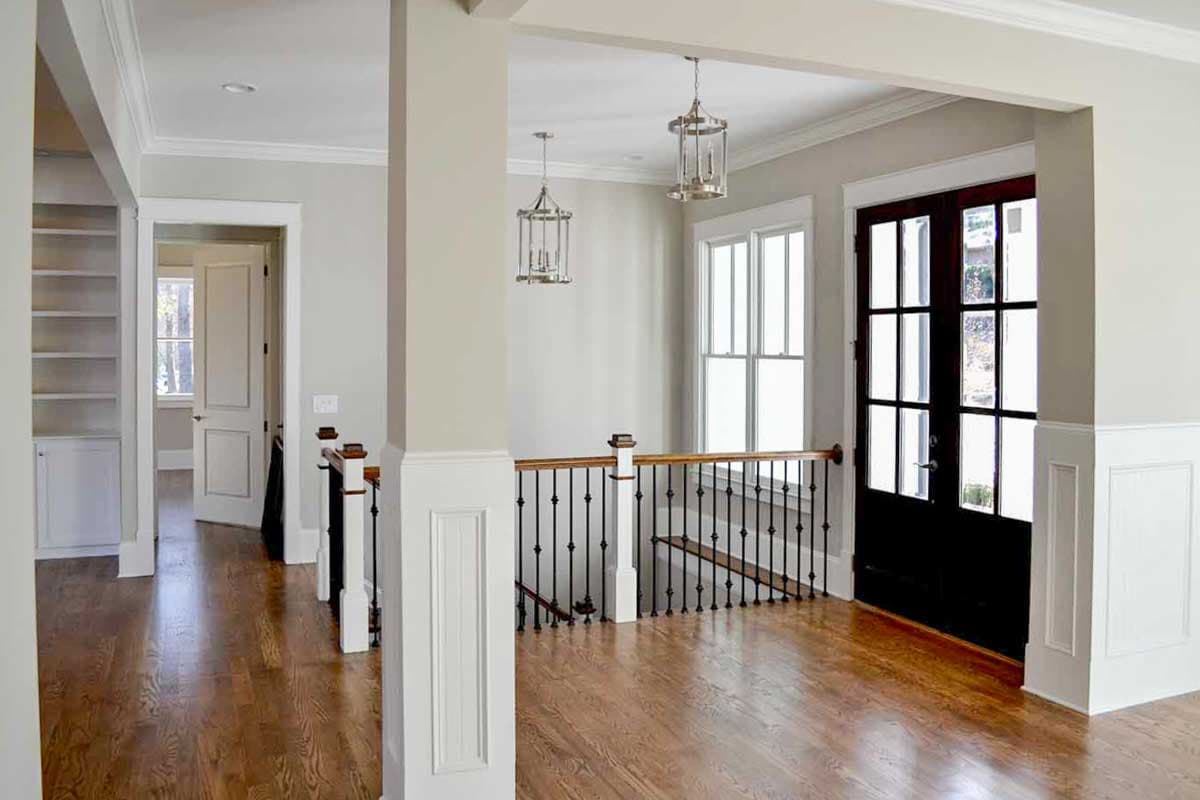

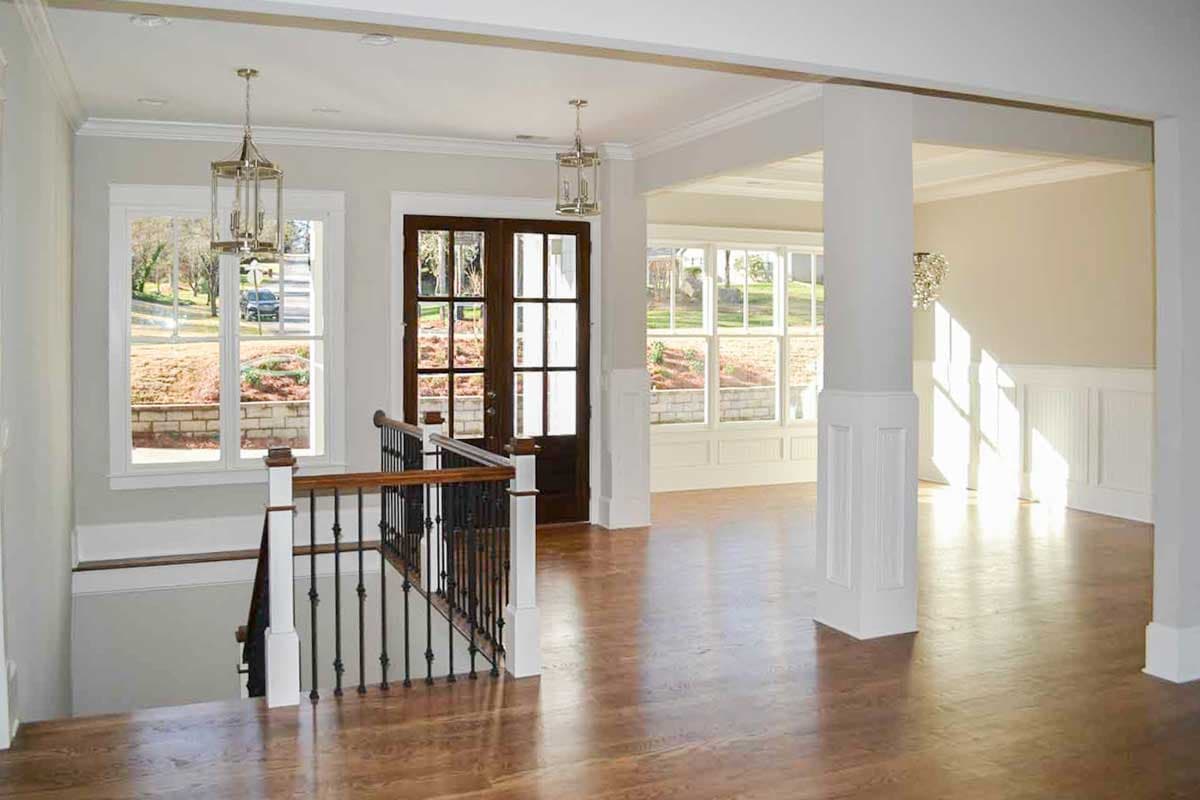

The foyer opens to the vaulted great room with fireplace and views to the back. The dining room is to the left and has a double-tray ceiling.

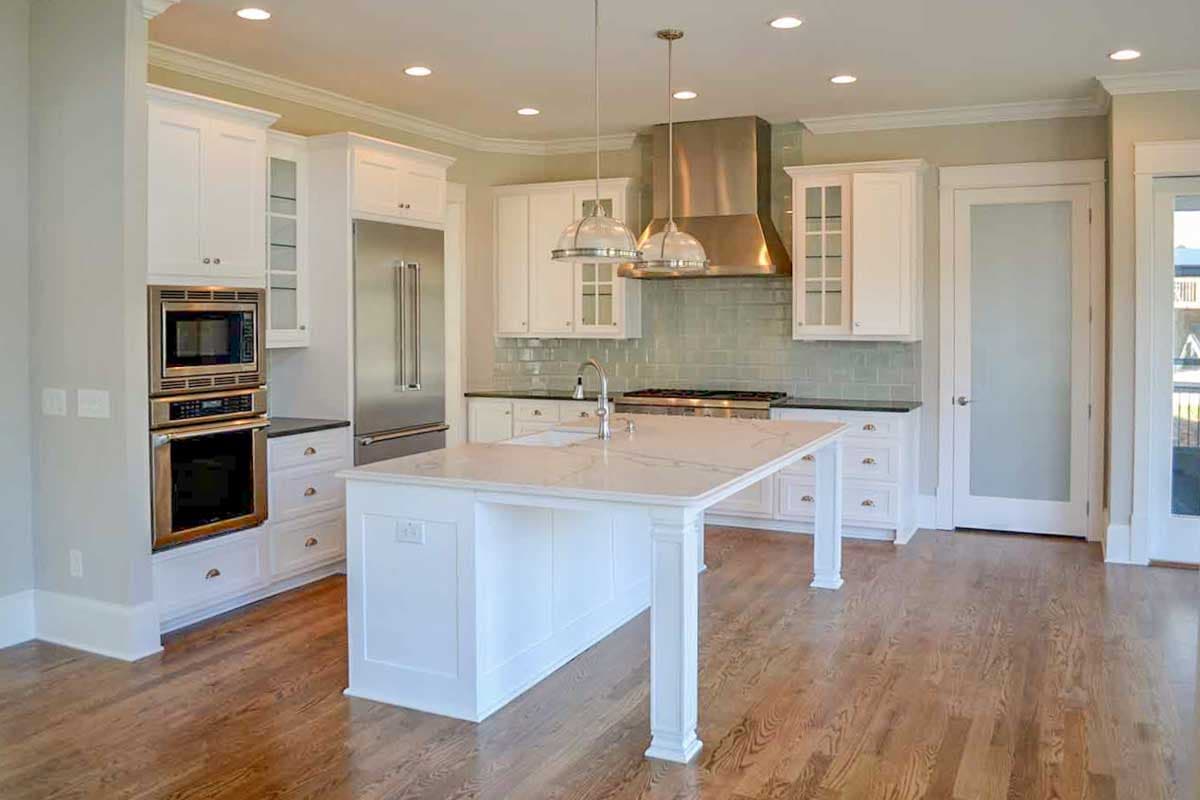

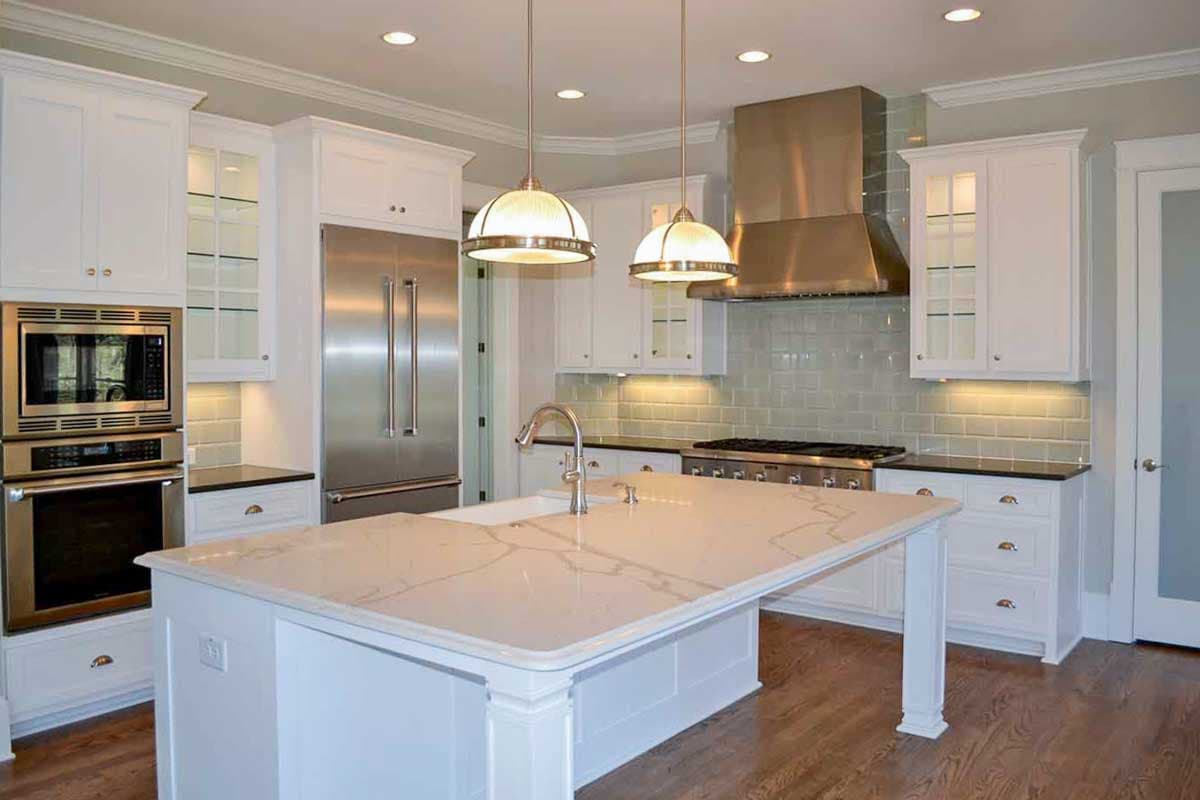

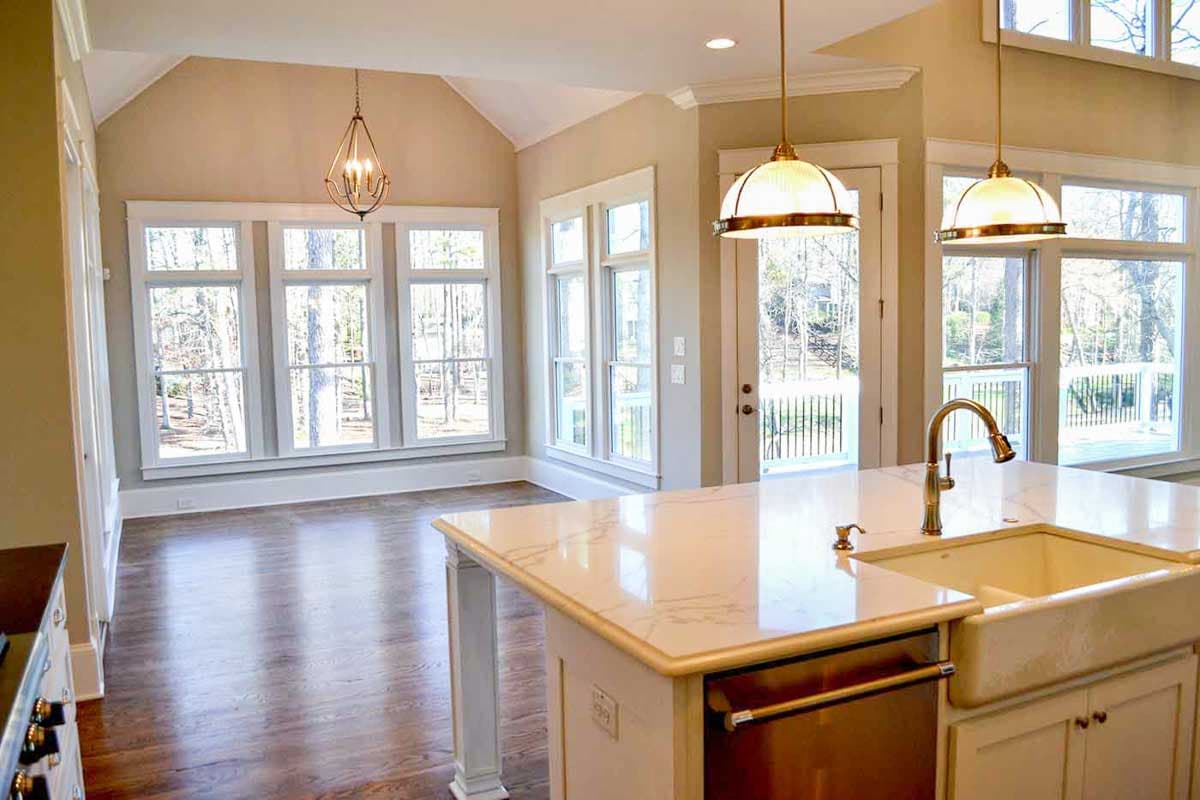

A large island in the kitchen gives you casual seating and workspace. Standing at the sink you have views to the fireplace, and to the deck in back. Located between the vaulted breakfast room and the formal dining room you can serve formal and informal meals with equal ease.
The master bedroom has a bay window accentuating your views to the back and a door with access to the deck. His and her walk-ins and a vaulted master bath complete the suite.

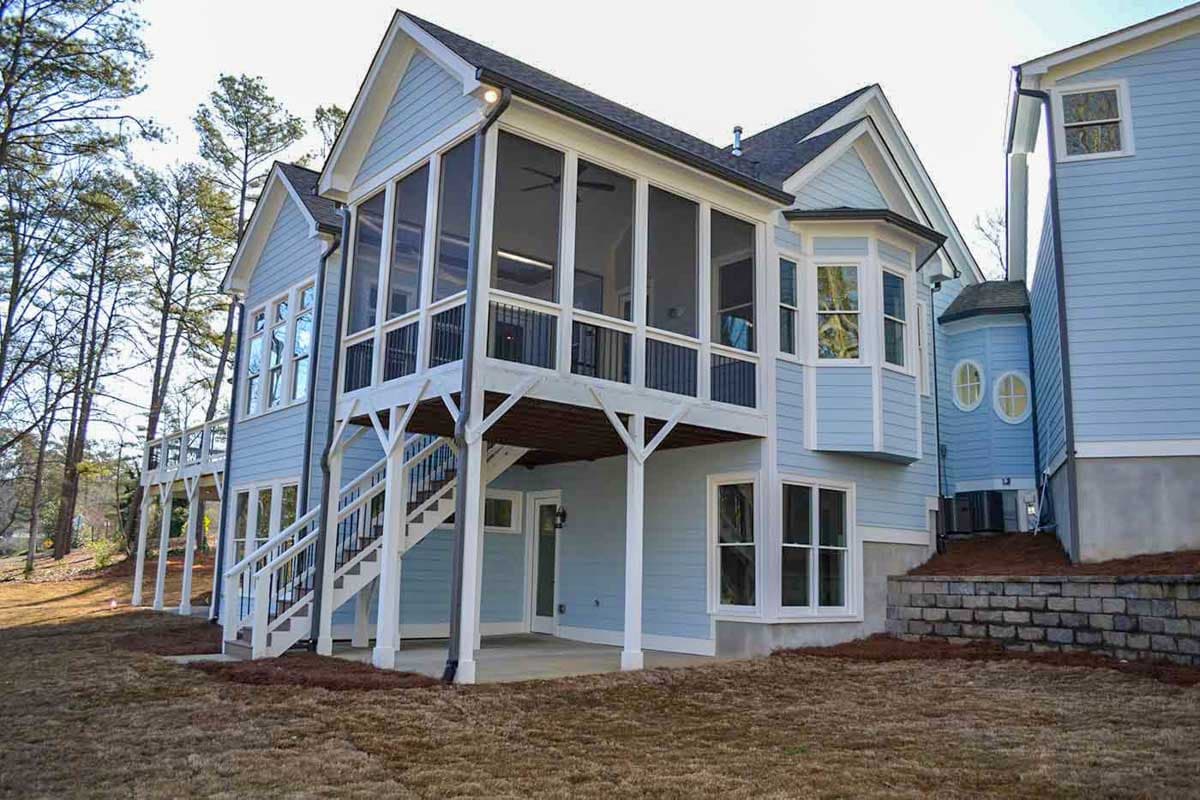

The screened porch in back is accessible fro both the breakfast room and Bed 2, which could also serve as an office with a built-in desk.

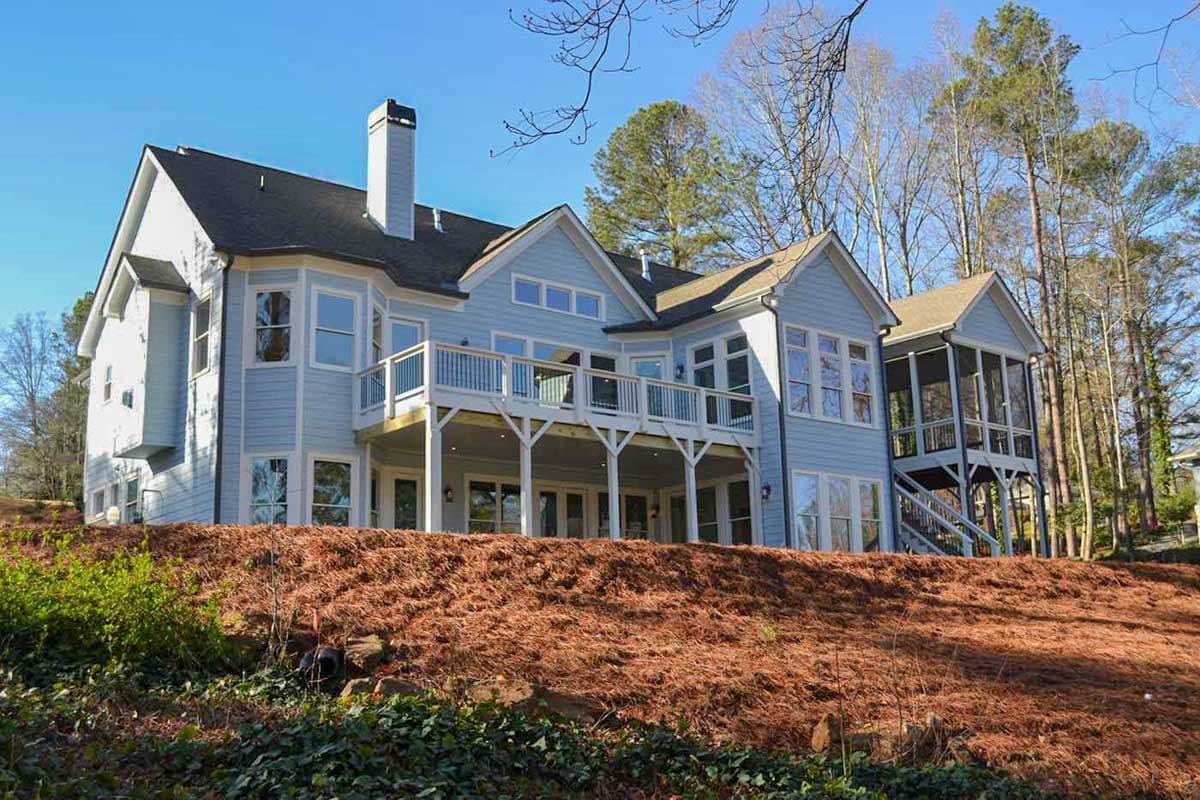

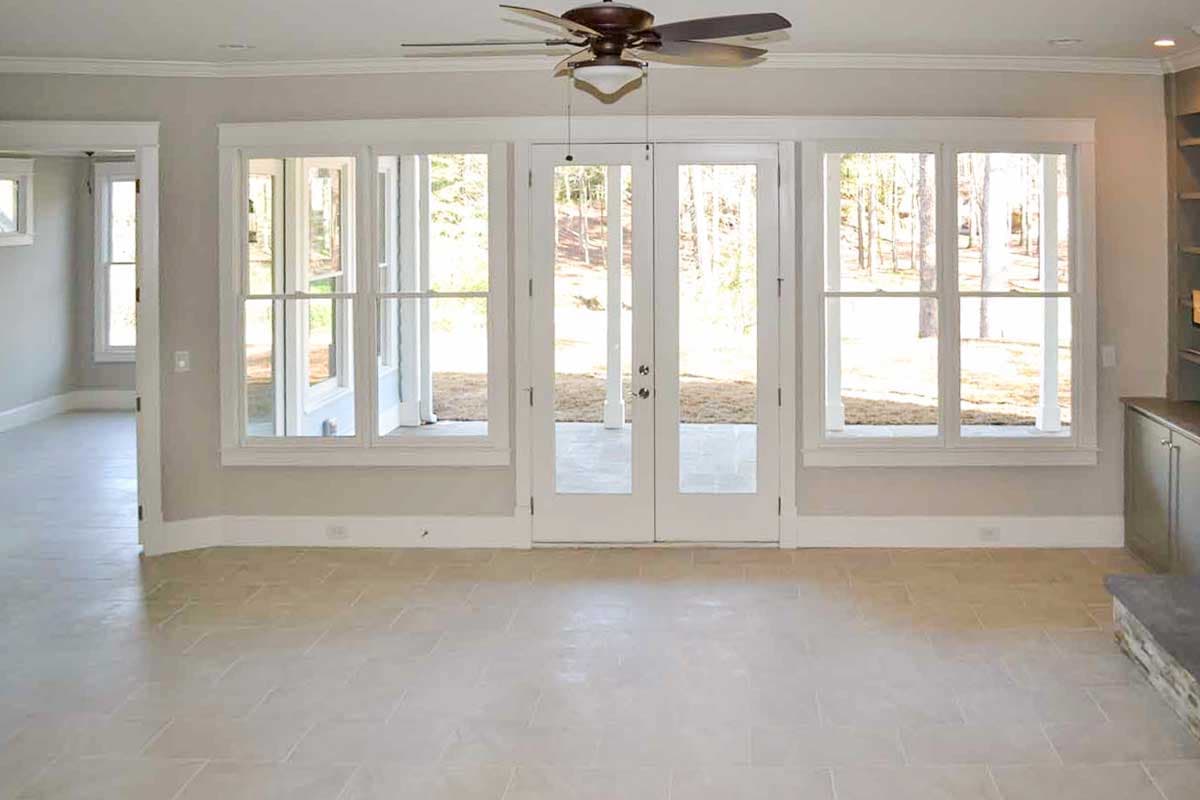

If building on a sloping lot, you'll enjoy the views and outdoor access in the optional finished lower level that comes with the plans.
Related Plan: Get an alternate version with house plan 29800RL.

What's Included

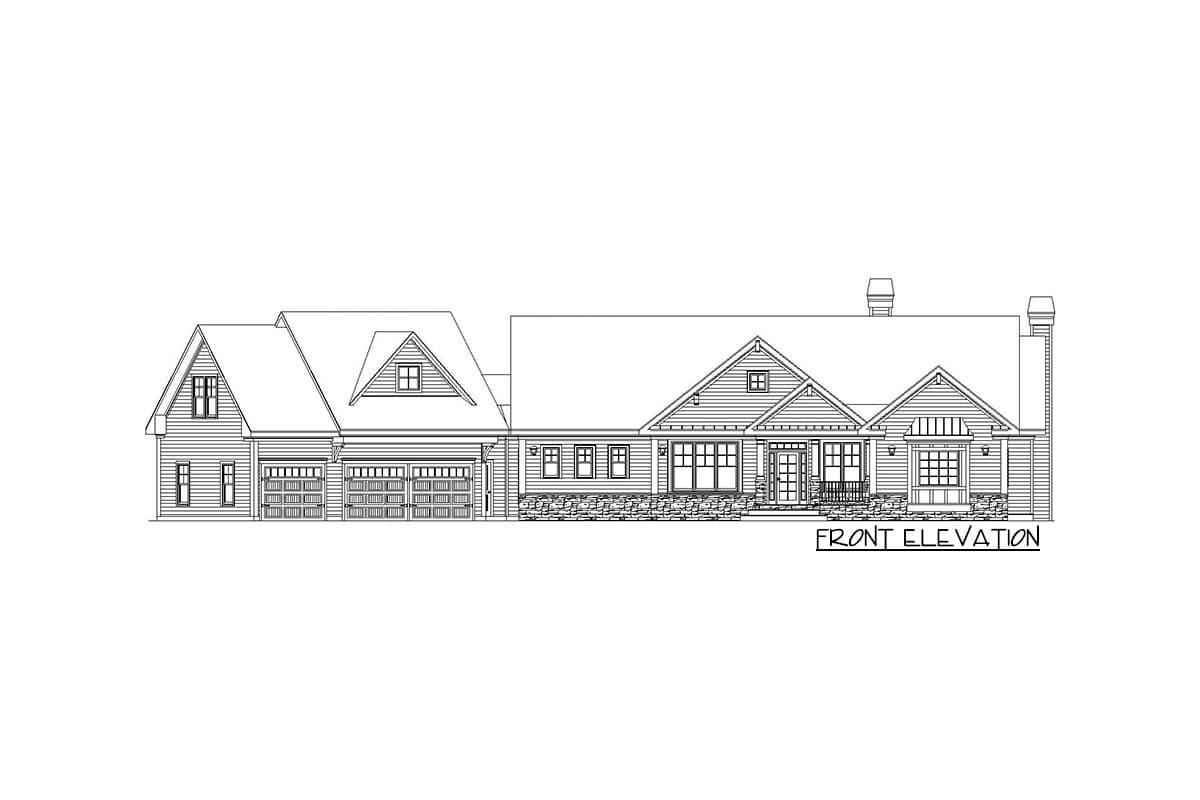

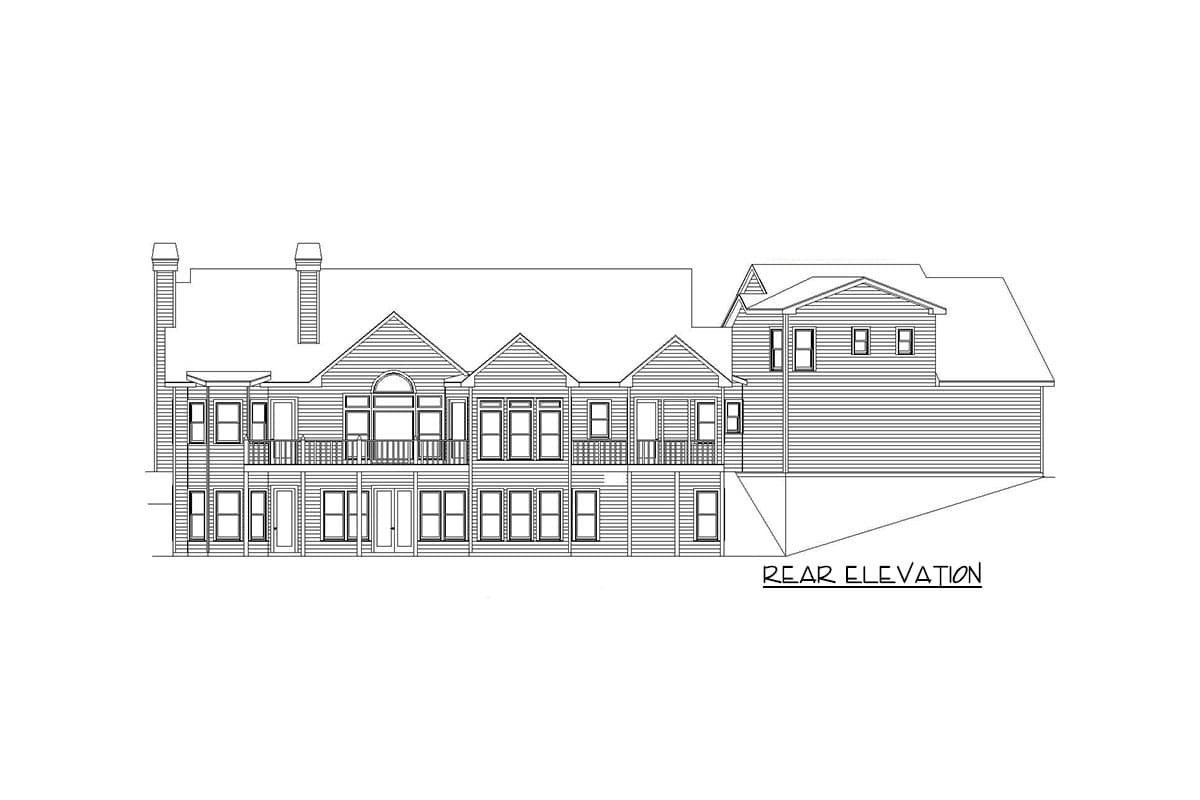

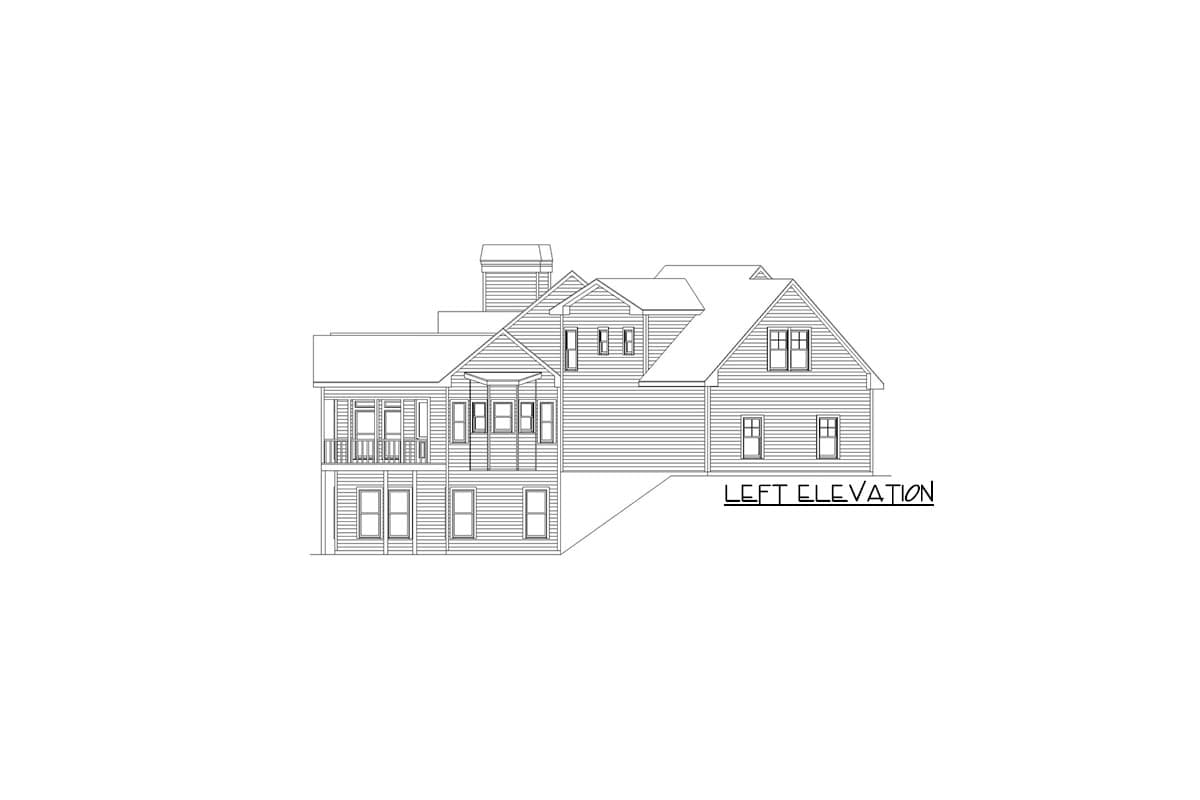

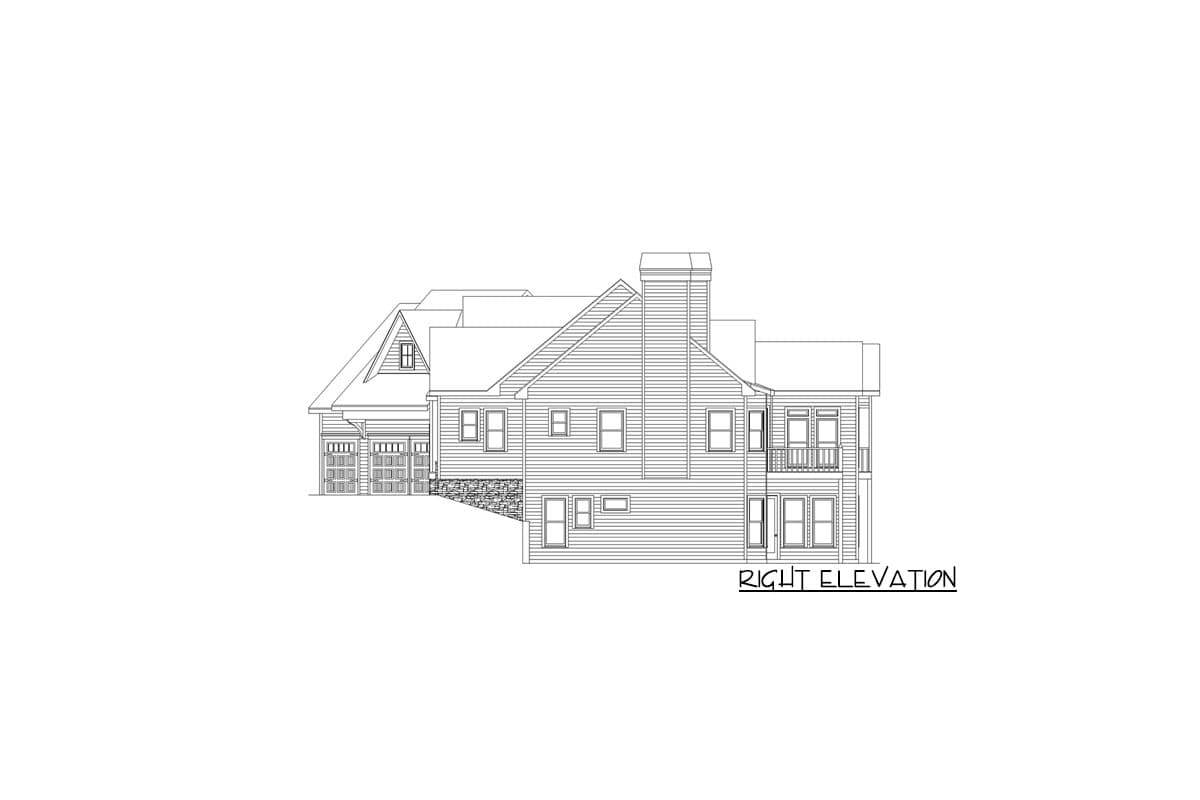

All 4 elevations (front, rear, left, right)
2D Roof overview
3D Roof overview
Main Level Layout
Basement Level Layout
Cross-Section (Typical Wall, Stairs (if applicable))
Typical Details

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,339 sq. ft.

1st Floor

2,339 sq. ft.

Optional Lower Level

2,031 sq. ft.

Bonus

614 sq. ft.

Porch, Front

82 sq. ft.

Screened Porch

165 sq. ft.

Deck

305 sq. ft.

Beds/Baths

Bedrooms

2, 3, 4, or 5

Full bathrooms

2, 3, or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

109' 9"

Depth

66' 3"

Max Ridge Height

24' 3"

Garage

Type

Attached

Area

800 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Bonus Level

10' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Attached Apartments

Lake House Plans
