Plan 2569DH
Country Cutie
Heated S.F.
1,292
Beds
3
Baths
1
Stories
1

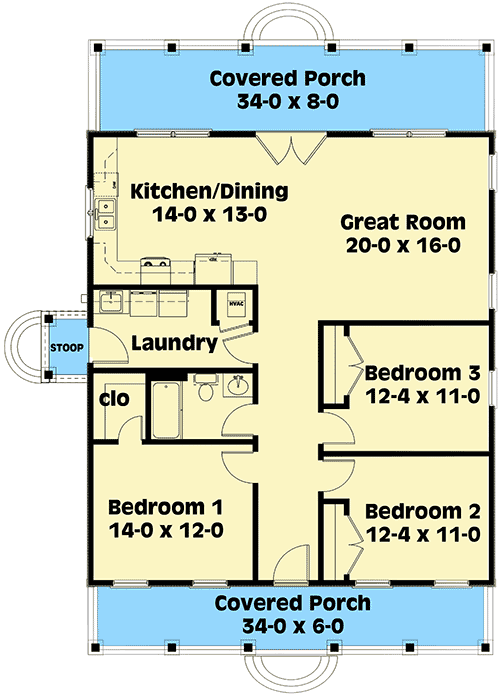

Floor Plan

Plan 2569DH

Main Level
slide image 0

Plan 2569DH

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This cute little house plan features three nicely-sized bedrooms and Bedroom #1 has a walk-in closet. The bathroom is centrally located so that all three bedrooms have easy access to it.
  • This open floor plan consists of a great room made for great views.
  • A country kitchen has lots of cabinets and a cabinet style pantry.
  • The big laundry room has easy access to the outside where there is a stoop to sit and read a book while you do laundry.
  • There are two wonderful covered porches.
  • Related Plans: Get 2 bedrooms with house plan 2568DH.
What's Included
  • Floor plans - Included with your plans will be a detailed floor plan at 1/4" scale with a window and door schedule.
  • Foundation Plan - On many of our plans we offer you options on the type of foundation. The available options for each plan are shown on the page with the plans.
  • Electrical Plan - This sheet will show the locations of all lights, receptacles, switches, etc. as well as a roof layout.
  • Exterior Elevations - Our plans include complete front, sides and rear views, as well as any special exterior details.
  • Interior Elevations of cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections, Details and Typical Specifications Sheets
  • Some plans can be ordered with a materials list for an extra change. Please check availability for this option.
  • Plumbing diagrams and HVAC plans are not available for these homes, since they are generally not needed for home construction and since each county's code will vary and a licensed plumber and/or electrician must follow the codes.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,292 sq. ft.

1st Floor

1,292 sq. ft.

Porch, Front

204 sq. ft.

Porch, Rear

272 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

38' 0"

Depth

52' 0"

Max Ridge Height

25' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,292 sq. ft.

1st Floor

1,292 sq. ft.

Porch, Front

204 sq. ft.

Porch, Rear

272 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

38' 0"

Depth

52' 0"

Max Ridge Height

25' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor
