Plan 51174MM
Country Home Plan with Split Bedrooms and Lots of Options
Heated S.F.
2,108
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 51174MM

Main Level
slide image 0
Bonus
slide image 1

Plan 51174MM

1-800-854-7852

1-262-521-4596

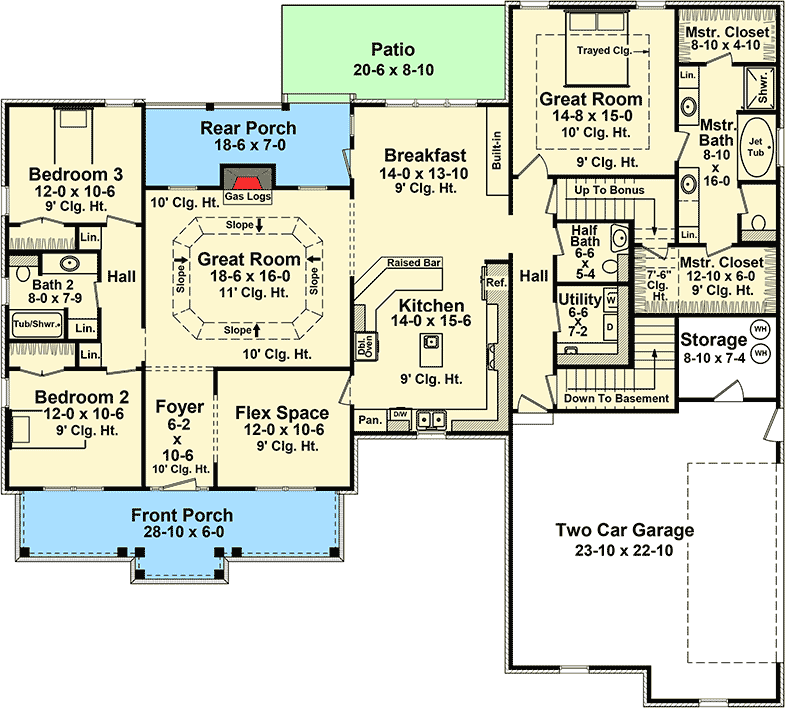

Main Level
floor plan image Main Level

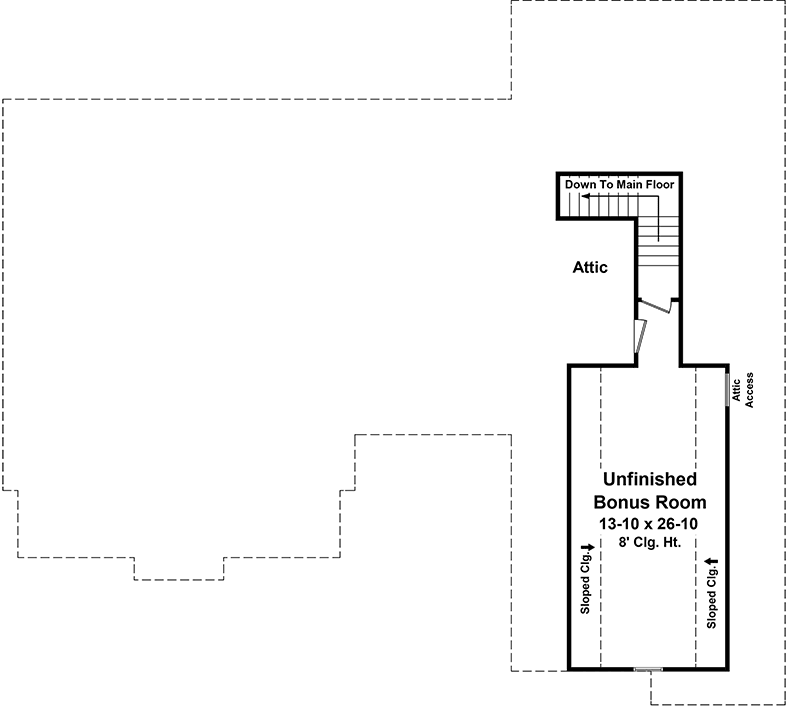

Bonus
floor plan image Bonus
Plan Details
  • Front and rear porches provide perfect outdoor living space. The features and flexibility of this home plan make it the perfect choice for you and your family.
  • The foyer, formal dining room, and half bath are all extras that you would expect to find in a much larger home. The great room features a tray vaulted ceiling, built-in cabinets and a gas log fireplace.
  • The kitchen is well-equipped and is located within close proximity to the breakfast area, flex space - perfect for use asa dining room - and garage entrance.
  • The master suite includes a trayed ceiling, dual lavatories, compartmented toilet, whirlpool tub, separate shower, and his and hers closets. Each of the other bedrooms also feature individual walk-in closets and share a bath with separate tub and toilet room.
  • The bonus room is also a great place for a playroom / gameroom and even has space for a future bath.
  • Related Plan: Get a vaulted ceiling in the great room with house plan 51081MM (1,919 sq. ft.). Get a slab or crawlspace foundation with house plans 51135MM (2,067 sq. ft.) and 51060MM (1,900 sq. ft.).
What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

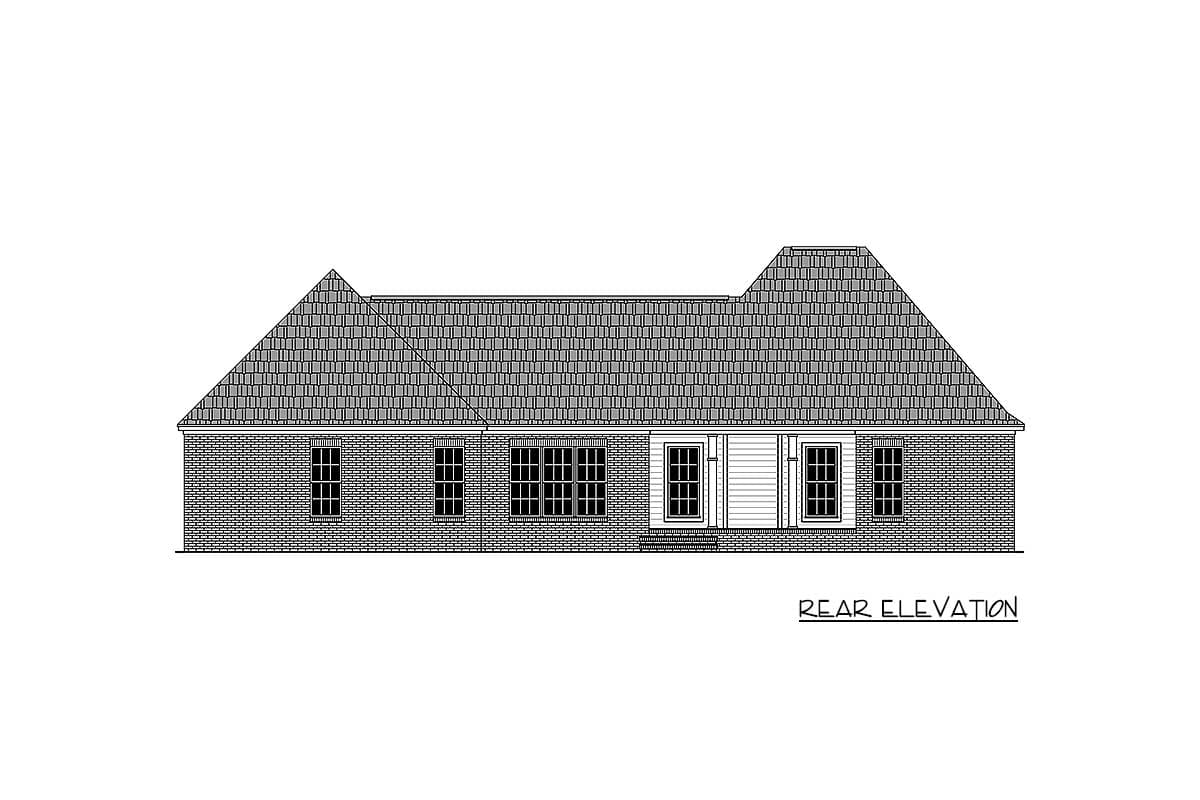

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,108 sq. ft.

1st Floor

2,108 sq. ft.

Bonus

437 sq. ft.

Porch, Front

189 sq. ft.

Porch, Rear

129 sq. ft.

Storage

69 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

70' 0"

Depth

63' 0"

Max Ridge Height

23' 8"

Garage

Type

Attached

Area

619 sq. ft.

Count

2 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

European

Southern

Traditional

Special Features

Bedrooms - Split

Bonus Room

Breakfast Nook

Flex Room

Formal Dining

Master Suite - 1st Floor

Mudroom

Playroom

Plan Collections

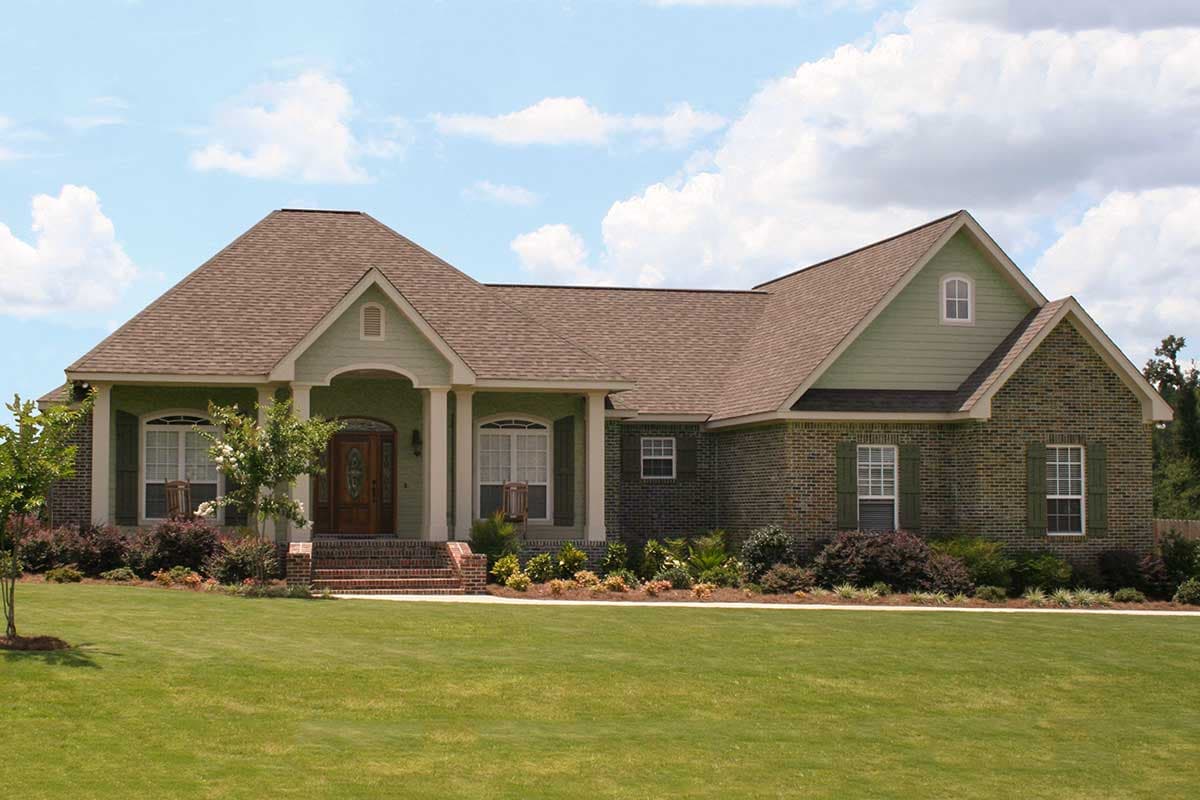

Photo Gallery

USDA Approved
