Plan 710247BTZ
Country Home Plan with Two Fireplaces and a Bonus Room
Heated S.F.
2,870
Beds
3
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 710247BTZ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 710247BTZ

1-800-854-7852

1-262-521-4596

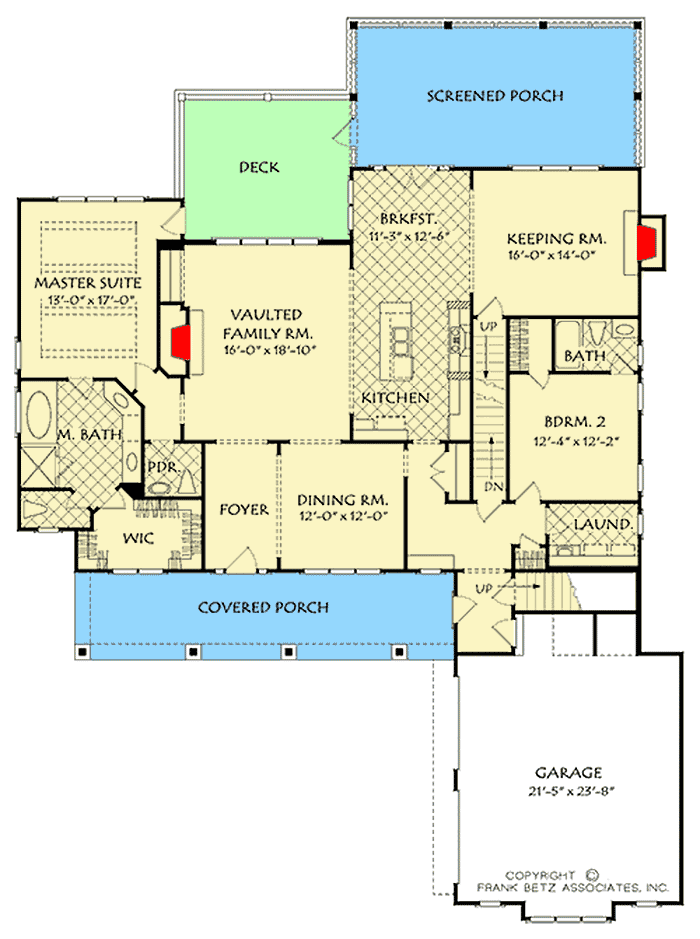

Main Level
floor plan image Main Level

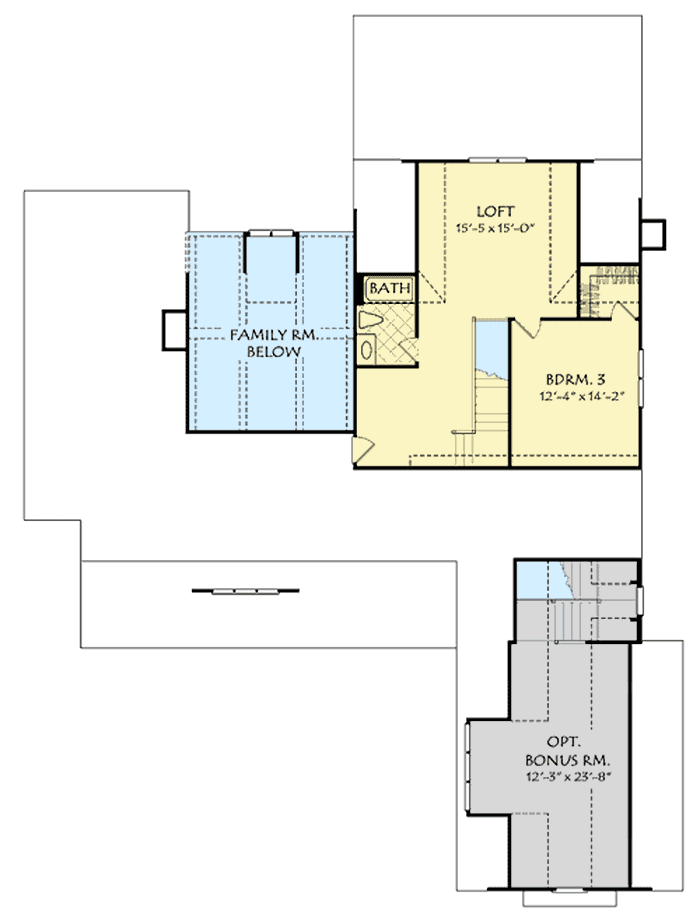

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Take your pick of cozy gathering rooms with fireplaces to relax in: the vaulted family room opens to the kitchen, and the keeping room waits next to the breakfast nook. At the center of everything, the kitchen invites company to hang out at the snack bar.
  • When its time to retire to bed, the sumptuous master suite waits with a roomy bathroom, large walk-in closet, and a decorative ceiling. Another bedroom suite sits on the far right, while a third shares the second level with a large loft.
  • A totally separate optional bonus space above the garage makes a great teen retreat or home office.
  • Related Plan: Get an alternate version with house plan 710117BTZ.
What's Included
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,870 sq. ft.

1st Floor

2,205 sq. ft.

2nd Floor

665 sq. ft.

Basement Unfinished

2,205 sq. ft.

Bonus

430 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

64' 0"

Depth

86' 6"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

591 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Traditional

Special Features

Bedrooms - Split

Bonus Room

Breakfast Nook

Home Office

Keeping Room

Laundry - Main Level

Loft

Master Suite - 1st Floor

Plan Collections

Home Office
