Plan 510028WDY

Exclusive

Country House Plan with Courtyard Garage and Bonus Above
Heated S.F.
2,685
Beds
4 - 5
Baths
3 - 4
Stories
1
Cars
3
Floor Plan

Plan 510028WDY

Main Level
slide image 0
2nd Floor
slide image 1

Plan 510028WDY

1-800-854-7852

1-262-521-4596

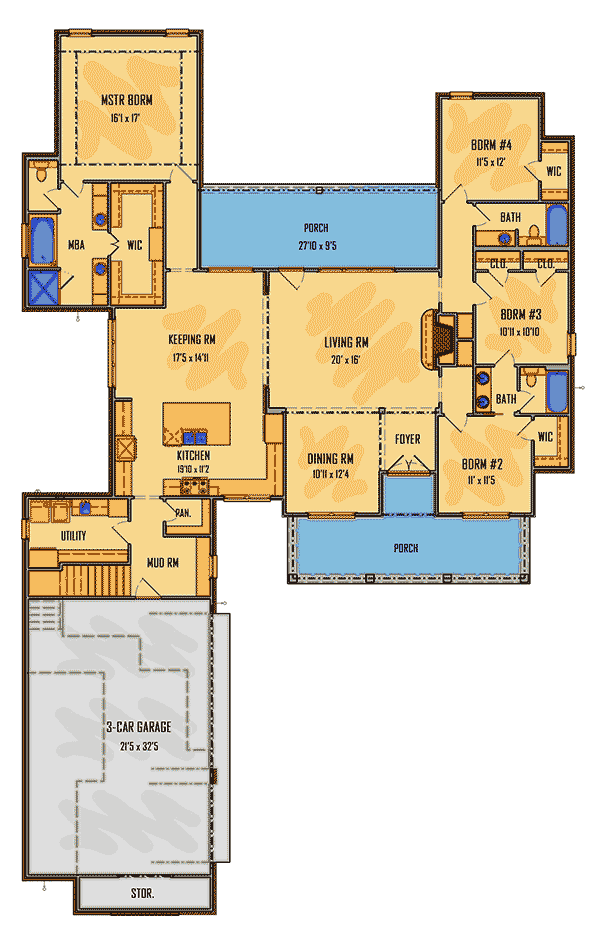

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

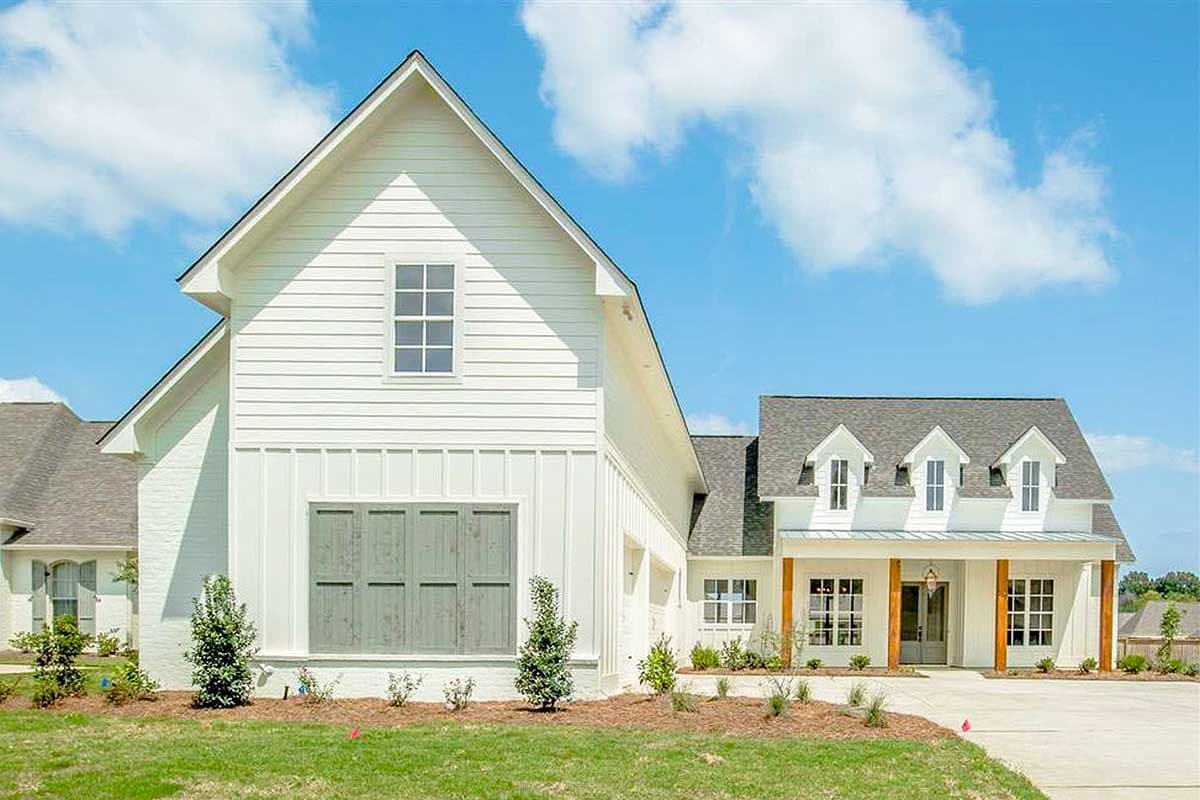

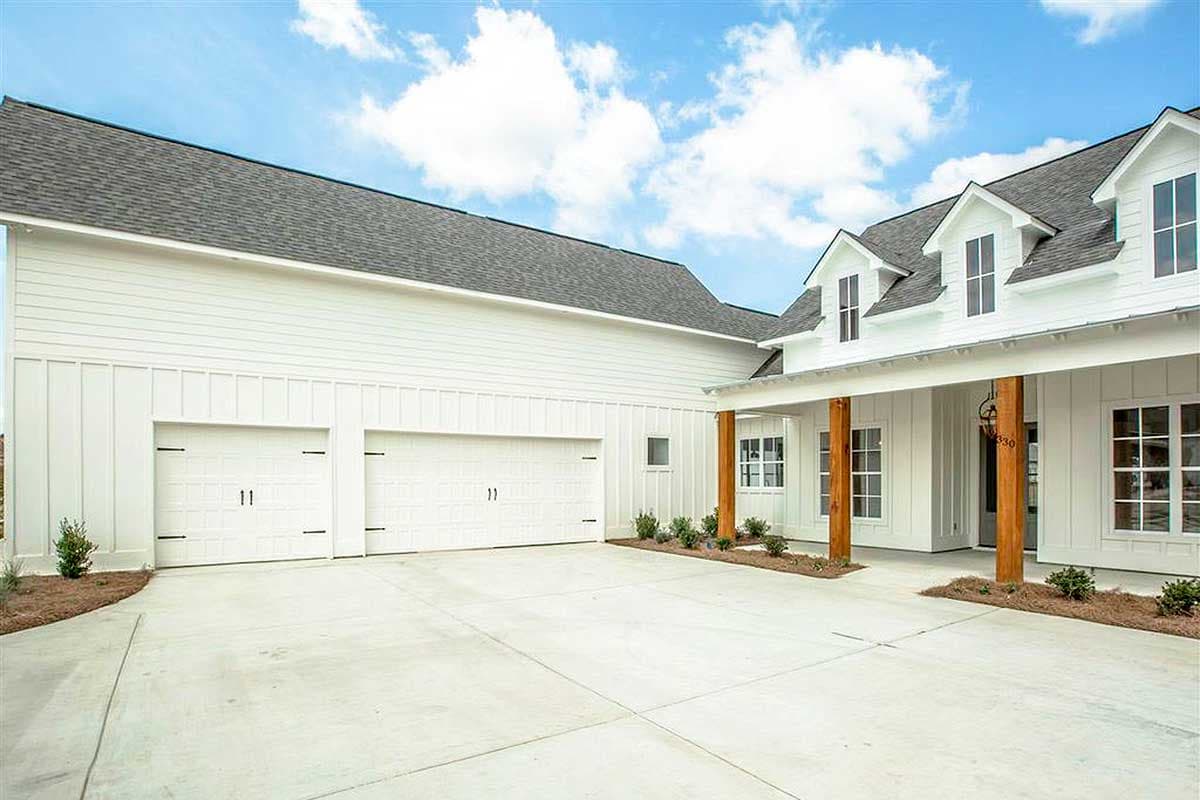

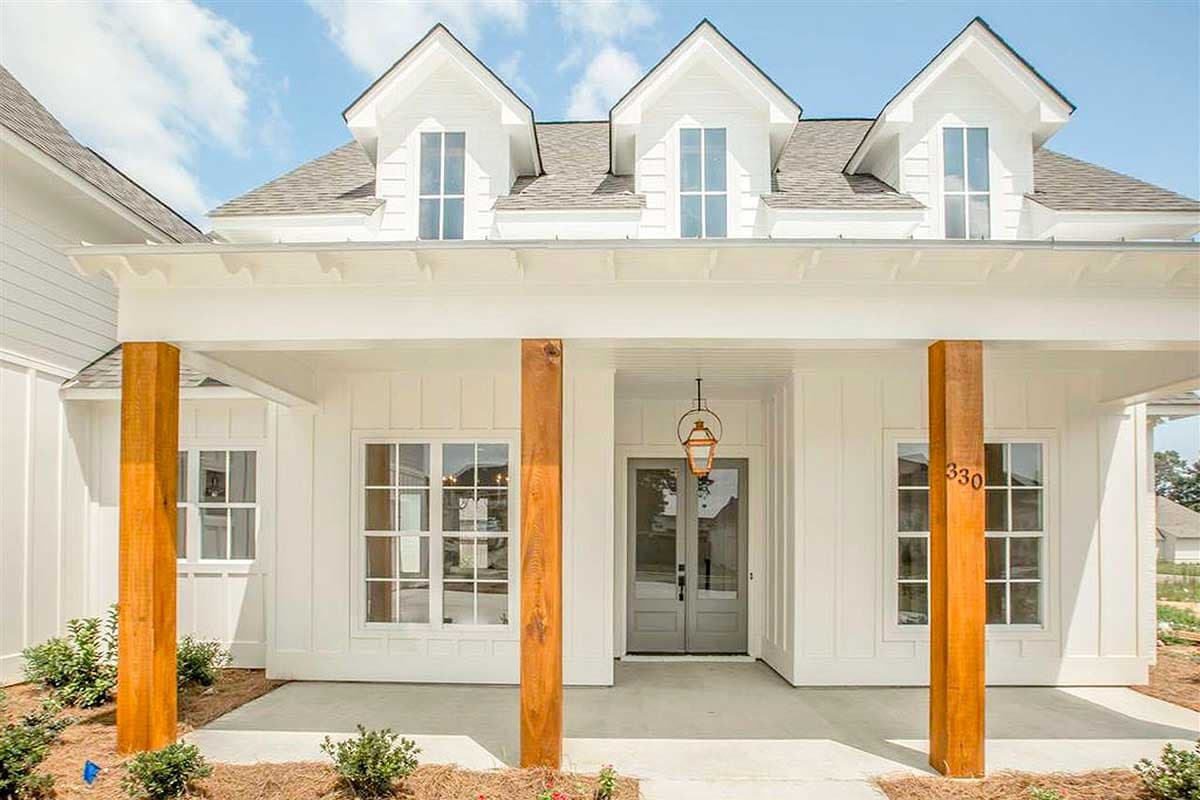

  • Three dormers are centered over the shed roof front porch on this country house plan with a courtyard garage with bonus and bath above.
  • French doors open to the foyer. Inside, an open concept floor plan is great for entertaining friends and family.
  • The kitchen has a large island and has views to the keeping room. A walk-in pantry is steps away from the family entry by the garage making unloading groceries a breeze.
  • The living room is open to both the keeping room and the dining room and has a fireplace. A door leads to the covered porch in back.
  • The bedrooms are in a split layout maximizing your privacy. And there is expansion space above the garage with a full bath giving the possibility of having 5 bedrooms.
  • Related Plans: Get an alternate exterior with house plan 510027WDY.
What's Included
This plan has 9 pages as follows:
  1. Coversheet Color Rendering
  2. First Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing
  3. Second Floor Dimensions & Electrical Plans, Notes, Door and Window Sizes, Beam Sizing, Siding and Trim Detail, Cornice Detail, Stair Detail, Building Section

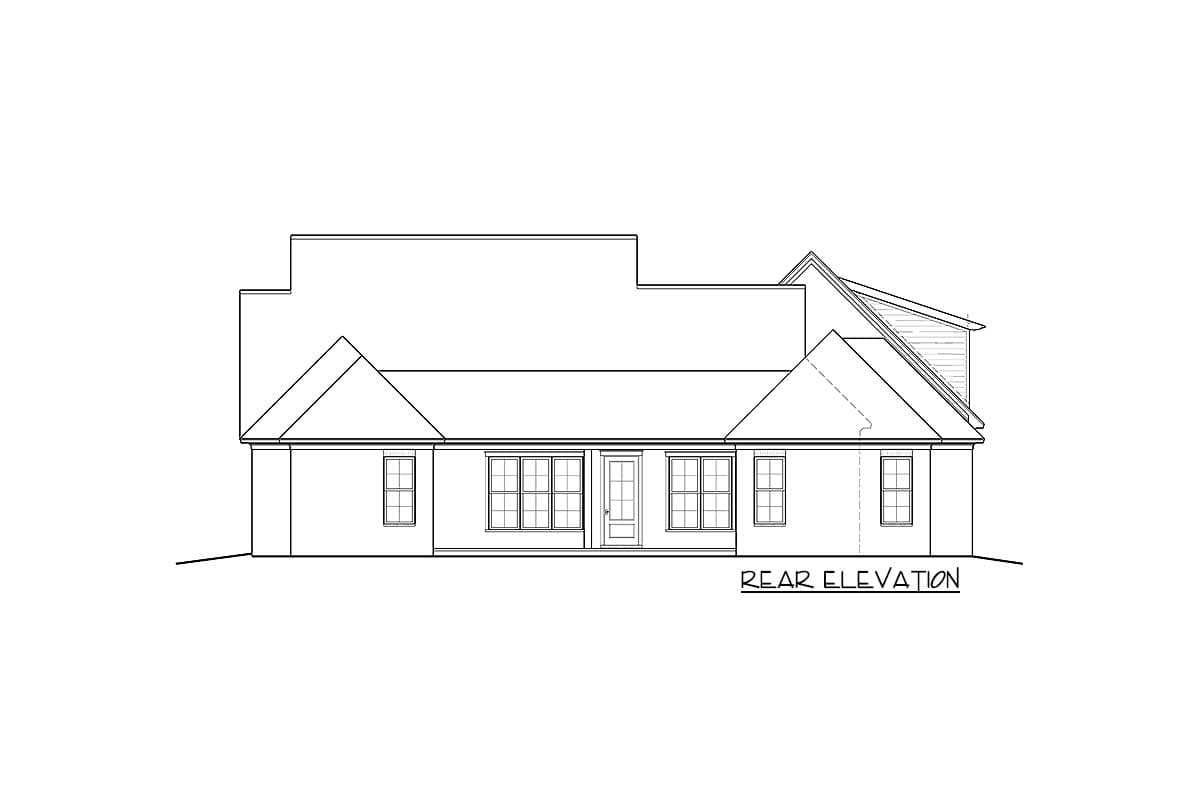

  4. All Four Exterior Elevation, Roof Plan
  5. Building Section, Cornice Detail, Strong Back Detail, Flashing Detail, Rafter Span Schedule
  6. Siding Details, Brick Details, Column Details
  7. First Floor Electrical Plan & Schedules
  8. Slab Foundation
  9. Footing Details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,685 sq. ft.

1st Floor

2,685 sq. ft.

Bonus

441 sq. ft.

Porch, Front

253 sq. ft.

Porch, Rear

281 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 11"

Depth

104' 1"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

784 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 10

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

New American

Traditional

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Formal Dining

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,685 sq. ft.

1st Floor

2,685 sq. ft.

Bonus

441 sq. ft.

Porch, Front

253 sq. ft.

Porch, Rear

281 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 11"

Depth

104' 1"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

784 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 10

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

New American

Traditional

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Formal Dining

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Photo Gallery
