Plan 35044GH

Country Ranch House Plan with 2,484 Sq Ft and Home Office

Name: Plan 35044GH: Country Ranch House Plan with 2,484 Sq Ft and Home Office
Brand: Architectural Designs
SKU: 35044GH
Price: 1029.56 USD
Availability: InStock

Heated S.F.

2,484

Beds

Baths

Stories

Floor Plan

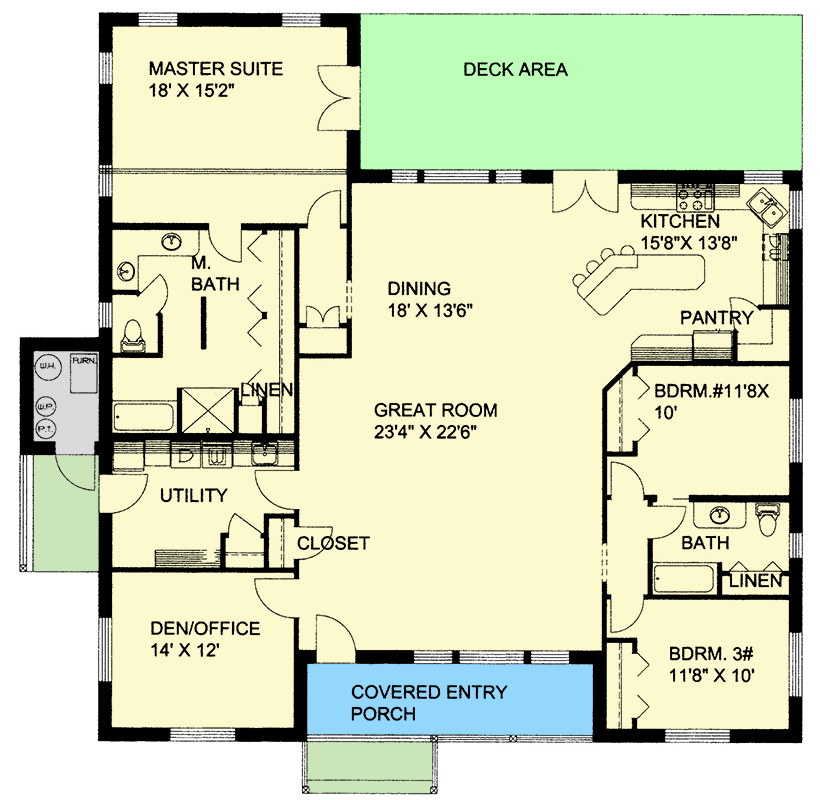

Main Level

Plan Details

This expansive 2,484 sq ft Country Ranch House Plan features 3 bedrooms and 2 full baths, distinguished by its welcoming single-story design.
Step onto the charming 158 sq ft covered front porch, offering a warm entry into a thoughtfully arranged layout designed for comfortable living.
The interior layout efficiently incorporates a versatile den and a dedicated home office, providing flexible spaces for productivity or quiet relaxation.
Enjoy privacy in the first-floor master suite, strategically positioned on a split-bedroom plan for an undisturbed personal retreat.
The generous covered front porch extends the living space outdoors, perfect for enjoying peaceful mornings or evening breezes.

What's Included

Exterior Elevations: The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
Floor Plans: The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
Details: This page includes the structural details for the construction of the house.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
