Plan 57203HA

Covered Porch adds To Perfect Outdoor Getaway

Heated S.F.

733

Beds

2

Baths

1

Stories

1

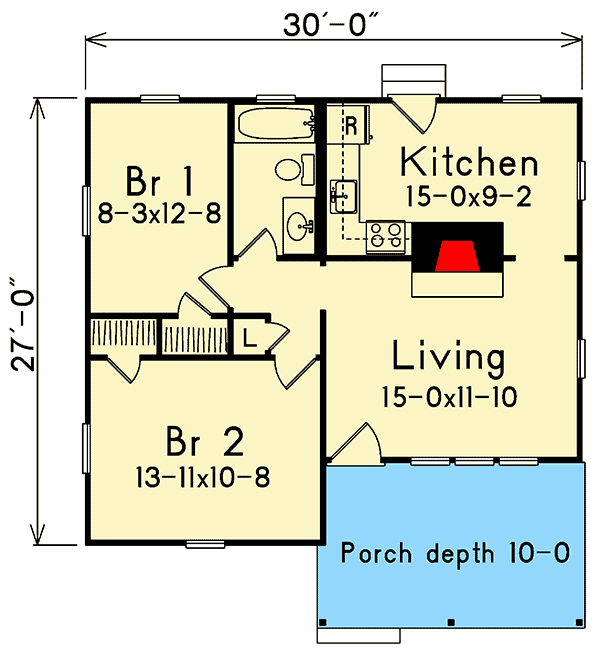

Floor Plan

Main Level

floor plan image Main Level

Plan Details

Bedrooms are separate from kitchen and living area for privacy.
Lots of closet space throughout this home.
Centrally located bath is easily accessible.
Kitchen features door to rear of home and a door separating it from the rest of the home.

What's Included

Front Cover Sheet
Detailed Floor Plans
Foundation Plan
Roof Plan
Exterior Elevations
Interior Elevations
Cross Section
Mechanical – Shows location of furnace
Electrical – Shows location of outlets, switches and fixtures
Plumbing – Shows location of fixtures

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

733 sq. ft.

1st Floor

733 sq. ft.

Porch, Front

150 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Pier

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

30' 0"

Depth

27' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Tiny Home House Plans

Square Footage Breakdown

Total Heated Area

733 sq. ft.

1st Floor

733 sq. ft.

Porch, Front

150 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Pier

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

30' 0"

Depth

27' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Tiny Home House Plans
