Plan 16862WG
Cozy 3 Bed Cottage With Bonus
Heated S.F.
2,267
Beds
3
Baths
3
Stories
1-2
Cars
2- 3
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 16862WG Comes to Life in Tennessee!

House Plan 16862WG Comes to Life in Tennessee!

26

Photos

build gallery item - House Plan 16862WG Comes to Life in Iowa!

House Plan 16862WG Comes to Life in Iowa!

15

Photos

build gallery item - House Plan 16862WG comes to life in Alabama

House Plan 16862WG comes to life in Alabama

26

Photos

build gallery item - House Plan 16862WG Comes to Life in Texas

House Plan 16862WG Comes to Life in Texas

53

Photos

build gallery item - House Plan 16862WG Comes to Life in Arkansas

House Plan 16862WG Comes to Life in Arkansas

54

Photos

build gallery item - House Plan 16862WG comes to life in Alabama

House Plan 16862WG comes to life in Alabama

40

Photos

Photos
Floor Plan

Plan 16862WG

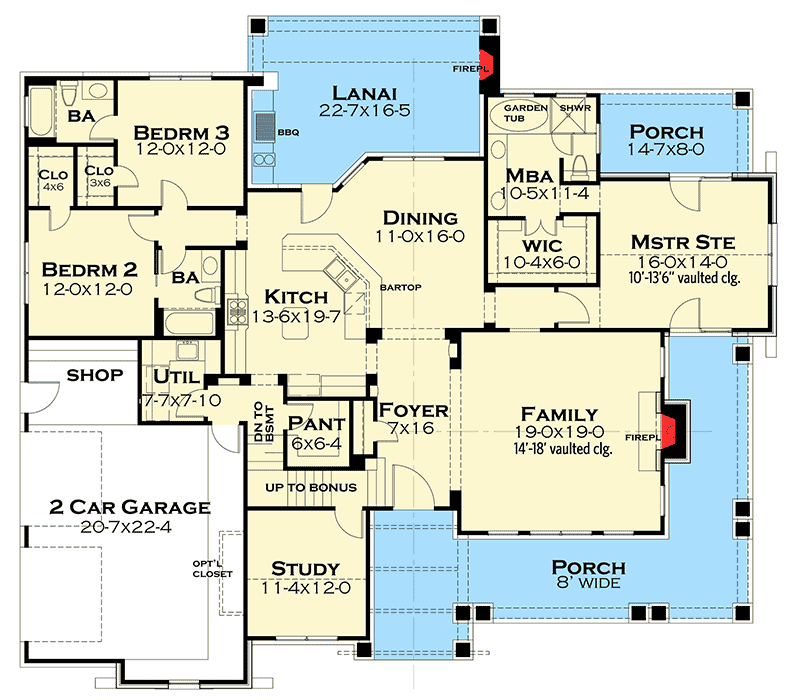

Main Level
slide image 0

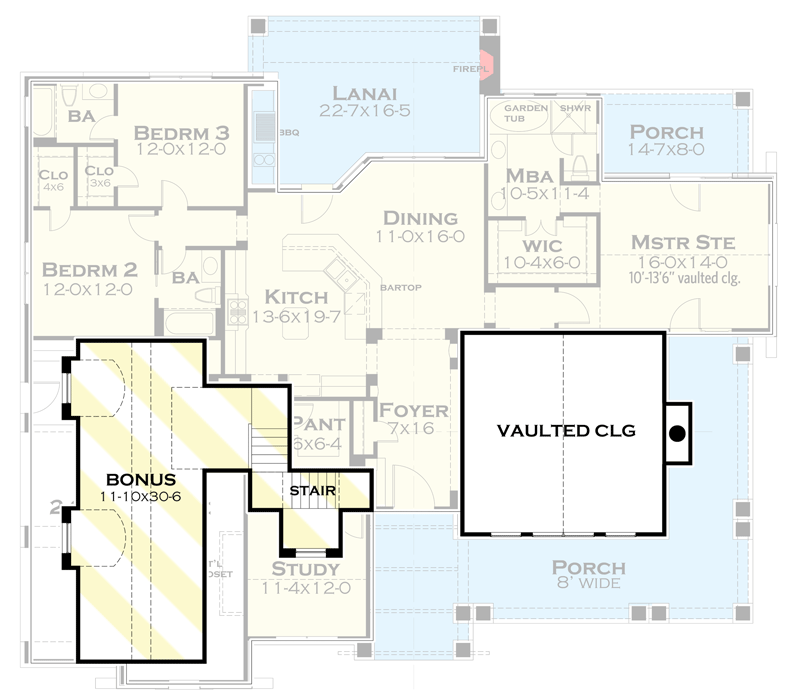

Bonus
slide image 1
3rd Floor
slide image 2

Plan 16862WG

1-800-854-7852

1-262-521-4596

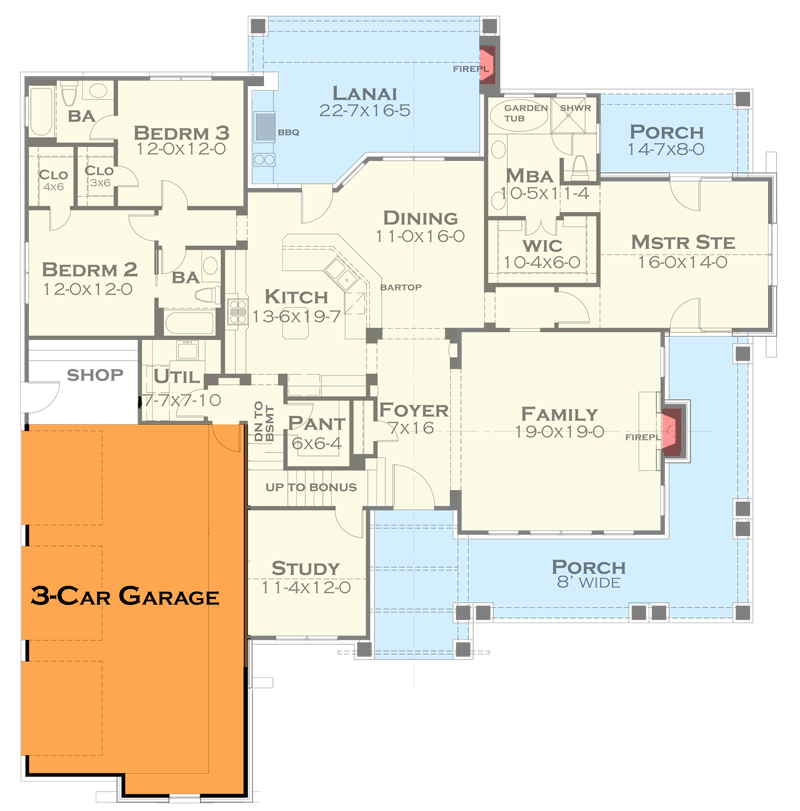

Main Level
floor plan image Main Level
Bonus
floor plan image Bonus
3rd Floor
floor plan image 3rd Floor
Plan Details
  • This 3 bedroom cottage house plan has a great mixed material exterior and a winning combination of indoor and outdoor spaces.
  • The covered front porch wraps around the right side where it is accessible by the vaulted master bedroom. That bedroom also has direct access to its own private back porch.
  • In the foyer, you'll enjoy views through the home to the dining room and lanai beyond. It opens to the family room where a fireplace draws your attention.
  • The kitchen is strategically located and has close access to the garage entry for simple grocery unloading, a large walk-in pantry and a bartop for casual eating. The dining room is in direct view and the lanai is close as well. There, you'll enjoy the fireplace and the outdoor kitchen.
  • Two bedrooms are located on the left, giving the master suite great privacy. Each of those bedrooms has its own bath.
  • A vaulted study gets natural light from two windows. A closet option gives this space great flexibility.
  • The garage is side load, and has a shop with its own entrance.
  • Expand upstairs in the large bonus room and downstairs as well if you choose the basement option.
What's Included

This house plan has 10 sheets as follows:

  1. Main Floor
  2. Second Floor Bonus Room
  3. Right/ Front Elevations
  4. Left/ Rear Elevations
  5. Building Sections
  6. Cabinet Elevations
  7. Roof Framing
  8. Foundation Plan
  9. First Floor Electrical Plan
  10. Second Floor Bonus Room Electrical Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,267 sq. ft.

1st Floor

2,267 sq. ft.

Bonus

439 sq. ft.

Porch, Front

530 sq. ft.

Porch, Rear

123 sq. ft.

Lanai

345 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

72' 1"

Depth

64' 1"

Max Ridge Height

30' 6"

Garage

Type

Attached

Area

586 sq. ft.

Count

2 or 3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

8'

Room

Ceiling Type

Height

Family Room

Cathedral

0' 0''

Study

Vaulted

0' 0''

Master Bedroom

Vaulted

0' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Mountain

New American

Northwest

Rustic

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Two Story Great Room

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,267 sq. ft.

1st Floor

2,267 sq. ft.

Bonus

439 sq. ft.

Porch, Front

530 sq. ft.

Porch, Rear

123 sq. ft.

Lanai

345 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

72' 1"

Depth

64' 1"

Max Ridge Height

30' 6"

Garage

Type

Attached

Area

586 sq. ft.

Count

2 or 3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

8'

Room

Ceiling Type

Height

Family Room

Cathedral

0' 0''

Study

Vaulted

0' 0''

Master Bedroom

Vaulted

0' 0''

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Mountain

New American

Northwest

Rustic

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Outdoor Fireplace

Outdoor Kitchen

Two Story Great Room

Plan Collections

Photo Gallery
