Plan 50168PH
Cozy Beach House Plan with Optional Carport
Heated S.F.
1,664
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 50168PH

Main Level
slide image 0

Plan 50168PH

1-800-854-7852

1-262-521-4596

Main Level

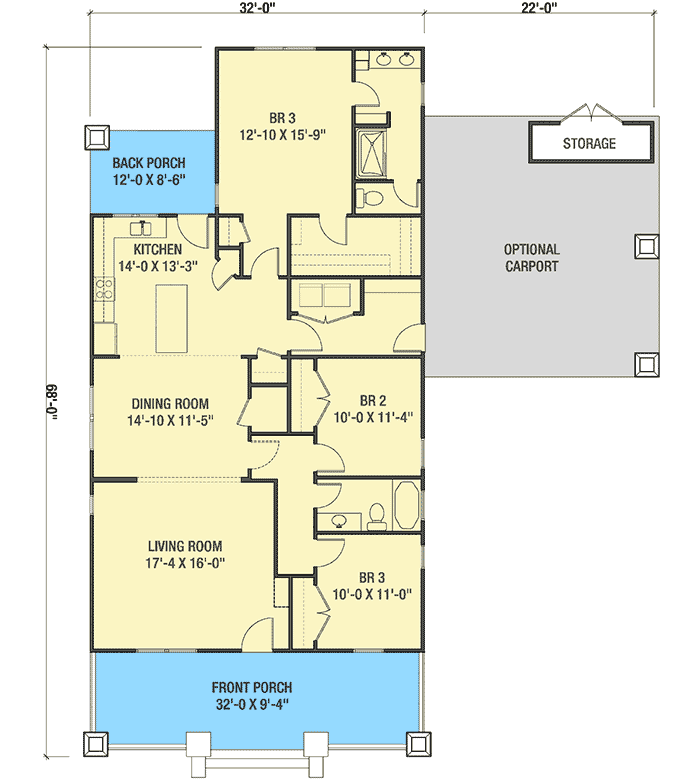

floor plan image Main Level
Plan Details

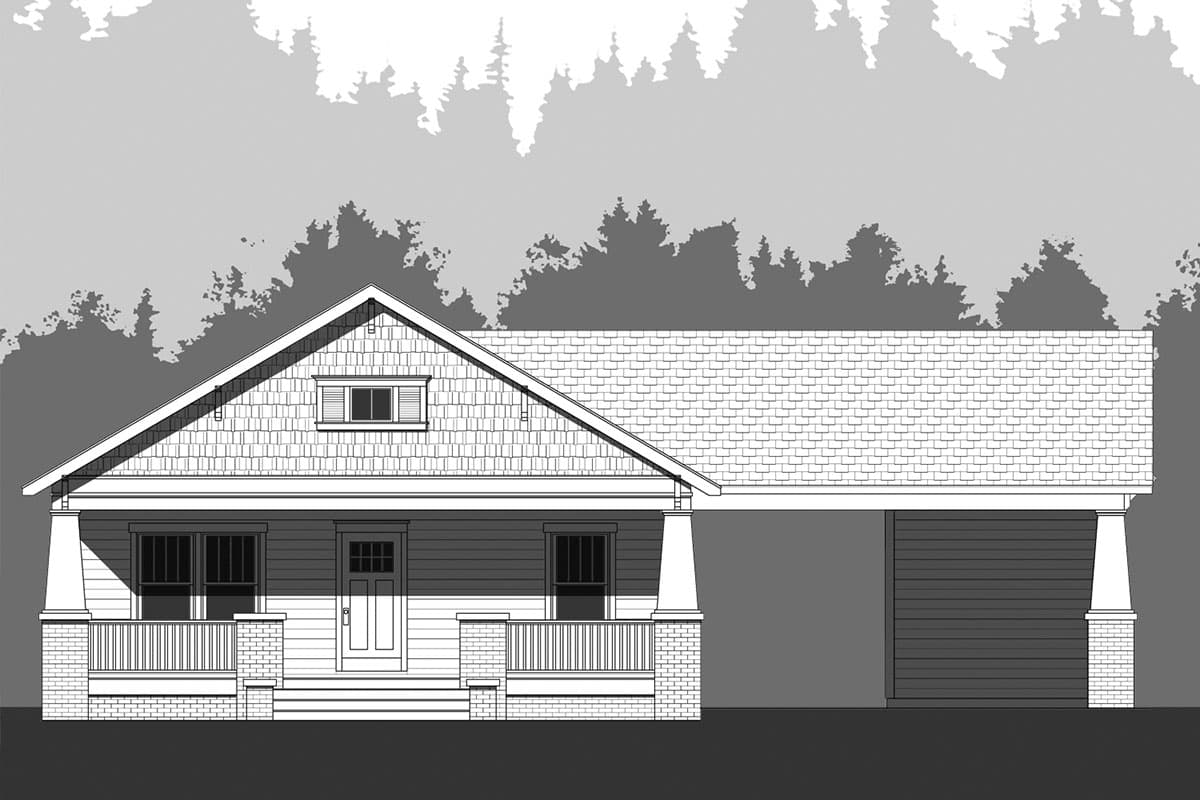

  • Shake shingles lie beneath a gable roof with brackets supporting the deep overhang, while tapered columns add a craftsman touch to the welcoming front porch on this cozy, 3-bedroom beach house.
  • A living room greets you upon entering, and provides clean sight lines through to the dining room, and beyond to the kitchen.
  • A kitchen island anchors the space and a back porch offers room for a grilling station.
  • Retreat to your master bedroom located towards the back of the home, which includes a walk-in closet and bathroom, with double sinks and a private toilet room.
  • Two additional, nearly identical bedrooms are separated by a full bath.
  • An optional carport attaches to the right side of the home and includes a storage room.
What's Included
  • Foundation Plan: Includes detailed information about the foundation layout including concrete walls, footings, pads, posts, beams, bearing walls, and foundation notes. If the home features a basement, the first-floor framing details may also be included on this plan. If your plan features slab construction rather than a basement, the plan shows footings and details for a monolithic slab. This page, or another in the set, may include a sample plot plan for locating your house on a building site. Additional sheets focus on foundation cross-sections and other details. In some instances a designer may only provide what is commonly referred to as a foundation schematic or plumbing plan. These types of drawings only show the footprint of the foundation and do not include foundation construction details.
  • Floor Plans: Show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and include locations of doors and windows. Plans will also include and markers indicating cross-section details provided elsewhere in the plans if applicable.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and / or the relationship of one level to another. These sections show how the various parts of the house fit together and are valuable during construction.
  • Electrical Plans: The electrical plan offers suggested locations with notes for all lighting, outlets, switches, and some other electrical appliances. A layout is provided for each level, as well as basements, garages, or other structures. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. These details should be designed by your electrician.
  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Construction Details: Most drawings sets include typical construction details. These details may include the foundation, interior walls, exterior walls, floors, stairways, and / or roof details. NOTE: A majority of our plans include construction details but some do not.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing Plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,664 sq. ft.

1st Floor

1,664 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

32' 0"

Depth

68' 0"

Max Ridge Height

19' 8"

Garage

Type

Carport

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Architectural Style

Bungalow

Cottage

Craftsman

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
