Plan 17804LV
Cozy Cottage
Heated S.F.
1,379
Beds
2
Baths
2.5+
Stories
2
Cars
1
Floor Plan

Plan 17804LV

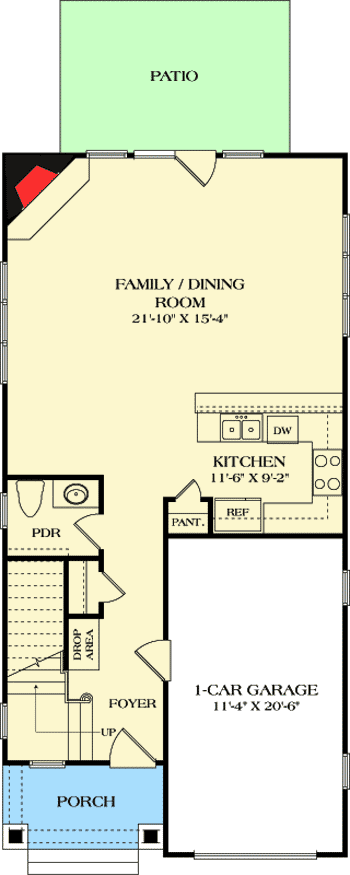

Main Level
slide image 0

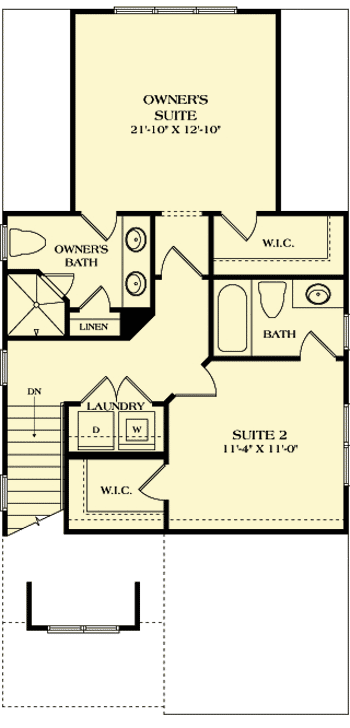

2nd Floor
slide image 1

Plan 17804LV

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • A charming copper roof tops the front porch and dormer of this cozy Cottage house plan.
  • The entire main living area is all in back with a marvelous open concept layout that makes the home feel bigger.
  • The corner fireplace can be seen from every room and a rear patio is perfect for grilling or relaxing.
  • Both bedrooms are upstairs and they share the handy laundry room.
  • Related Plan: Need something larger with a first floor master suite? See house plan 17807LV (1,601 sq. ft.).
What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,379 sq. ft.

1st Floor

726 sq. ft.

2nd Floor

653 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

22' 6"

Depth

46' 0"

Garage

Type

Attached

Area

246 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Architectural Style

Cottage

Craftsman

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Square Footage Breakdown

Total Heated Area

1,379 sq. ft.

1st Floor

726 sq. ft.

2nd Floor

653 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

22' 6"

Depth

46' 0"

Garage

Type

Attached

Area

246 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Architectural Style

Cottage

Craftsman

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor
