Plan 52229WM
Cozy Cottage Home Plan - 1163 Sq Ft
Heated S.F.
1,163
Beds
3
Baths
2
Stories
1
Cars
2

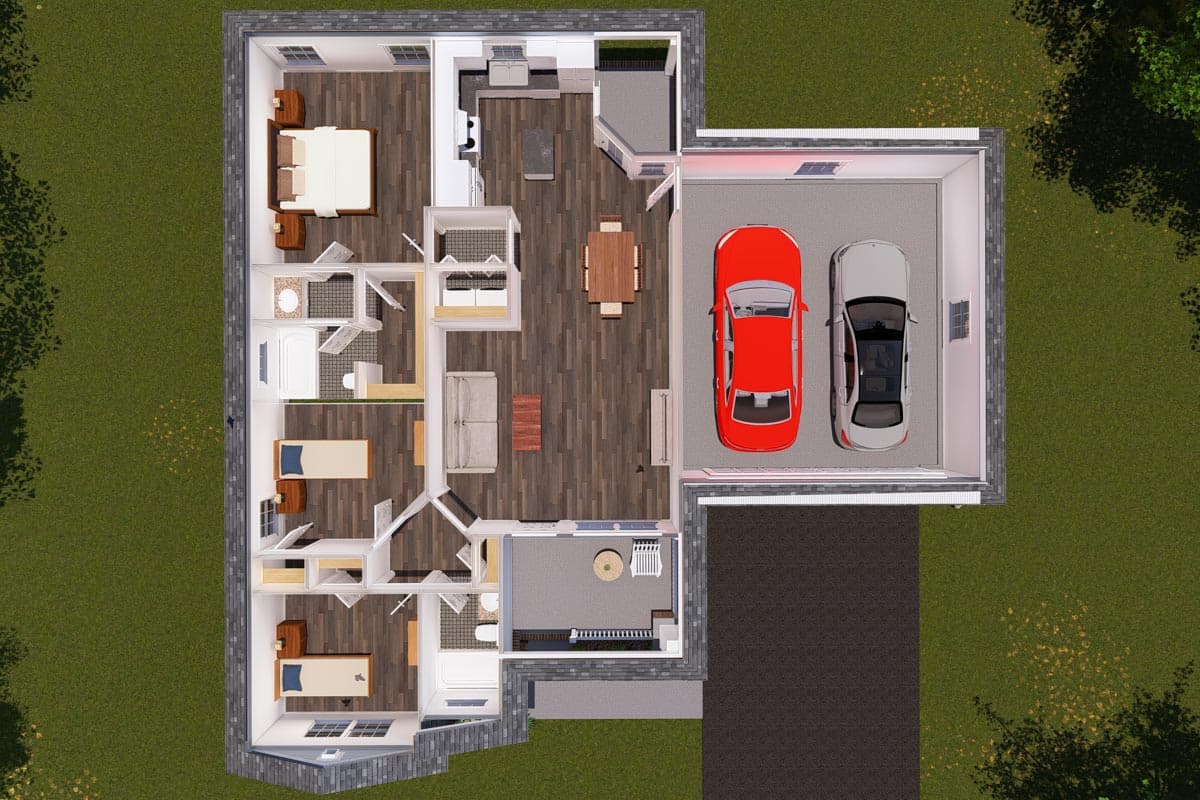

Floor Plan

Plan 52229WM

Main Level
slide image 0

Plan 52229WM

1-800-854-7852

1-262-521-4596

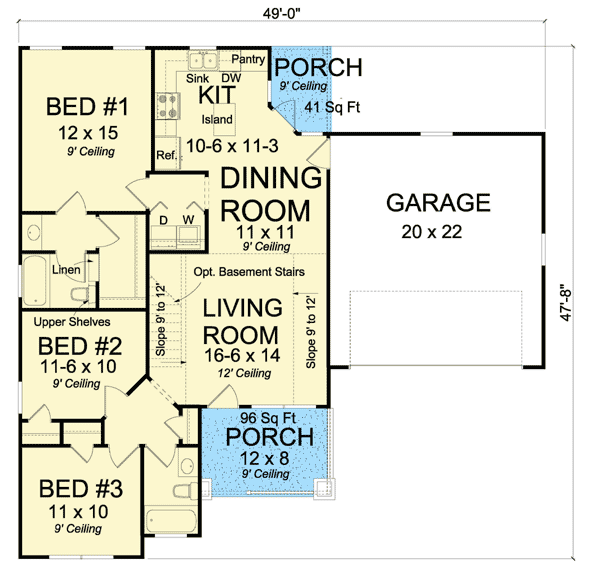

Main Level
floor plan image Main Level
Plan Details
  • Snug and cozy, this Cottage home plan packs a lot into its 1163 square feet of living space.
  • The main living area is all open from front to back, making the home feel larger.
  • The living room ceiling is raised to 12' while the dining room and kitchen have the standard 9' height.
  • A side porch off the kitchen give you room for grilling.
  • The master bedroom is located in the rear close to the laundry closet, while the two family bedrooms are near the front of the home.
  • Related Plans: Get more room with house plan 52230WM (1,381 sq. ft.). And remove the garage with house plan 52228WM (1,163 sq. ft.) and 52231WM (1,381 sq. ft.).
What's Included
  • Front elevation and construction notes

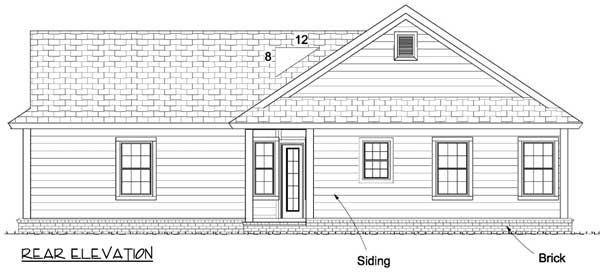

  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,163 sq. ft.

1st Floor

1,163 sq. ft.

Porch, Front

96 sq. ft.

Porch, Rear

41 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 0"

Depth

47' 8"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

440 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor
