Plan 62712DJ
Cozy Cottage with Bunk Room
Heated S.F.
1,096
Beds
2
Baths
1
Stories
1
Floor Plan

Plan 62712DJ

Main Level
slide image 0

Plan 62712DJ

1-800-854-7852

1-262-521-4596

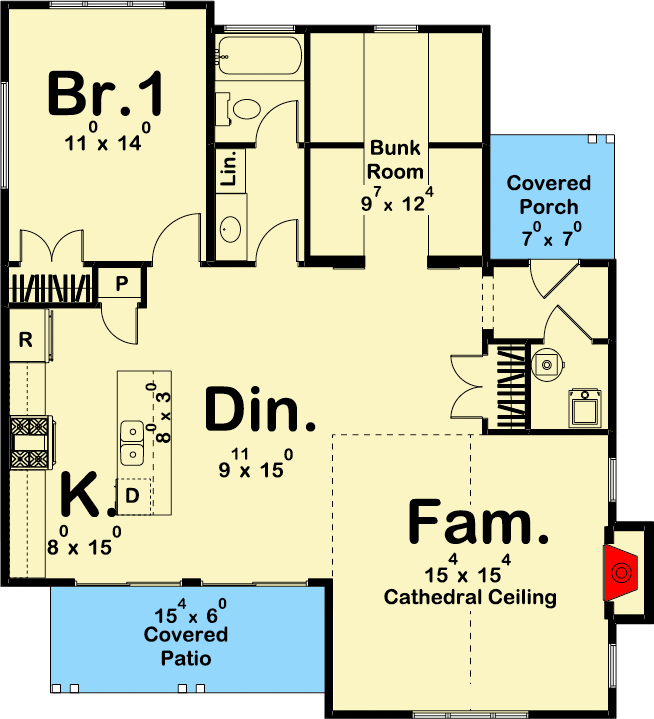

Main Level
floor plan image Main Level
Plan Details

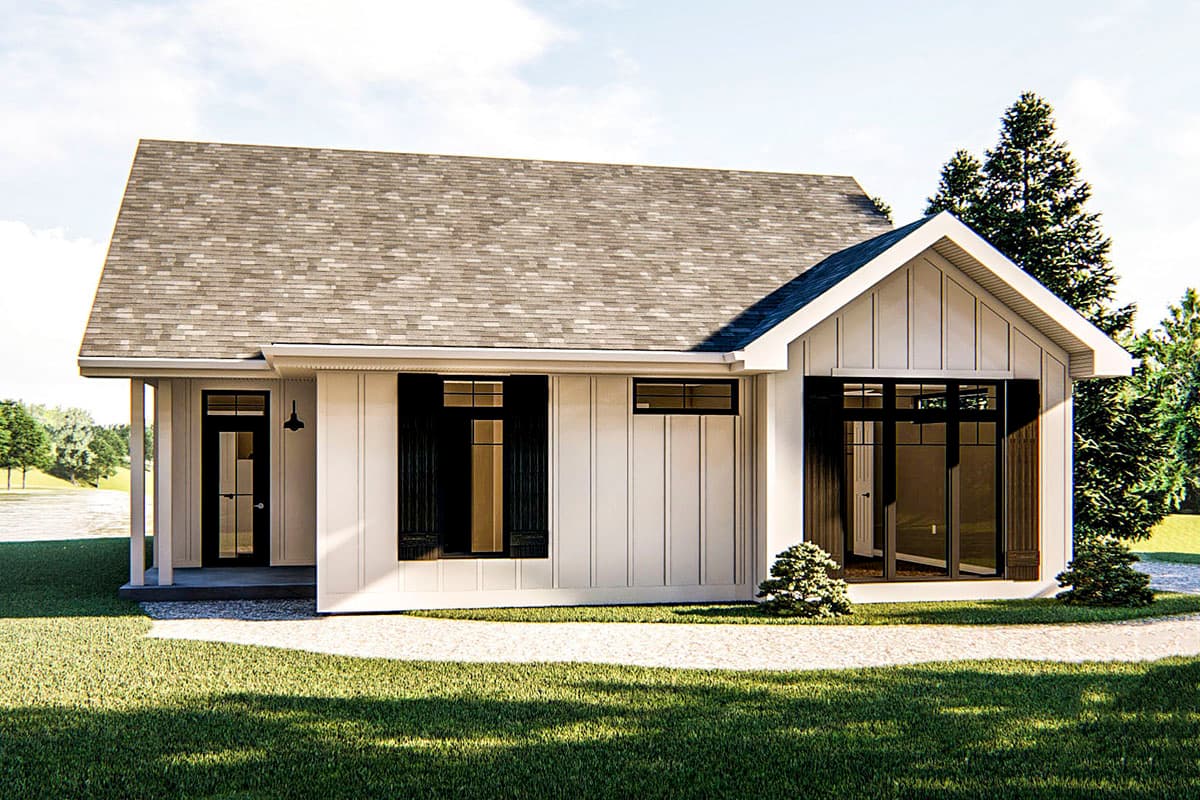

  • Board and batten siding a a front porch accessible from both the kitchen and dining room welcome you to the front of this modern farmhouse cottage house plan.
  • Inside a large family room with cathedral ceiling flows into a dining room and open full sized kitchen.
  • This cottage-like plan has room for plenty of people with 1 bedroom and 1 bunk room with 8 bunks.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,096 sq. ft.

1st Floor

1,096 sq. ft.

Porch, Front

91 sq. ft.

Porch, Rear

49 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

36' 0"

Depth

40' 0"

Max Ridge Height

21' 0"

Architectural Style

Coastal

Cottage

Farmhouse

Mountain

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,096 sq. ft.

1st Floor

1,096 sq. ft.

Porch, Front

91 sq. ft.

Porch, Rear

49 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

36' 0"

Depth

40' 0"

Max Ridge Height

21' 0"

Architectural Style

Coastal

Cottage

Farmhouse

Mountain

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor
