Plan 51743HZ
Cozy Cottage with Carport in Back
Heated S.F.
2,155
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 51743HZ

Main Level
slide image 0

Plan 51743HZ

1-800-854-7852

1-262-521-4596

Main Level

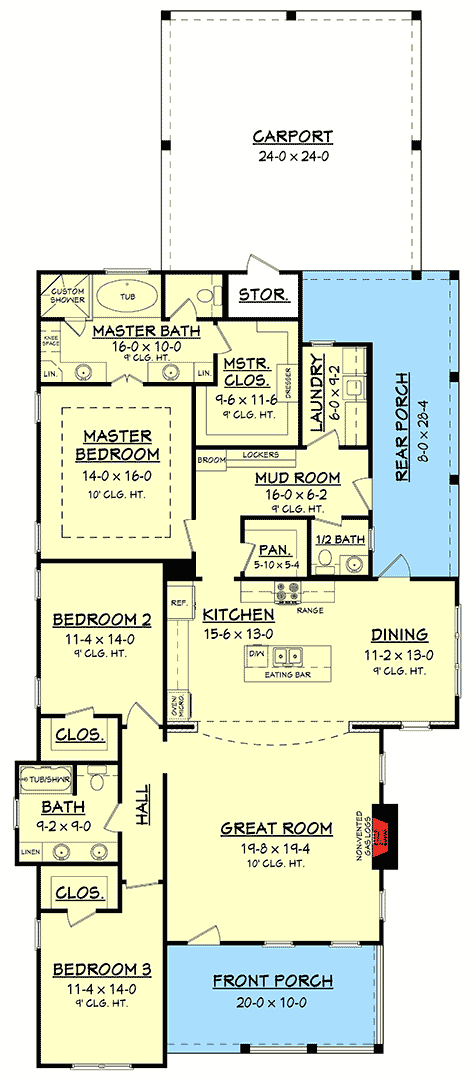

floor plan image Main Level
Plan Details
  • This 3 bedroom cottage has a cozy front porch and at just 41'-wide is suited for a narrow lot. The dormer in front is decorative and adds to the charm of the home.
  • The first room you enter off the porch is the great room with 10'-ceilings and a fireplace on the right wall. An arched opening leads to the kitchen and dining area. From the kitchen island you have unobstructed views to the front of the home.
  • Two bedrooms share a bath between them and the master bedroom is in the back of the home. It features an oversized closet and a private bath.
  • There is a mudroom off the rear porch and laundry and a half bath there as well.
  • A carport in back has room for two cars.
  • Related Plan: Get a 4 bed version with house plan 51744HZ.
What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

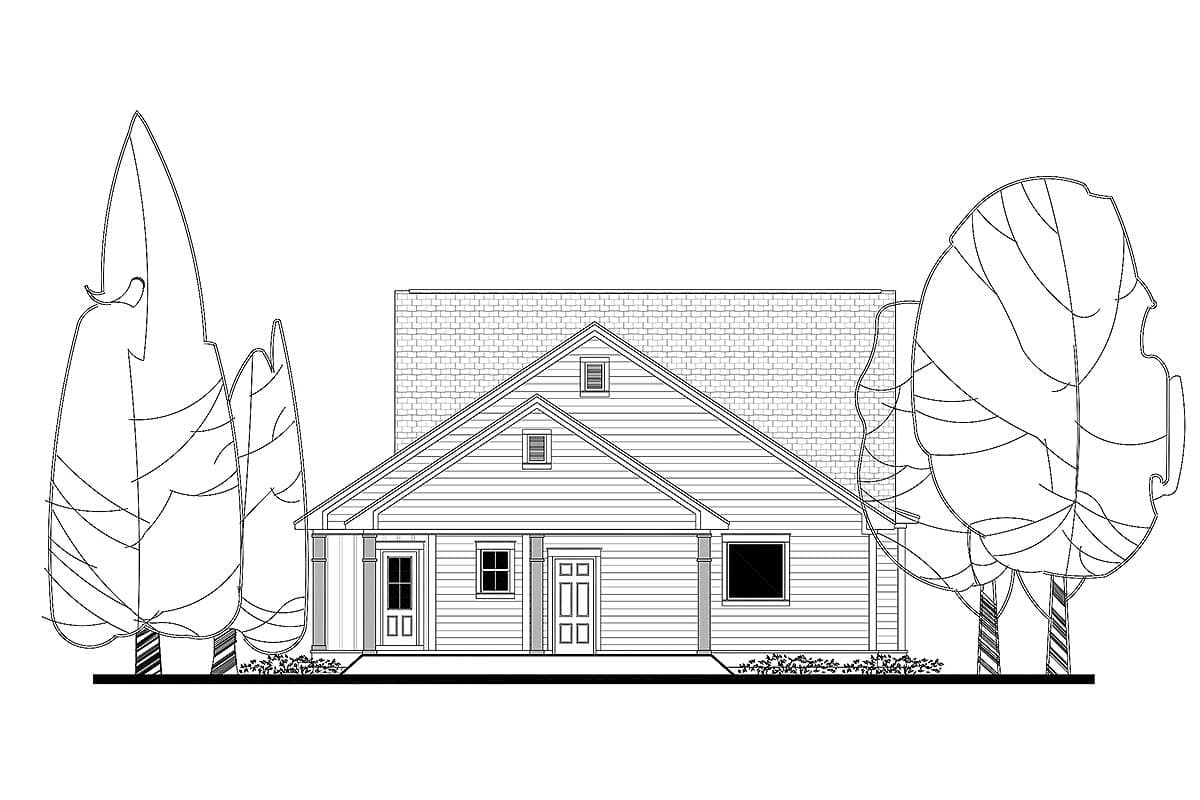

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,155 sq. ft.

1st Floor

2,155 sq. ft.

Carport

576 sq. ft.

Porch, Front

200 sq. ft.

Porch, Rear

270 sq. ft.

Storage

30 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

41' 0"

Depth

97' 8"

Max Ridge Height

24' 6"

Garage

Type

Carport

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Room

Ceiling Type

Height

Great Room

10' 0''

Master Bedroom

Tray

10' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Craftsman

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery

USDA Approved

Square Footage Breakdown

Total Heated Area

2,155 sq. ft.

1st Floor

2,155 sq. ft.

Carport

576 sq. ft.

Porch, Front

200 sq. ft.

Porch, Rear

270 sq. ft.

Storage

30 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

41' 0"

Depth

97' 8"

Max Ridge Height

24' 6"

Garage

Type

Carport

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Room

Ceiling Type

Height

Great Room

10' 0''

Master Bedroom

Tray

10' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Craftsman

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery

USDA Approved
