Plan 59186ND
Cozy Historical Home
Heated S.F.
1,836
Beds
2 - 3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 59186ND

Main Level
slide image 0
2nd Floor
slide image 1

Plan 59186ND

1-800-854-7852

1-262-521-4596

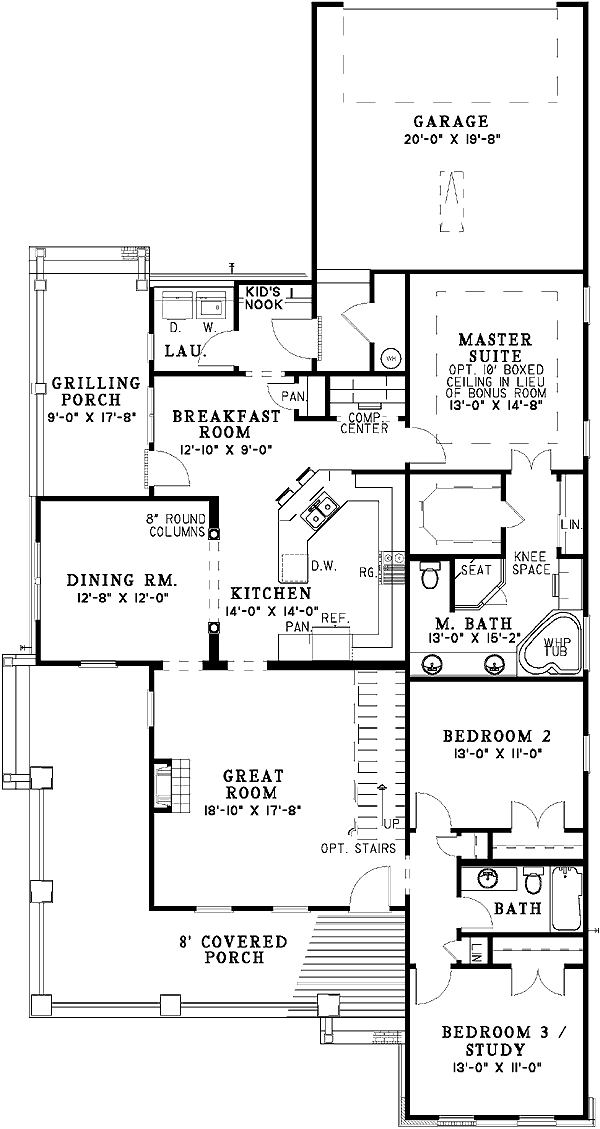

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

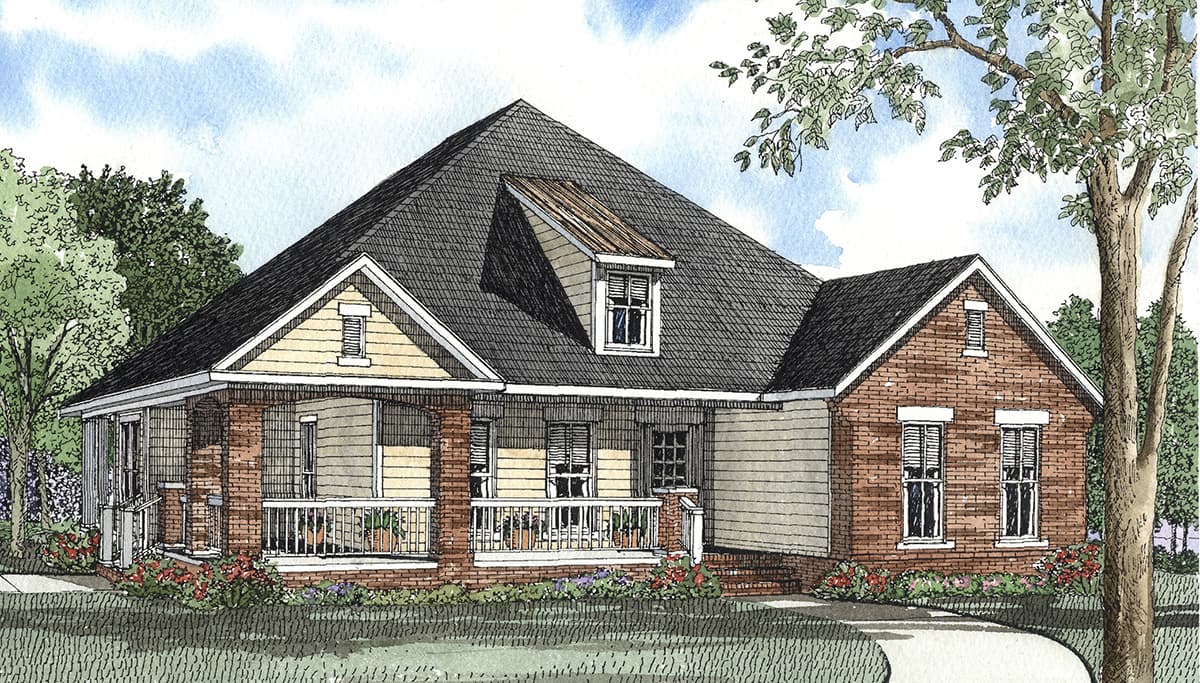

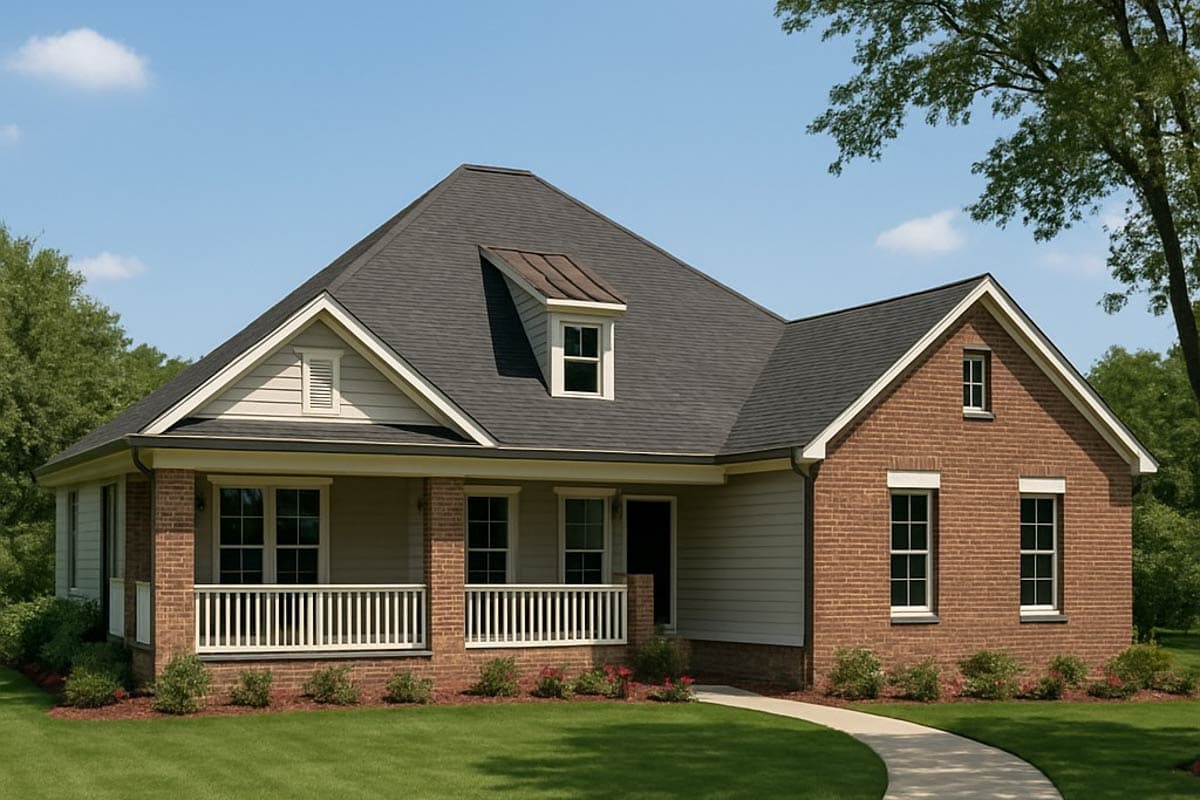

  • Enjoy this cozy historical home plan featuring a corner wrapped wooden porch and large brick columns with railing.
  • This split bedroom house plan has a great room immediately upon entry with access to the two bedrooms and full bathroom.
  • An efficient kitchen with an angled bar counter allows for additional seating and adjoins a large breakfast room with a built-in computer center and access to a side grilling porch.
  • Also nearby is a convenient kid's nook located near the rear load garage entry.
  • The luxurious master suite bedroom is enhanced with an optional ten-foot boxed ceiling and has French door access to the master bathroom packed with amenities.
  • An optional bonus room is available upstairs for future needs.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,836 sq. ft.

1st Floor

1,836 sq. ft.

Bonus

1,116 sq. ft.

Porch, Front

380 sq. ft.

Porch, Rear

160 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

41' 10"

Depth

83' 8"

Max Ridge Height

26' 8"

Garage

Type

Attached

Area

466 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Craftsman

Special Features

Bedrooms - Clustered

Bonus Room

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor
