Plan 57194HA
Cozy Vacation Retreat
Heated S.F.
1,391
Beds
2
Baths
1
Stories
1-2
Floor Plan

Plan 57194HA

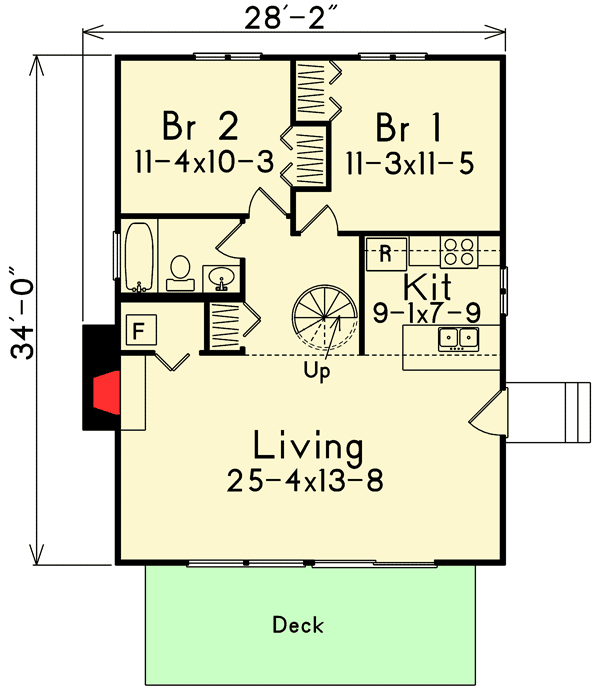

Main Level
slide image 0

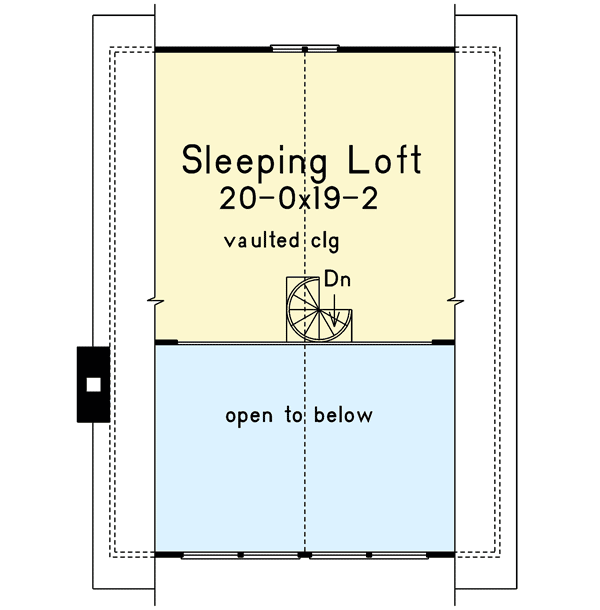

2nd Floor
slide image 1

Plan 57194HA

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Large living room with masonry fireplace features soaring vaulted ceiling.
  • A spiral staircase in hall leads to a huge loft area overlooking living room below.
  • Two first floor bedrooms share a full bath.
What's Included
  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,391 sq. ft.

1st Floor

884 sq. ft.

2nd Floor

507 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl, Pier

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

28' 0"

Depth

34' 0"

Ceiling Heights

First Floor

8'

Second Floor

7'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor
