Plan 86333HH
Craftsman Beauty with 3-Car Garage
Heated S.F.
2,598
Beds
3
Baths
2.5
Stories
2
Cars
3
Floor Plan

Plan 86333HH

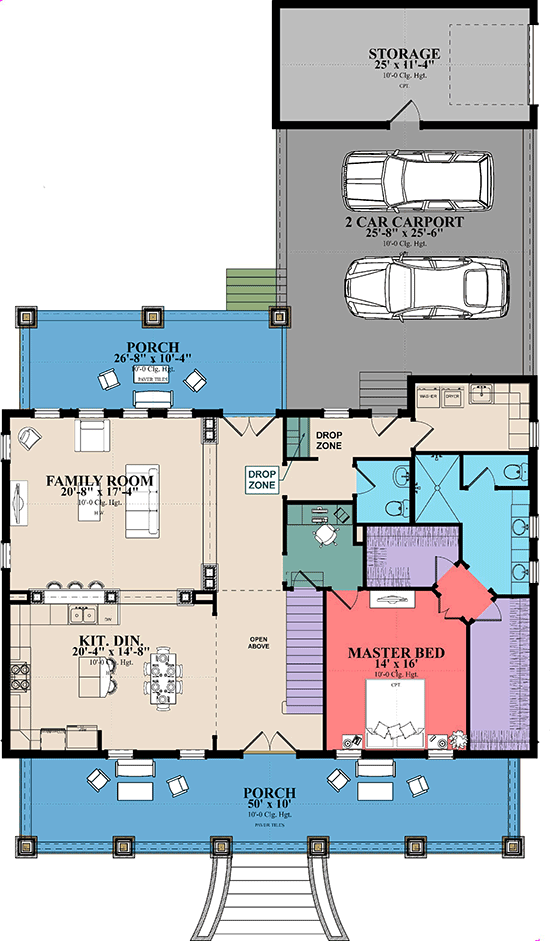

Main Level
slide image 0

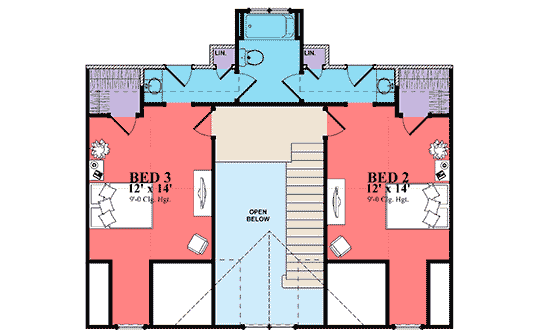

2nd Floor
slide image 1

Plan 86333HH

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • A pair of matching dormers flank a center gable creating great symmetry in this 3-bed Craftsman house plan. The porches - both 10' deep - give you room for furniture and outdoor living.
  • The foyer is open to above creating a great welcome inside. The foyer has front to back views and leads you to the combined kitchen and dining room space.
  • Casual seating at the kitchen counter helps connect the family room and kitchen both functionally and visually.
  • Nice touches include the drop zone in the back entry with lockers to control clutter and a built-in work desk behind the stairs.
  • The master suite is on the main floor and gives you two walk-in closets.
  • Upstairs, two bedrooms share a jack and jill bath views to the foyer below from the landing loft.
  • Related Plan: Get a 2-car garage with house plan 86215HH.
What's Included
  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,598 sq. ft.

1st Floor

1,908 sq. ft.

2nd Floor

690 sq. ft.

Porch, Combined

750 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

53' 6"

Depth

85' 4"

Max Ridge Height

27' 10"

Garage

Type

Carport

Area

1001 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Country

Craftsman

Special Features

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,598 sq. ft.

1st Floor

1,908 sq. ft.

2nd Floor

690 sq. ft.

Porch, Combined

750 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

53' 6"

Depth

85' 4"

Max Ridge Height

27' 10"

Garage

Type

Carport

Area

1001 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Country

Craftsman

Special Features

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 1st Floor
