Plan 765033TWN
Craftsman Carriage House Plan with Extra-Deep Garage - 1085 Sq Ft
Heated S.F.
1,085
Beds
2
Baths
1 - 2
Stories
2
Cars
2
Floor Plan

Plan 765033TWN

Main Level
slide image 0
Second Floor - Option A
slide image 1
Second Floor - Option B
slide image 2

Plan 765033TWN

1-800-854-7852

1-262-521-4596

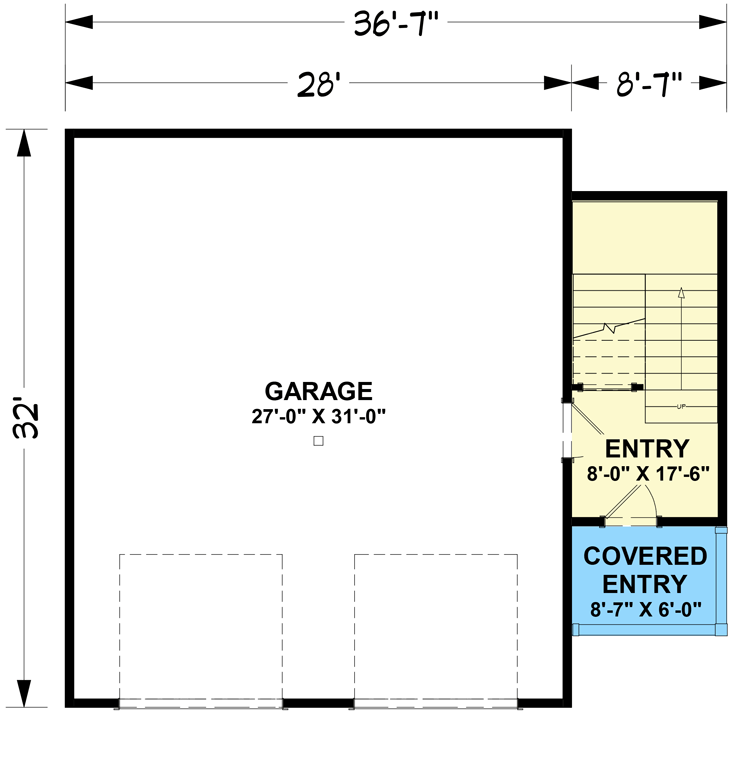

Main Level
floor plan image Main Level

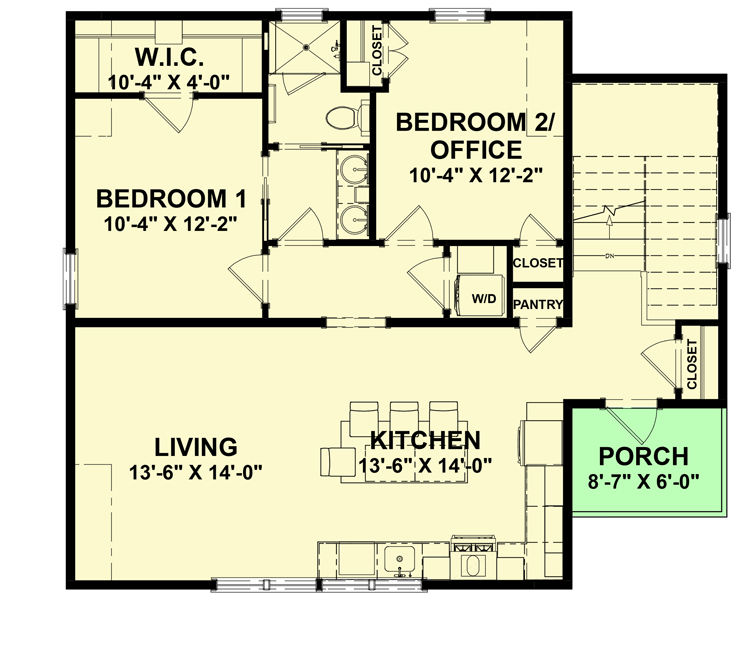

Second Floor - Option A
floor plan image Second Floor - Option A

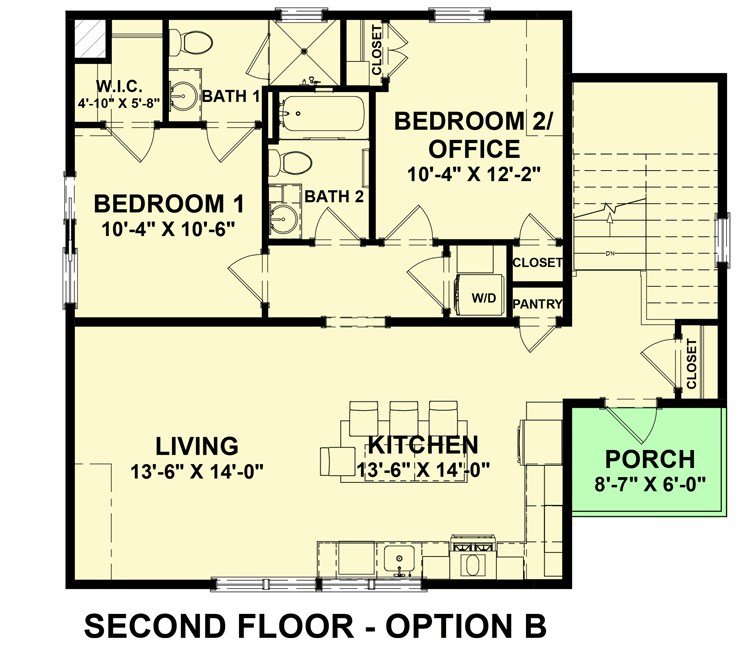

Second Floor - Option B
floor plan image Second Floor - Option B
Plan Details
  • This Craftsman Carriage house plan features two overhead garage doors on the front elevation that open to an extra-deep 27' by 31' garage.
  • To the right of the garage, you will find a covered entry that permits access to the second-level apartment.
  • The living room and kitchen combo is forward facing and presents an eating bar at the island.
  • The flexible floor plan presents two options for the bedroom layout with the possible addition of a second bathroom.
What's Included
  • Cover sheet with general notes
  • Foundation page
  • Detailed floor plans
  • Roof plan
  • Electrical plans
  • Elevations
  • Typical wall section and cross section
  • General details
  • Cabinet elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,085 sq. ft.

1st Floor

159 sq. ft.

2nd Floor

926 sq. ft.

Porch, Front

52 sq. ft.

Porch, Combined

54 sq. ft.

Deck

54 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1 or 2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 7"

Depth

32' 0"

Max Ridge Height

29' 7"

Garage

Type

Detached

Area

896 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Carriage

Colonial

Country

Southern

Traditional

Special Features

Bedrooms - Clustered

Home Office

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

ADU

Tiny Home House Plans

Square Footage Breakdown

Total Heated Area

1,085 sq. ft.

1st Floor

159 sq. ft.

2nd Floor

926 sq. ft.

Porch, Front

52 sq. ft.

Porch, Combined

54 sq. ft.

Deck

54 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1 or 2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 7"

Depth

32' 0"

Max Ridge Height

29' 7"

Garage

Type

Detached

Area

896 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Carriage

Colonial

Country

Southern

Traditional

Special Features

Bedrooms - Clustered

Home Office

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

ADU

Tiny Home House Plans
