Plan 59767ND
Craftsman Cottage Built for Entertaining - 1654 Sq Ft
Heated S.F.
1,654
Beds
3
Baths
2.5
Stories
2
Cars
2
Floor Plan

Plan 59767ND

Main Level
slide image 0
2nd Floor
slide image 1

Plan 59767ND

1-800-854-7852

1-262-521-4596

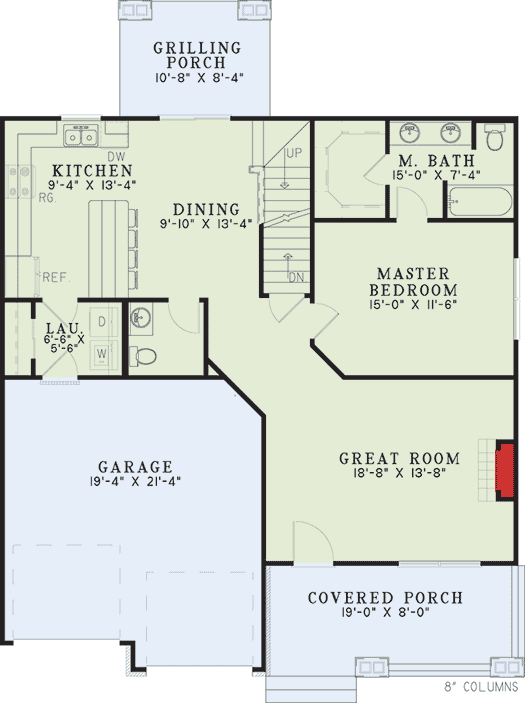

Main Level
floor plan image Main Level

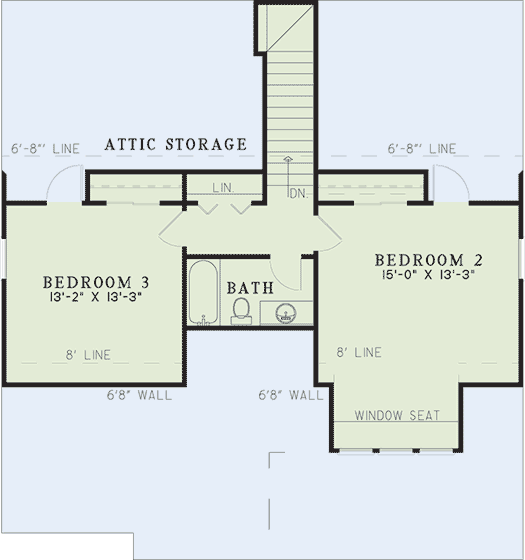

2nd Floor
floor plan image 2nd Floor
Plan Details

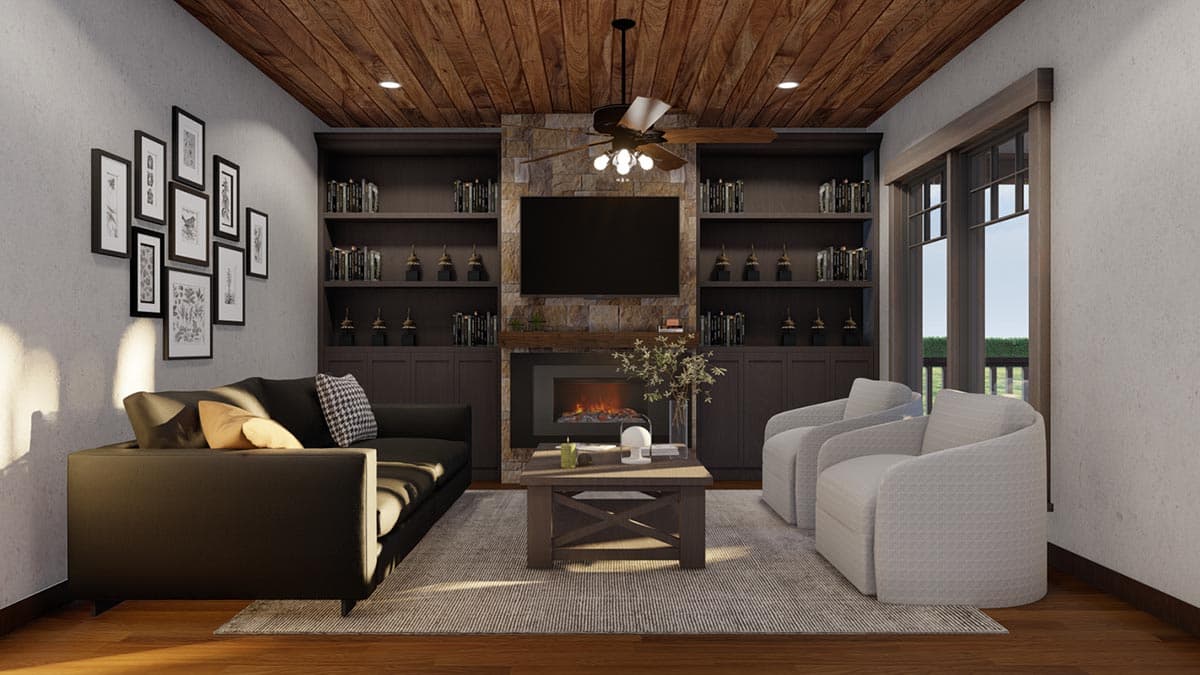

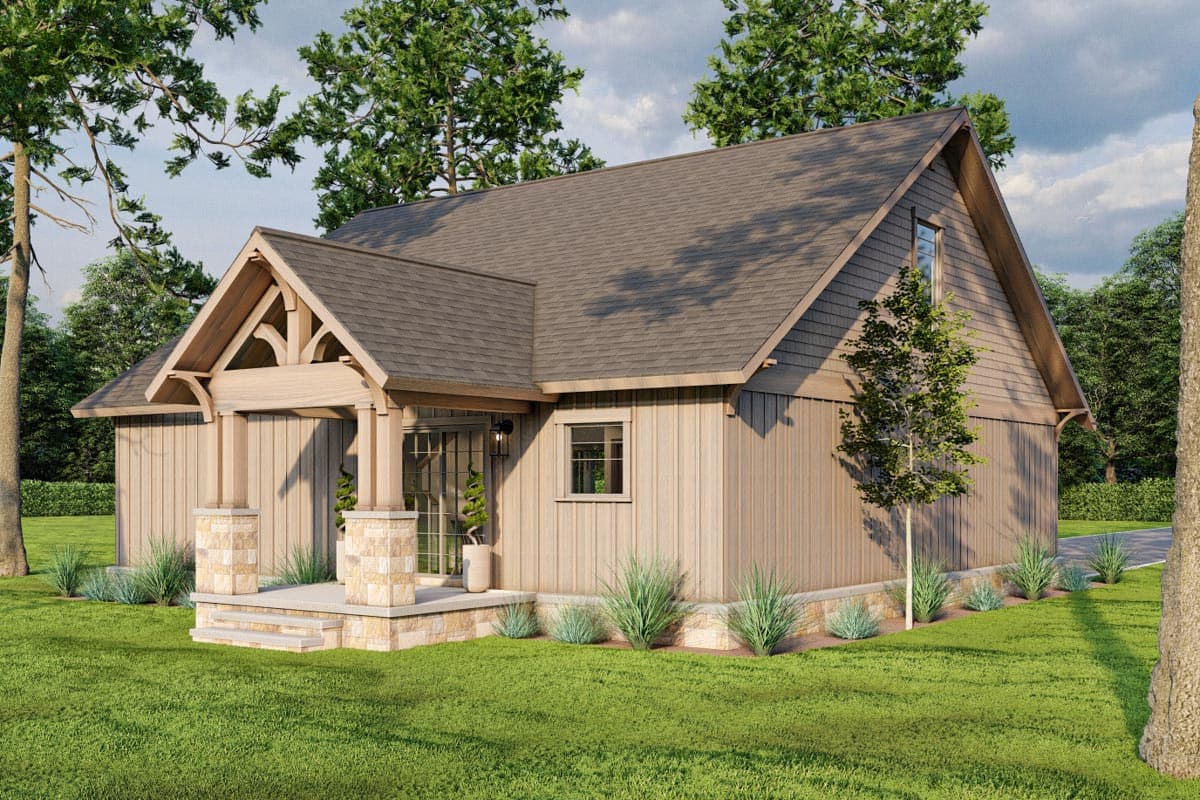

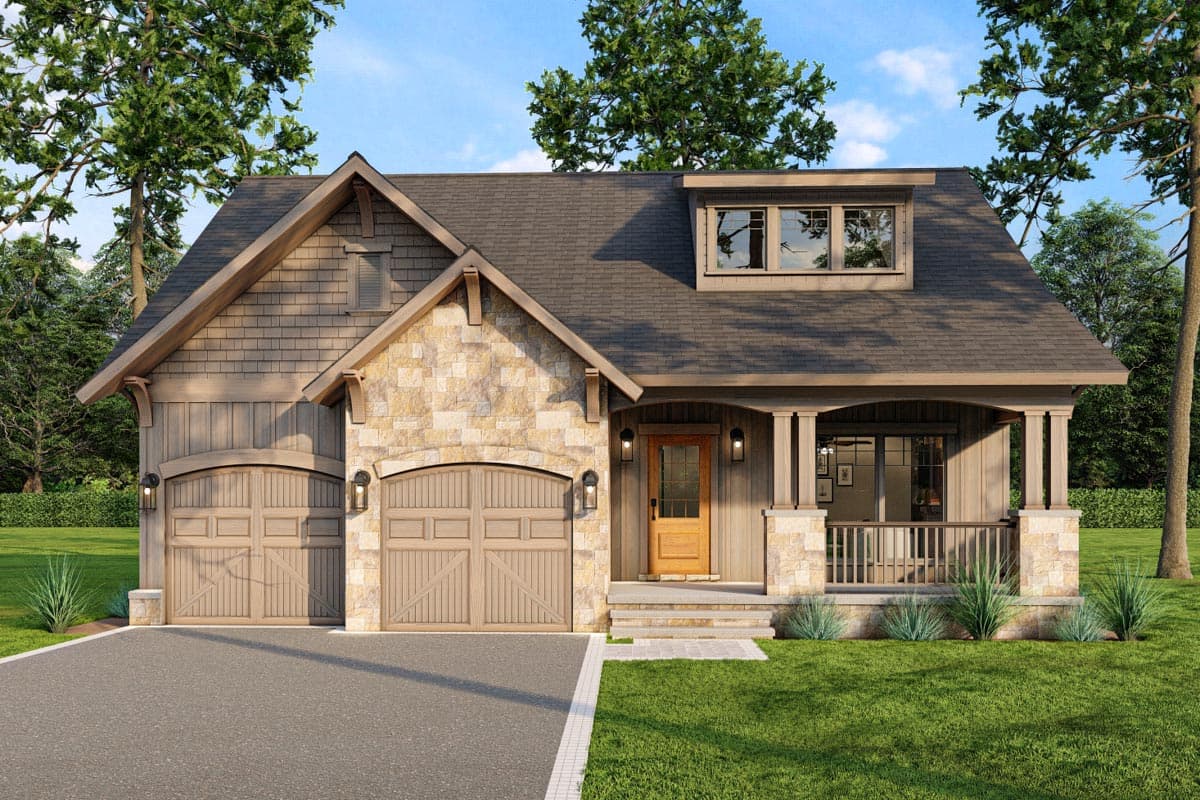

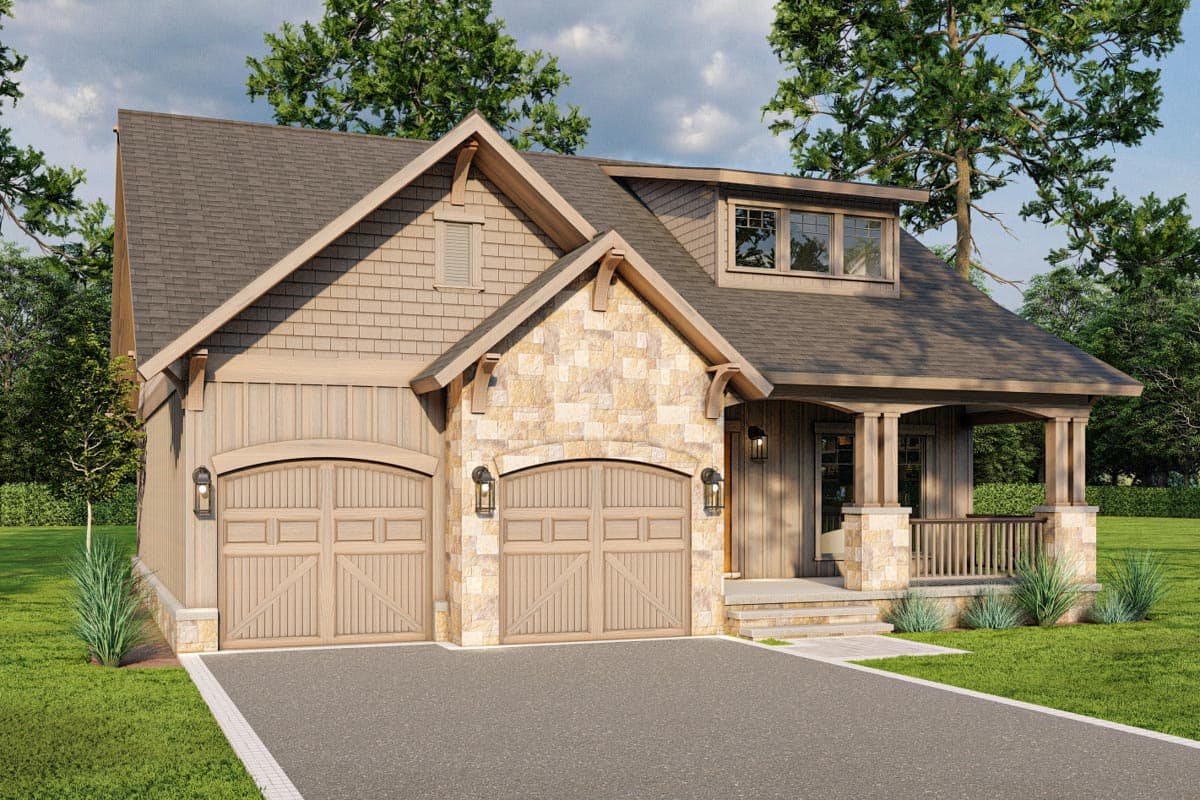

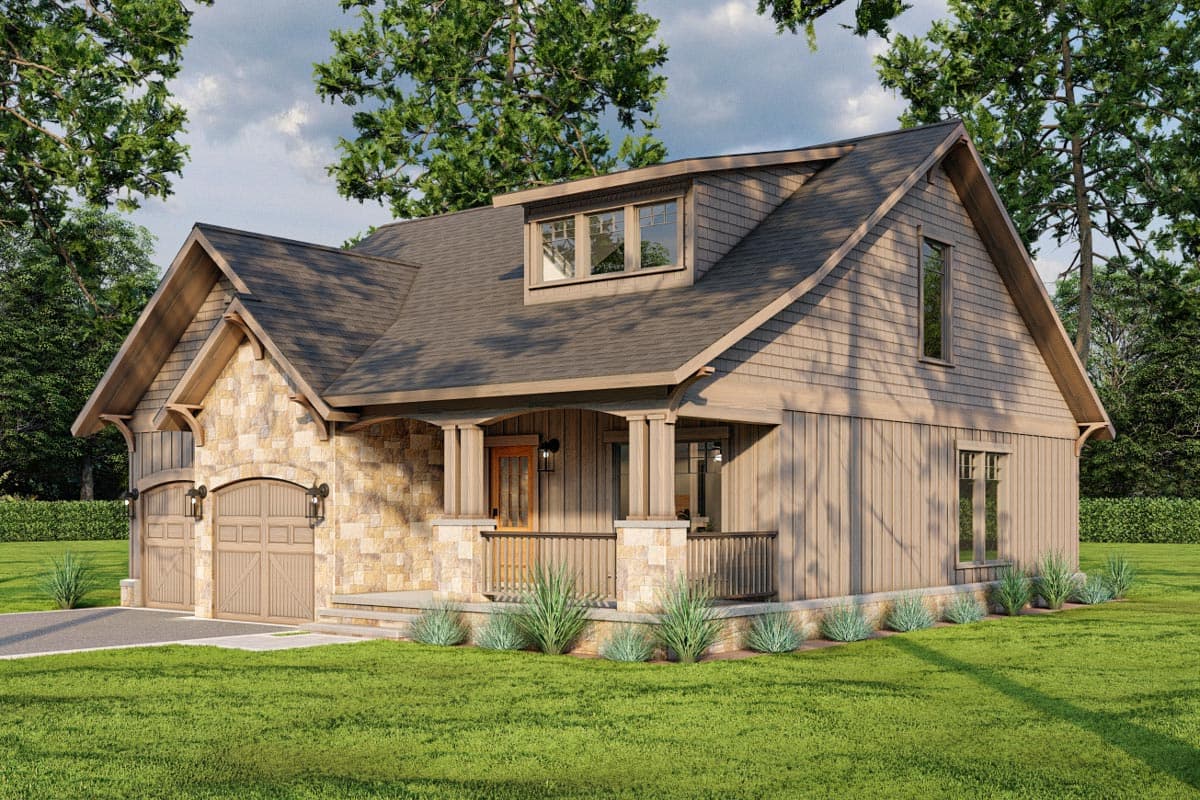

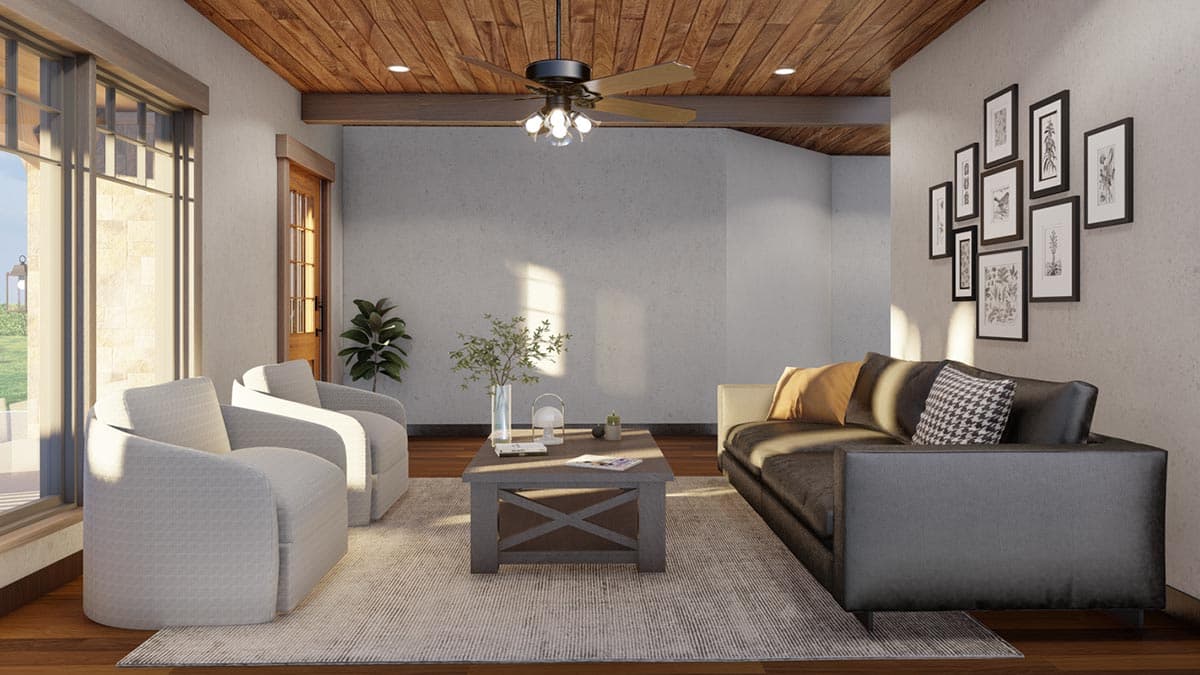

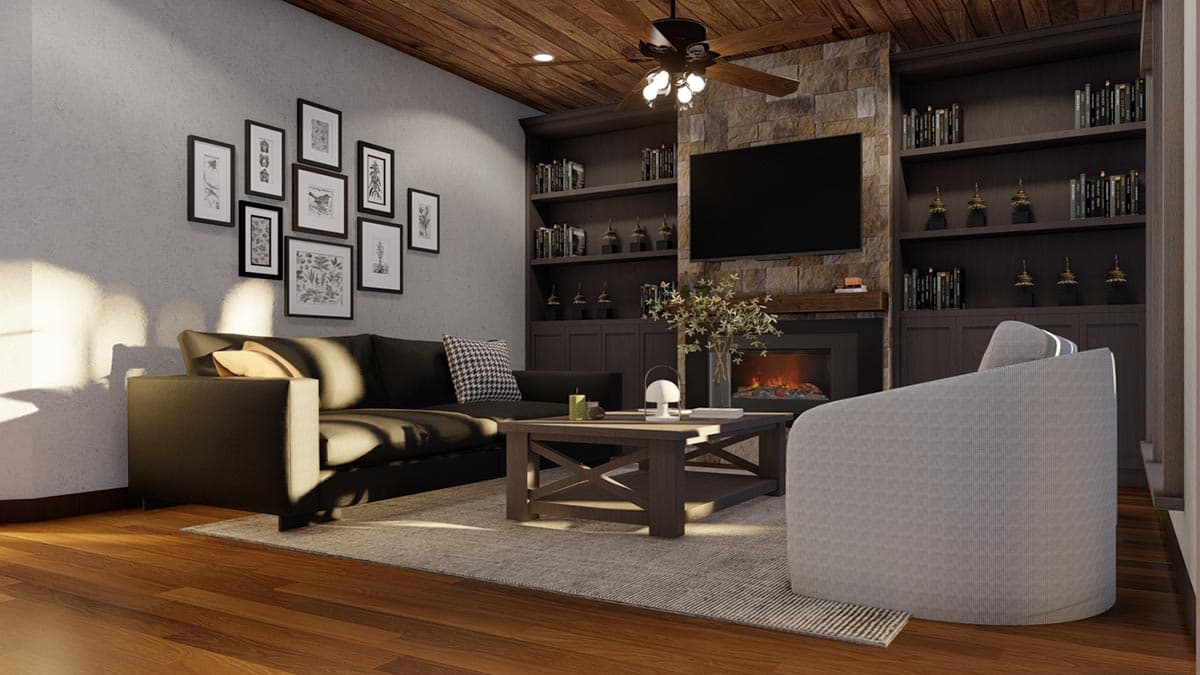

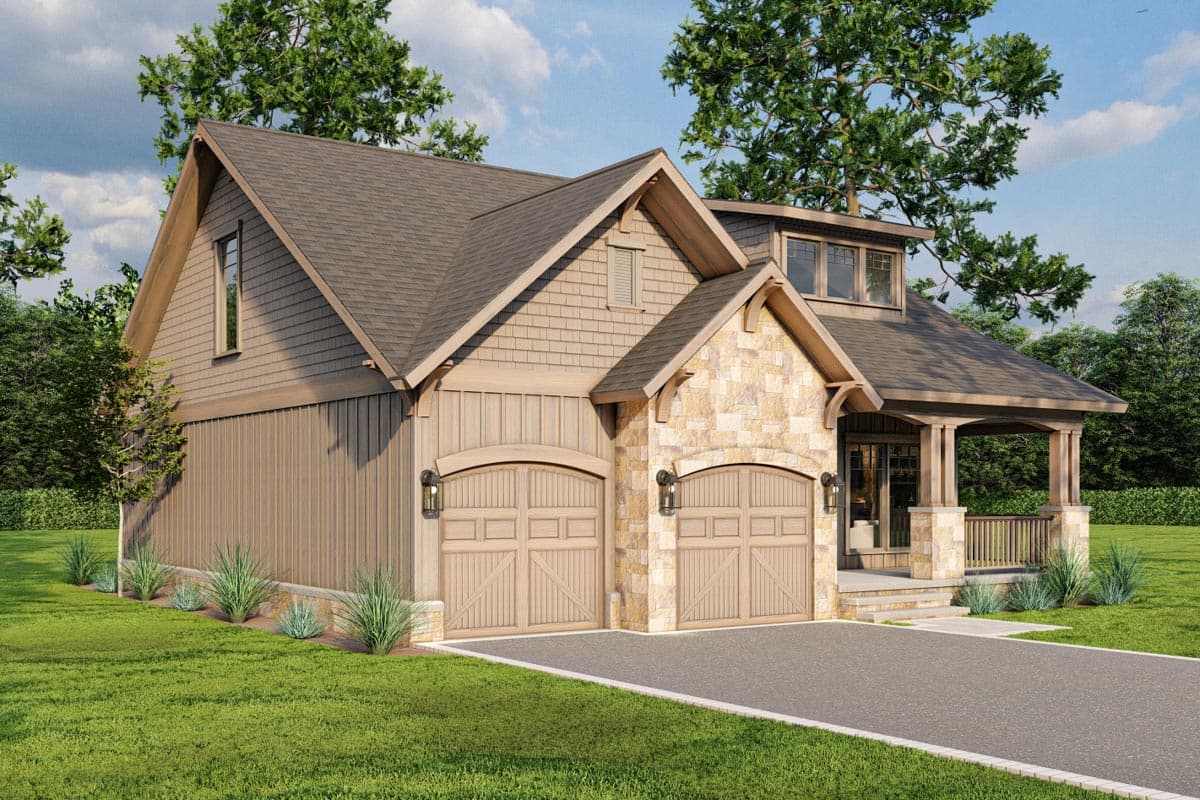

  • An arched covered porch and carriage style garage doors add great street appeal to this Craftsman home plan. Enjoy entertaining friends and family in your large great room with a sliding glass door for back yard grilling.

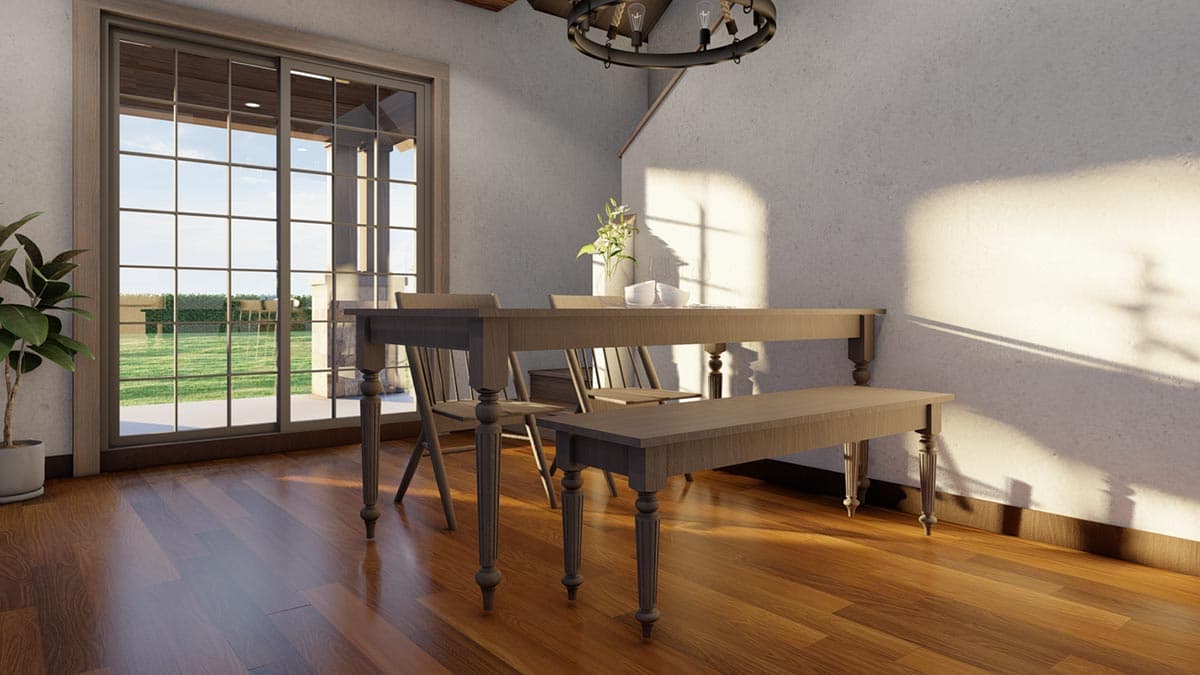

  • The open dining room has plenty of light while viewing the rear yard.
  • The master suite has plenty of wall space for large furniture, a private bathroom and an extra large walk-in closet.

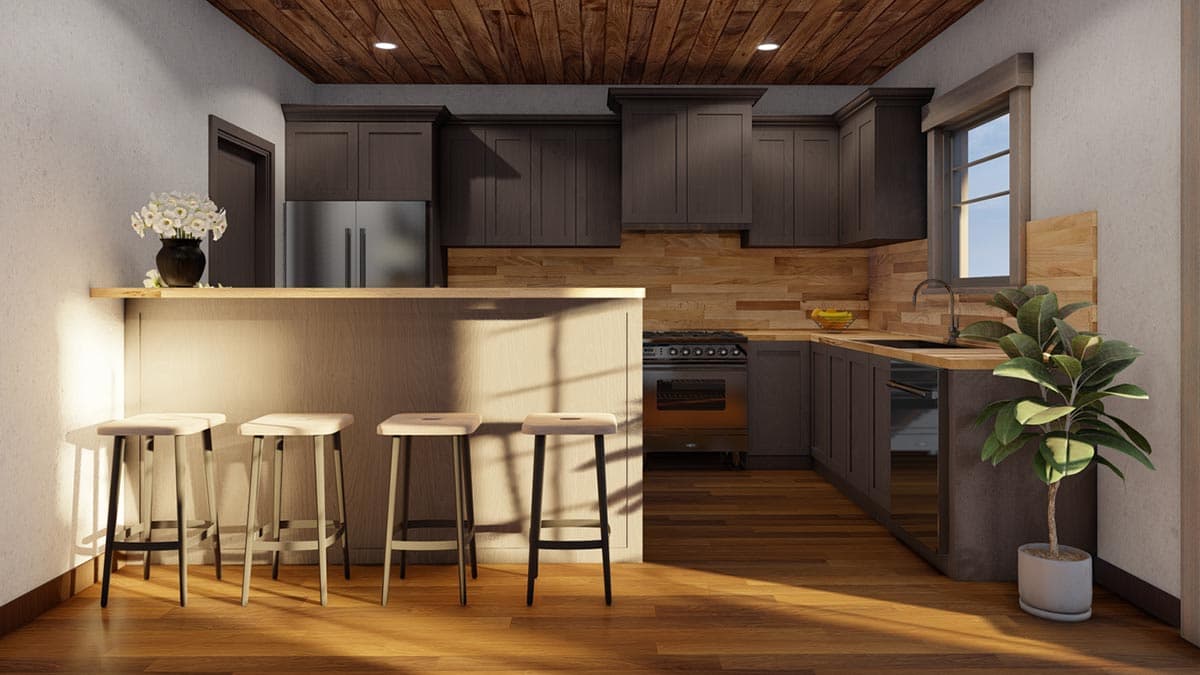

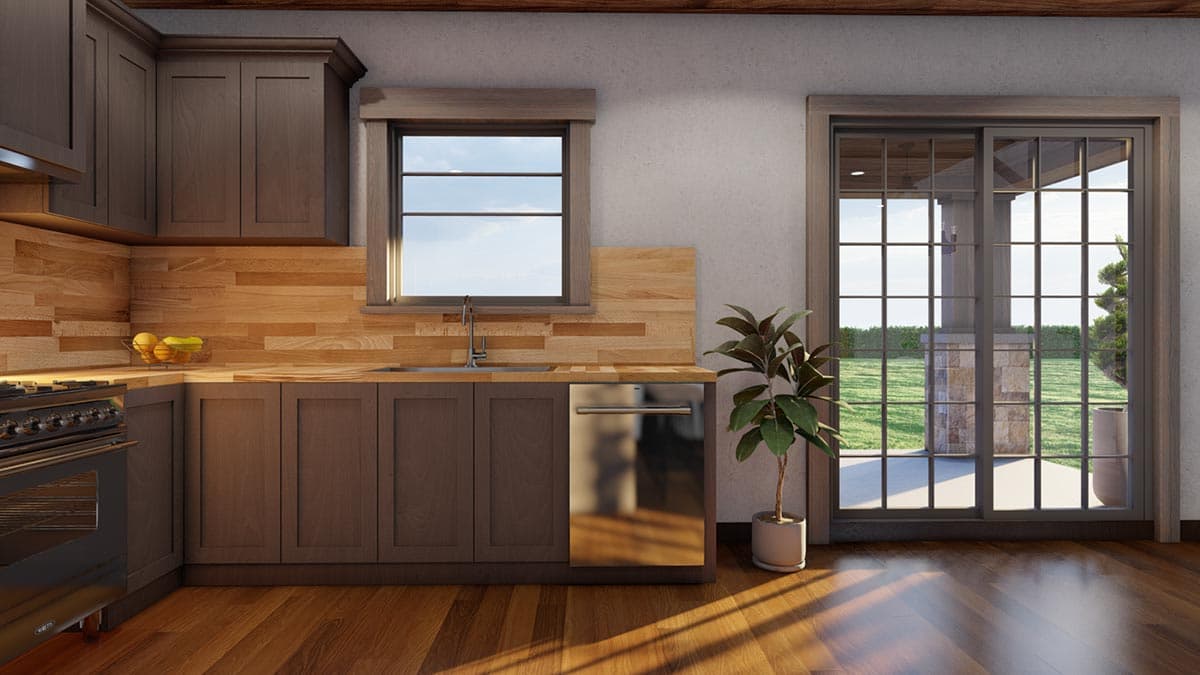

  • For convenience, the garage access is located in the kitchen area as well as a half bath.
  • The upper floor features a full bath and two spacious bedrooms with unique ceilings.
  • Related Plan: Get an alternate exterior with house plan 59302ND.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,654 sq. ft.

1st Floor

1,048 sq. ft.

2nd Floor

606 sq. ft.

Porch, Combined

246 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

39' 0"

Depth

50' 2"

Max Ridge Height

25' 8"

Garage

Type

Attached

Area

411 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Cottage

Country

Craftsman

Mountain

Rustic

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
