Craftsman Cottage with One-Level Living - 1580 Sq Ft
Heated S.F.
1,580
Beds
2 - 3
Baths
2.5
Stories
1
Cars
2
Photos
Floor Plan

Plan 6920AM

Main Level
slide image 0
Basement Stair Location
slide image 1

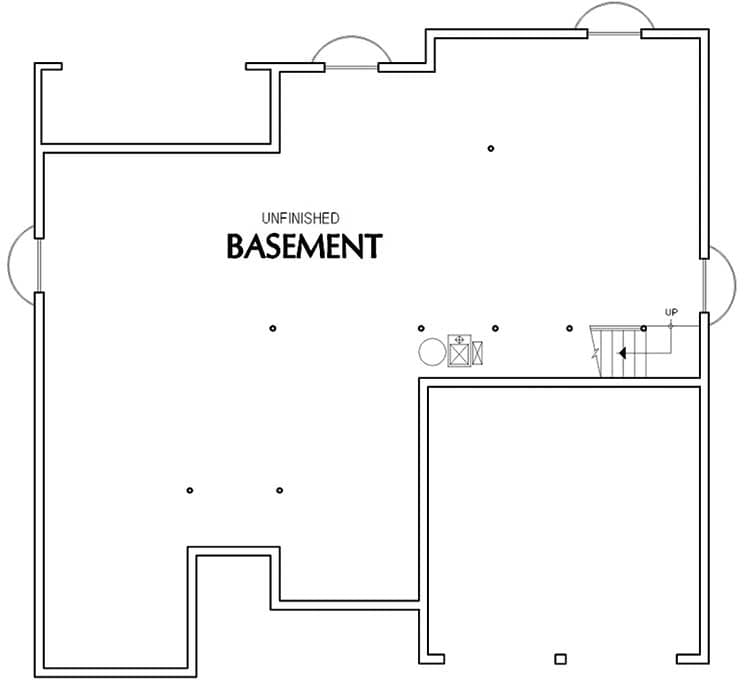

Basement
slide image 2

Plan 6920AM

1-800-854-7852

1-262-521-4596

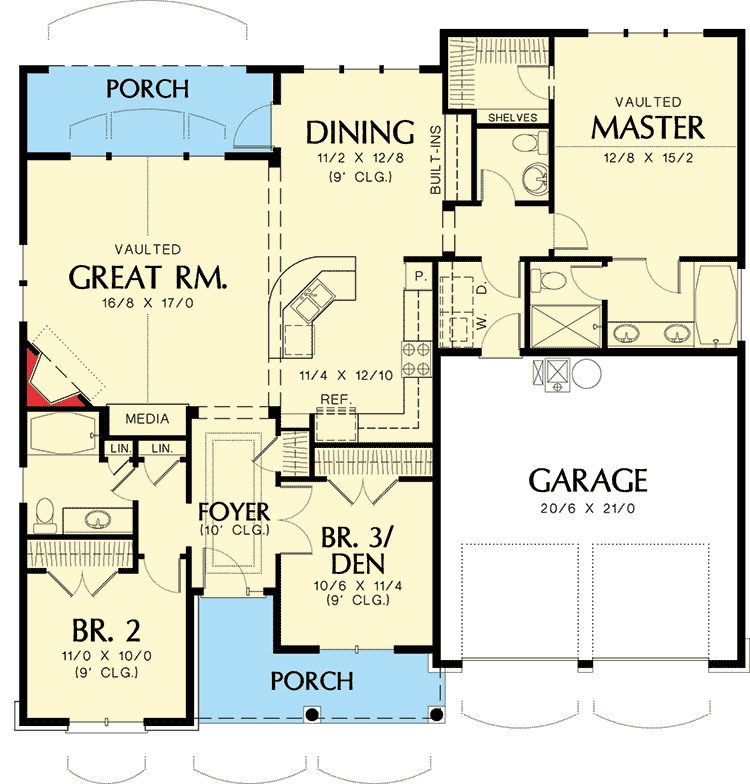

Main Level
floor plan image Main Level

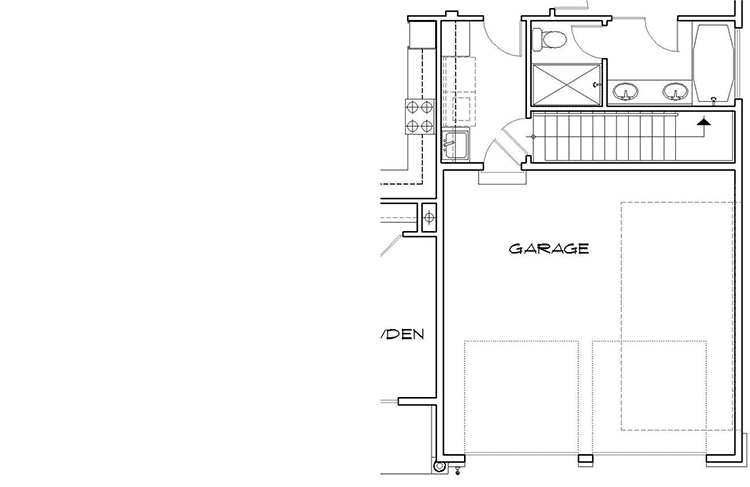

Basement Stair Location
floor plan image Basement Stair Location
Basement
floor plan image Basement
Plan Details
  • The facade of this Craftsman cottage offers cedar shingles, stone accents and a columned front porch. A shuttered window brightens the foyer, while an arched dormer window lights the garage.
  • The interior living space centers around a vaulted great room with its corner hearth and convenient media center. Arch-top windows overlook the covered rear porch which is also accessed from the dining room via a French door.
  • The kitchen features a pantry closet, built-in bookshelves and an angled work island with a snack bar on one side and double sinks on the other.
  • The hall bath serves bedroom two and the den/bedroom three. The master suite comprises a vaulted bedroom, a walk-in closet and a pampering master bath (14' x 6') with spa tub and separate shower.
  • The front porch is 17'6" wide and 5' deep. The rear porch is 17'6" wide and 6' deep.
  • Related Plan: Get a finished lower level with house plan 69661AM.
